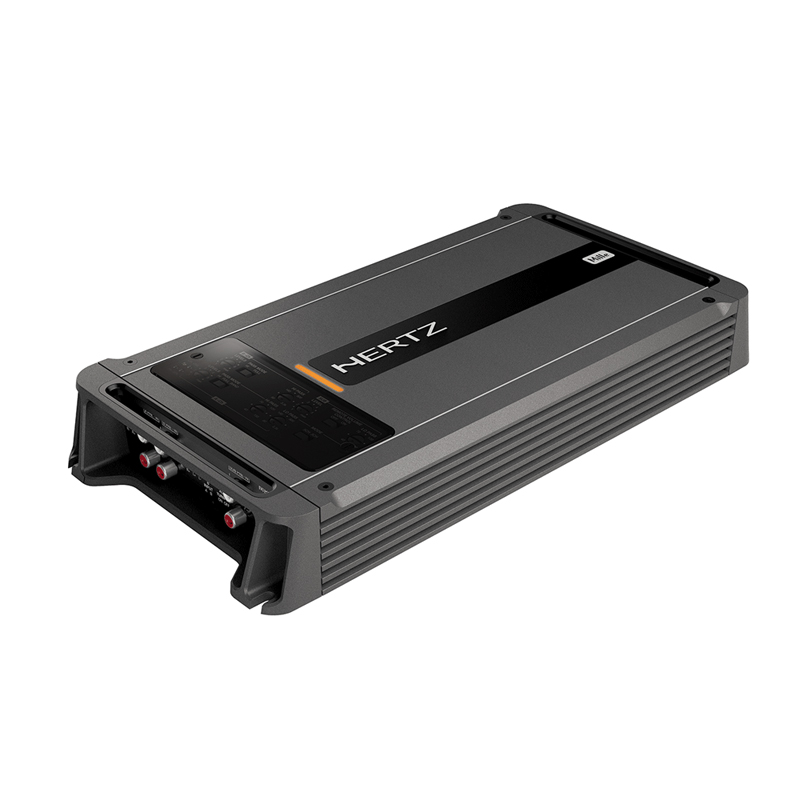

ML Power 5 D-CLASS FIVE CHANNEL AMPLIFIER
The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
- Low Frequency Response : 40-150 Hz
- High Frequency Response : 80-3300 Hz
- Number of Channels : 5
- Frequency Response : 5-50000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 100x4 Watts
- Amplifier Class : D
- Fuse Rating : 40x2 A
- XP750-SE OFFER : Yes
Product Highlights:
- ADC (ADVANCED D-CLASS TECHNOLOGY) ensures hi-end acoustic response with unmatched power efficiency;
- Thermally optimized double extruded heat sink featuring die-cast aluminium ergonomic terminals;
- 100 W x 4 + 550 W x 1 (2Ω) RMS power boasting hi-end quality;
- Optional HRC BM for subwoofer volume control;
- Highly flexible crossover system allows full range or Hi-pass 12 dB/Oct. filter on A & B channels for front + rear configurations or Hi-Pass + Band-Pass on A & B channels for multichannel configurations and Lo-Pass 24 dB/ Oct filter on C channel for optimal subwoofer control;
- 3-Channel mode switch is provided to easily set up the amplifier for high power front speaker system + subwoofer to achieve up to 200 W x 2 (4Ω) + 550 W x 1 (2 Ω).

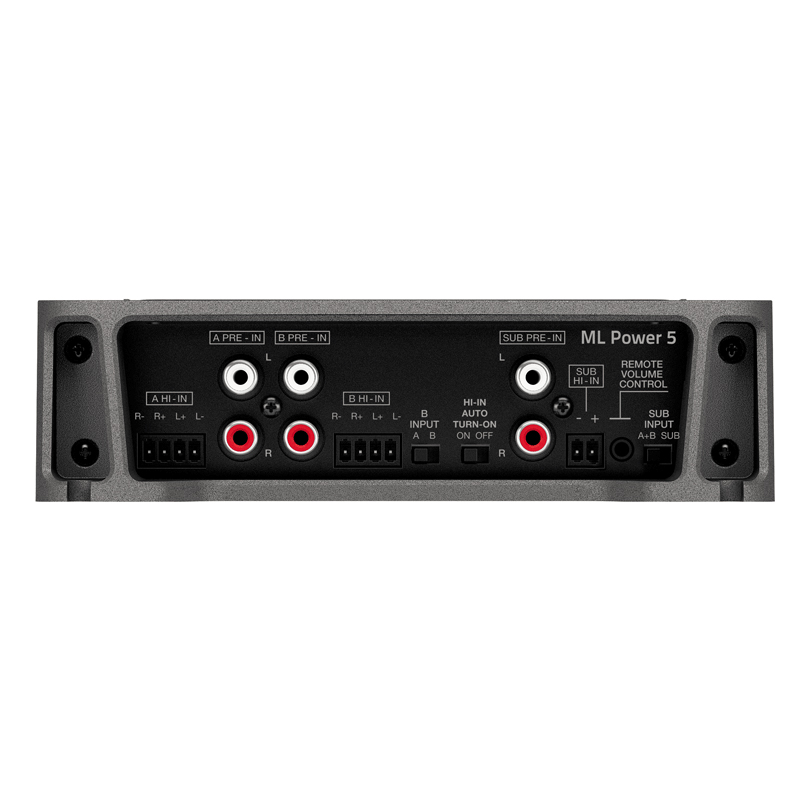

- ML Power IN with balanced Speaker In inputs for an increased noise rejection and RCA In;
- Operating status real time monitoring through 4 LEDs;
- Full range Pre-out also available when using Speaker Level In inputs;
- ART™ (Automatic Remote Turn On-Off).
Specifications:
- Channel mode: 5 - 3
- Output Power (RMS) @ 14.4 VDC:
- 5 Ch 70 W x 4 + 380 W x 1 (4 ohms)
- 5 Ch 100 W x 4 + 550 W x 1 (2 ohms)
- 3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4 ohms)
- 3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2 ohms)
- Filters:
- Hi-Pass A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
- Lo-Pass C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
- Band-Pass A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
- Distortion - THD (100Hz @ 4 ohms): 0.08 %
- S/N Ratio (A weighted @ 1V): 100 dB A & B Ch - 106 dB C Ch
- Damping factor (100Hz @ 4 ohms): 50 A & B Ch - 90 C Ch
- Size W x D x H mm (in.): 170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')
- UPC: 8018823122085
- Weight: 9
