Audison  AP4D

Prima Series 4-Channel 130W RMS x 4 at 2 Ohms, Class-D Car Amplifier

Item #54312

Product Highlights

  • Prima 4-Channel Amplifier
  • 130W RMS x 4
  • Class-D 2-Ohm Stable
  • High-Efficiency Design
  • Compact Car Amp

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Audison Banner

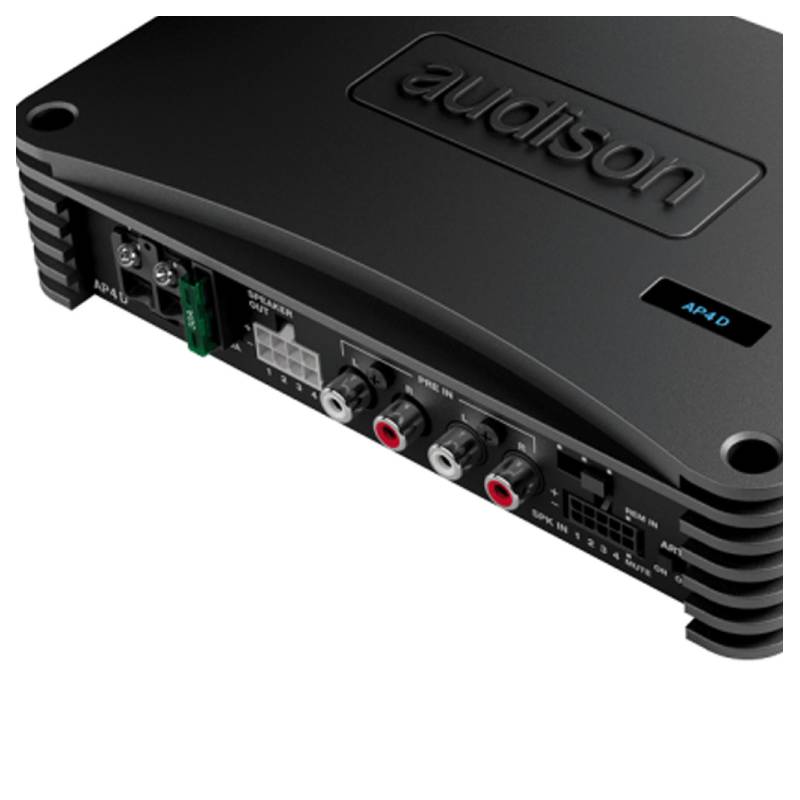

Audison AP4D - Prima Series 4-Channel 130W RMS x 4 at 2 Ohms, Class-D Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
AP4 D
Efficient, Power-Smart Design

Designed to operate reliably across a wide 7.5–15 VDC range, this unit ensures stable performance in any driving condition. With an idling current of just 1 amp, it delivers efficiency without sacrificing power. Ultra-low standby consumption of less than 0.05 mA protects your battery when the system is switched off.

Power Optimized for Performance

With a maximum musical power consumption of 27 A at 14.4 VDC, this system is built to deliver strong, dynamic output when it matters most. The low-draw remote input (7–15 VDC at just 1 mA) ensures efficient, reliable turn-on control. Protected by a 30 A fuse, it offers dependable power handling with peace of mind.


SPECIFICATIONS


  • Maximum Power : 520 Watts
  • Low Frequency Response : 10 Hz
  • High Frequency Response : 30000 Hz
  • Number of Channels : 4
  • Frequency Response : 10-30000 Hz
  • RMS Power Output : 130 Watts
  • Amplifier Class : D
  • Fuse Rating : 30 A

FEATURES


POWER SUPPLY:

  • Voltage: 7.5 ÷ 15 VDC
  • Idling current: 1 A
  • Switched off: <0.05 mA
  • Consumption @ 14.4 VDC 2? Max Musical Power (without CPL): 27 A
  • Remote IN 7 ÷ 15 VDC (1 mA)
  • Fuse 30 A



AMPLIFIER STAGE:

  • Distortion - THD @ 1 kHz, 4 Ω, 90% Output Power: 0.1 %
  • Bandwidth @ -3 dB, 2 V RMS, 4?: 10 ÷ 30k Hz
  • S/N ratio @ A weighted, 1,5V, Max Power: 100 dBA
  • Damping factor @ 1 kHz, 2 VRMS, 4 Ω 170
  • Input sensitivity PRE IN: Selectable: 1,5 - 3 - 4,5 V RMS
  • Input sensitivity SPEAKER IN: Selectable: 3 - 6 - 9 V RMS
  • Input impedance: 15k Ohms
  • LOAD IMPEDANCE (MIN):
    • 4 Ch: 1-2-3-4: 2 Ohms
    • 2 Ch: Bridge (1-2) (3-4): 4 Ohms
  • MAX POWER 520 W
  • OUTPUT POWER (RMS) @ 14.4 VDC, 1% THD:
    • 4 Ch @ 4 Ohms : 70 W x 4
    • 4 Ch @ 2 Ohms: 130 W x 4
    • 2 Ch - (Bridge 1/2; 3/4) @ 4 W 260 W x 2
  • OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
    • 4 Ch @ 4?: 90 W x 4
    • 4 Ch @ 2?: 180 W x 4
    • 2 Ch - (Bridge 1/2; 3/4) @ 4 W 360 W x 2



CEA SPECIFICATIONS:

  • Output power @ 4Ohms, ?1% THD+N, 14.4 V: 70 W x 4
  • SN ratio (ref. 1 W output): 85 dBA



SIGNAL CONNECTIONS:

  • PRE IN: RCA
  • SPEAKER IN: wired
  • MUTE (Energy Saving Control): wired from AP4.9 bit / AP5.9 bit



GENERAL REQUIREMENTS:

  • Ambient operating temperature range: 0 °C to 55 °C (32°F to 131°F)

SIZE:

  • Max size (mm/in.): 198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
  • UPC: 8018823114998
  • Weight: 3.84
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
