•A-Series 12" 400W RMS

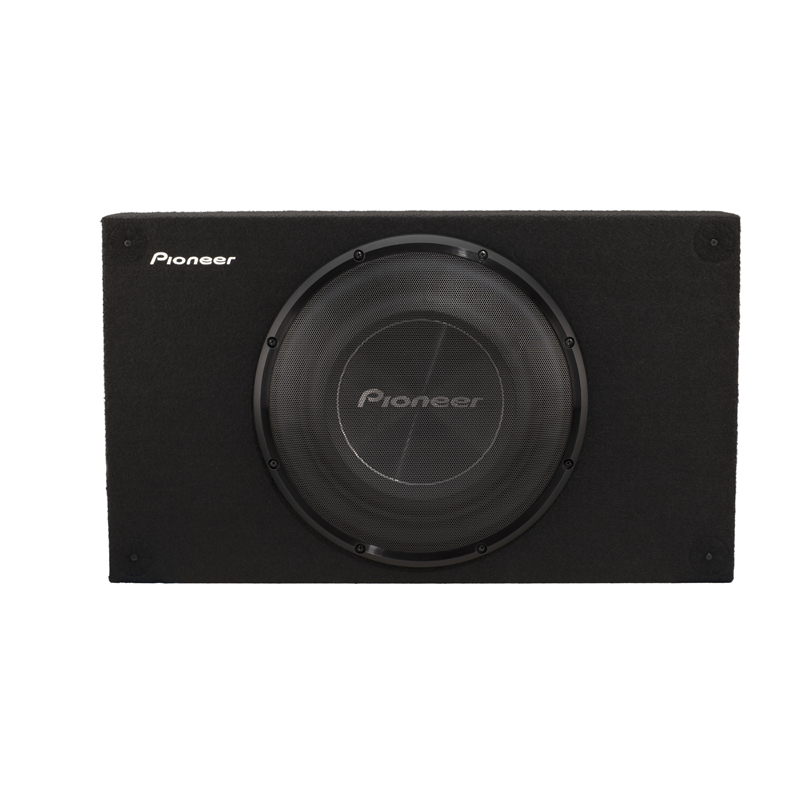

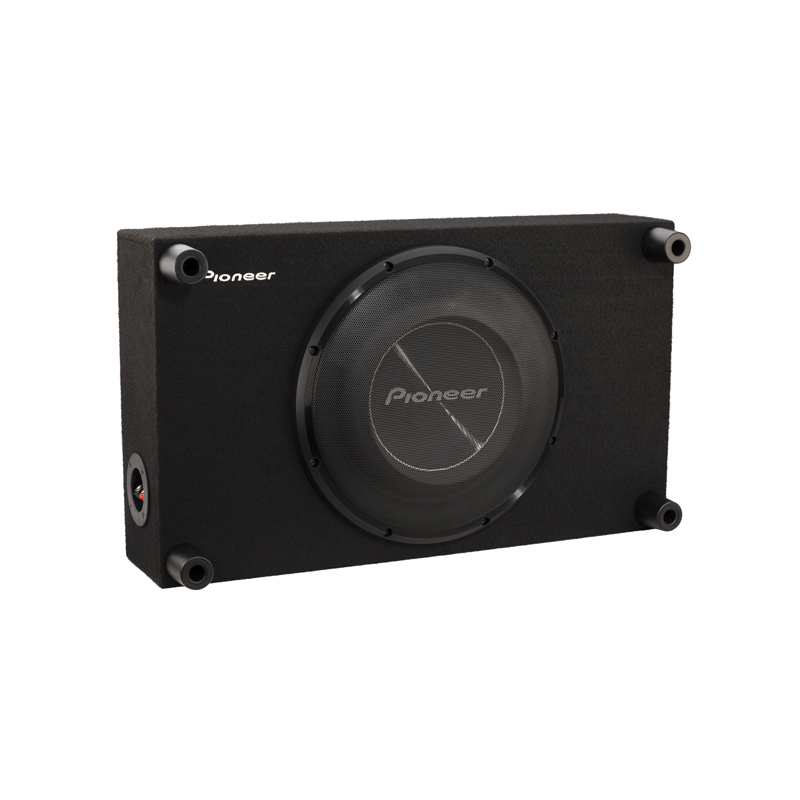

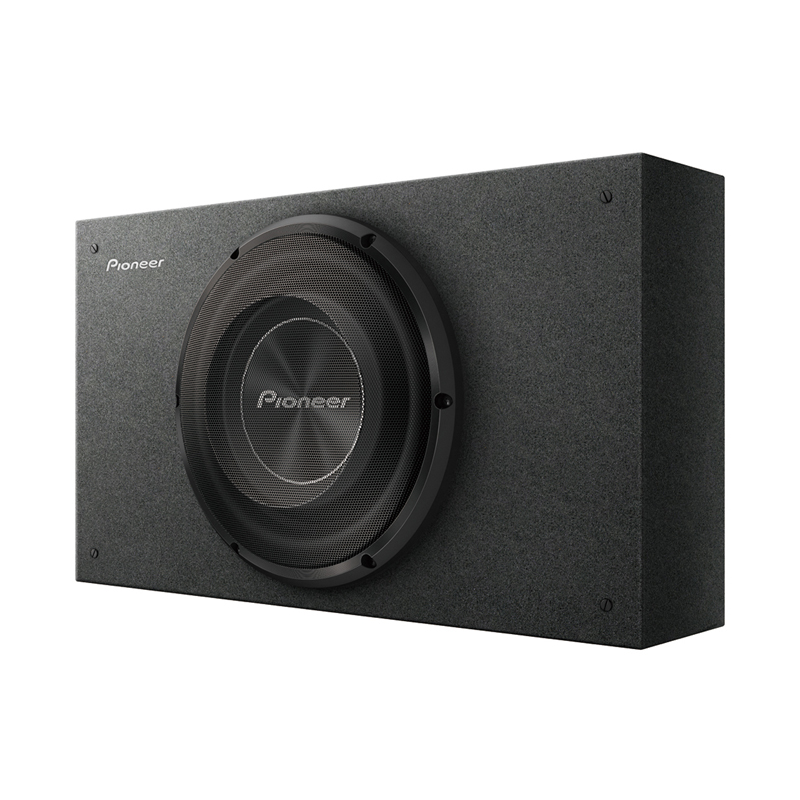

The TS-A3000LB features a compact, space-saving enclosure designed for optimal use of space. The carpeted enclosure is shallow enough for mounting in a wide variety of vehicles including pickup trucks with standard or extended-cab models. The enclosure’s unique design allows it to be mounted upright or lying flat, facing upwards or configured in a down-fire position. The enclosure is fully carpeted with an embroidered Pioneer Logo, creating a non-slip and scratch resistant surface.
To Suit Your Vehicle’s Application
This Shallow-Mount Pre-Loaded Enclosure provides a maximum power of 1,500 W with continuous 400 W RMS. The subwoofer features a glass fiber and a mica interlaced, injection molded polypropylene (IMPP) cone with a 2 ohm single voice coil. The surround is rolled butyl rubber and is fully protected by a steel mesh grille. For installation flexibility, the feet & cushions are removable to enable different layout configurations, to suit your vehicle’s application.
The TS-A3000LB features a single 12” driver made with a glass fiber and a mica interlaced, injection molded polypropylene (IMPP) cone with butyl rubber surround, mounted in a shallow sealed enclosure. The subwoofer’s voice coil suspension system is engineered to give balanced and linear motion of the cone, maintaining a high level of performance, response, and linearity, for superior sound.

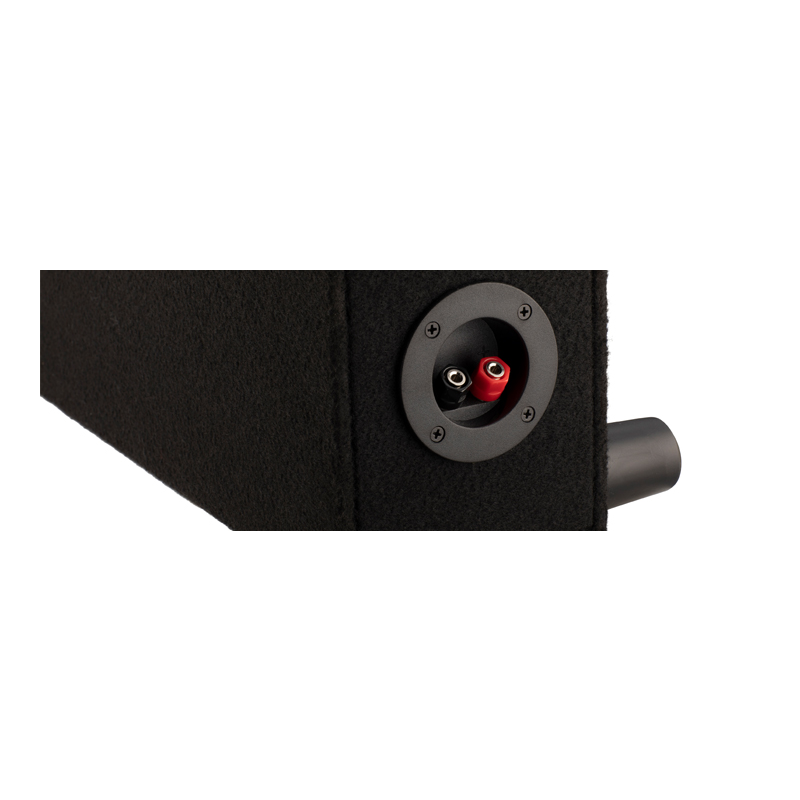

Angled Subwoofer Terminals

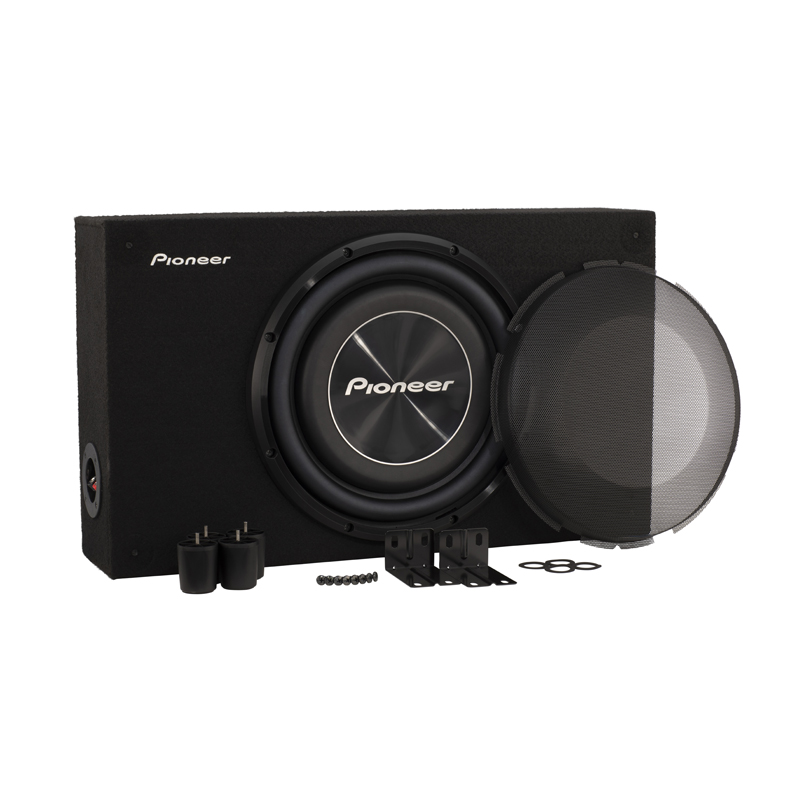

Traditional subwoofer terminals are mounted horizontally or vertically. These mounts force wires to be bent to fit which can be difficult if low gauge high performance wires are used. The Pioneer shallow subwoofer’s angled binding-post terminals make it easy to connect speaker wires, saves space, and makes installation easier. Two metal angle-brackets and eight 1" screws are provided for mounting the enclosure to a trunk or rear compartment floor in an upright fashion. Four screw-on feet also allow the enclosure to be mounted flat under a seat in a down-firing configuration.
Easily Upgrade to High Performance
Pioneer’s A-series shallow-mount subwoofers delivers big bass performance of a full-size subwoofer, but in a compact design. Designed to provide wider installation options for a broad range of vehicle, this A-Series subwoofer produces seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
Diameter : 12 Inch
Sensitivity : 88 dB
Frequency Response : 20-1000 Hz
Peak Power Handling : 1500 Watts
Number Of Subwoofers : 1
Enclosure Type : Sealed
Amplified : No
RMS Power Handling : 400 Watts
System Type: Pre-Loaded
Sensitivity (1W/1m): 88dB
Frequency Range: 20 Hz to 1 kHz
CTA-2031 Compliant: Yes
Continuous Power handling (RMS) - Watts: 400 Watts
Maximum Peak Power Handling - Watts: 1500 Watts
Nominal Impedance - OHM: 2
Speaker Grill: Fully Covered Steel Mesh Grille
Cone Material: IMPP - Composite
Center Cap Material: ABS
Surround Material: Rubber
Surround Type: Rolled
Basket Material: Stamped Metal
Magnet Material: Ferrite
Magnet Weight: 71.6 oz
Voice Coil Type: Single Voice
Voice Coil Bobbin: Glass Imide
Voice Coil wire: Copper
Damper: Poly cotton
