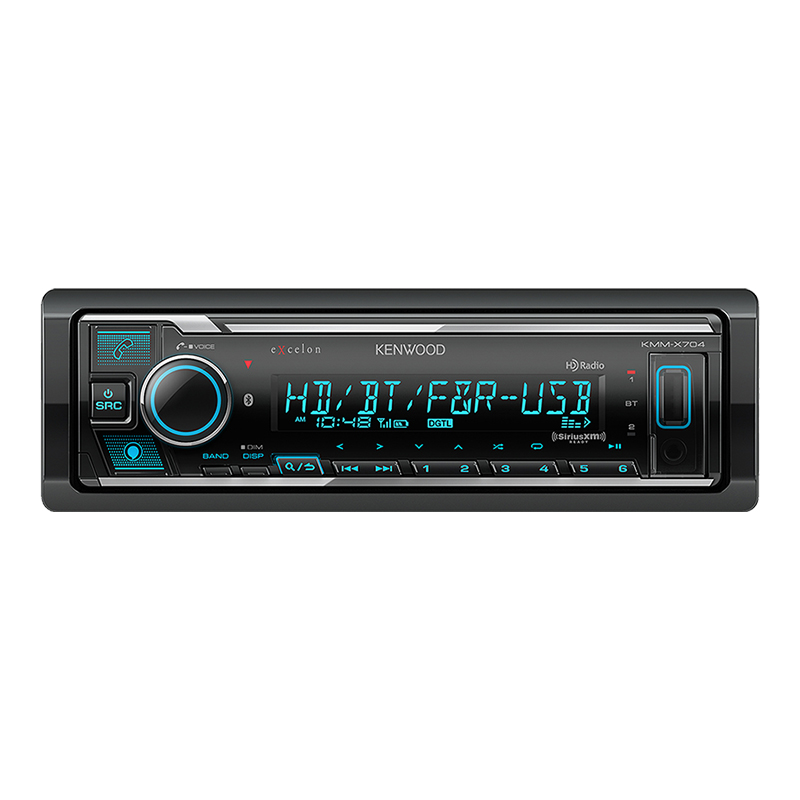

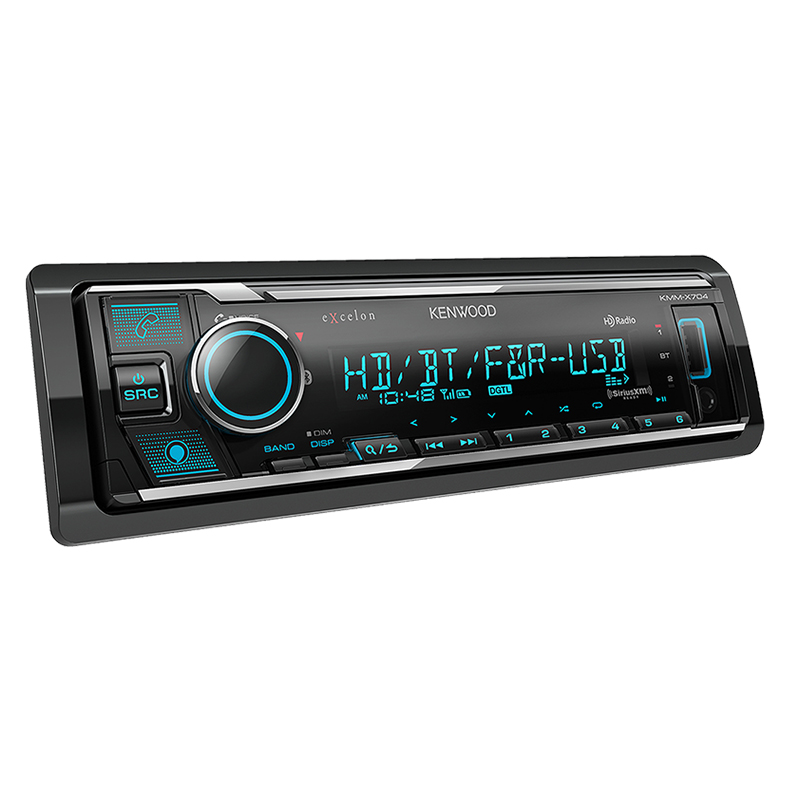

Kenwood Excelon KMM-X704 1-Din Multi-Media Receiver
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Digital media receiver (10A fuse)
- •Face (attached)
- •Trim ring (attached)
- •Sleeve (installed)

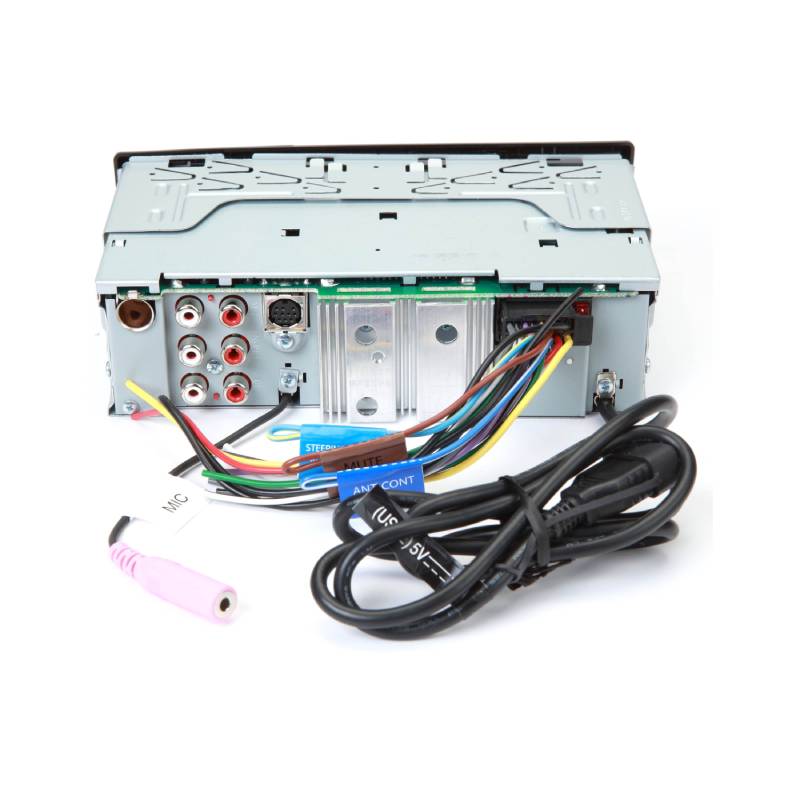

- •Wiring harness
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- •2 Removal tools
- •4 Pan-head ISO-screws
- •4 Counter-sunk ISO-screws
- •Face-fixing screw
- •Warranty Card
- •Owner's Manual
Media Receiver
If you are shooting for a modern media receiver to give you an enjoyable audio experience and more, then maybe you should go for a premium one like the Kenwood Excelon KMM-X704. This receiver comes with lots of high-quality features to use, ensuring you an improved entertainment experience from your old setup.
Built-In Amplifier
The Kenwood Excelon KMM-X704 is equipped with a built-in amplifier with six preamp outputs that can deliver a continuous power output of 22 Watts and can reach up to 50 Watts of peak power. It has a 13-band EQ and a low-pass filter to shape the amp's frequency response. With Kenwood's Drive EQ, you can boost specific frequencies to balance out the noise from the road.
Bluetooth Connectivity
It has a Bluetooth connectivity option, allowing you to stream music wirelessly and answer phone calls hands-free for a safer driving experience. Aside from its built-in HD Radio tuner, the Kenwood Excelon KMM-X704 is also compatible with a SiriusXM tuner, so you can still follow and listen to your beloved stations and shows while on the road.
- Maximum Power : 50 Watts
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 5 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Front USB Input : 1
- Rear USB Input : 1
- Apple CarPlay : No
- Android Auto : No
FM
- Frequency Range (Frequency step): 87.9MHz to 107.9MHz(200kHz)
- Usable Sensitivity: 7.2dBf
- S/N30dB: (0.63μV/75 ohms)
- Quieting Sensitivity: 15.2dBf
- DIN S/N 46dB: (1.58μV/75 ohms)
- Frequency Response (±3.0dB): 30Hz to 15kHz
- S/N: 68dB(MONO)
- Stereo Separation: 40dB(1kHz)
Digital FM
- Frequency Range (Frequency step): 87.9MHz to 107.9MHz (200kHz)
- Frequency Response (±3.0dB): 20Hz to 20kHz
- S/N: 75dB(STEREO)
AM
- Frequency Range (Frequency step): 530kHz to 1700kHz (10kHz)
- Usable Sensitivity: 29dBμ (28.2μV)
- S/N:20dB: 29dBμ (28.2μV)
Digital AM
- Frequency Range (Frequency step): 530kHz to 1700kHz (10kHz)
- Frequency Response(±3.0dB): 40Hz to 15kHz
- S/N: 70dB(STEREO)
USB I/F
- USB: USB 1.1 / 2.0 High Speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- Frequency Response: 20Hz to 20kHz(±1dB)
- S/N Ratio (dB): 98dB(1kHz)
- Dynamic Range: 93dB
- Channel Separation: 90dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- (4Ω,1kHz,10%THD??): Compliant with Windows Media Audio
- AAC Decode: AAC-LC ".aac", ".m4a" files
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 96kHz/24bit)
- Preout Level(mV)/Load -Unbalanced: 5000mV/10k ohms
- Preout Impedance(ohms): ?600 ohms
- Speaker Impedance(ohms): 4 to 8 ohms
AUX Input/Amp
- Frequency Response: 20Hz to 20kHz ±3dB
- Input Maximum Voltage: 1000mV
- Input Impedance: 30k ohms
- Maximum Power: 50Wx4
- Full Bandwidth Power (at less than 1%THD): 22Wx4
Tone
- Band1: 62.5Hz ±9dB
- Band2: 100Hz ±9dB
- Band3: 160Hz ±9dB
- Band4: 250Hz ±9dB
- Band5: 400Hz ±9dB
- Band6: 630Hz ±9dB
- Band7: 1kHz ±9dB
- Band8: 1.6kHz ±9dB
- Band9: 2.5kHz ±9dB
- Band10: 4kHz ±9dB
- Band11: 6.3kHz ±9dB
- Band12: 10kHz ±9dB
- Band13: 16kHz ±9dB
Bluetooth
- Version: Bluetooth 4.2
- Frequency Range: 2.402 to 2.480GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- HFP 1.7.1 (Hands Free Profile)
- SPP(Serial Port Profile)
- PBAP(Phonebook Access Profile)
- A2DP(Advanced Audio Distribution Profile)
- AVRCP 1.6.1 (Audio/Video Remote Control Profile)
General
- Operating voltage: 12V DC car battery
- Installation Size
- (W): 182(mm) 7-3/16(in)
- (H): 53(mm) 2-1/16(in)
- (D): 100(mm) 3-15/16(in)
- Net Weight (Trim plate and Mounting sleeve: Included) 0.7(kg): 1.5(lbs)
- UPC: 019048229465
- Weight: 4.01
