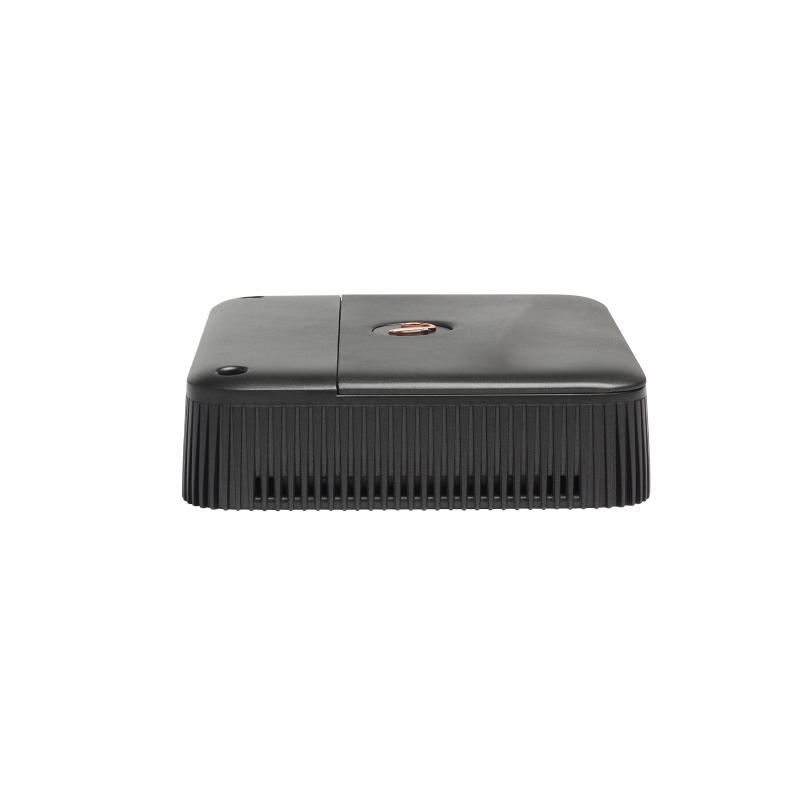

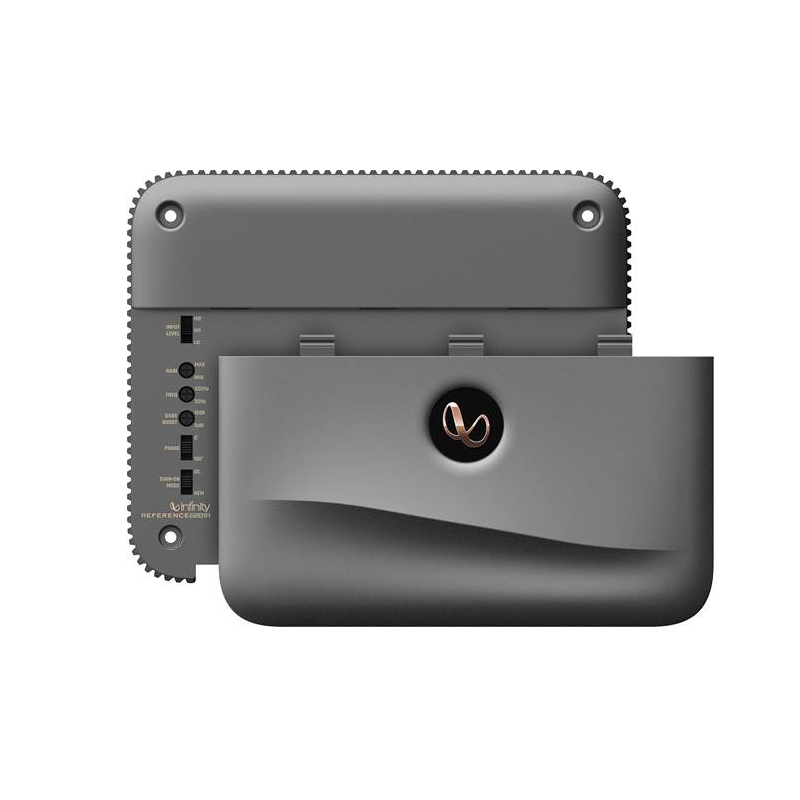

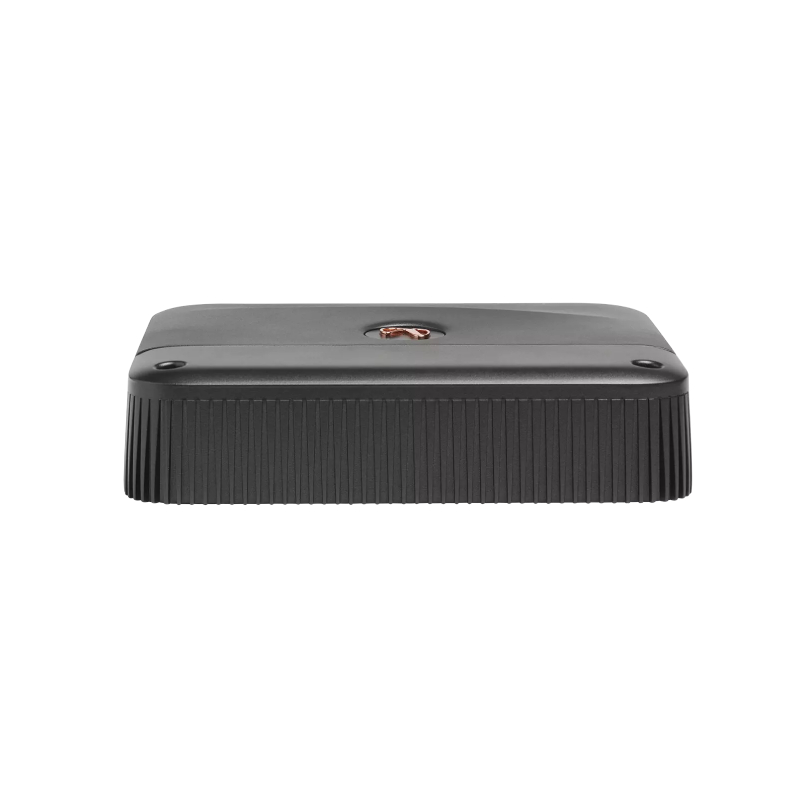

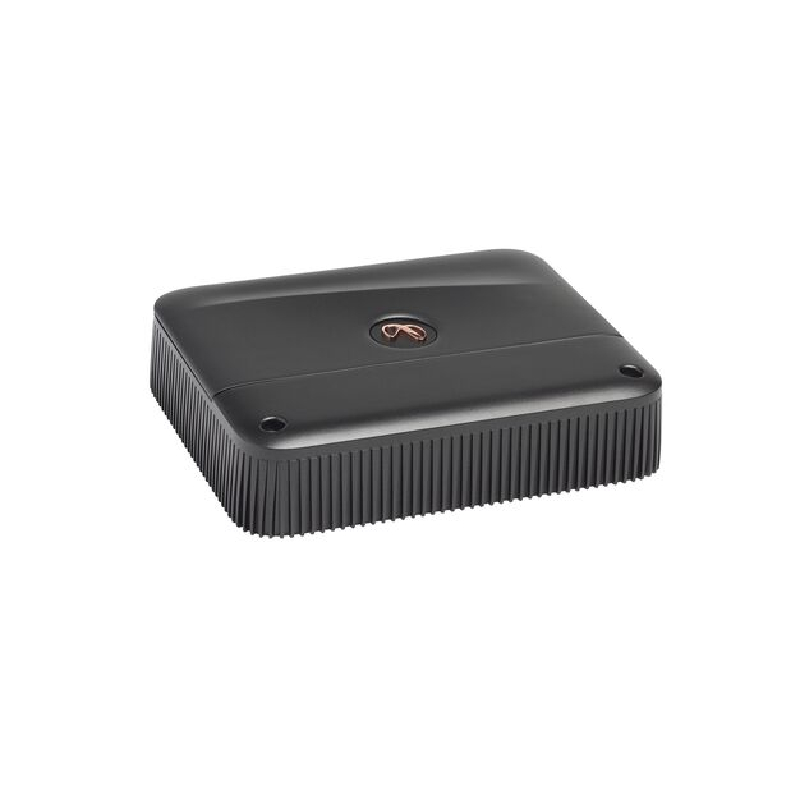

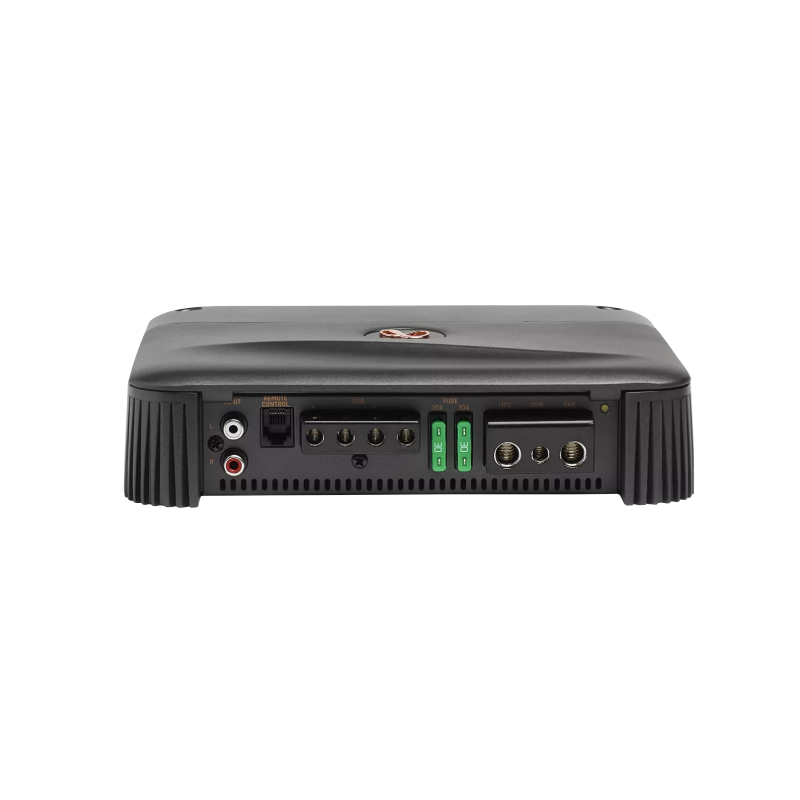

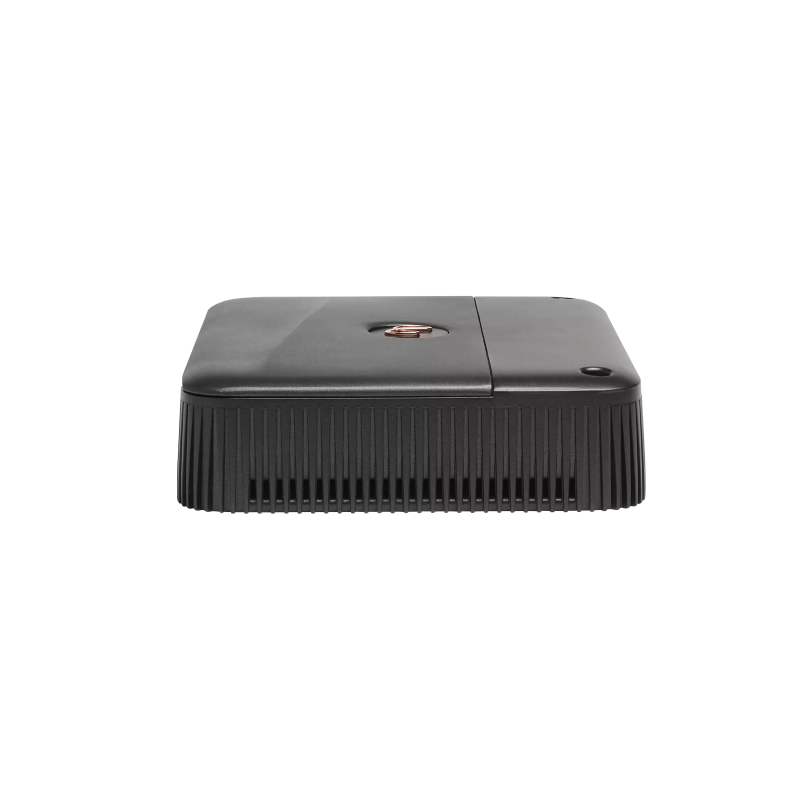

Infinity Reference Class D Mono Block Car Amplifier
Compact size
The Reference 6001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Reference 6001A to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the Reference 6001A features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Reference 6001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Reference 6001A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
- Low Frequency Response : 32-320 Hz
- Number of Channels : 1
- Frequency Response : 10-320 Hz
- Built In Crossovers : Yes
- RMS Power Output : 600x1 Watts
- Amplifier Class : D
- Fuse Rating : 60 A
- XP750-SE OFFER : Yes
What’s Inside?
- One Reference 6001A mono subwoofer car amplifier
- Four 30A ATO fuses (2 installed, 2 spare)
- 2 Bare wire-to-RCA adapters
- Remote bass control module
- 16.5' Remote control cable (RJ-25 plugs on both ends)
- 2 Self-tapping screws for remote (M3 x 15mm)
- 4 Mounting screws (M4 x 53mm)
- Owner's Manual
- 2 Infinity decals
- 1 logo badage
Features:
- Compact size
- High and low level input
- Variable crossover and bass boost
- Low noise and distortion
- Input Level Control
- Full on-board protection
- Phase Switch
- RBC wired remote
- Class D amp technology
- Turn-on mode
Specifications:
- Mono subwoofer car amplifier
- 350 watts RMS x 1 at 4 ohms
- 600 watts RMS x 1 at 2 ohms
- Class D amp technology
- Variable low-pass filter (32–320Hz, 12dB/octave)
- Variable bass boost (0–12dB at 45Hz)
- Phase switch (0, 180 degrees)
- Preamp and speaker-level inputs
- Fuse rating: 30A x 2
- 8-gauge power and ground leads recommended —
- wiring and hardware not included with amplifier
- W x H x D = 220mm x 55.5mm x 180mm
- W x H x D = 8-11/16" x 2-3/16" x 7-1/8"
- UPC: 050667375478
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-

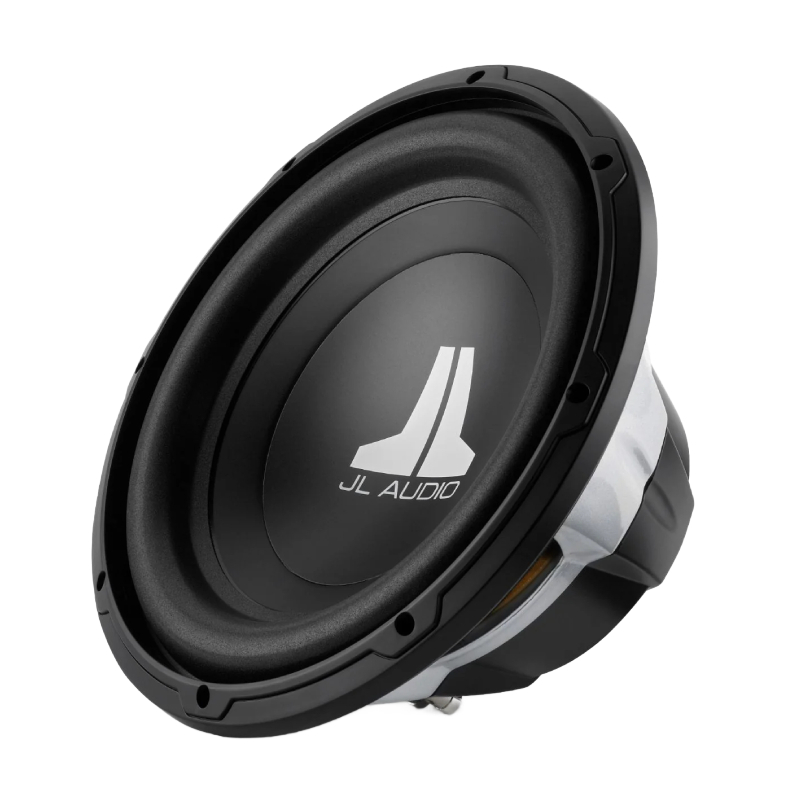

Great amp. It is a simple amp, meaning it does not have the clipping feature that some of the other amps out there have, but also not has expensive either. Connected this amp with two JL WO 12 4 ohm in parallel, which gives the amp a load of 2 ohms. amp does a great job. only complaint, the remote bass control module seems to be more like an on off switch. Seems as soon as the knob is turned up the slightest the amp is at the full set gain. The knob is a one turn pot and should have a linear increase in the gain as the pot is turned from min to max. I have a Rockford amps that works linear and I feel safer with that I can turn the gain down remotely if a song comes on that has massive bass to help protect from harming subs. For that reason only is why i gave sound a 7 star, if it was linear control it would have gotten a 10. i searched the owners manual for a costumer service number and unable to find a US number. I have tried to call Onlinestereo.com several times for some guidance, but unable to reach anyone. Not sure if the remote pot is faulty or what the remote controls inside the amp is faulty. I can buy another remote that connects to rca cables and controls the signal before it reaches the amp and be fine, but I should have to when it was a feature of the amp. Other than that complaint i would recommend this amp. Infact I am considering the 4 channel version of this amp for component speakers.
