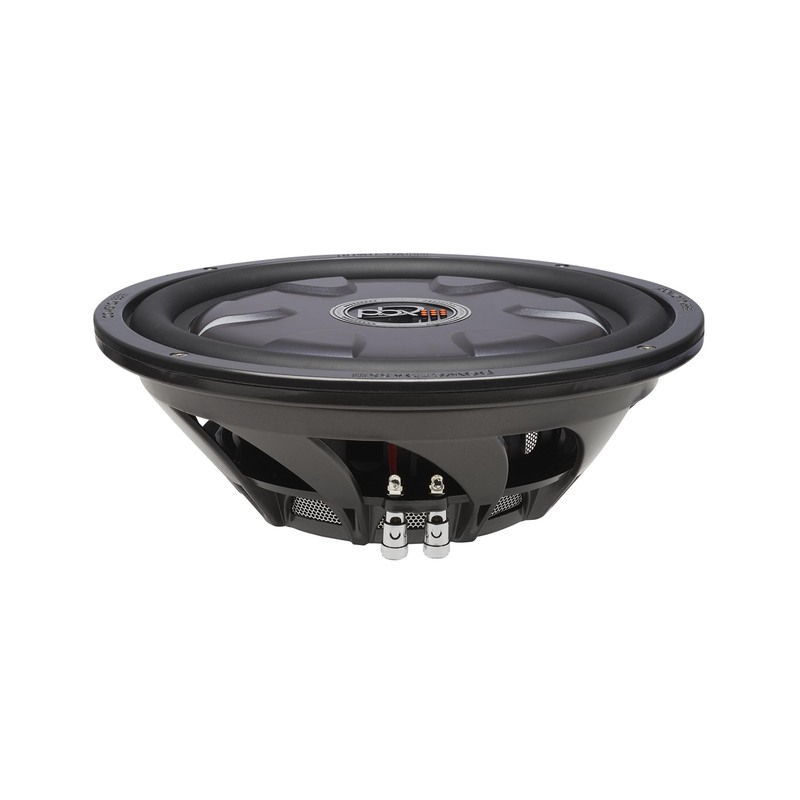

PowerBass  XL-1240TD

XL Series 12" 800W Peak Power Handling, 4-Ohms Dual Voice Coil Shallow Mount Subwoofer

Item #78491

Product Highlights

  • Model: XL Series
  • Size: 12"
  • Power Handling: 800W Peak
  • Impedance: 4-Ohms Dual Voice Coil
  • Type: Shallow Mount Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Metra Banner for OCS

PowerBass XL-1240TD - XL Series 12" 800W Peak Power Handling, 4-Ohms Dual Voice Coil Shallow Mount Subwoofer


Authorized Dealer Stamp

We are a Powerbass authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 4-Ohms Dual Voice Coil Shallow Mount Subwoofer
  • • Owner's Manual
Designed to Work Best in a Small Sealed Enclosure

Those seeking a shallow woofer that can handle more power in a tight space will find that our new XL-Shallow subwoofers are just the ticket. The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won't opens up new possibilities for the most discerning music fan.

Poly/Glass Fiber basket

Using the same turbine style Poly/Glass Fiber basket as our standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 84 dB
  • Impedance : 4 Ohm
  • Frequency Response : 33-450 Hz
  • Peak Power Handling : 800 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • RMS Power Handling : 400 Watts

FEATURES


Features:

  • New PBX logo dust cap
  • 12" Shallow Mount Subwoofer Dual 4-Ohm Subwoofer
  • 400 Watts RMS/800 Watts Max
  • Proprietary Single Piece Injection Molded Flat Cone Design
  • Proprietary Composite Poly/Glass Fiber Basket
  • 2" Vented KSV Voice Coil Former
  • Chrome Push Terminals
  • 3.8" Mounting Depth
  • 400 Watts RMS/800 Watts Max



Specifications

  • Nominal Impedance: single 4 ohm
  • BL: 17.568 tm
  • Inputs: Dual Coil
  • Subwoofer Frequency Range: 33Hz - 450Hz
  • Voice Coil Size: 2 in
  • Material: Injection Polypropylene
  • Magnet Size: 140 oz
  • Sensitivity (1W / 1M): 84 dB
  • Cutout Diameter: 11" (281mm)
  • Mounting Depth: 3.8"
  • Spl: 84db
  • No: 0.157%
  • Qts: 0.526
  • Qes: 0.597
  • Qms: 4.458
  • Mms: 204.196 g
  • Cms: 122.804 Um/n
  • Vas: 5.481 Ltr
  • SD: 510.7 sqCM
  • Fs: 33hz
  • Test Impedance: 6.8-ohm
  • VC Impedance: 4-ohm
  • Size: 12" shallow
  • Sensitivity: 84 dB
  • Frequency Response: 33Hz - 450Hz
  • Voice Coil Size: 2"
  • Power Handling (RMS/Peak): 400 / 800 watts
  • UPC: 823871007639
  • Weight: 13
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
