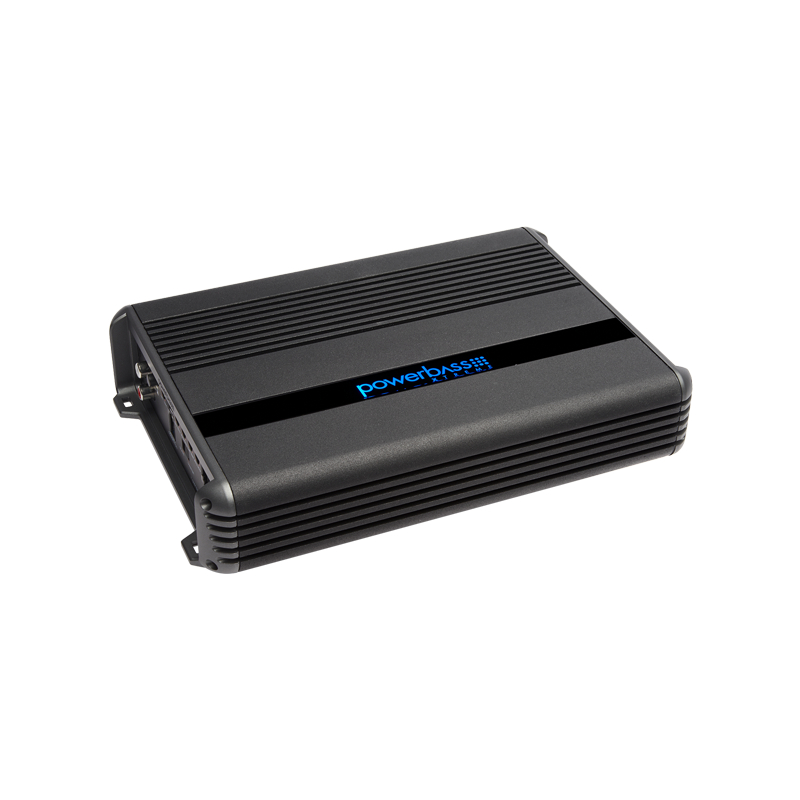

PowerBass  XMA-800D

XMA Series 600W RMS at 2 Ohm, Class-D Mono Subwoofer Car Amplifier

Item #78534

Product Highlights

  • XMA Series
  • Mono Subwoofer Car Amplifier
  • 600W RMS at 2 Ohm
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 800 Watts
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Amplifier Class : D

FEATURES


Features:

  • 800 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Balanced RCA Inputs
  • Auto Turn On/Off
  • Remote Soft Delay Turn On/Off Circuit
  • 40 Click Variable Low Pass Electronic Crossover
  • 40 Click Variable Frequency/18dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
  • Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)



Specifications

  • Selectable Subwoofer EQ: 0 - 18 dB @ 40 Hz - 100 Hz,
  • Variable Subsonic Freq: 10 Hz - 50 Hz
  • Inputs: RCA (speaker level compatible)
  • Subwoofer Frequency Range: 10Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.0"
  • Width: 7.1"
  • Depth: 10.4"
  • 4-ohm Mono Power: 350 watts x 1
  • 4-ohm Power: 350 watts x 1
  • 1-ohm Mono Power: 800 watts x 1
  • 2-ohm Power: 600 watts x 1
  • Subwoofer EQ Frequency: 40 Hz- 100 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 20 Hz - 250 Hz
  • High-Pass Crossover Freq: N/A
  • Peak Power: 1600 watts
  • Crossover Slope: 24 dB
  • Dimensions (in Inches): 10.4" x 7.1" x 2.0"
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >100 dB
  • Total Harmonic Distortion: 0.4% at Rated Power
  • Strapped Output Power @ 2ohms: 1600 watts x 1
  • Output Power (14.4 V) @ 4 ohm: 350 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 600 watts x 1
  • Output Power (14.4 V) @ 1 ohm: 800 watts x 1
  • Channels (mono): 1
  • Frequency Response: 10 Hz - 300 Hz
  • UPC: 823871008285
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
