Sony XS-AW8 8" Sealed Powered Subwoofer, Flush Mount Bass Knob
Onlinecarstereo is an authorized retailer of Sony products. We source our inventory straight from accredited regional distributor so you know you are getting authentic Sony merchandise with all the necessary warranties. We at Onlinecarstereo always strive to provide 100% total customer satisfaction and after-market service.
• Powered subwoofer
• Wired remote control with attached 13' cord (has 4-conductor RJ-14 plug on the end)
• Wiring harness (13' Power and Ground/ 10' Remote turn-on/ 10' Speaker level input)
• (4) Mounting brackets
• (1) Remote mounting bracket
• Adhesive backed remote mounting pad
• (4) M5x8mm Machine screws
• (4) 3/4" Screws
• (4) 1/2" Screws
• (2) 3/16" Screws
• Warranty information
• Wiring instructions printed on the box

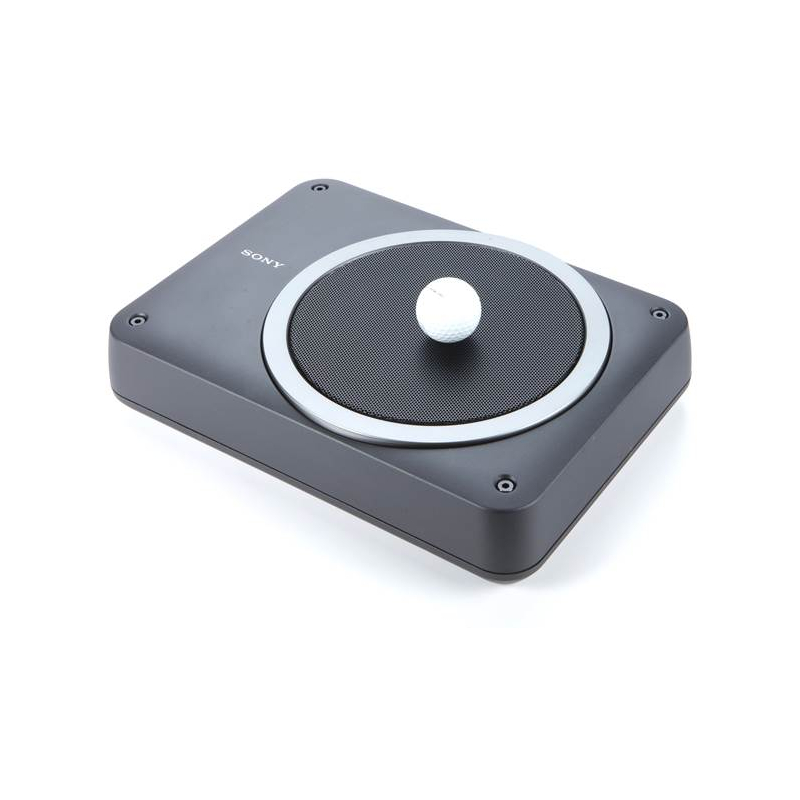

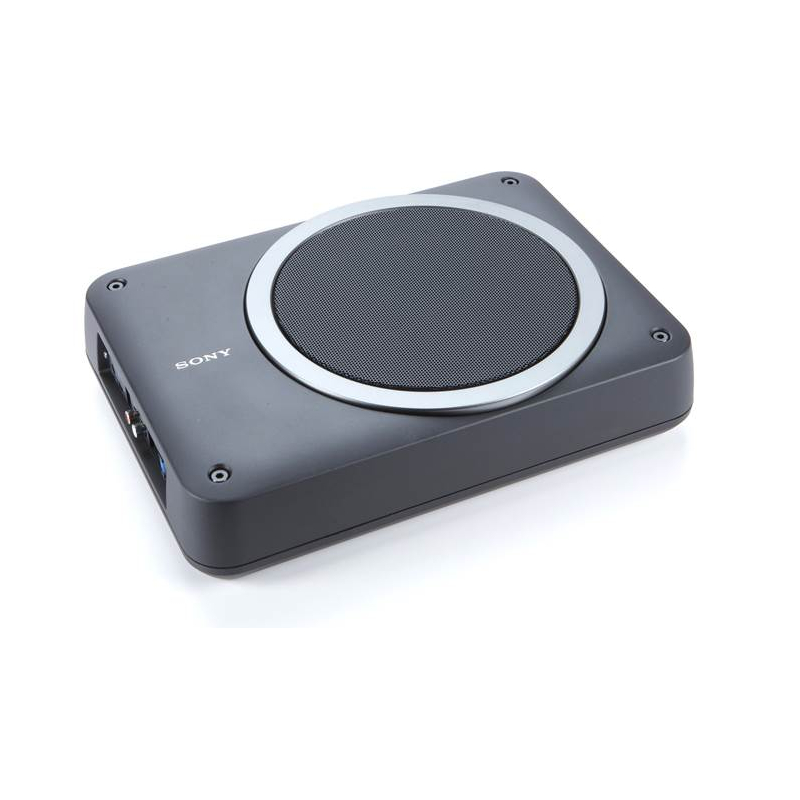

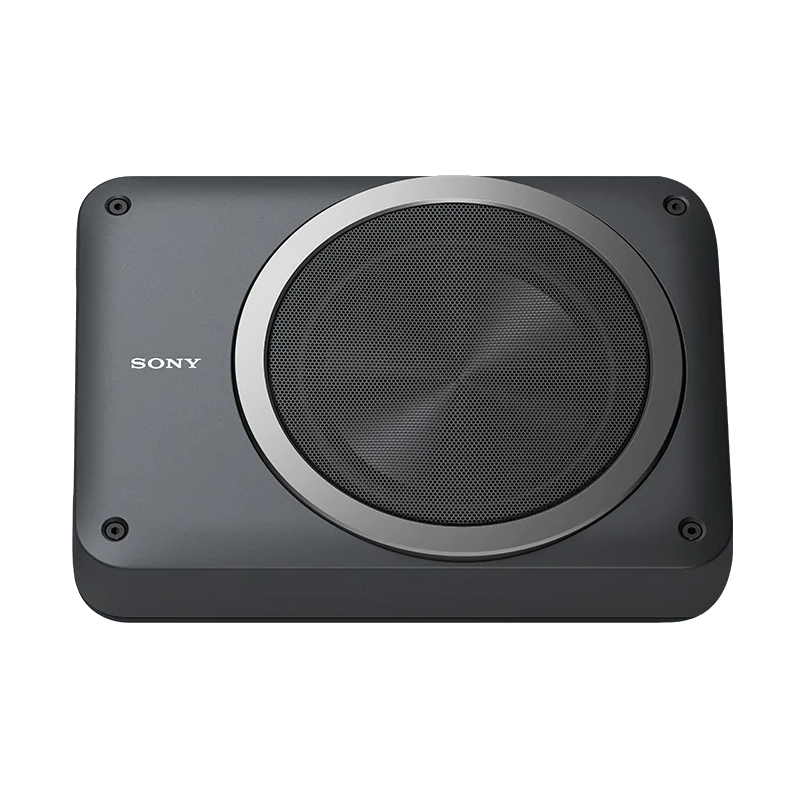

Ultra-sleek, shallow subwoofer
No space for a big subwoofer enclosure? At only 3 1/8" (7.8cm) deep, the XS-AW8 powered subwoofer fits in tight spaces in your vehicle for powerful bass sound throughout the car.
Optimally designed driver unit and low-resonance cast-aluminium enclosure
To reproduce powerful bass sound from its compact dimensions, the slim enclosure is paired with a unique rigid subwoofer diaphragm. The built-in amplifier also integrates a sturdy heat-sink to protect the driver unit and amp without introducing unwanted vibrations and harmonic distortion.

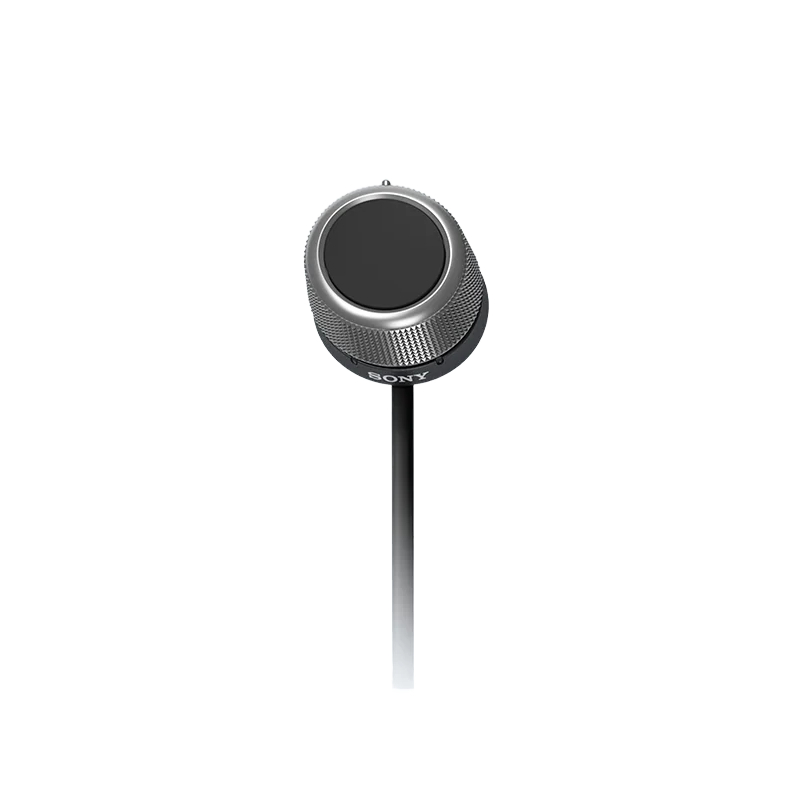

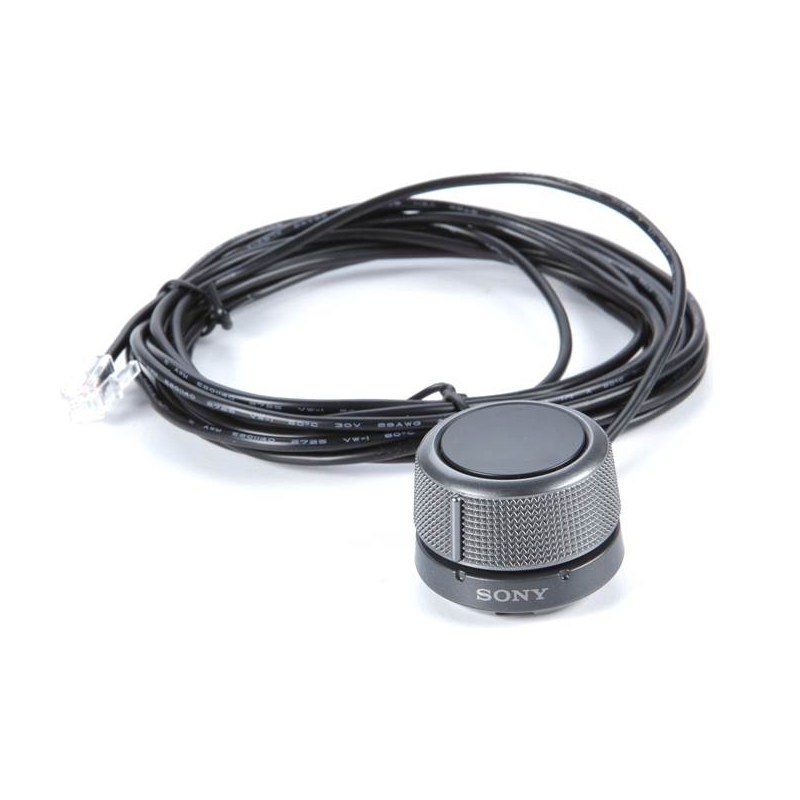

Supplied wired remote commander
A supplied wired remote commander allows you to adjust the subwoofer volume from the driver's seat.
High level input/Audio line input
What if you're using a factory radio that doesn't have pre-amp outputs? Simply connect the speaker outputs of your receiver to the high-level inputs. When pre-out audio signals are available from the receiver, connect them to the CH1(R) and CH2(L) terminals. Compatibility with up to 5V pre-outs means you can utilise higher voltage audio input for a clean audio signal and less external noise.

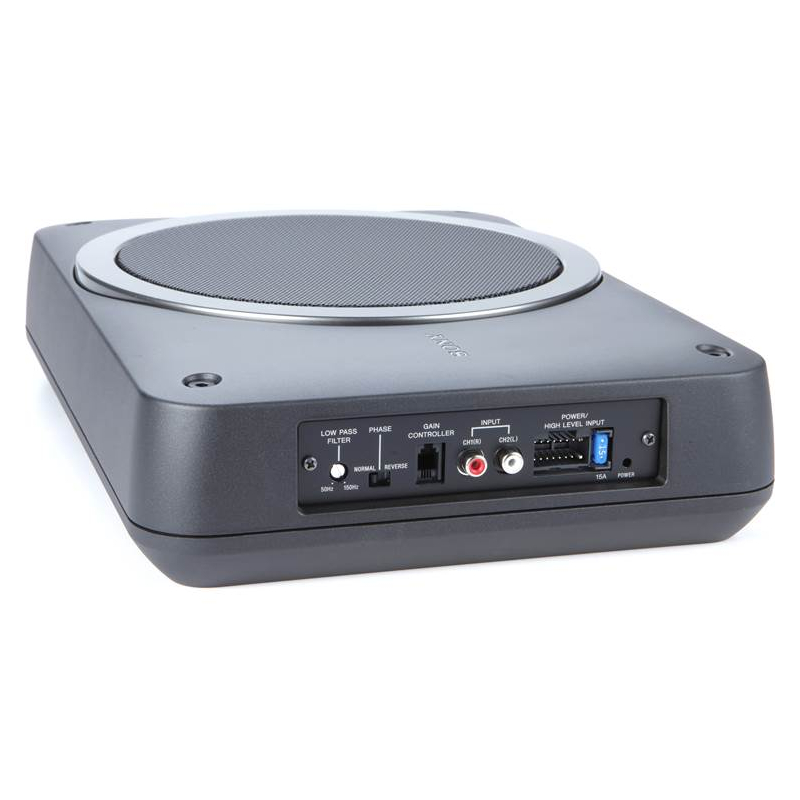

Single-sided controls and terminals
Connections and amplifier controls are together on the same side for easy installation and tuning. The amplifier features a variable low-pass filter for simple connection to full-range sources, including the speaker-level inputs. A switch additionally allows you to customise the subwoofer phase output, to prevent any reduced bass response due to phase cancellation from other speakers in your system.
160W peak (75W RMS) output power
Fill your car with 160W (75W RMS) of clean, dynamic bass sound with our original power IC. The matched class A/B amp is designed for high power and natural, distortion-free sound even at high output levels.
Diameter : 8 Inch
Maximum Power : 160 Watts
RMS Power Range : 75 Watts
Speaker Type : Subwoofer
Woofer Size: 8”
Woofer Material: MRC
Midrange Size: N/A
Midrange Material: N/A
Tweeter Size: N/A
Tweeter Material: N/A
Supertweeter Size: N/A
Supertweeter Material: N/A
Impedance (Total): 2 Ω
Frequency Response (Total): 20Hz - 150Hz
Crossover Frequency: N/A
CTA RMS Power Handling: 75W
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
