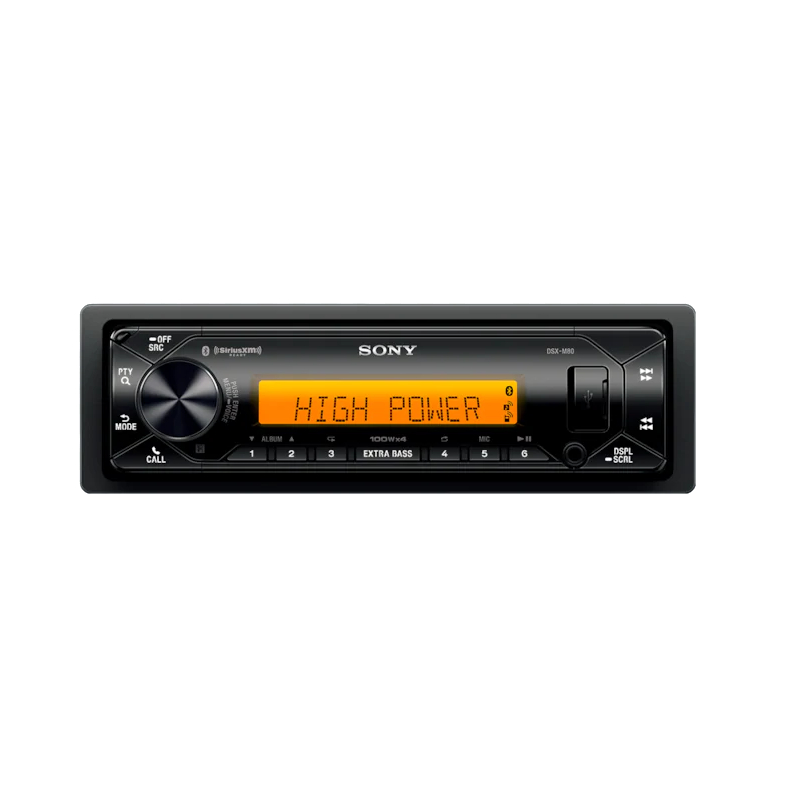

Sony DSX-M80 1-DIN High Power Bluetooth® Marine Receiver
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Marine digital media receiver (15A fuse)
- •Face
- •Sleeve (installed)
- •Trim ring (installed)
- •Wiring harness
- •Wireless remote control (RM-X232)
- •CR2025 Lithium battery (installed in remote)
- •Microphone w/ bracket (attached 11' cord terminated by a right-angle mono 3.5mm connector)
- •Two-sided tape
- •Rubber cap (for Aux input)
- •2 Radio removal tools
- •4 Countersunk ISO-mount screws
- •Face fixing screw
- • Machine screw
- •Self-tapping screw
- •Backstrap
- •Operating Instructions
- •Face fixing screw note
- • "About the supplied cap (AUX)" note
- •Warranty Information
- •Owner's Manual
Very Durable
Not only that Sony is exceptional in making high-quality car media receivers, but they also have an impressive product lineup for marine receivers, and one of them is the Sony DSX-M80. When it comes to marine receivers, you need them to be very durable, and Sony is one of the best brands when it comes to that department.
Water-resistant and Has an Anti-corrosive Coating
The Sony DSX-M80 is water-resistant and has an anti-corrosive coating, so you do not have to worry about the rust that could build up from the salt water that is accidentally splashed onto the receiver. It also has a UV-resistant finish, so the bright sunlight would not be a big deal.
Can Use Voice Commands to Ask for Directions
You can use voice commands to ask for directions, send messages, and play music on your iPhone or Android phone. It has a built-in AM/FM tuner and is SiriusXM-ready, so you can follow and listen to all your favorite shows or stations, even if you are sailing in the ocean. It also has a Bluetooth connectivity option for wireless music streaming and hands-free calls.
Has a Built-in Amplifier
The Sony DSX-M80 has a built-in amplifier with a six-channel preamp output so that you can connect a pair of front and rear speakers each and a couple of subwoofers for a full-range frequency performance. It can handle a power output of 45 Watts RMS per channel and has a peak power of 100 Watts per channel.
Has a 10-band EQ
For audio enhancements, the Sony DSX-M80 has a 10-band EQ so that you can shape the receiver's frequency response to your liking. It also has an EXTRA BASS feature if you are looking for more heart-pounding bass performance and a Digital Sound Enhancement Engine to enhance your file's sound quality. Lastly, it comes with high and low-pass filters to filter out the unwanted frequencies that could damage the speakers.
- Maximum Power : 400 Watts
- DIN : 1
- Preamp Voltage : 5 volts
- Bluetooth : Yes
- Aux Input : Yes
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 3
4 x 100 W Power, Anywhere You Go
Enjoy deep, clean sound from a powerful amplifier with a 2 ohm speaker load option3, whether you are out at sea or on your off-road adventures. In addition to its anti-corrosive coating and UV-resistant finish, a newly added back-up memory saves your custom presets and settings without needing a constant power supply; so when you're ready for your next adventure, your music will be too.
Size & Weight
- DIMENSIONS (W X H X D): 7 x 2 x 7"
- WEIGHT: 2.2 lb
General Features
- BLUETOOTH®: Yes
- USB: Yes (Front + Rear)
- AUX: Yes (Front)
- EQ: EQ10
- HIGH PASS FILTER: Yes (OFF/50/60/80/100/120) kHz
- HIGH VOLTAGE PRE OUT: 5 V
- LOW PASS FILTER: Yes (50/60/80/100/120) kHz
- SUBWOOFER DIRECT CONNECTION: Yes
- DIGITAL SOUND ENHANCEMENT ENGINE (DSEE): Yes
- CLEARAUDIO+: Yes
- EXTRA BASS: Yes (1,2)
- DSO (DYNAMIC STAGE ORGANIZER): Yes
- MAX OUTPUT POWER: 4 x 100 W
- PRE OUT: 3 x 5 V
- SUB OUT: Yes
- TIME ALIGNMENT PRESET: Yes
- BACKUP MEMORY: Yes
Tuner Features
- PRESET: FM18 / AM12
- RDS / EON: Yes (RBDS)
- Panel Design
- DISPLAY COLOR (COLOR VARIATION / NEGATIVE OR POSITIVE): Variable (2-Zone)
- KEY ILLUMINATION: Variable (2-Zone)
- DIMMER: Yes (On/Off/AT/Clock)
- DETACHABLE FRONT PANEL: Yes
iPhone / iPod Music Playback Control via USB
- PAUSE: Yes
- REPEAT: OFF/ONE/ALL
- RESUME: Yes
- SHUFFLE: OFF/SONG/ALBUMS
Bluetooth Features
- VOICE CONTROL: Yes
- SIRI EYES FREE: Yes
- EXTERNAL MICROPHONE: Yes
- MIC GAIN ADJUSTMENT: Yes (Low/Mid/Hi)
- VERSION: Bluetooth Version 3.0
Bluetooth Audio Features
- AUDIO CODEC: SBC, AAC
- AUDIO LEVEL ADJUSTMENT: Yes (-6dB – +6dB)
- CUE / REV: Yes
- PAUSE (BLUETOOTH AUDIO): Yes
- TRACK +/-: Yes
Smartphone Apps for Bluetooth
- MUSIC CENTER (IOS): Yes
- MUSIC CENTER (ANDROID™): Yes
- ADVANCED CAR AUDIO SETTING: Yes
- PANDORA: Yes
USB Mass Storage Device Control Features
- JUMP MODE: Yes
- COMPATIBLE FILE FORMATS (CODEC): MP3, WMA, AAC, FLAC, WAV
- LIST BROWSE: Yes
- PAUSE: Yes
- REPEAT: ALL/TRACK/ALBUM
- RESUME: Yes
- SHUFFLE: OFF/ALBUM/DEVICE

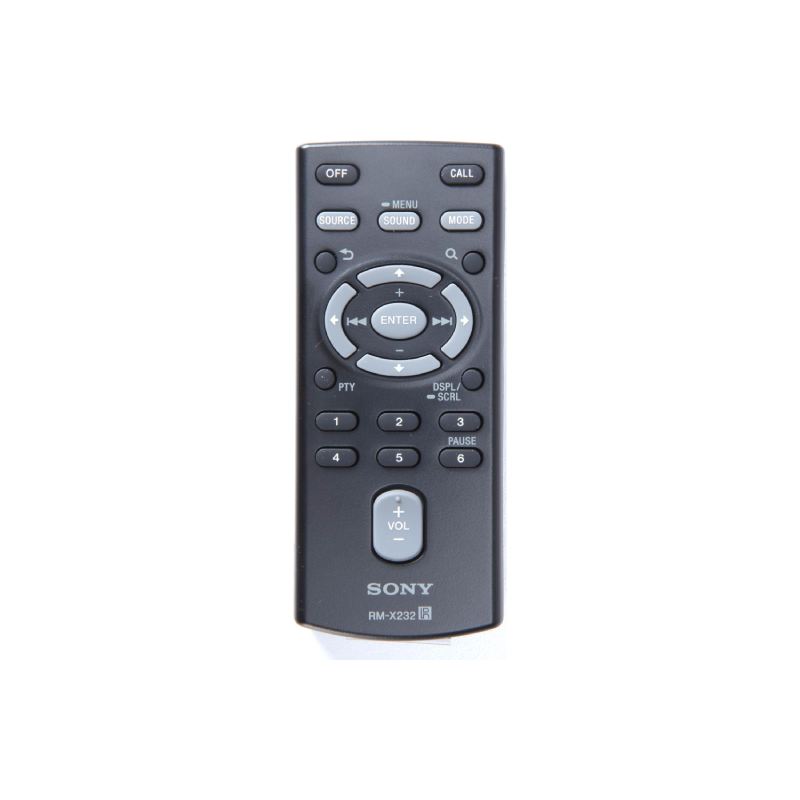

Remote Control
- SUPPLIED REMOTE MODEL NUMBER: RM-X232
- USB Profile
- USB MASS STORAGE DEVICE: Yes
- USB MEDIA TRANSFER PROTOCOL: Yes
- USB ANDROID OPEN ACCESSORY PROTOCOL: Yes (2.0)
What's In The Box
- External Microphone
- Supplied Wireless Remote
- Trim Ring
- Mounting Sleeve & Release Keys
- Warranty card
- UPC: 027242917361
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
