Kicker Q-Class 41L7104-2 Square Dual Voice Coil 4 Ohm Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •5-Channel amplifier
- •AFS fuse holder with tinted lid
- •100A AFS fuse (installed in fuse holder)
- •3mm Allen wrench
- •4 Self-tapping screws (2" length)
- •4 Flat washers
- •Owner's Manual
Achieve the Realism and Raw Power You Crave
IQ Amplifiers combine the two most import things for great sound: power and control. With a massive Class D power plant and the included TWEEQ™ tuning software, your music can achieve the realism and raw power you crave.The soundstage is yours to command. The revolutionary TWEEQ™ tuning software is included with every Kicker IQ amp, built to make crafting audio to your exact standards as easy as clicking a mouse or touching a tablet.
Controls Your Amp Volume, Bass Boost and More With a Single Cable Connection
Designed entirely in the USA, KICKER delivers the ultimate in sound quality and power by hand-selecting the finest components. Paired with an extremely efficient Class D power supply, IQ Amplifiers give you the nuance and thunder with equal ease.The included IQRC remote easily controls your amp volume, bass boost and more with a single cable connection. The optional IQI Bluetooth Interface lets you play Bluetooth audio, answer phone calls and use the TWEEQ software to control as many as four IQ amps, all from your phone or tablet.
- Low Frequency Response : 40-180 Hz
- High Frequency Response : 40-180 Hz
- Number of Channels : 5
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 100 A

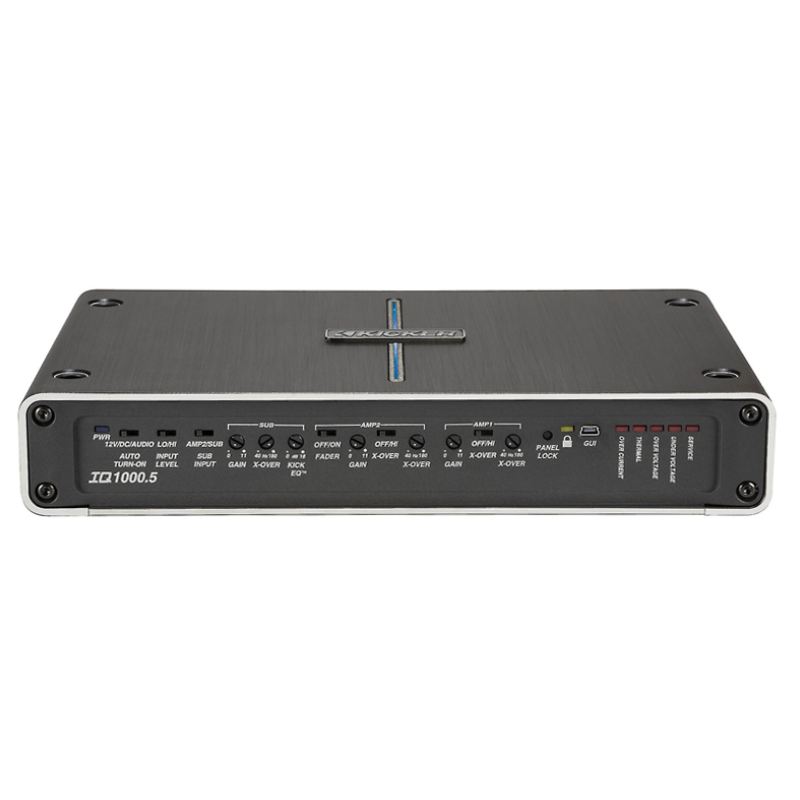

IQ1000.5
The IQ1000.5 Five Channel Amplifier is an entire system in a single, stunningly simple chassis.
At under a foot long and barely two inches high, this Class D powerhouse is ready to turn your ride into a mobile concert, with all the control and customization of a professional mixer. The IQ1000.5 delivers 65 watts x 4 at 4Ω and 125 watts x 4 at 2Ω for the AMP1 and AMP2 Channels. The SUB channel delivers 250 watts at 4Ω and 500 watts at 2Ω. See below for more details.
Specifications:
- RMS Power [Watts], AMP1 and AMP2
- @ 14.4V, 4Ω stereo, ≤ 1% THD+N : 65 x 4
- @ 14.4V, 2Ω stereo, ≤ 1% THD+N : 125 x 4
- @ 14.4V, 4Ω mono, ≤ 1% THD+N : 250 x 2
- RMS Power [Watts], SUB channel
- @ 14.4V, 4Ω mono, ≤ 1.5% THD+N : 250 x 1
- @ 14.4V, 2Ω mono, ≤ 1.5% THD+N : 500 x 1
- Length [in, cm]: 11-15/16, 30.3
- Height [in, cm]: 2-1/16, 5.2
- Width [in, cm]: 7-9/16, 19.1
- Frequency Response [Hz]:
- AMPS 1 and 2: 20-20k
- SUB: 25-180
- Signal-to-Noise Ratio [dB]: 95
- Input Sensitivity:
- Low Level: 125mV–5V
- High Level: 250mV–10V
- Selectable Electronic Crossover
- AMP 1: OFF/HP; Variable 40Hz–180Hz, 24dB/Octave
- AMP 2: OFF/HP; Variable 40Hz–180Hz, 24dB/Octave
- SUB: Variable LP 40-180Hz, 24dB/octave
- KickEQ™ Bass Boost (end panel adjustable): Variable 0–18dB @ 40Hz
- KickEQ+™ Parametric Bass Boost (Remote Control Adjustable)
- Boost : Variable 0-18db
- Adjustable Center Frequency : 24Hz-80Hz
- Bandwidth : .5-10
- Subsonic Filter: 25Hz, 24dB/octave
- Remote Bass: yes
Graphical User Interface Control (each channel):
- Selectable Active Crossover:
- AMPS 1 and 2:
- Variable High Pass and Low Pass 10Hz–20,000Hz
- Adjustable Butterworth slope - OFF, 6, 12, 18 or 24dB/octave
- Adjustable Linkwitz-Riley slope - OFF, 6 or 12dB/Octave
- SUB:
- Variable High Pass 10-100Hz, Variable Low Pass 40-200Hz
- Ajustable Butterworth slope - OFF, 6, 12, 18 or 24dB/Octave
- Adjustable Linkwitz-Riley slope - OFF, 6 or 12dB/Octave
- KickEQ™: Graphic 31 Band, 1/3 octave, + or - 12dB
- Time Delay:
- Adjustable Delay : 0-20ms
- Adjustable increments : .02ms, .1 ms and 1.0 ms
- Compressor:
- Adjustable Attack and Release time; Adjustable 1:1 - 10:1 ratio
- Adjustable Threshold, -80 - 10dB
- Input Mixer: Maps signal inputs to specified speaker outputs
CEA Specifications:
- CEA Power: 500 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
- CEA Power:
- AMPS 1 and 2: 65 x 4 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
- SUB: 250 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
What's Included?
Onlinecarstereo is a long time authorized retailed of Kicker products. We source our inventory from accredited dealers to make sure your orders are authentic and warrantied. We always strive total customer satisfaction and on-time delivery.
- UPC:
- Weight: 12
- Authorized Internet Dealer
Warranty: 90 Days Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
