Alpine  PXE-X09

16-Channel Hi-Resolution Digital Sound Processor

Item #79328

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Brand Banner

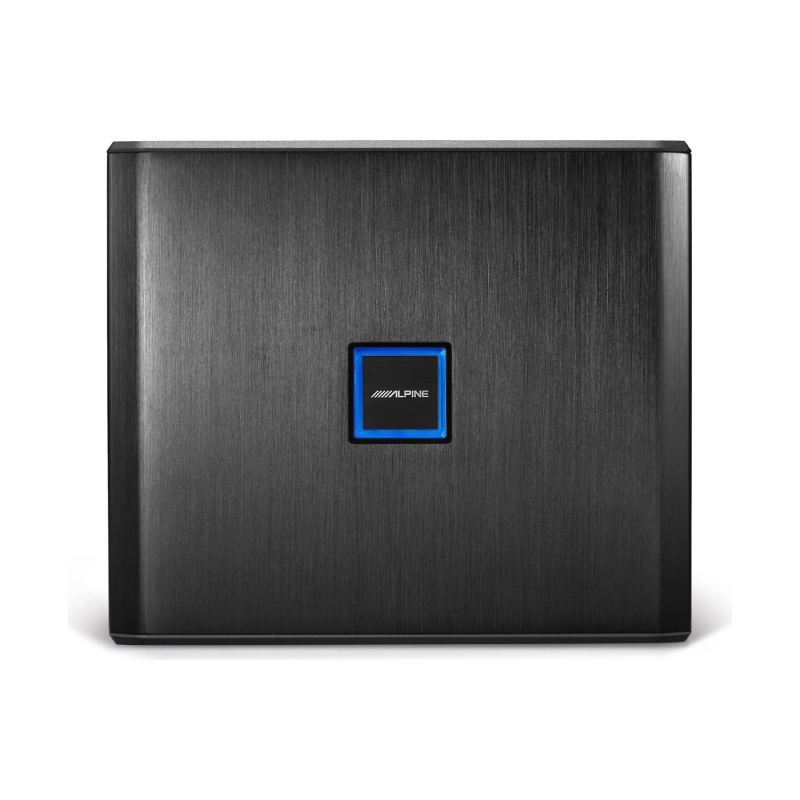

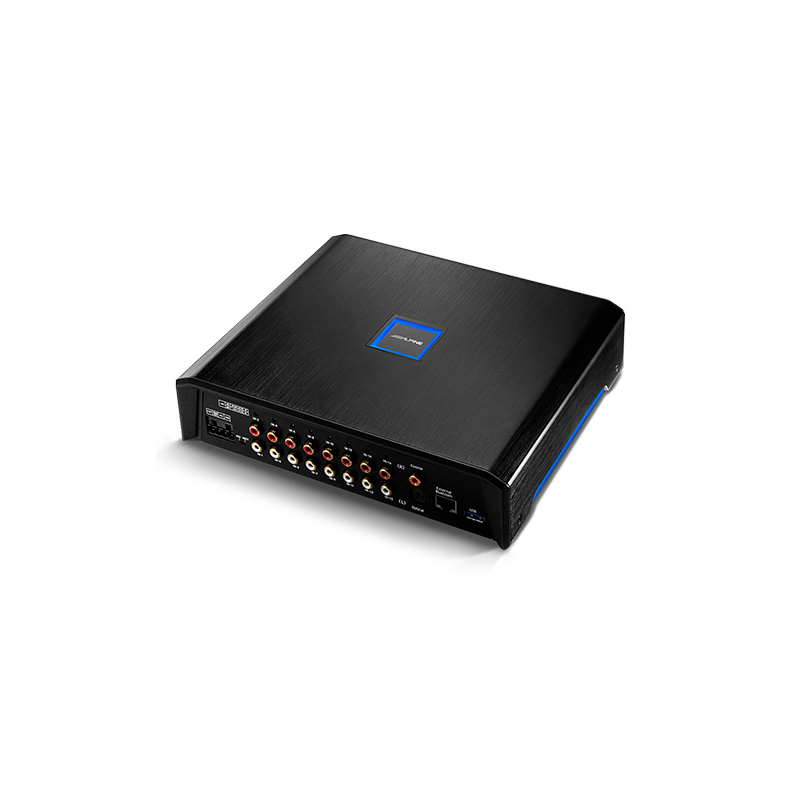

Alpine PXE-X09 16-Channel Hi-Resolution Digital Sound Processor


Alpine Banner for OCS

We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

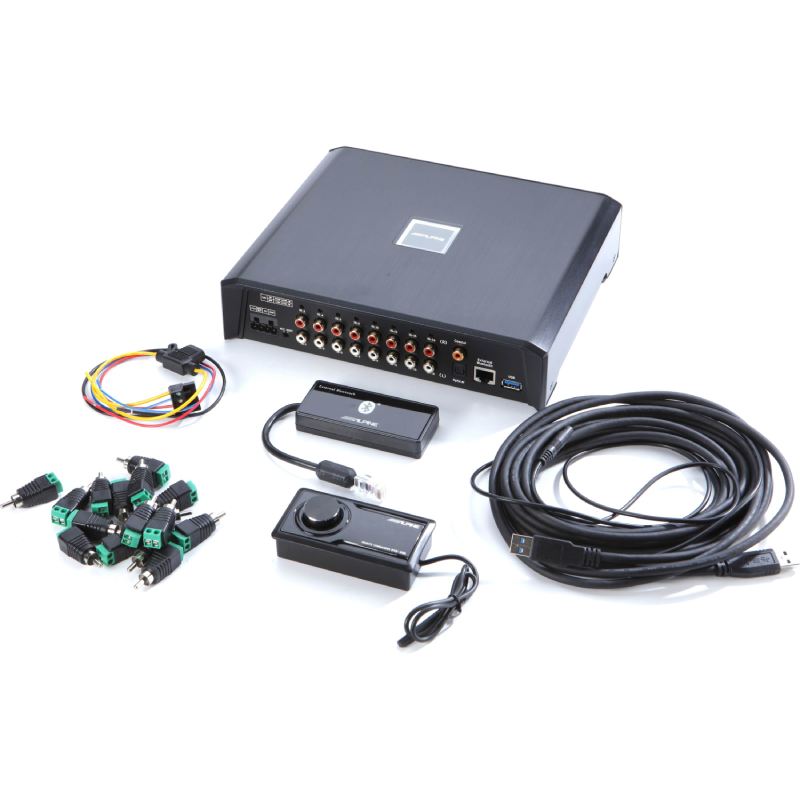

What's Inside?
  • • 16-Channel DSP processor

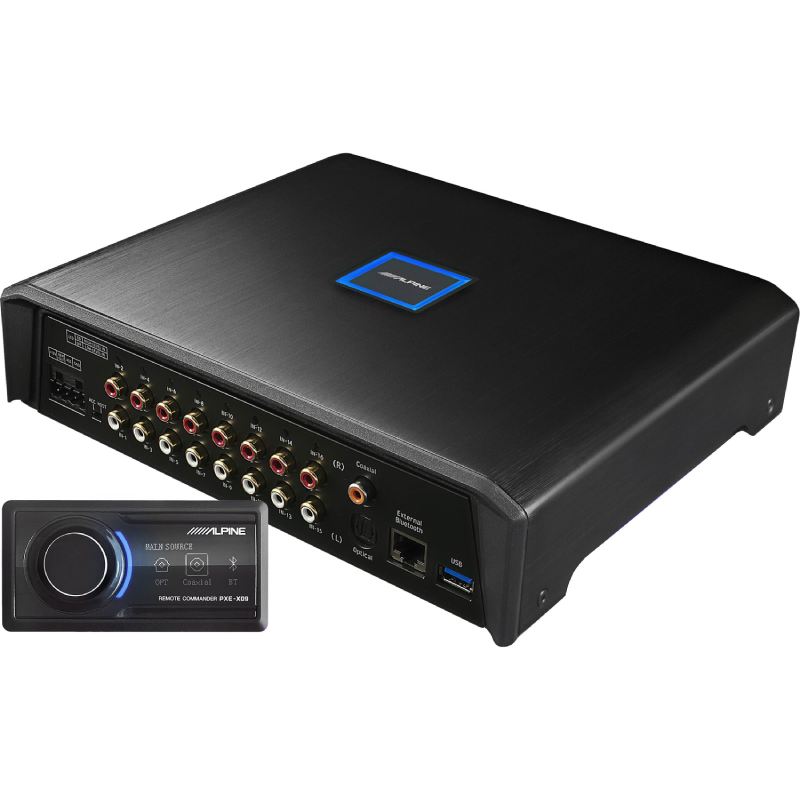

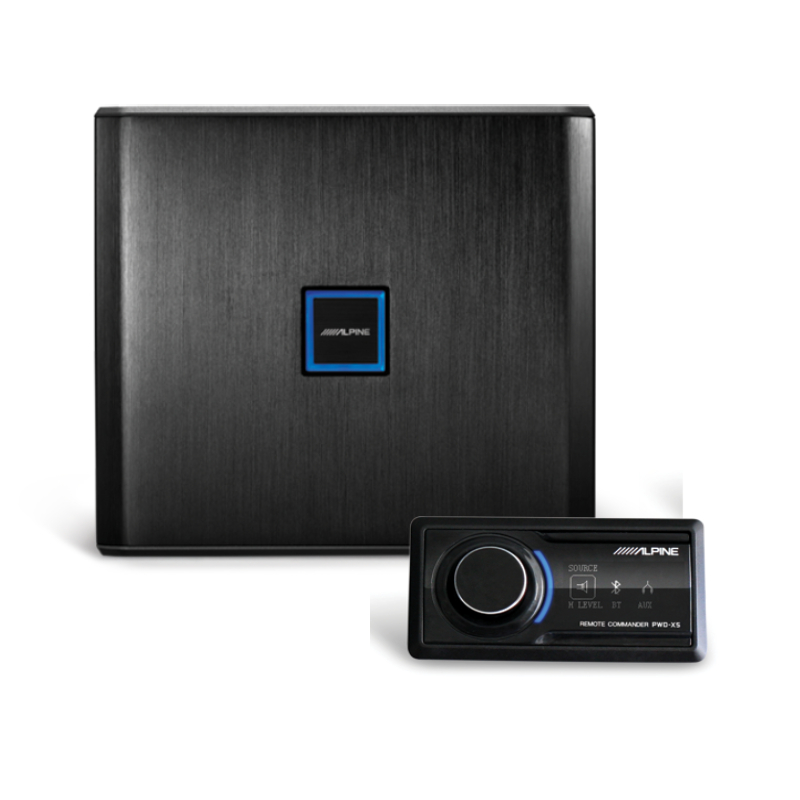

  • • Dash-mount remote commander w/ attached 15.5" connector (4-pin proprietary)
  • •Bluetooth module w/ attached 5" connector (RJ-45)
  • • 16' USB Cable (type-A 3.0 both ends) w/ attached 46" remote commander cable (4-pin proprietary)
  • • 16 Input connectors (RCA to set-screw terminals)
  • • 12" 4-Pin wiring harness (inline 10A mini-ATC fuse)
  • •4 Mounting brackets
  • •Four 3/4" screws
  • •Eight 1/8" machine-screws
  • • Warranty information
  • •Owner's Manual
A Better Sound Experience

For the discerning audio enthusiast who’s looking for a better music experience in their vehicle, the PXE-X09 Hi-Resolution Digital Sound Processor allows you to integrate aftermarket amplifiers and speakers into your vehicle without replacing the factory head unit. The on-board tuning tools give you the power to design a custom listening experience so you can get lost in your music.

Flexible Integration

The PXE-X09 comes with 16 channels of input and output for various sound system setups. An on-board Real Time Analyzer and a 10-band parametric input equalizer allows you to flatten the factory EQ curve or use as a global EQ. The internal signal generator quickly sends?the appropriate tuning sounds to test and tune your system with the option of using pink or white noise or sinusoid.


SPECIFICATIONS



FEATURES


Features:

  • DSP adjustments and settings made via Bluetooth device, Windows PC via USB, or wired remote
  • includes wired LCD remote control, Bluetooth adapter, and USB cable
  • 16-channel digital signal processor
  • download PXE-X09 Tuning App for iOS or Android device from the Apple APP or Google Play Store
  • download PXE-X09 Sound Manager for Windows at Alpine.com

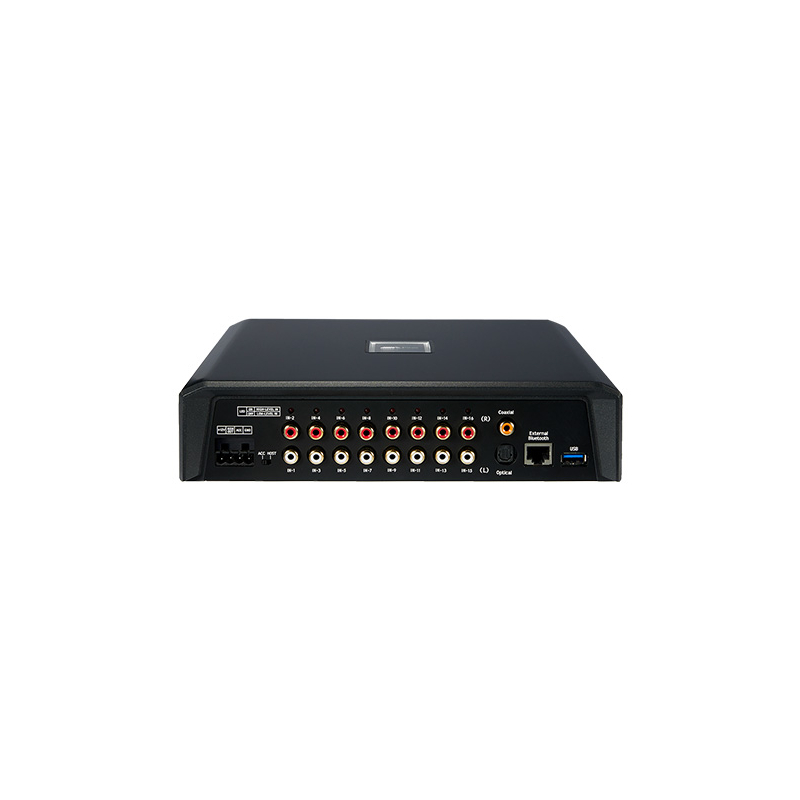

  • inputs: 16 assignable preamp and speaker-level, optical and coaxial digital
  • RCA adapters for speaker-level inputs included
  • outputs: 16 processed channels (RCA)
  • 16-channel 24-bit 96 KHz digital processor
  • 10-band input equalization (graphic or parametric)
  • 31-band output equalization (graphic or parametric)
  • adjustable high-, low-, and band-pass filters (20-20,000 Hz)
  • selectable filter slopes (12, 18, 24, 30, 36, 42, 48 dB/octave)
  • selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley)
  • delay: 0-20 milliseconds (0-273")
  • phase adjustment: 0 or 180°



Specifications:

  • built-in real-time analyzer (RTA)
  • can store and recall up to 6 presets
  • dimensions: 9-3/4"W x 2-5/16"H x 8-5/16"D
  • Frequency Response: 20Hz to 20kHz
  • Dynamic Range: ≥110dB
  • Signal-to-Noise Ratio: ≥100dB
  • Total Harmonic Distortion: ≤0.005%
  • Input Impedance: Aux Input (low-level): 47kΩ; High-level Input: 240Ω
  • Low-level Output Impedance: 51Ω
  • System Sampling Rate: 24-bit/96kHz
  • Optical/Coaxial Input Sampling Rate: 28kHz - 216kHz
  • A/D & D/A Conversion: 24-bit/216kHz
  • Power Source: DC 9V-15V
  • Standby Power Consumption: ≤0.1W
  • Dimensions: Width = 9.69" Height = 2.25" Depth = 8.31"/10.40" (incl. wiring)
  • Remote Dimensions: Width = 3.64" Height = 1.90" Depth = 1.26" (including knob)
  • warranty: 1 year



  • UPC: 793276084194
  • Weight: 9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
