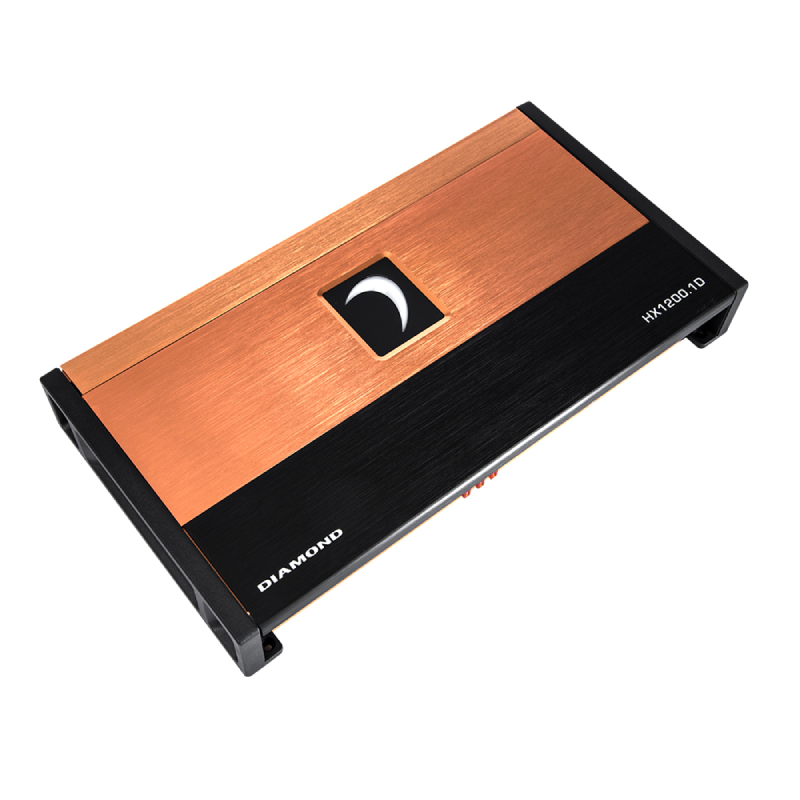

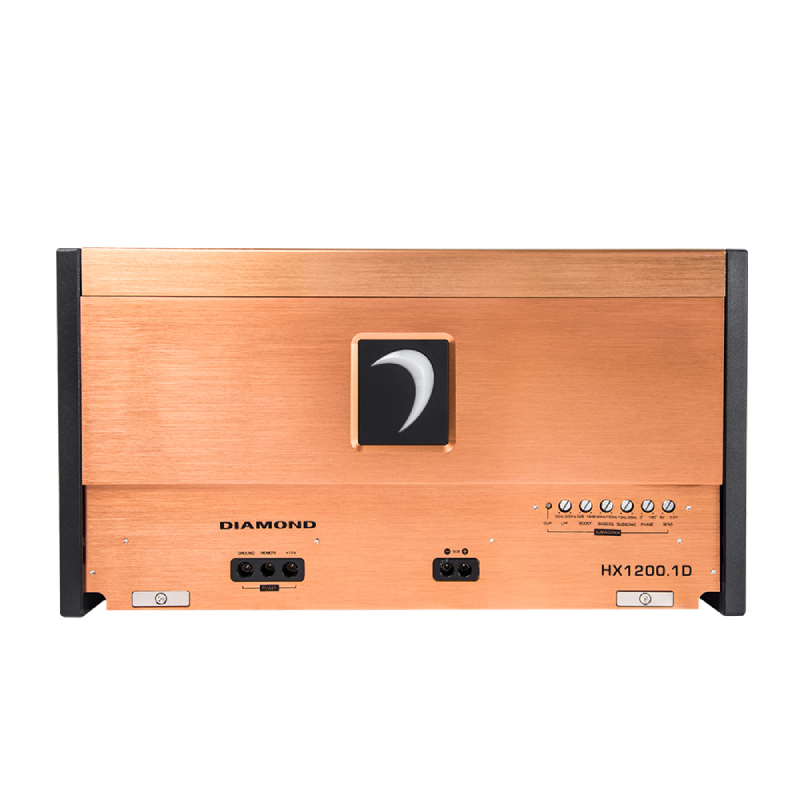

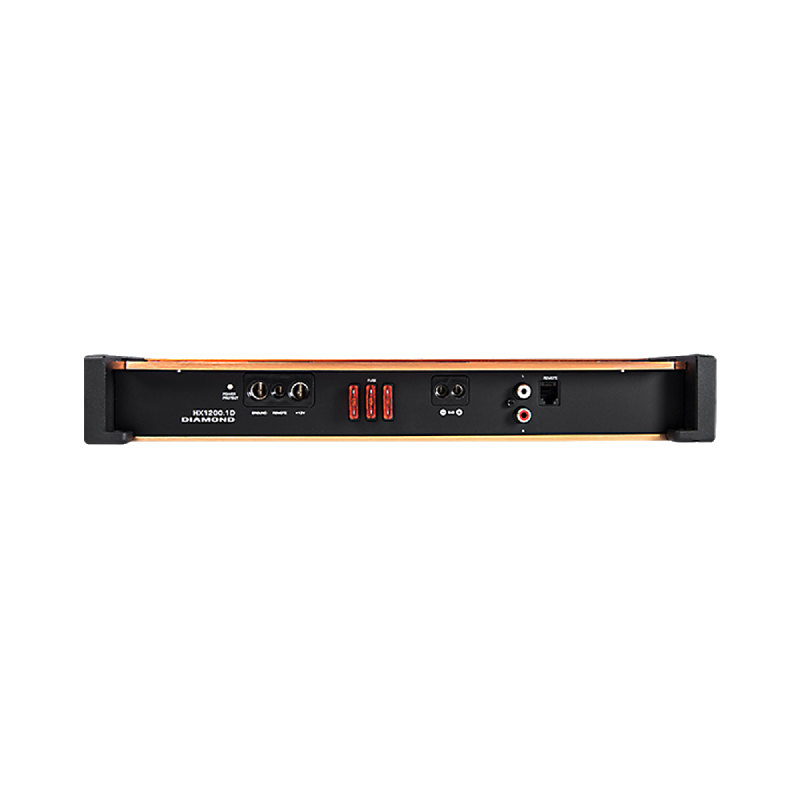

Diamond Audio  HX1200.1D

HEX Series 1200 Peak Power Handling, Monoblock Subwoofer Amplifier, Class-D

Item #80551

Condition:   Brand New

Product Highlights

  • HEX Series
  • Monoblock Subwoofer Amplifier
  • 1200 Peak Power Handling
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$779.99

Reg. Price $879.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio HX1200.1D - HEX Series 1200 Peak Power Handling, Monoblock Subwoofer Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Monoblock Subwoofer Amplifier
  • • Owner's Manual
Unmatched Sound Quality and Power for Audiophiles

Introducing the Hex Series Amplifiers – the premier choice for audiophiles seeking exceptional sound quality and power. Crafted with precision and featuring high-tolerance components, these amplifiers deliver an unparalleled listening experience. Combining advanced technology with intuitive controls, the Hex Series offers seamless integration into both high-end and upgraded audio systems. Elevate your sound system and enjoy the superior performance that comes from meticulous engineering and premium components. Upgrade to the Hex Series and experience the ultimate in audio excellence.


SPECIFICATIONS


  • Maximum Power : 1200 Watts
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Amplifier Class : D
  • Fuse Rating : 30x4 A

FEATURES


Features:

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • 4-Layer PCB Board with Balanced Differential Inputs
  • Full Range Class D IR Chipset
  • “SNAP” Capacitors used Throughout the Circuit
  • Audiophile Grade High Tolerance Components
  • Spring Steel FET Clips Provide a Cleaner Board Design
  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control
  • Top Mounted Controls for Convenient Amplifier Adjustment



Specifications:

  • RMS Power (4 Ω): 540 W RMS
  • RMS Power (2 Ω): 870 W RMS
  • RMS Power (1 Ω): 1200 W RMS
  • Topology: Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.01%
  • S-N Ratio (A-weighted @ 1W): -80dBA
  • S-N Ratio (A-weighted @ 1W): -95dBA
  • Input Sensitivity – Low Input Level: 200mV – 5.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.0297Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: N/A
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 30Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz@12dB
  • Fuse Rating (ATC): 30A X 4
  • Dimentions- Length x Width x Height (inches): 14.25″ x 7.67″ x 2″
  • Dimentions- Length x Width x Height (mm): 363 x 195 x 51.5 mm
  • UPC: 847169020087
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
