Elevate Your Bass

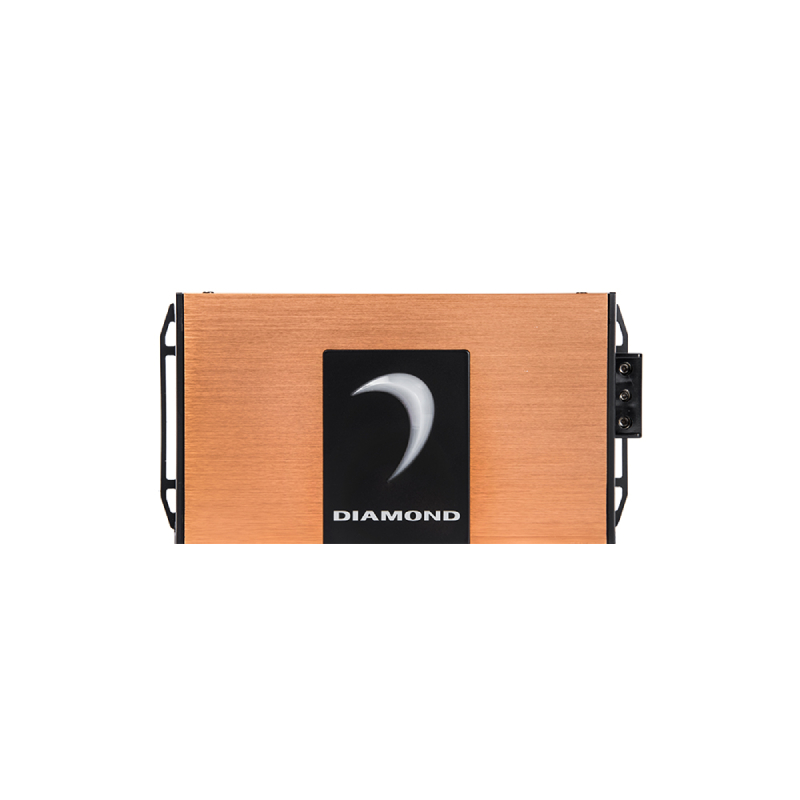

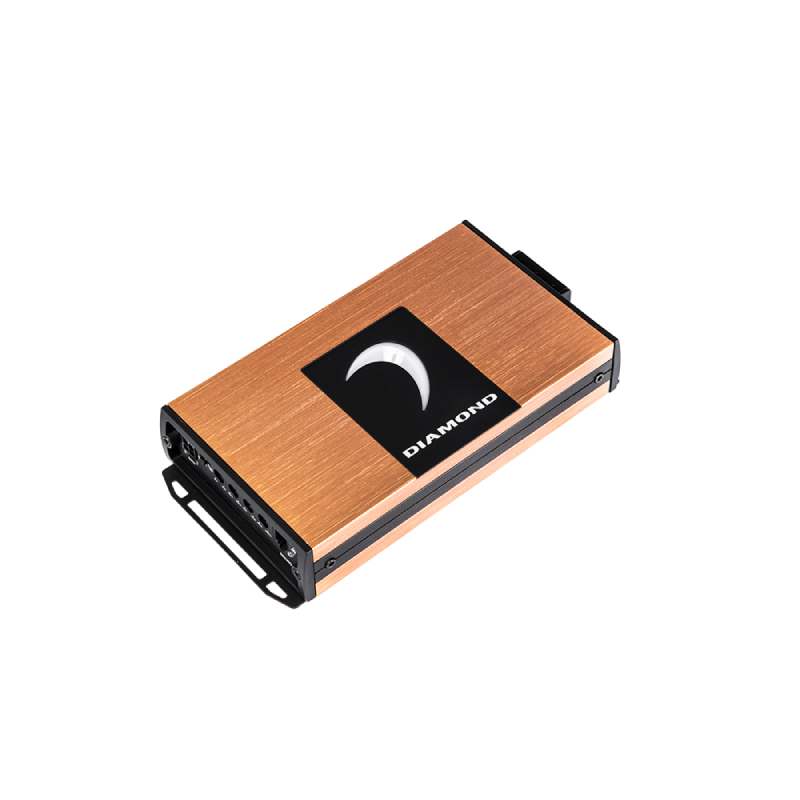

The Diamond Audio MICRO1V2 is a member of the MICROV2 Series of amplifiers. It's a Class D mono subwoofer amplifier designed to provide power to subwoofers in car audio systems. This means that the amplifier is capable of delivering 500 watts of power when the connected subwoofer's impedance is 1 ohm, and 300 watts of power when the impedance is 2 ohms.
Precision Bass Dominance
This indicates that the amplifier is designed to power a single subwoofer channel. It's dedicated to reproducing the low-frequency bass signals typically handled by subwoofers. Despite being a mono subwoofer amplifier, it's described as "full range." This might imply that the amplifier is designed to handle a wide range of frequencies beyond just the bass frequencies, making it more versatile in certain setups.
- Maximum Power : 500 Watts
- Low Frequency Response : 40-400 Hz
- Number of Channels : 1
- Frequency Response : 20-30000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 300x1 Watts
- Amplifier Class : D
- Fuse Rating : 25 A
Features:
- Full Range Class D IR Chipset
- DirectFET Power Mosfet Output Stage
- SMD Technology on 4 layer Glass PC Board
- ICAD circuit provides superior overload protection
- Frequency response 20 Hz – 30kHz
- Variable 12db crossovers
- Bridgeable / 2ch-4ch switch control
- BTR (BlueTooth Receiver enabled)
- MICRO Bass boost +12DB @45Hz
- Premium 8 and 4 gauge power connections
- Multi channels / Mono channel
Specifications:
- RMS Power (2 Ω): 300 W
- RMS Power (4 Ω): 175 W
- Bridged (mono 4 Ω): 175 W
- Topology: Full Range Class D
- Power Supply: Full PWM
- Power Supply Threshold: 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- THD 4 (1KHz @4Ω): 0.5%
- S-N Ratio (A-weighted @ 1W): -85dBA
- S-N Ratio (A-weighted @ 1W): -101.1dBA
- Input Sensitivity – Low Input Level: 200mV – 10.0V
- Input Sensitivity – High Input Level: N/A
- Input Impedance – Low Input Level: 20 KΩ
- Impedance – High Input Level: 20 KΩ
- Output Impedance: 0.011Ω
- Damping Factor (50Hz @ 4Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) – Variable High Pass: N/A
- Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz
- Fuse Rating (ATC): 25A
- Dimentions- Length x Width x Height (inches): 7.89″ x 4.0″ x 1.46″
- Dimentions- Length x Width x Height (mm): 200.5 x 103 x 37.2 mm
- UPC: 847169024153
- Weight: 7
