Diamond Audio  DES102

Diamond Elite Series 10" 800W Peak Power Handling, Dual 2-Ohms Subwoofer

Item #80644

Condition:   Brand New

Product Highlights

  • Diamond Elite Series
  • 10" Subwoofer
  • 800W Peak Power
  • Dual 2-Ohms

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$195.49

Reg. Price $329.99  Save $134.50

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:

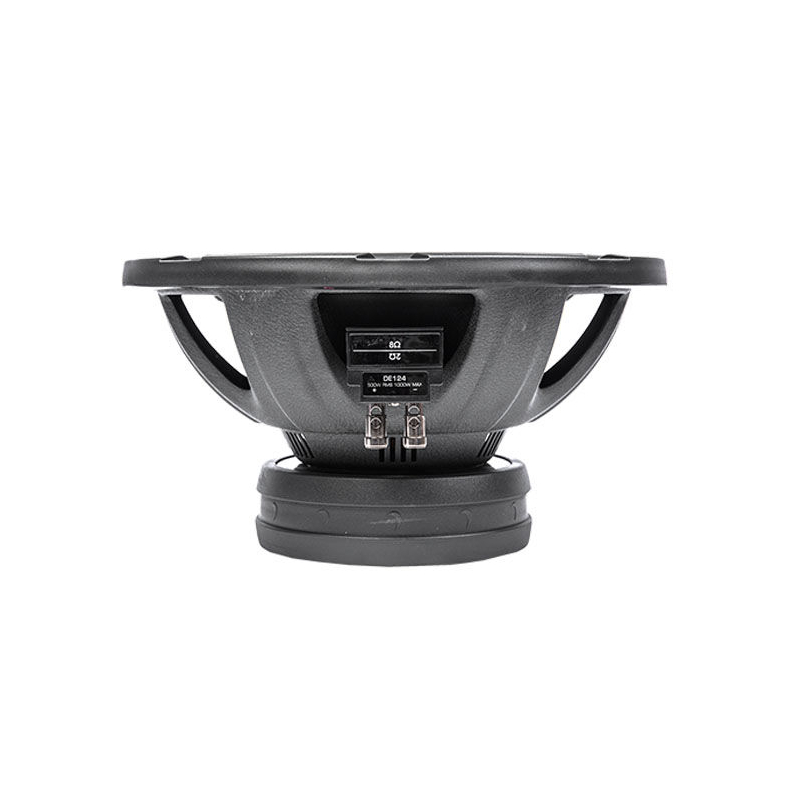

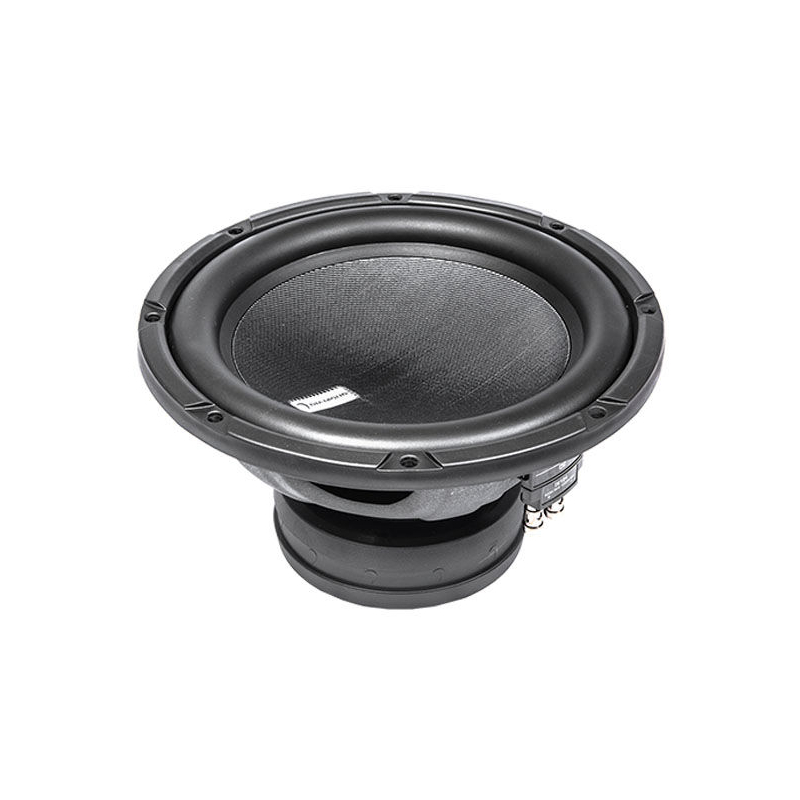

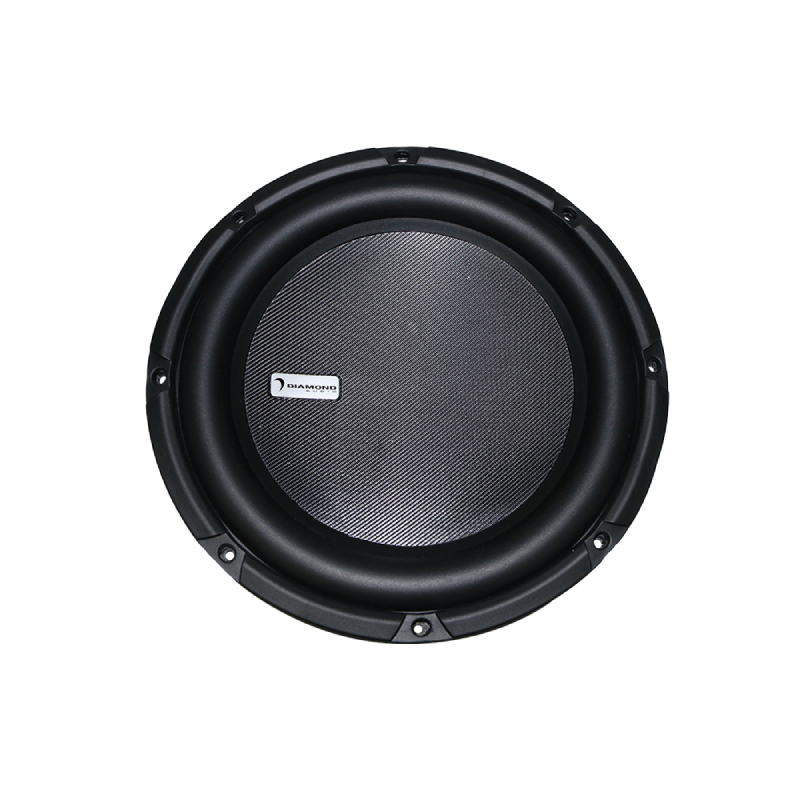

Diamond Audio DES102 - Diamond Elite Series 10" 800W Peak Power Handling, Dual 2-Ohms Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 2-Ohms Subwoofer
  • • Owner's Manual
Exceptional Performance and Versatility of Diamond Elite DES Series Subwoofers

The Diamond Elite DES series subwoofers exemplify top-notch craftsmanship and precision engineering, setting a new standard in performance. Designed for versatility, these subwoofers excel in various enclosure types, delivering dynamic sound and the renowned Diamond Audio bass even during extended listening sessions. Featuring a high-grade reinforced hybrid paper fiber cone for handling extreme power, along with an impedance switch for added flexibility, the DES subwoofers are built to impress. They come equipped with a true fiber weave backed parabolic cone, a durable black powder-coated stamped frame, dual mirror image spiders with woven tinsel leads, and a vented pole piece for cooler operation. The Klippel® DA optimized motor and suspension symmetry ensure exceptional performance and reliability.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 80.6 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 800 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 5.97 Inches
  • RMS Power Handling : 400 Watts

FEATURES


Features:

  • 2Ω Impedance
  • 400W RMS, 800W MAX
  • Dual Voice Coil
  • Mounting Diameter: 9.17 “ / 233mm
  • Mounting Depth: 5.97 “ / 151.5mm
  • True-fiber weave paper backed parabolic cone
  • High-grade rolled edge six leg black powder coated stamped frame
  • Dual mirror image spider with woven tinsel leads
  • Black PVC wrap-around mounting gasket
  • Vented pole and voice coil gap for cooler operation
  • Klippel® DA optimized motor and suspension symmetry



Specifications

  • SPL (dB): 80.6
  • Re (Ω) [series]: 3.20
  • Qms: 7.50
  • Qes: 0.77
  • Qts: 0.70
  • Fs (Hz): 35.0
  • Vas(L): 13.0
  • Cms (mm/N): 0.09
  • Mms (g): 240
  • Sd (m2): 0.0325
  • BL (T*M): 14.8
  • Xmax: 15.7
  • Pwr (W) nom/max: 400/800

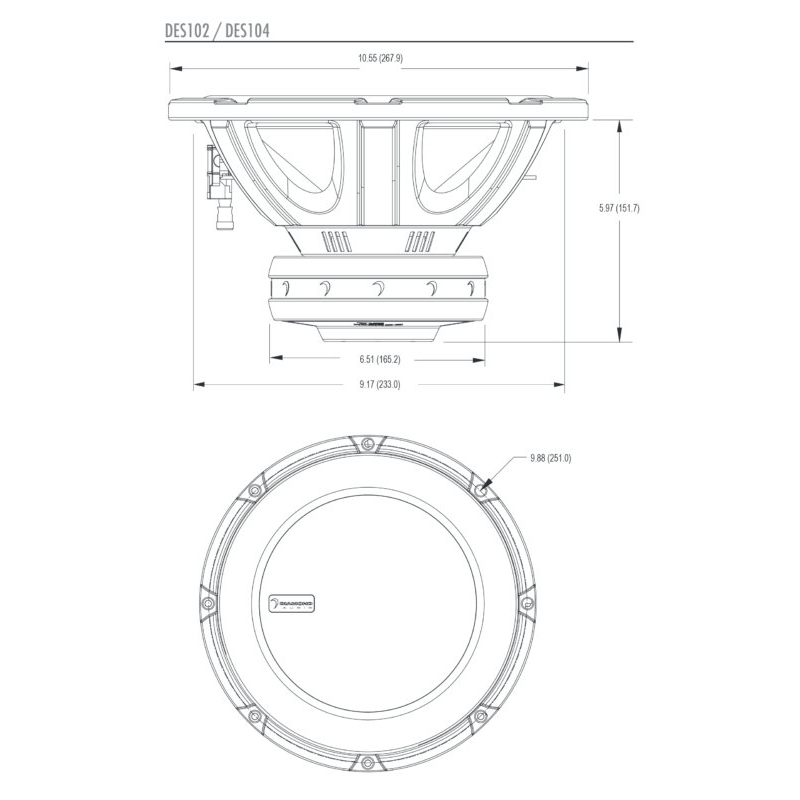

  • Total Diameter: 10.55” (267.9) in. (mm)
  • Mounting Diameter: 9.17” (233) in. (mm)
  • Screw Hole Dia.: 9.88” (251) in. (mm)
  • Mounting Depth: 5.97” (151.7) in. (mm)
  • Magnet Dia.: 6.51” (165.2) in. (mm)
  • UPC: 847169020322
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
