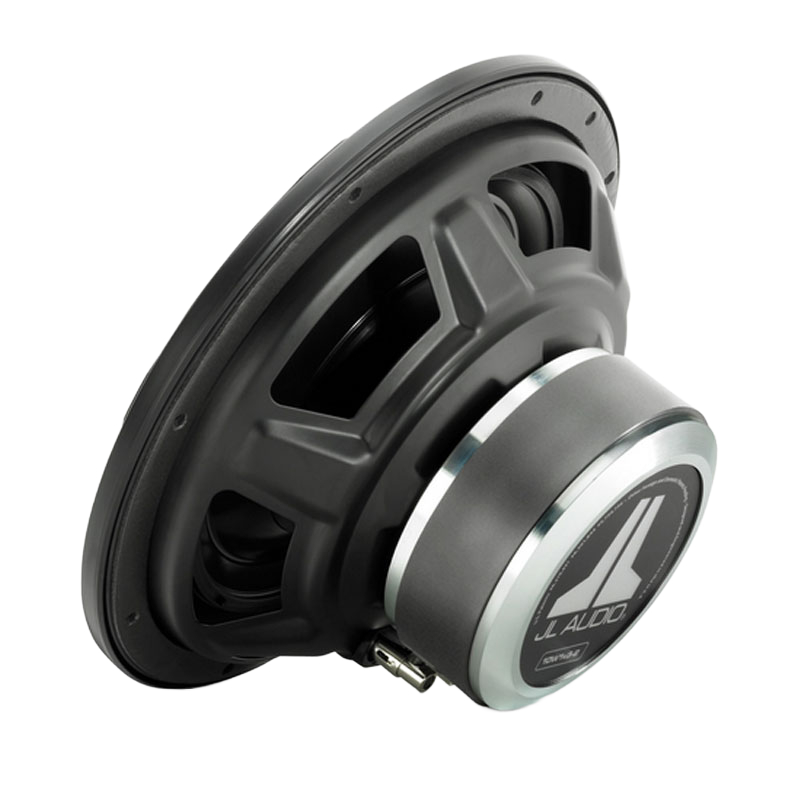

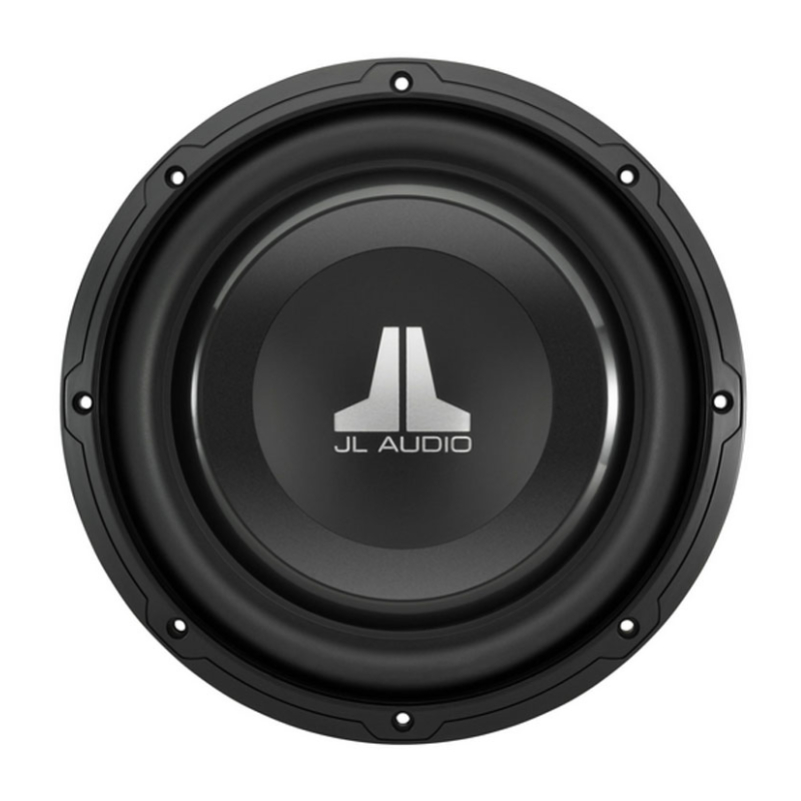

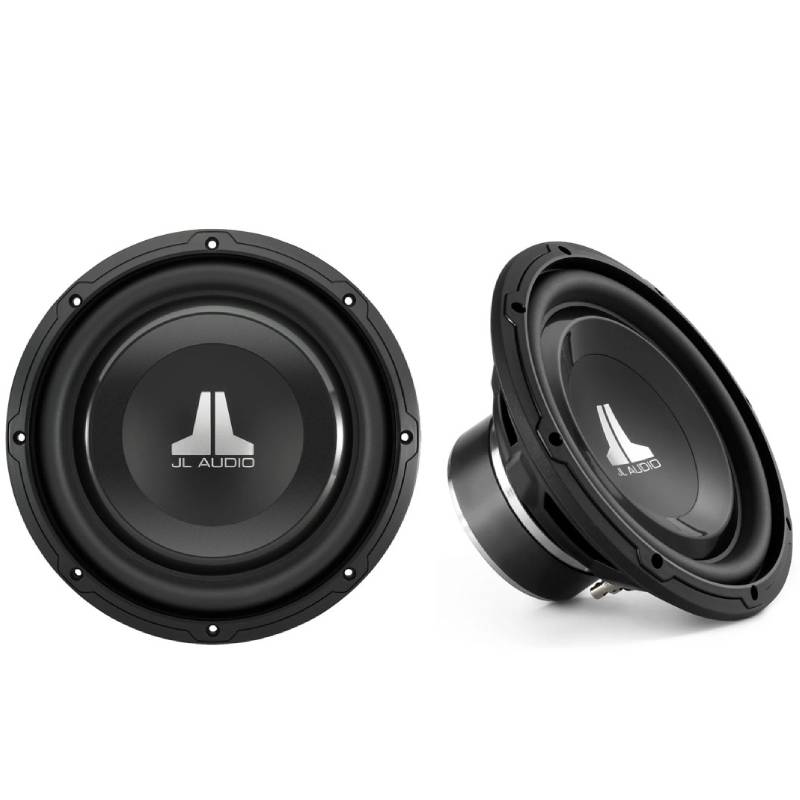

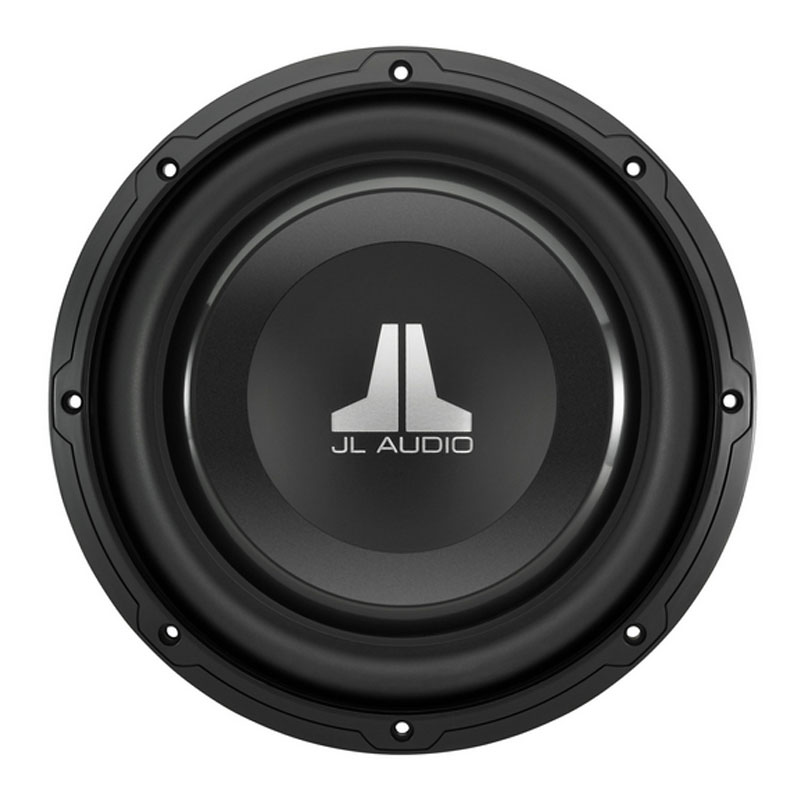

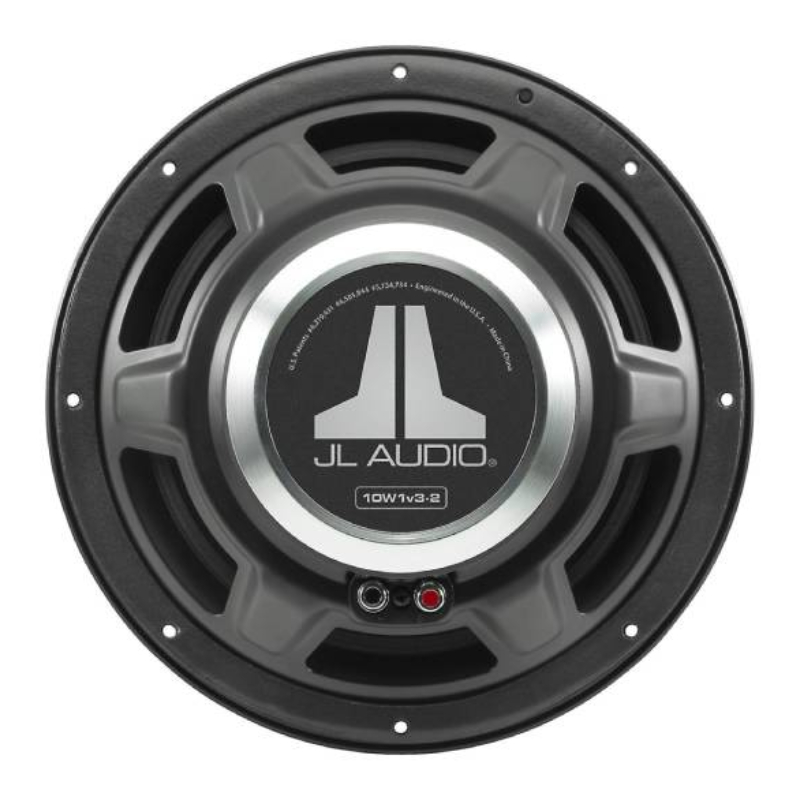

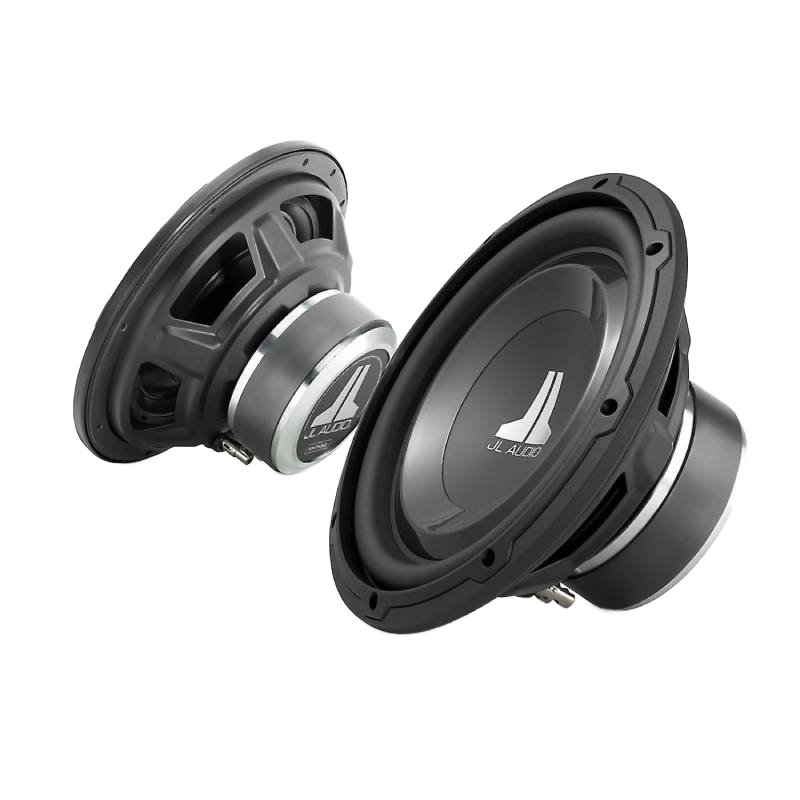

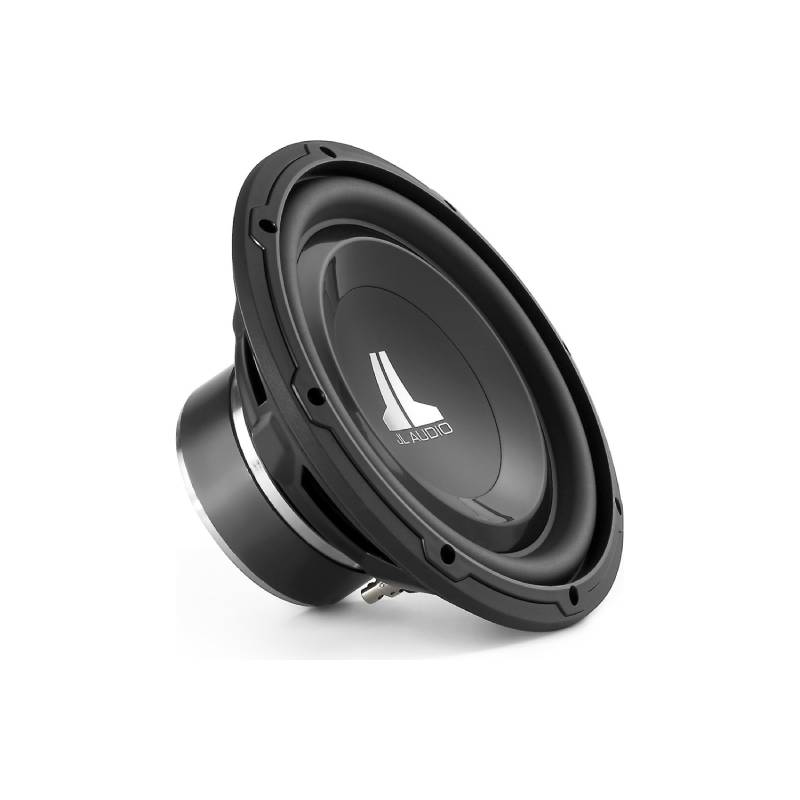

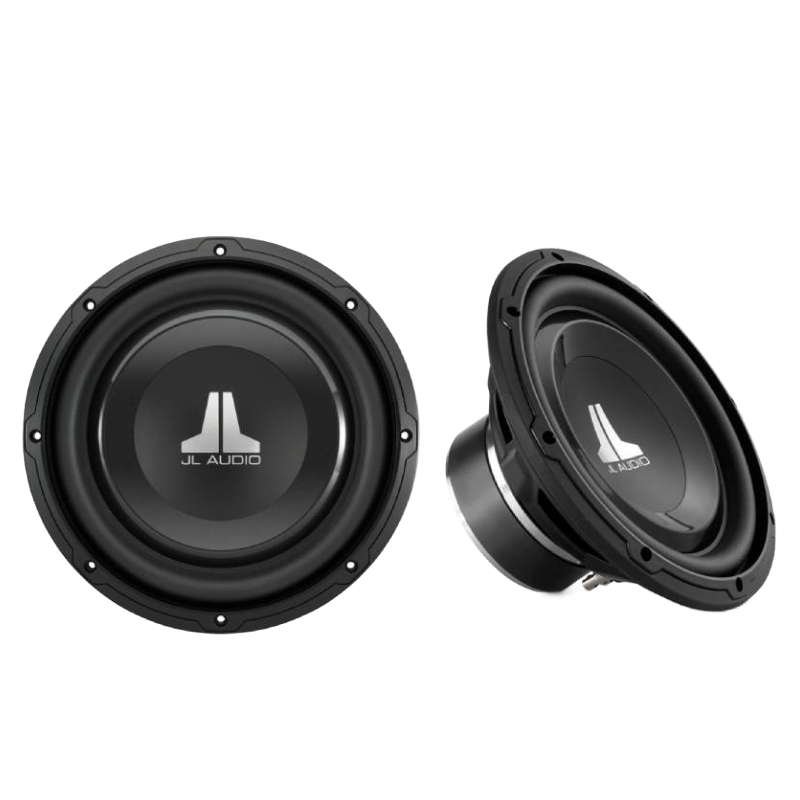

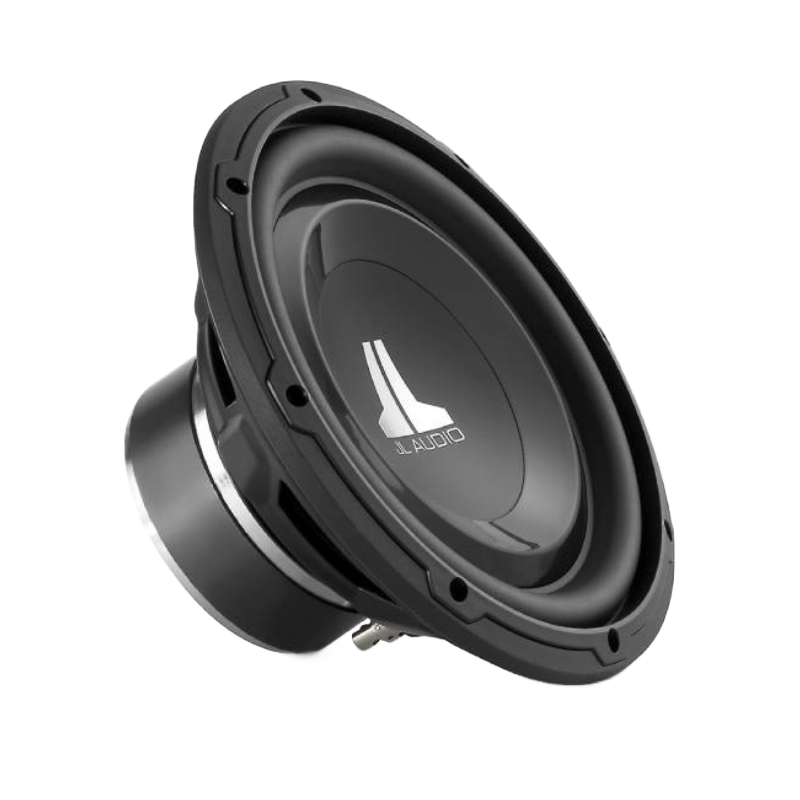

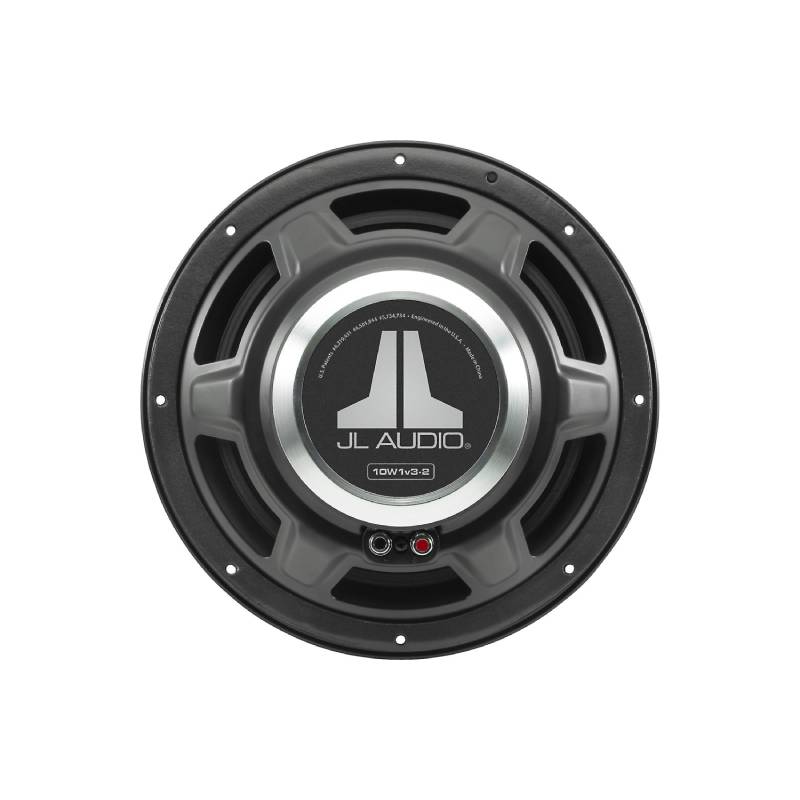

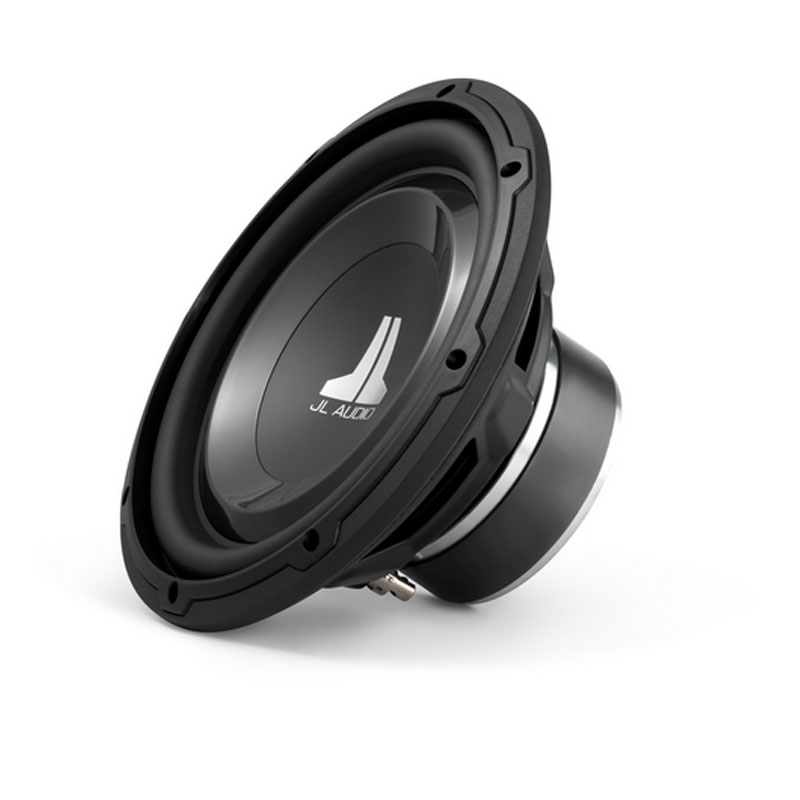

JL Audio 10W1v3-2 W1v3 Series 10" 600W Peak Power Handling at 2 Ohms, Single Voice Coil Component Car Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 10" Single 2-ohms voice coil subwoofer
- • Black plastic trim ring
- • Owner's Manual
Why Choose JL Audio 10W1v3-2 Component Speakers
Outstanding Choice – JL Audio 10W1v3-2 10-Inch Subwoofer
The JL Audio 10W1v3-2 subwoofer delivers clean, powerful deep bass performance at a great value, bringing JL Audio’s premium technology into an affordable car audio upgrade. It’s designed for users who want high-quality bass without paying entry-level compromises, making it a top choice for a budget JL Audio 10-inch subwoofer setup.
High Excursion for Clean, Accurate Bass Output
Built with a polypropylene cone and rubber surround, the 10W1v3-2 delivers tight, distortion-free bass with strong excursion control. It handles daily high-volume use while maintaining clean low-frequency response, ideal for a sound quality car subwoofer upgrade.
Easy Installation with Advanced Cooling Design
The Elevated Frame Cooling system keeps the voice coil cool for stable long-term performance. It fits easily in sealed or ported enclosures, making it a flexible option for any car audio bass system installation.
JL Audio 10W3v3-4 vs 10W1v3-2 vs 10W1v3-4 vs 10W0v3-4 | Which 10" JL Audio Subwoofer Is Best?
| JL Audio 10" Subwoofer Performance Battle |
JL Audio 10W3v3-4
10" W3v3 Series Single 4-Ohm High-Performance Subwoofer
BEST OVERALL
- • 10" Subwoofer
- • 500 Watts RMS
- • 1000 Watts Peak
- • Single 4-Ohm Voice Coil
- • DMA Optimized Motor
- • Excellent Sound Quality
- • Highest Output Capability
- • Best for SQL Systems
|
JL Audio 10W1v3-2
10" W1v3 Series Single 2-Ohm Sound Quality Subwoofer
BEST VALUE SQL
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 2-Ohm Voice Coil
- • Compact Enclosure Friendly
- • Excellent Sound Quality
- • Easy to Power
- • Strong Low-End Extension
- • Ideal for Mono Amps
|
JL Audio 10W1v3-4
10" W1v3 Series Single 4-Ohm Sound Quality Subwoofer
MOST FLEXIBLE
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Excellent Sound Quality
- • Compact Box Compatible
- • Flexible System Matching
- • Tight & Accurate Bass
- • Great Daily Driver
|
JL Audio 10W0v3-4
10" W0v3 Series Single 4-Ohm Entry-Level Subwoofer
BUDGET PICK
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Affordable JL Audio Option
- • Smooth Musical Bass
- • Easy Installation
- • Small Sealed Box Friendly
- • Great for Factory Upgrades
|
JL Audio 10W1v3-2 Recommended Amplifiers | Best Monoblock Amp Pairing for Clean Bass, Daily Power & Reliable Performance
JL Audio 10W1v3-2 Amplifier Matching Guide
Best Monoblock Amplifiers for Clean Power Delivery, Tight Bass Response & Long-Term Subwoofer Reliability
Amplifier Matching Overview
10W1v3-2 Power Rating: 300W RMS
Voice Coil Configuration: Single 2-Ohm
Ideal Amp Range: 250W – 400W RMS @ 2Ω
Goal: Clean bass output with tight control, low distortion, and strong daily performance
Best Setup: Stable monoblock amplifier with clean 2Ω output and proper gain tuning
Top Recommended Amplifiers for JL Audio 10W1v3-2
JL Audio JD500/1: Best overall match – clean, controlled output with excellent efficiency. Perfectly tuned, it delivers strong daily bass without distortion.
JL Audio RD500/1: Premium upgrade option – extremely clean power delivery with high headroom and excellent low-end control for SQ-focused systems.
Rockford Fosgate R2-500X1: Best budget-performance choice – solid output at 2Ω with reliable daily bass performance and strong value.
Alpine S2-A60M: Best future-proof option – higher headroom with clean output, ideal for system expansion or lower-gain operation.
Gain & Tuning Recommendations
Gain Setting: Set gain using a 40Hz test tone and multimeter/oscilloscope. Target clean ~300W RMS without clipping.
Low-Pass Filter (LPF): 70Hz – 90Hz for smooth integration with front speakers and midbass.
Subsonic Filter: 20Hz – 25Hz (sealed box) | 25Hz – 30Hz (ported box) for protection and clean low-end control.
Bass Boost: OFF recommended – avoid clipping and preserve sound quality.
Head Unit Settings: EQ flat, loudness OFF, volume at ~75–80% during tuning.
Phase Adjustment: Adjust 0°–180° for strongest bass at driver seat position.
Enclosure Matching Tips
Sealed Box: 0.75 – 0.9 cu ft → Tight, accurate bass and best sound quality for daily driving.
Ported Box: 1.0 – 1.25 cu ft tuned 30–32Hz → Louder output with deeper bass extension and higher efficiency.
Power Recommendation: Performs best with a clean 250W–300W RMS signal for balanced daily performance.
Pro Tip: The JL Audio 10W1v3-2 delivers its best performance with clean power and proper tuning rather than maximum wattage. A properly set gain is more important than amplifier size for long-term bass quality and reliability.
Frequently Asked Questions (FAQ)
- • What’s the difference between JL Audio 10W1v3-2 and 10W1v3-4? When should I choose 2Ω vs 4Ω?
The main difference is voice coil impedance. The 10W1v3-2 is a 2-ohm model that draws more power from compatible amplifiers, making it better for maximizing output in lower-impedance stable systems. The 10W1v3-4 is a 4-ohm model that is easier to match with a wider range of amps and often runs cooler and more efficiently. Choose 2Ω if your amplifier is 2Ω stable and you want more output potential. Choose 4Ω if you want wider amp compatibility, simpler setup, and more stable daily performance.
- • Why isn't my JL Audio 10W1v3-2 hitting as hard as I expected?
The most common cause is underpowered amplification or incorrect gain tuning. The 10W1v3-2 performs best with a clean 250–300W RMS signal and a properly designed enclosure. Distortion or weak output usually comes from clipping, bad tuning, or poor installation—not the subwoofer itself.
- • Can I run the JL Audio 10W1v3-2 on a 500W amplifier?
Yes, but only if the gain is properly set. The sub is rated at 300W RMS, so a higher-powered amp is safe when tuned correctly. Without proper tuning, clipping and overpowering can damage the subwoofer over time.
- • Why does my JL Audio 10W1v3-2 sound weak in a sealed box?
A sealed enclosure prioritizes accuracy and tight bass over maximum output. If you want louder bass and deeper extension, a ported enclosure tuned around 30–32Hz will provide more volume and low-end impact.
- • Why does my JL Audio 10W1v3-2 distort at high volume?
Distortion is usually caused by amplifier clipping, excessive gain, or too much EQ/bass boost. The most effective fix is resetting gain using a test tone and keeping bass boost OFF or at minimum levels.
- • What amplifier power is ideal for the JL Audio 10W1v3-2?
The ideal range is 250–300W RMS at 2Ω. This gives clean headroom, strong output, and long-term reliability without stressing the subwoofer.
- • Why doesn't my JL Audio 10W1v3-2 play very low bass?
Low bass issues are often caused by incorrect enclosure tuning, improper LPF settings, or a subsonic filter set too high. A properly built box and correct tuning greatly improve deep bass response.
- • Is a single JL Audio 10W1v3-2 enough for daily bass?
Yes. A properly powered single 10W1v3-2 delivers strong, clean bass suitable for most daily drivers. Many users only upgrade when they want louder SPL or multiple subwoofer setups.
- • Why is my JL Audio 10W1v3-2 making popping or knocking sounds?
This is typically caused by over-excursion, clipped signal, or air leaks in the enclosure. Check gain settings, wiring polarity, and box sealing immediately to prevent damage.
- • Does the JL Audio 10W1v3-2 need a break-in period?
Yes. A break-in period of 10–20 hours of moderate listening helps loosen the suspension, improving bass smoothness, depth, and overall response.
- • Is the JL Audio 10W1v3-2 worth upgrading from entry-level subs?
Yes. Compared to entry-level subs, the 10W1v3-2 offers noticeably better sound quality, stronger power handling, and deeper, cleaner bass when properly installed and tuned.
JL Audio 10W1v3-2 Videos & Reviews
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers
- Diameter : 10 Inch
- Sensitivity : 83.9 dB
- Impedance : 2 Ohm
- Frequency Response : 25-250 Hz
- Peak Power Handling : 600 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.55 Cubic ft.
- Suggested Ported Box Volume : 0.94 Cubic ft.
- Mounting Depth : 4.6 Inches
- RMS Power Handling : 300 Watts
Features:
- Engineered for Performance: The W1v3 subwoofer delivers impressive output, accuracy, and sound quality at moderate power levels, providing immersive bass in compact, space-saving enclosures.
- Dynamic Motor Analysis (DMA) Optimized Speakers: DMA technology ensures linear motor force over a wide range of power levels and cone excursions, giving tight, clean, and articulate bass with minimal distortion.
- Polypropylene Cone Technology: The injection-molded, black mica-filled polypropylene cone with a durable rubber surround produces crisp, strong bass that can handle extended high-volume play. An aluminum dust cap with a JL Audio logo adds a premium finishing touch.

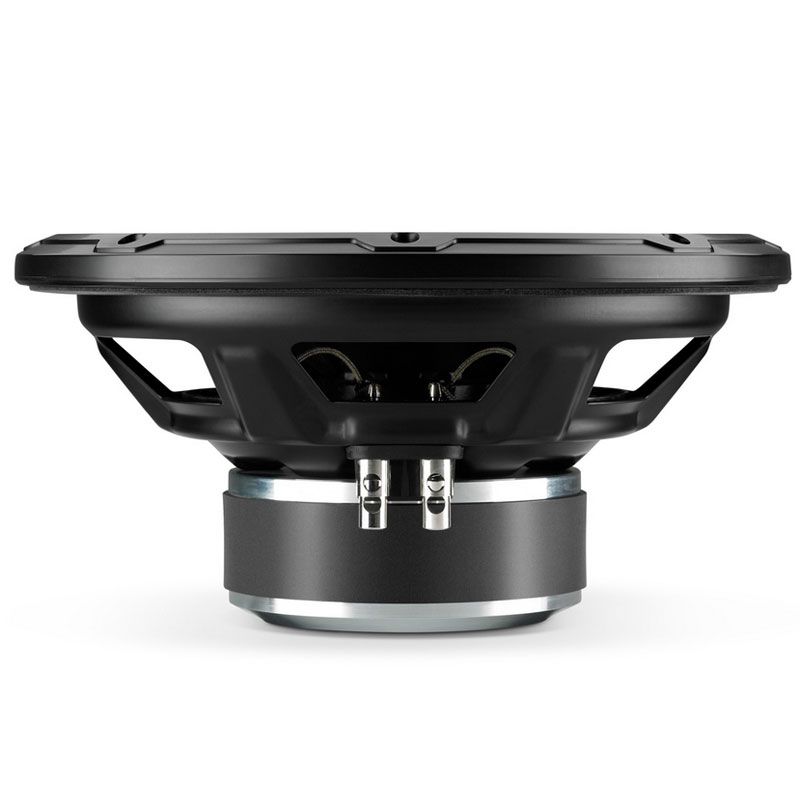

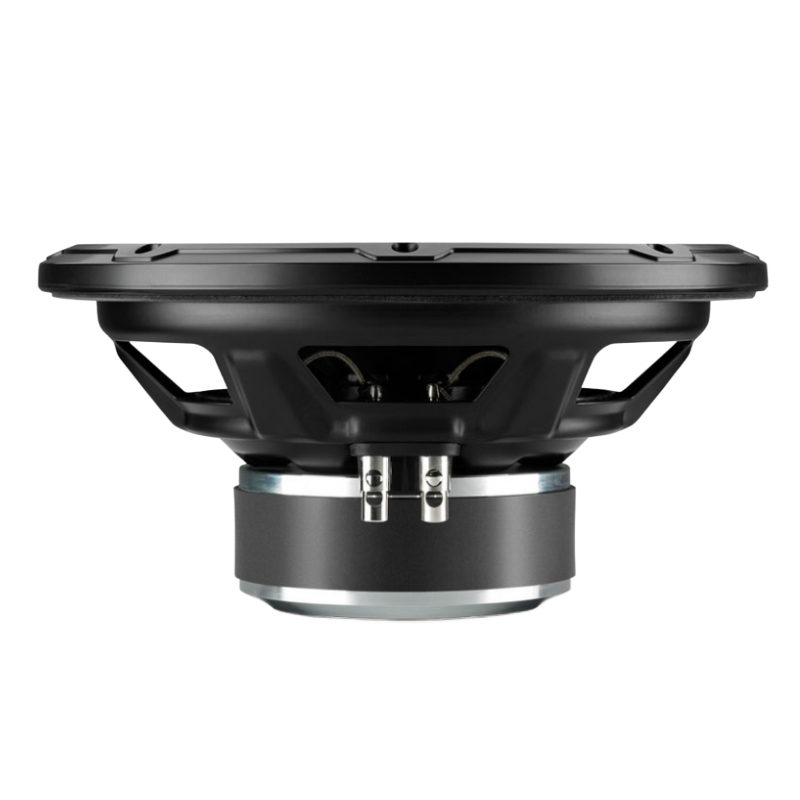

- Shallow Mounting Depths: The compact motor and shallow design allow installation in spaces where traditional subwoofers won’t fit, with the 10-inch model requiring only 4.6 inches of mounting depth.

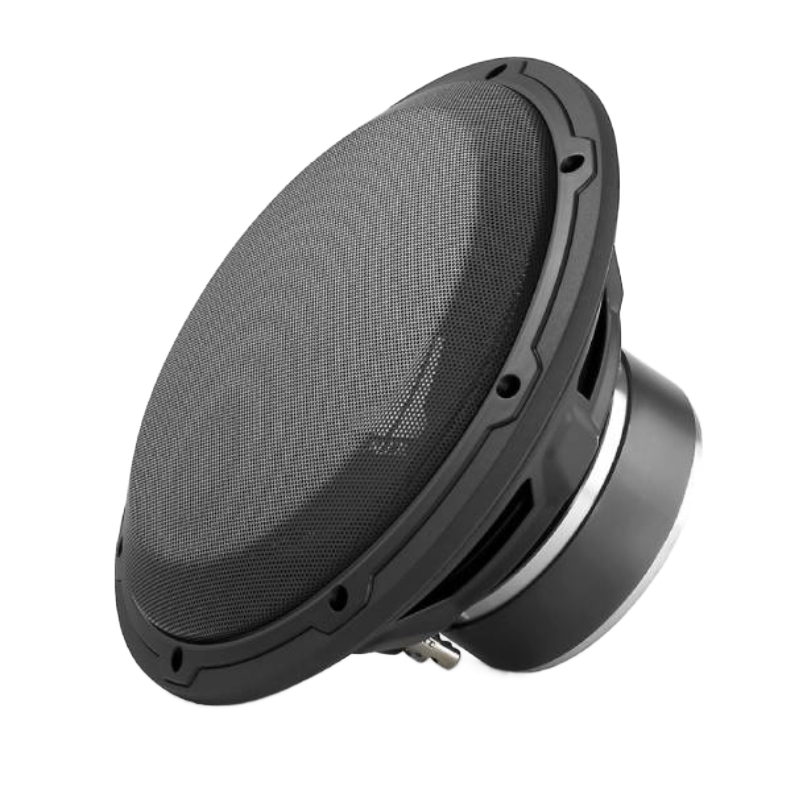

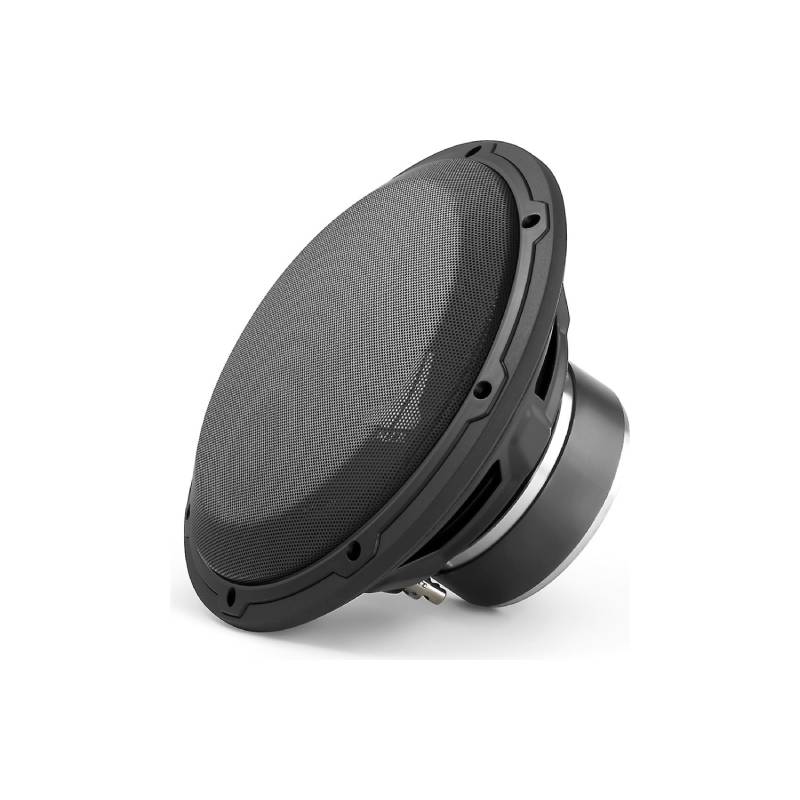

- Custom Accents: The included removable trim ring can be painted to match your vehicle’s interior, while optional steel-mesh grille inserts (sold separately) add style and protection.
- Powerfully Adaptable: Works with sealed or ported enclosures across a variety of vehicles, supporting amplifiers from 75-300 watts for 10- and 12-inch models, and 50-100 watts for the 8-inch model.
- JL Audio Engineering: Incorporates features from the legendary W7 series, including specialized venting to keep the subwoofer cool, cone bonding for linear movement, and a suspension system that ensures precise, dependable output.
- Solid Bass in Compact Boxes: Perfect for smaller vehicles, trucks, or sports cars where space is limited, providing punchy, high-quality bass without requiring a large enclosure.
- Removable Trim Ring: Lets you personalize your subwoofer’s look while simplifying optional grille installation.
- Reliable and Affordable: Delivers quality JL Audio performance at a moderate price, making it ideal for budget-conscious enthusiasts who still want excellent sound.
Specifications:
- Size: 10-inch
- Impedance: 2 Ohms
- Cone Material: Mica-filled polypropylene
- Surround Material: Rubber
- Basket Material: N/A
- Grille: None included
- Free-Air Capability: No
- Dual Voice Coil: No
- Sensitivity: 83.9 dB at 1 watt
- Frequency Response: 25 – 250 Hz
- Max RMS Power Handling: 300 watts
- Peak Power Handling: 600 watts
- Top Mount Depth: 4 5/8 inches
- Cutout Diameter: 8 7/8 inches
- Frame Width/Length: 10.508 inches
- Vas (liters): 44.15
- Fs (Hz): 25.23
- Qts: 0.436
- Xmax (mm): 11.4
- Ideal Sealed Box Volume: 0.55 cubic feet
- Minimum Sealed Box Volume: 0.44 cubic feet
- Maximum Sealed Box Volume: 0.69 cubic feet
- Ideal Ported Box Volume: 0.937 cubic feet
- Minimum Ported Box Volume: 0.75 cubic feet
- Maximum Ported Box Volume: 1.24 cubic feet
- UPC: 699440920803
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
