Diamond Audio  DMD102SH

DMD Series 10" 500W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer

Item #80649

Product Highlights

  • 10 inches
  • 500W peak power
  • 2-ohms
  • Deep bass output
  • Durable build

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD102SH - DMD Series 10" 500W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 2-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
High-Performance and Value in Diamond Audio's DMD Series Subwoofers

The Diamond DMD series represents the entry-level option in Diamond Audio’s subwoofer lineup, offering significant performance advancements while remaining budget-friendly. Through ongoing research and development, the DMD series features chemically treated voice coils and cross-flow design basket frames for enhanced thermal heat dissipation. An upgraded NBR half-roll surround ensures superior linear performance, adding value to this series. With a Klippel® DA optimized motor and suspension symmetry, the DMD series subwoofers deliver tight, balanced bass notes for any car audio system.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 86.1 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 500 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 3 Inches
  • RMS Power Handling : 250 Watts

FEATURES


Features:

  • 2Ω Impedance
  • 250W RMS, 500W MAX
  • Dual Voice Coil
  • Mounting Diameter: 9.13 “ / 232mm
  • Mounting Depth: 3 “ / 76mm
  • Grills Included
  • True-fiber weave paper backed parabolic cone, 3" mounting depth
  • High-density NBR half-roll surround optimized for linear travel
  • Protective ABS contemporary designed front trim piece
  • Die cast frame with integral under and over spider venting
  • Klippel® DA optimized motor and suspension symmetry



Specifications:

  • SPL (dB): 86.1
  • Re (Ω) [series]: 3.4
  • Qms: 5.5
  • Qes: 0.55
  • Qts: 0.50
  • Fs (Hz): 40.0
  • Vas(L): 22.7
  • Cms (mm/N): 0.12
  • Mms (g): 128
  • Sd (m2): 0.036
  • BL (T*M): 14.1
  • Xmax: 7.9
  • Pwr (W) nom/max: 250/500

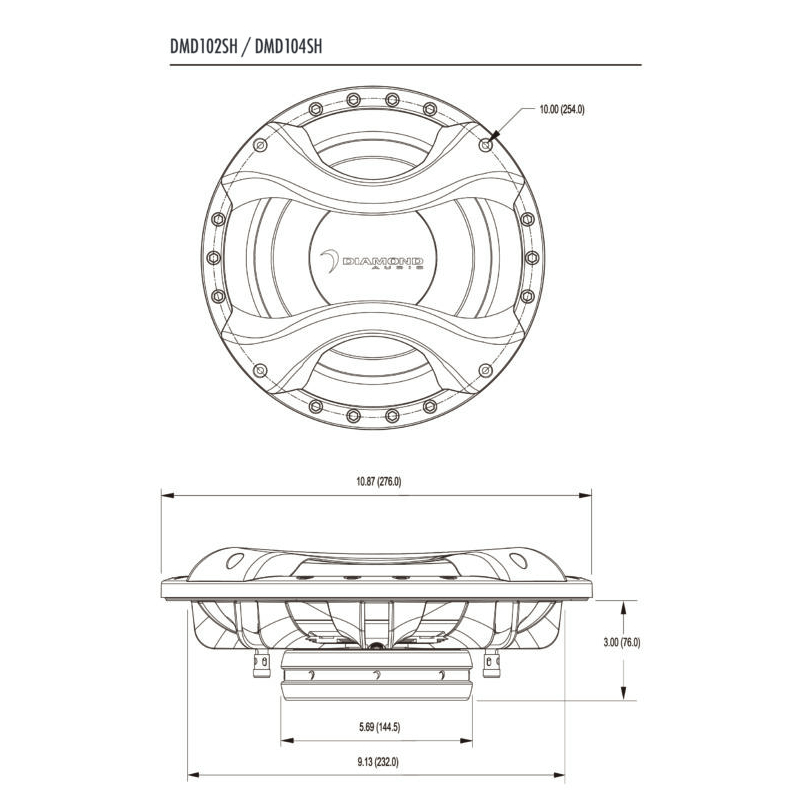

  • Total Diameter: 10.87” (276.0) in. (mm)
  • Mounting Diameter: 9.13” (232.0) in. (mm)
  • Screw Hole Dia.: 10.00” (254.0) in. (mm)
  • Mounting Depth: 3.00” (76.0) in. (mm)
  • Magnet Dia.: 5.69” (144.5) in. (mm)
  • UPC: 847169020377
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
