Diamond Audio  DMD124

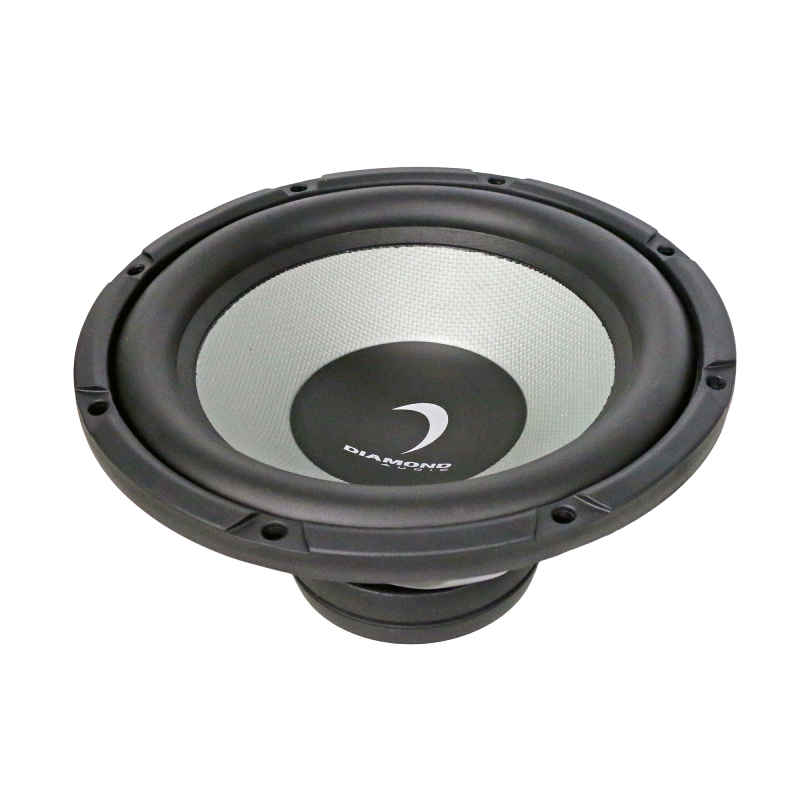

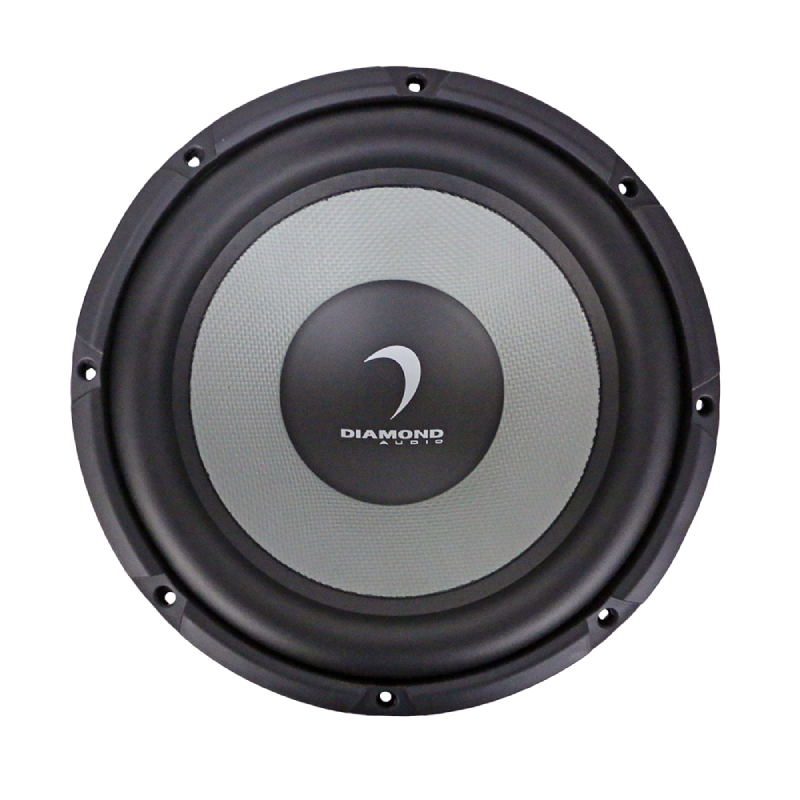

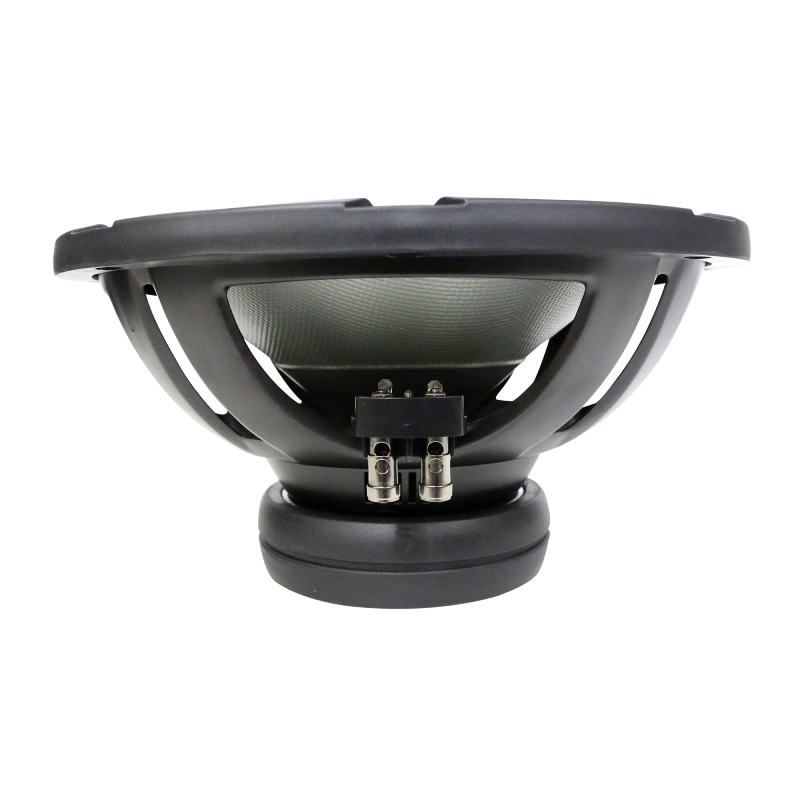

Diamond DMD Series 12" 400W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer

Item #80665

Condition:   Brand New

Product Highlights

  • Diamond DMD Series 12" Subwoofer
  • 400W Peak Power Handling
  • 4-Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$169.99

Reg. Price $269.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD124 - Diamond DMD Series 12" 400W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 4-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Exceptional Bass Clarity and Performance

The Diamond Audio 12" full-size Dual 2 Ohm subwoofer is engineered to deliver exceptional bass clarity and performance. It features a high-grade rolled-edge 4-leg black powder-coated stamped frame. With a Klippel-optimized motor and suspension symmetry, along with a high-density NBR half-roll surround, this subwoofer is optimized for smooth, linear travel. The vented pole piece ensures cooler operation, allowing you to experience the full 400 watts of maximum power wherever you use it.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Maximum Power : 400 Watts
  • Sensitivity : 86.2 dB
  • Depth : 5.93 Inch
  • Impedance : 4 Ohm
  • Peak Power Handling : 400 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 5.93 Inches
  • RMS Power Handling : 200 Watts

FEATURES


Features

  • Black polypropylene fiber weave cone
  • High-grade rolled edge 4-leg black powder-coated stamped frame
  • Oversized black chrome push terminals
  • Black spider with woven tinsel leads
  • Black PVC wrap around the mounting gasket
  • Vented pole piece for cooler operation
  • Klippel Optimized motor and suspension symmetry



Specifications

  • Total Diameter: 12.57" / 267.9mm
  • Mounting Diameter: 11.10" / 231.5mm
  • Hole Diameter: 11.90" / 251.0mm
  • Mounting Depth: 5.93" / 131.5mm
  • Magnet Diameter: 5.57" / 141.4mm
  • Impedance: Dual 4 Ohm



Thiele/Small Parameters

  • SPL (dB): 86.2
  • Re (Ohm): 6.70
  • Qms: 5.0
  • Qes: 0.82
  • Qts: 0.70
  • Fs (Hz): 35.7
  • Vas (L): 47.0
  • Cms (mm/N): 0.13
  • Mms (g): 150
  • Sd (m²): 0.050
  • BL (T*M): 16.6
  • Xmax (mm): 8.1
  • Power (W) Nom/Max: 200/400





  • UPC: 4000009648
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
