MB Quart  MBQJ-STG6AH-1

6 Speakers and 2 Amplifiers Audio System for Aftermarket Radios in select Jeep Wrangler and Gladiator Models

Item #81929

Condition:   Brand New

Product Highlights

  • Audio System for Aftermarket Radios
  • 6 Speakers
  • 2 Amplifiers
  • Compatible with Jeep Wrangler and Gladiator models

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,299.99

Reg. Price $1,399.99  Save $100.00

Out of Stock Check out other products listed below
MB Quart Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

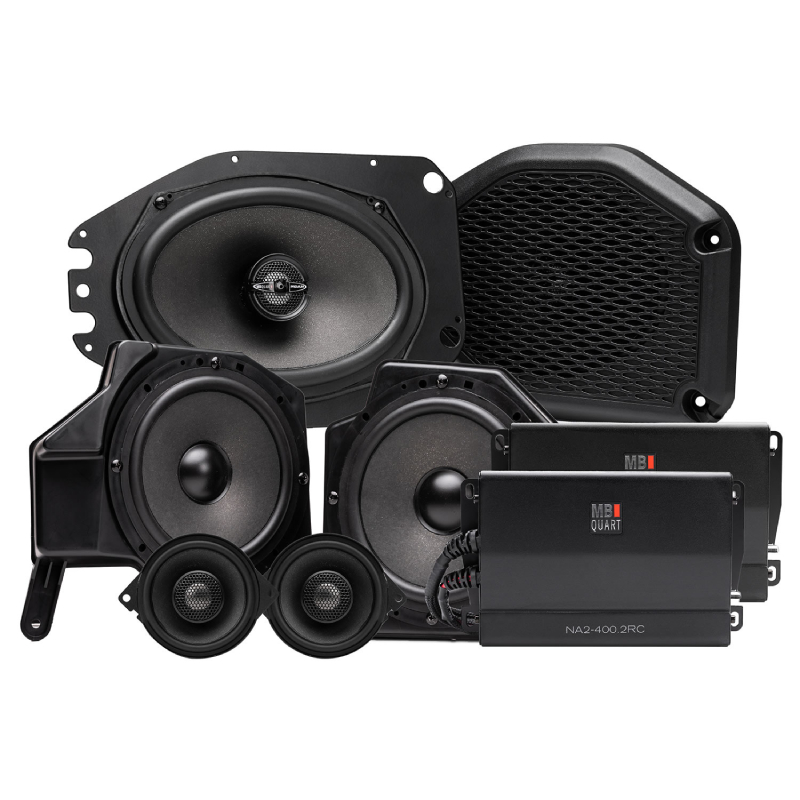

MB Quart MBQJ-STG6AH-1 6 Speakers and 2 Amplifiers Audio System for Aftermarket Radios in select Jeep Wrangler and Gladiator Models


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

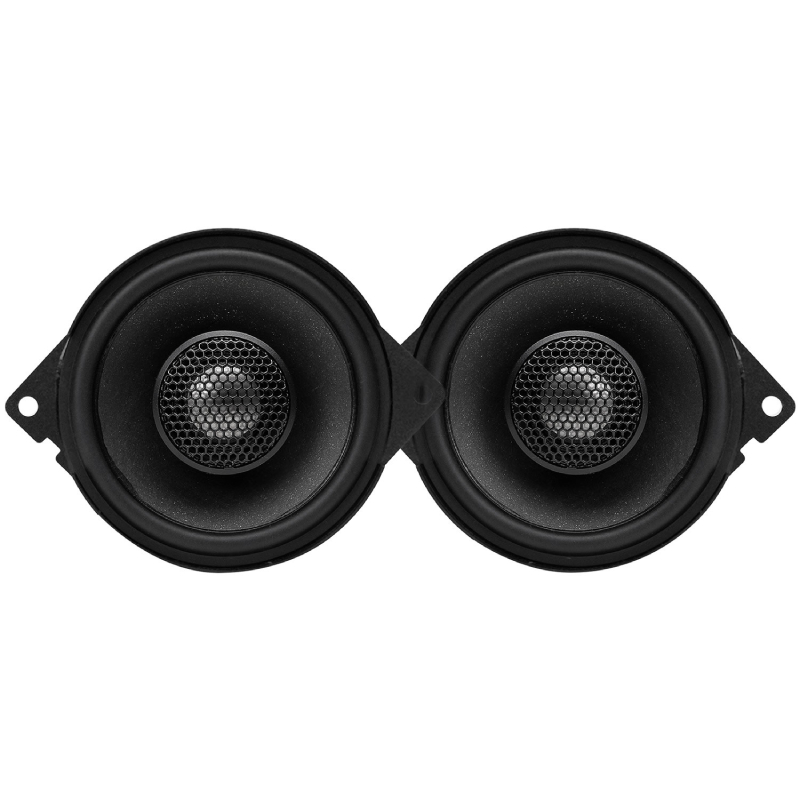

    JC1-108 Upper Dash Speakers:
  • • (2) 3.5" 2-way speakers
  • • (2) 5" speaker harnesses
  •

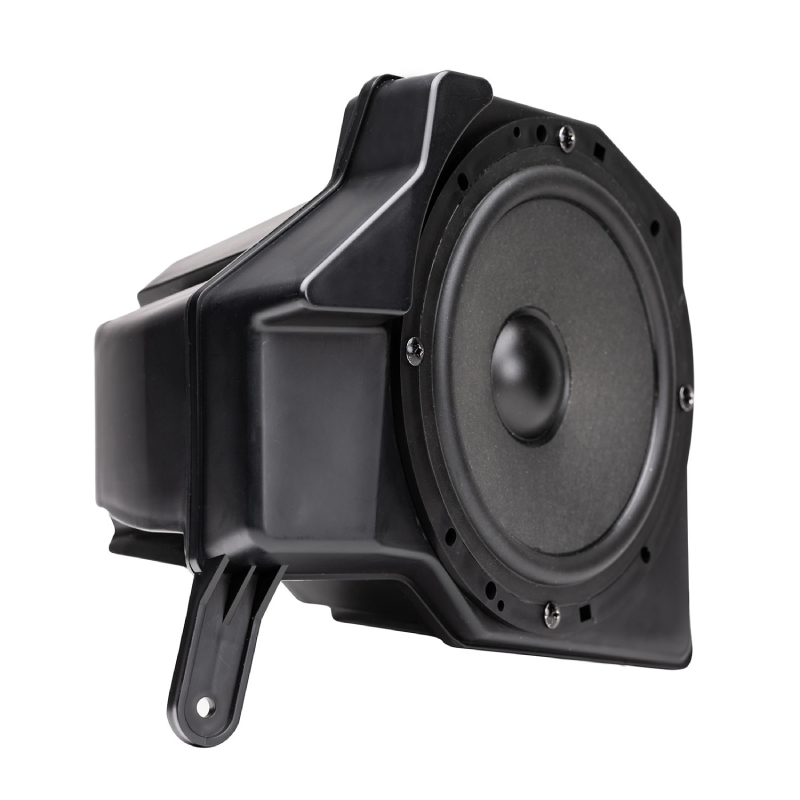

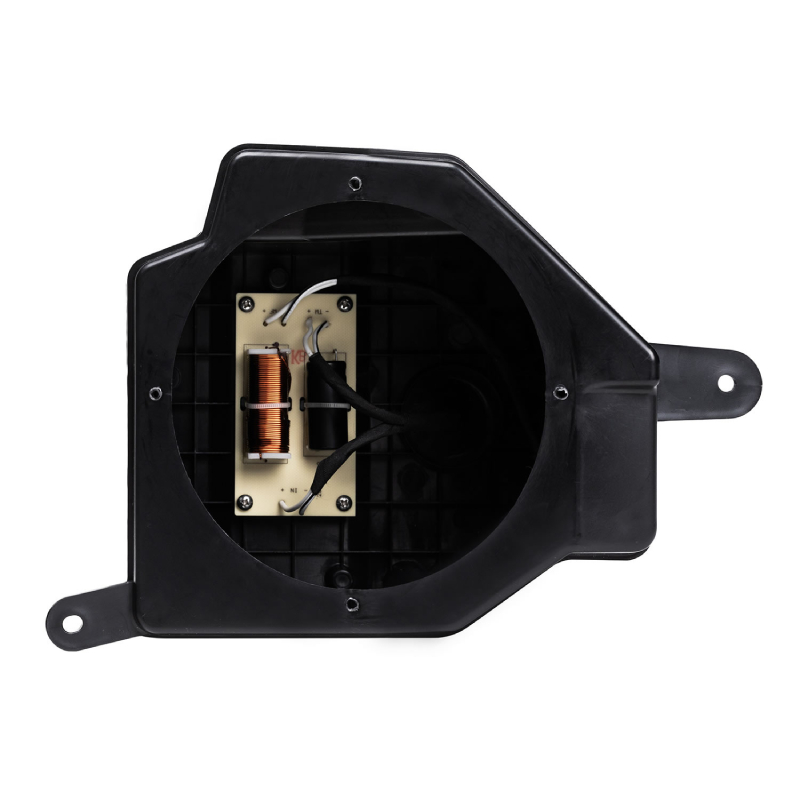

    JW1-116E Lower Dash Speakers:
  • • (2) 6.5" mid-bass drivers pre-installed in custom enclosures (attached 7" wire harness terminated in a Molex plug and a 27" wire harness terminated in slip-on terminals)
  •

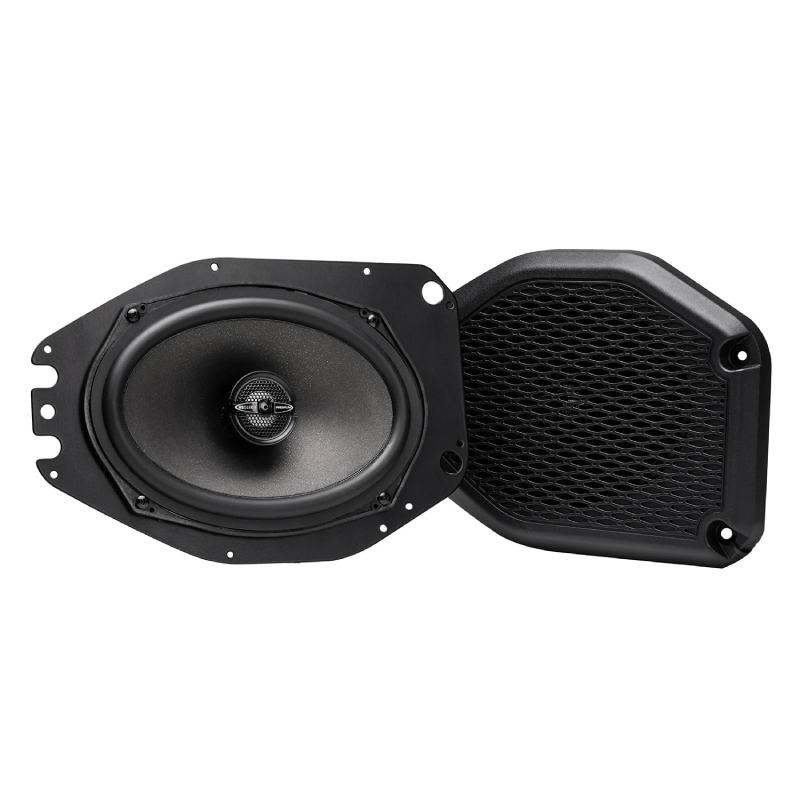

    JC1-169SB Rear Speakers:
  • • (2) 6x9" 2-way speakers

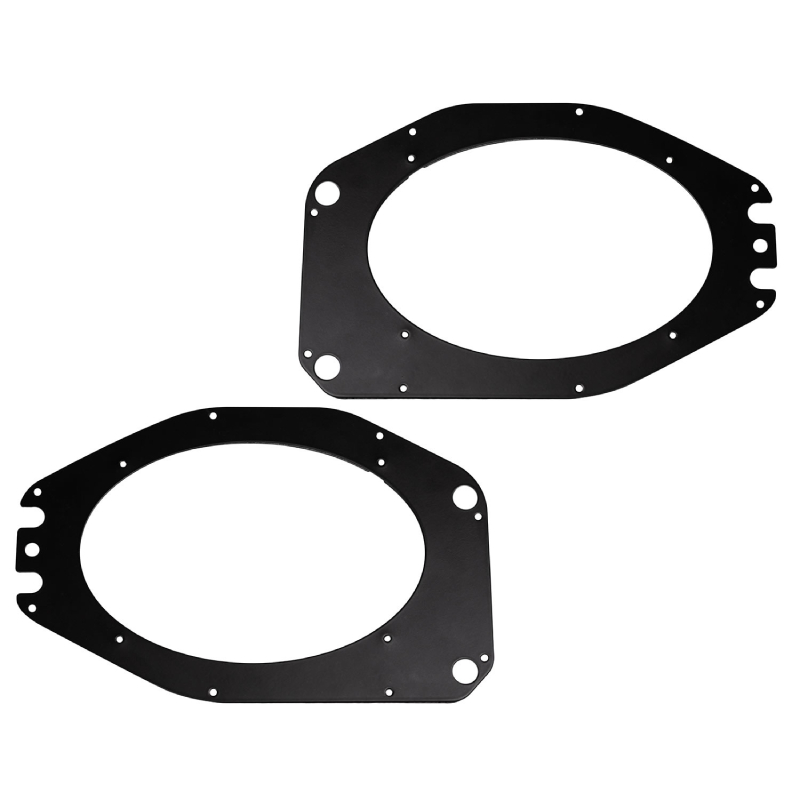

  • • (2) Mounting plates

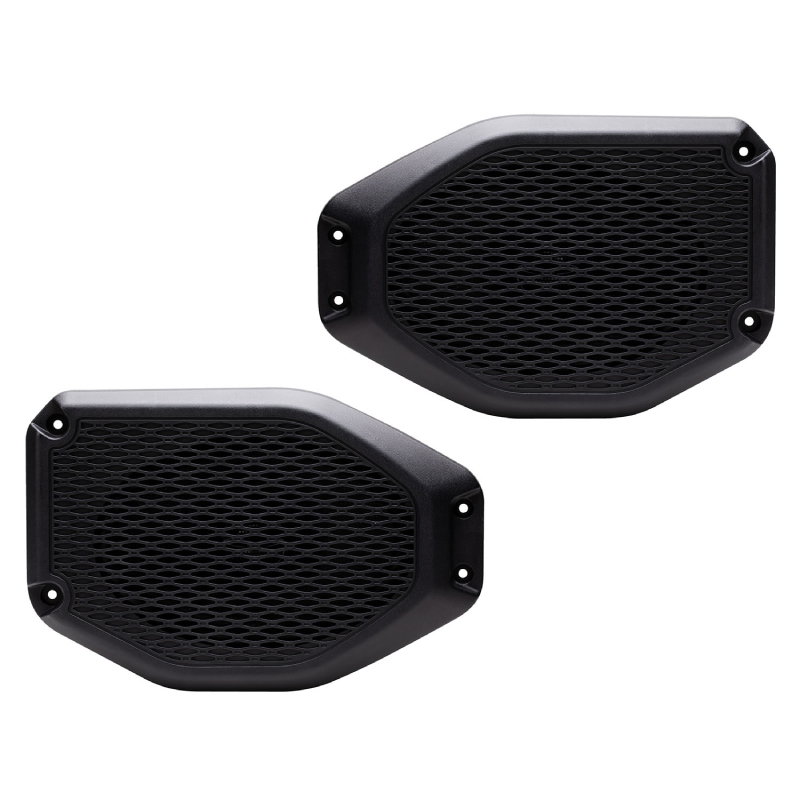

  • • (2) Grilles
  • • (2) 10" speaker harnesses
  • • (8) 12mm machine screws
  • • (16) 14mm screws
  •

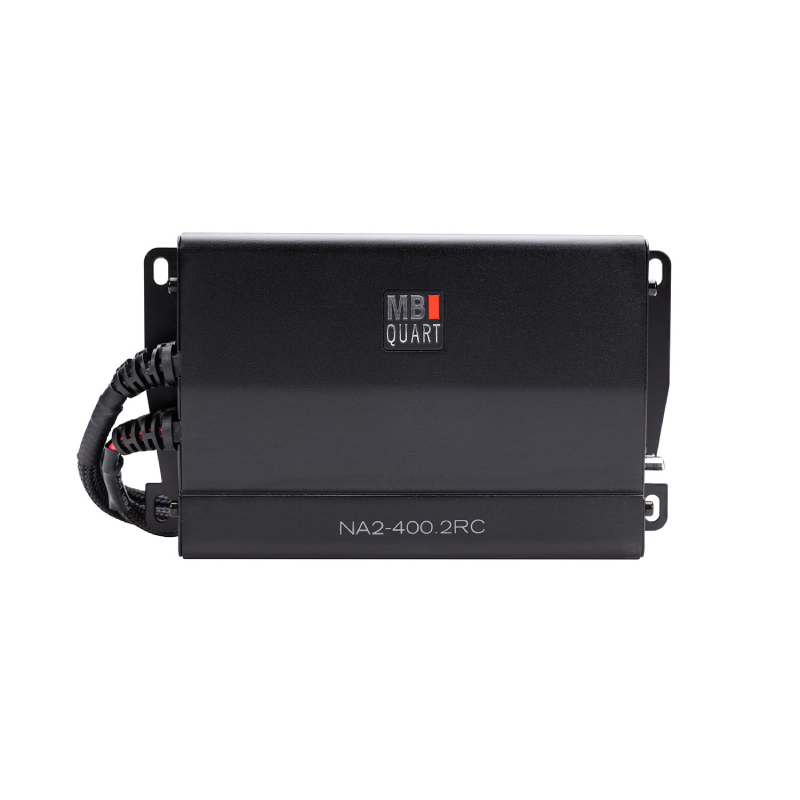

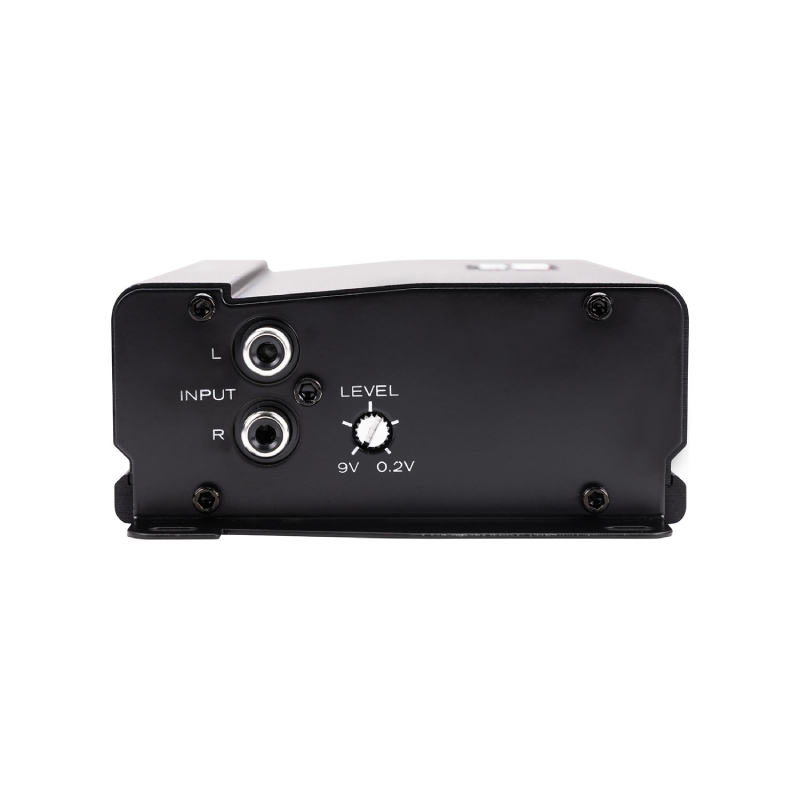

    NA2-400.2RC Amplifier (x2):
  • • 2-Channel amplifier w/ attached 8" power/ground and speaker output harnesses (terminated with Molex plugs)
  • • 16" Power/ground harness (inline 30A ATC fuse)
  • • 16" Speaker output harness
  • • (4) 18mm screws
  • • Quickstart guide
  •

    PAC AP4-CH41 Interface:
  • • Amplifier integration interface module
  • • 18" T-harness
  • • 8" Speaker connection harness
  • • 6' Rotary-knob cable
  • • Rotary-knob
  •

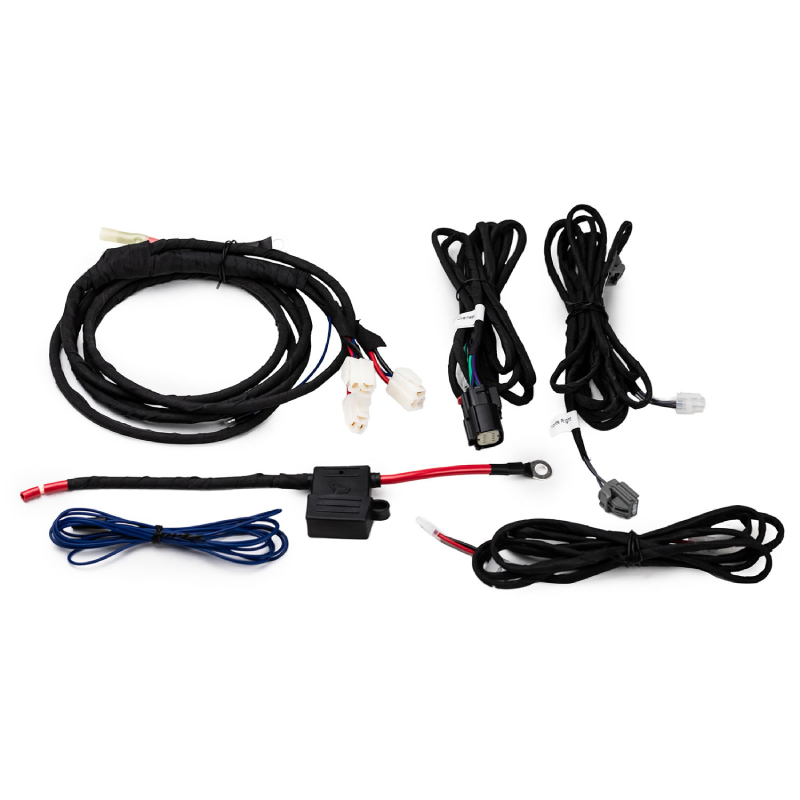

    MBQJ-ACC-1 Accessory Kit:

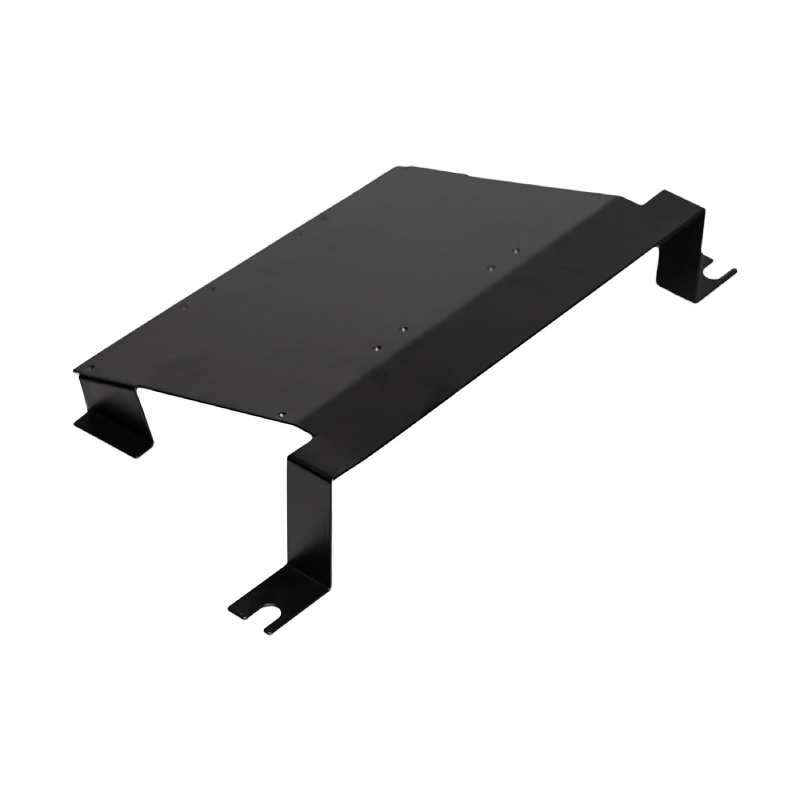

  • • Dual amp mounting plate
  • • 8' 6-Channel RCA cable
  • • Power & ground distribution harness w/ 7.5' power wire and 34" ground wire (power wire terminated with a crimp-connector on one end and ground wire terminated in a ring-terminal / both terminating into three 2-pin Molex plugs on other end)
  • • 13" Section of power wire w/ inline fuse holder and installed 70A Maxi fuse (ring terminal on one end / bare-ended wire on other end)
  • • 8.5' Rear speaker harness
  • • 10' Front speaker harness
  • • 7' Subwoofer harness (not used)
  • • 8' Remote turn-on wire
  • • (10) 8" wire-ties
  • • (12)1/4" machine screws
  • • (12) Flat washers
  • Owner's Manual
Boost the Sound

Upgrading the stereo in your 2018-up Jeep Wrangler (JL) or 2020-up Jeep Gladiator (JT) will boost the sound, but if you want to take it to the next level, this all-in-one speaker/amp system will get you there. This rugged, off-road ready speaker upgrade kit from MB Quart includes six speakers, two 2-channel amplifiers, Jeep-specific wiring, and everything you need to install it using basic hand tools.

Mid-bass Drivers

This 6-speaker, 400-watt system includes two 3-1/2" full-range dash speakers, two 6-1/2" mid-bass drivers in enclosures, and two 6"x9" full-range rear speakers. These all-weather speakers get the power they need from two 200-watt Class D marine-rated amplifiers, and they'll sound great in your Jeep

Entire System is Designed to Blend

This entire system is designed to install easily and blend right into your Jeep's interior. In addition to the front speaker enclosures, which are designed to fit your Jeep, there's a powder-coated mounting plate for the two amps. And all of the gear is designed to meet MB Quart's exacting standards for durability and water-resistance.

Features:

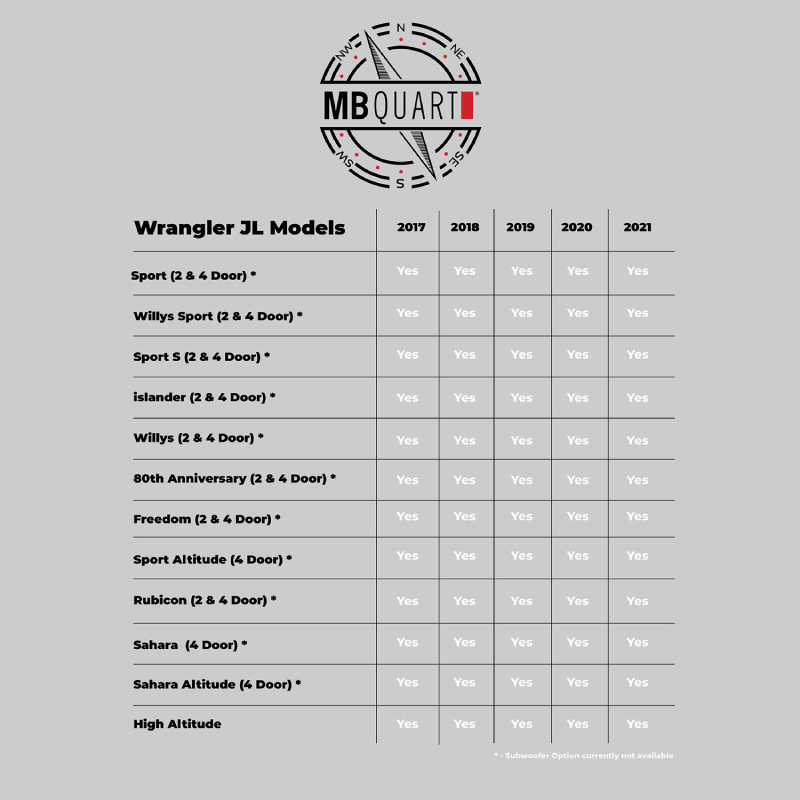

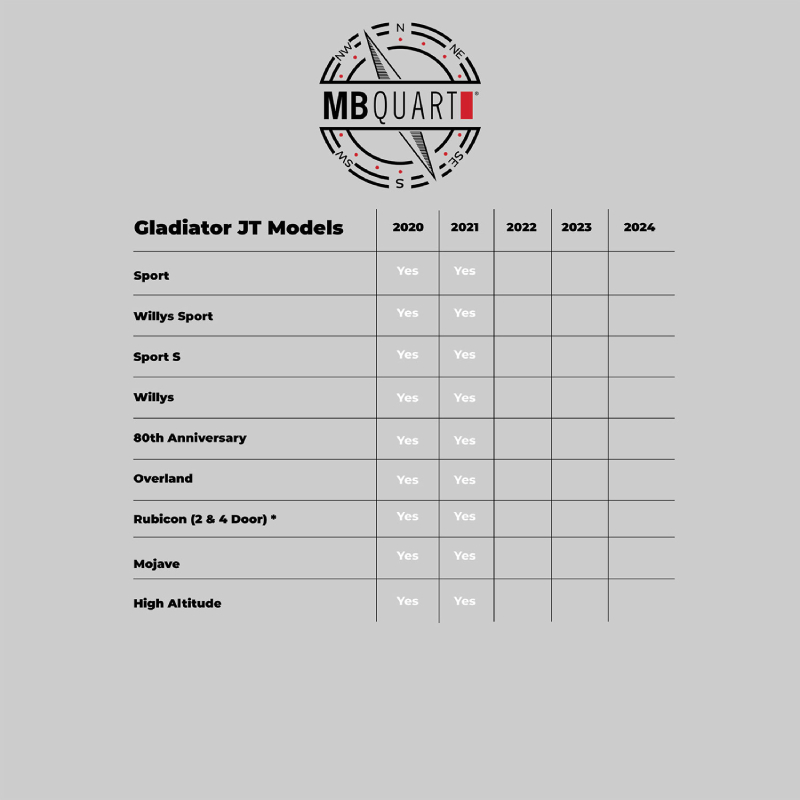

  • Compatible Vehicle Fitment: Jeep® Wrangler (JL) 2018-Current with aftermarket radio, Jeep® Gladiator (JT) 2020-Current with aftermarket radio
  • Source Unit Features: Requires aftermarket source unit.
  • Speaker Features: Tweeter: Tweeter: 0.75" titanium dome (dash speaker) and 1" magnesium (rear speaker) dome, Crossover: 12db midrange / 6db tweeter, Frequency Response: 75Hz to 23kHz, Sensitivity: 89db, 520W Maxx / 260W RMS.
  • Amplifier Features: 400 watt high efficiency Class-D compact NA2 amplifiers with on-board equalization.
  • Mount / Harness: Vehicle Specific Wiring and Harness. Simple “no mistakes” plug and play OEM style installation.
  • Time and Tools: Basic hand tools.



Specifications:

  • Dimensions:  15.98 × 12.2 × 21.45 in
  • Type: Vehicle Kit
  • Brand: MB Quart
  • Series: Jeep Gladiator Tuned, Jeep Wrangler Tuned
  • Category: Mobile
  • Condition: New
  • Compatible Vehicles: Jeep® Gladiator (JT) 2020-Current with aftermarket radio, Jeep® Wrangler (JL) 2018-Current with aftermarket radio
  • Vehicle Kit Total System Power (watts) 800
  • UPC: 806576232209
  • Weight: 16
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
