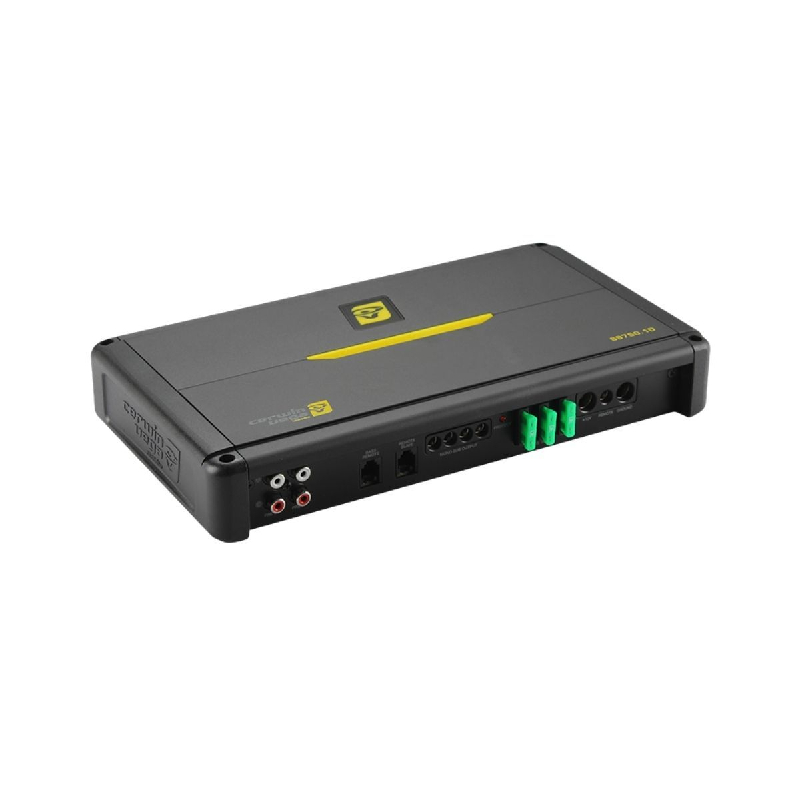

Cerwin Vega  S9750.1D

Stroker Series 750W Max Power, Class-D Mono Subwoofer Car Amplifier

Item #84080

Product Highlights

  • 750W max power
  • Class-D mono subwoofer amplifier.
  • Efficient power output.
  • easy installation.
  • deep bass performance.

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 750 Watts
  • Number of Channels : 1
  • Frequency Response : 10-350 Hz
  • Amplifier Class : D
  • Fuse Rating : 30x3 A

FEATURES


Features:

  • Latest High-Efficiency Full-Range Digital Topology
  • Surface Mount Component Technology with 4-Layer PCB
  • Common Compact Size with Single-Sided Connections and Top    Mount Controls
  • Handles HI and LO level input up to 12V
  • Switched Speaker Level Turn On Option (VOX/DC Offset/REM)
  • Input configuration switch on 4 and 5 channel amplifiers
  • Lighted LED logo
  • Bass remote can be disassembled and installed in-dash
  • Variable Phase adjustment on ALL S9 series mono blocks to get the correct phase.  Moves bass from the trunk to the front.



Specifications:

  • RMS Power(2Ω): 500 W x 1 RMS
  • RMS Power (4Ω): 400 W x 1 RMS
  • Types: Monoblock, Class D
  • Power Supply: Full PWM
  • Power Supply (Threshold): 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • Distortion - THD (1KHz@4Ω): 0.05%
  • Distortion - S/N Ratio (A weight @ 1W): -77.2dBA
  • Distortion - S/N Ratio (A weight @ FP): -98.9dBA
  • Input Sensitivity - Hi/Low Input Level: YES – UP to 25 W RMS / 0.2mV – 10.0V
  • Input Impedance - Low Input Level: 22 KΩ
  • Input Impedance - High Input Level: 22 KΩ
  • Output Impedance: 0.047 Ω
  • Damping Factor (50Hz@4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) Variable High-Pass: N/A
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 35Hz-350Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 3 x 30A
  • Crossover: 35Hz – 350Hz
  • Frequency Response: 10Hz – 350Hz
  • Dimension - Length x Width x Height - Inches(mm): 11.81 x 7.25 x 2.0 (299.9 x 184.2 x 50.8)

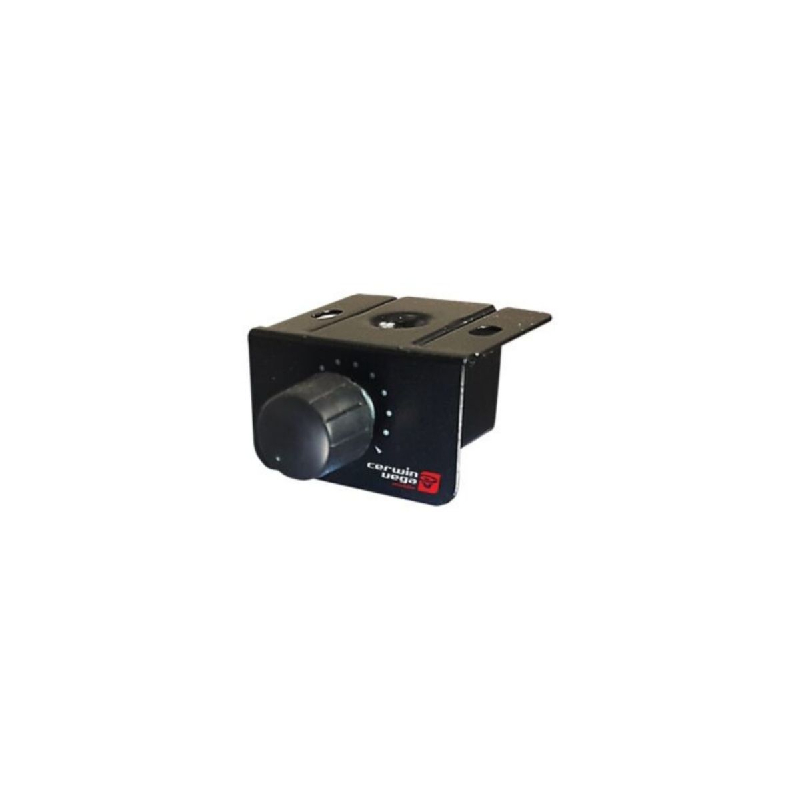

  • REMOTE BASS KNOB INCLUDED
  • UPC: 0847169048357
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
