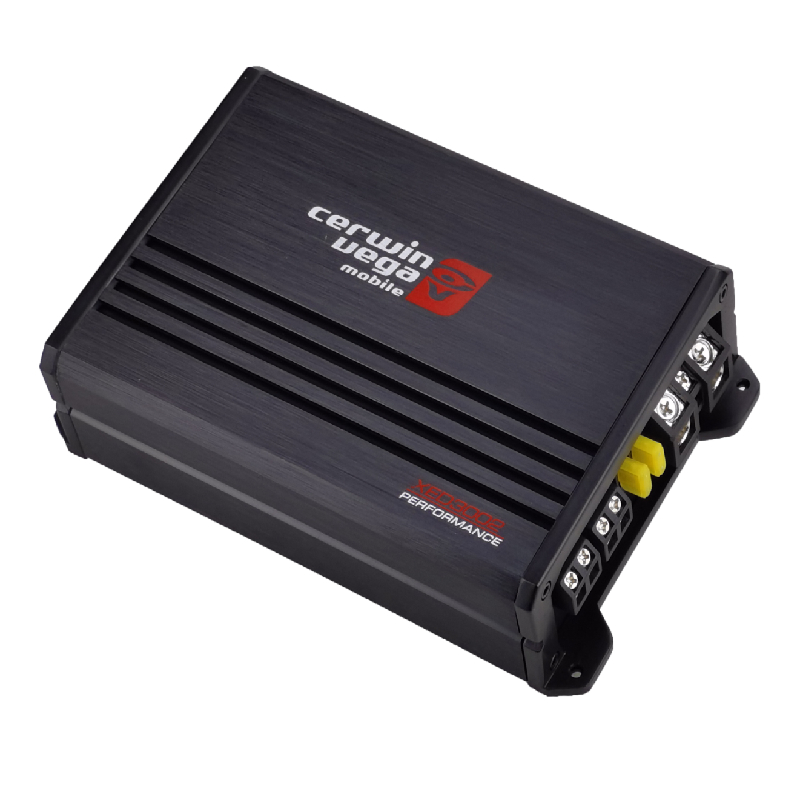

Cerwin Vega  XED3002D

XED Series 120W x 2 @2Ohms, 250W Max Power Class D 2-Channel Car Amplifier

Item #84124

Product Highlights

  • XED Series
  • 120W x 2 @ 2 Ohms
  • 250W Max Power
  • Class D 2-Channel Car Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


  • Maximum Power : 250 Watts
  • Number of Channels : 2
  • Amplifier Class : D
  • Fuse Rating : 20 A

Features:

  • Latest High-Efficiency Class D Topology
  • Compact Size with Ambient backlit logo
  • RCA “Pass Thru” output for easy system expansion
  • Fully Variable Crossovers (12dB per octave)
  • Handles HI and LO level input to 12V
  • 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
  • Proprietary Vega Bass Boost EQ Up To 12dB



Specifications:

  • Amplifier Power: 250W MAX
  • RMS Power(2Ω): 2 x 120W
  • RMS Power (4Ω): 2 x 80W
  • RMS Bridge (mono 4Ω): 1 x 220W
  • Types: Class D
  • Power Supply: Full PWM
  • Power Supply (Threshold): 10.0DVC – 16.0DVC
  • Idle Current: (0.5A)
  • Distortion - THD (1KHz@4Ω): <0.1%
  • Distortion - S/N Ratio (A weight @ 1W): -85dBA
  • Distortion - S/N Ratio (A weight @ FP) -101.1dBA
  • Input Sensitivity - Hi/Low Input Level 1.3V ~>20.0V / 250mV – 6.0V
  • Input Impedance - Low Input Level 20 KΩ
  • Input Impedance - High Input Level 100 KΩ
  • Output Impedance 2 Ω
  • Damping Factor (50Hz@4Ω) >70
  • Bandwidth (-3dB) 10Hz-30KHz
  • Crossover (-12 dB/ Oct) Variable High-Pass 35Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass 35Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic N/A
  • FUSE Ratings - ATC 20A
  • Dimension - Length x Width x Height - Inches(mm) 6.3 x 4.7 x 1.8 (160 x 120 x 46.5)
  • UPC: 847169029141
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
