- Maximum Power : 600 Watts
- Number of Channels : 4
- RMS Power Output : 70x4 Watts
- Amplifier Class : D
- Fuse Rating : 25x2 A
What's Inside?

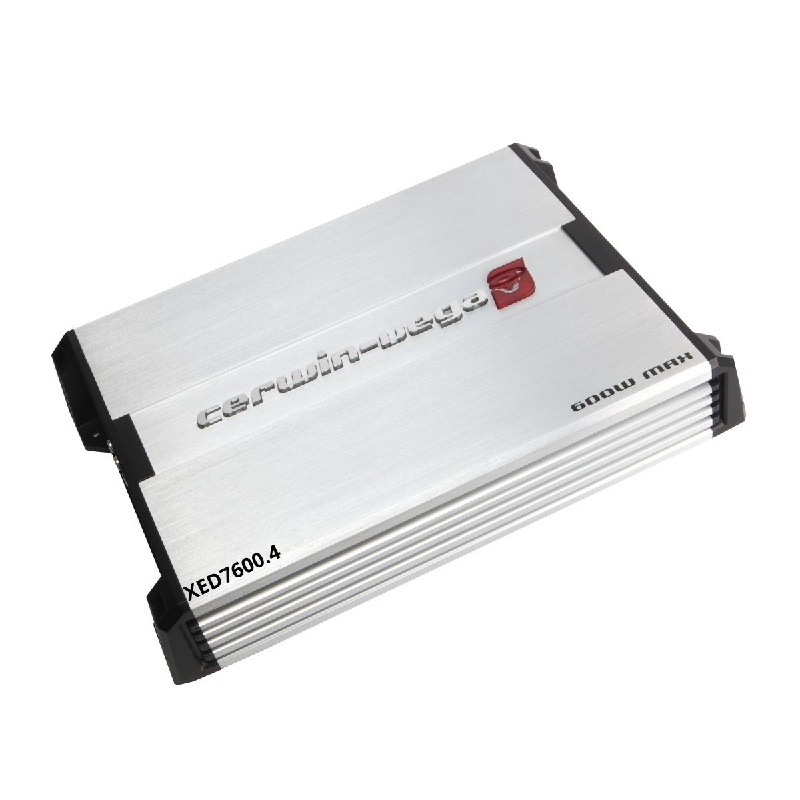

- 1 XED7600.4 4-Channel Amplifier
Features:
- Latest High-Efficiency Class A/B Topology
- Surface Mount Component Technology with 2-Layer PCB
- Compact Size with Ambient backlit logo
- RCA “Pass Thru” output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
- Proprietary Vega Bass Boost EQ Up To 12dB
Specifications:
- MAX Power Rating: 600W MAX
- RMS Power Rating:
- 4 ohms: 45 watts x 4 chan.
- 2 ohms: 70 watts x 4 chan.
- 1 ohm: Bridged, 4 ohms: 150 watts x 2 chan.
- Stereo Stable: 4/2 Ω
- Mono Stable: 4 Ω (ONLY!)
- Power Supply: Full PWM
- Power Supply (Threshold): 10.OVDC-17.OVDC
- Idle Current: (0.7A)
- Distortion - THD (1KHz@4Ω): 0.1%
- Distortion - S/N Ratio (A weight @ 1W): -85dba
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity - Hi/Low Input Level: 2.0V~> 20.0V / 200mV-6.0V
- Input Impedance - Low Input Level: 20KΩ
- Input Impedance - High Input Level: 100Ω
- Output Impedance: 0.0297Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3dB): 10Hz-45Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: 50Hz-250Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 50Hz-250Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 2x25A
- Dimension - Length x Width x Height - Inches(mm): 12.9x8.875x2.187( 328x 225.4x 55.6)
- UPC: 847169030789
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
