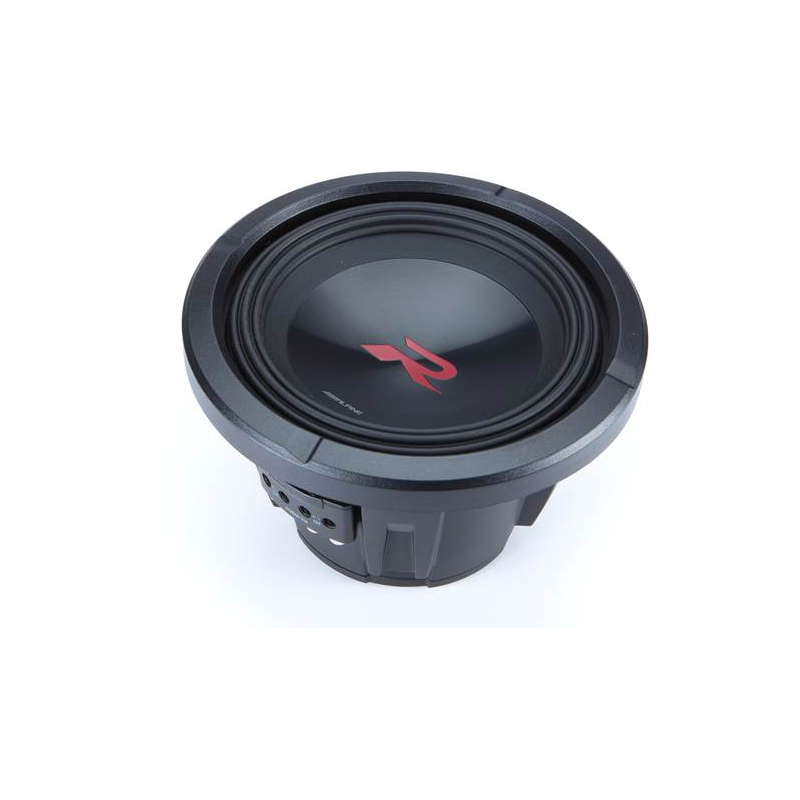

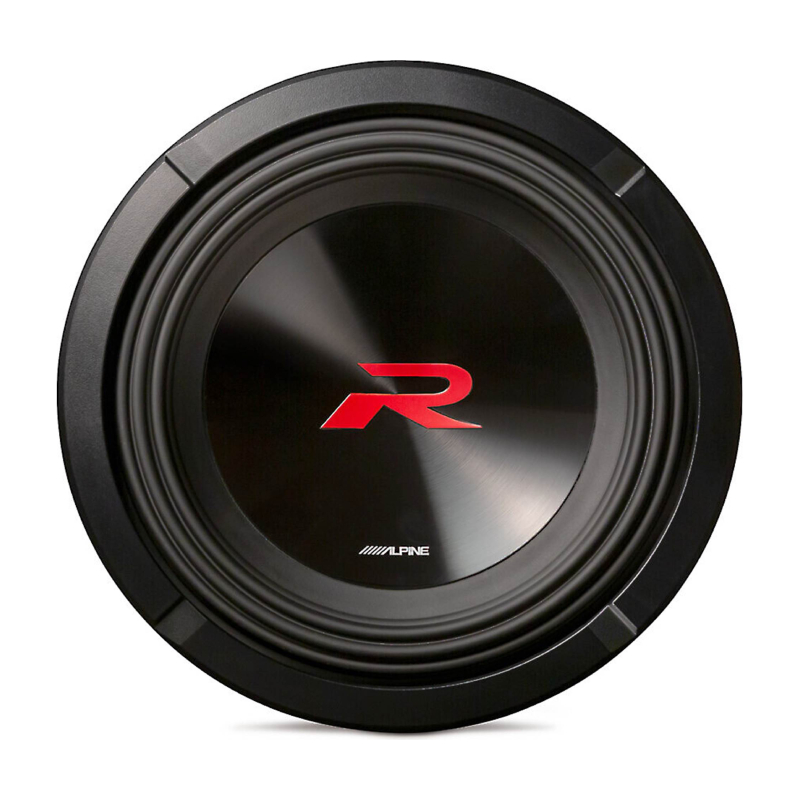

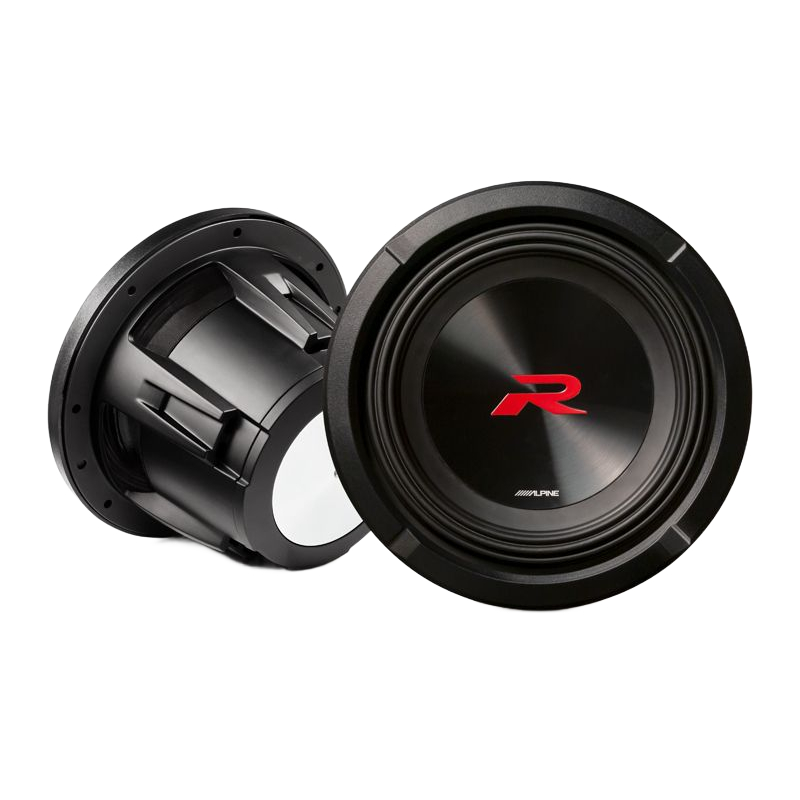

Alpine R2-W8D2 Next Gen R-Series 8" 350W RMS (1000W Peak Power Handling) 2 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 8" 2 Ohm Dual Voice Coil Component Car Subwoofer

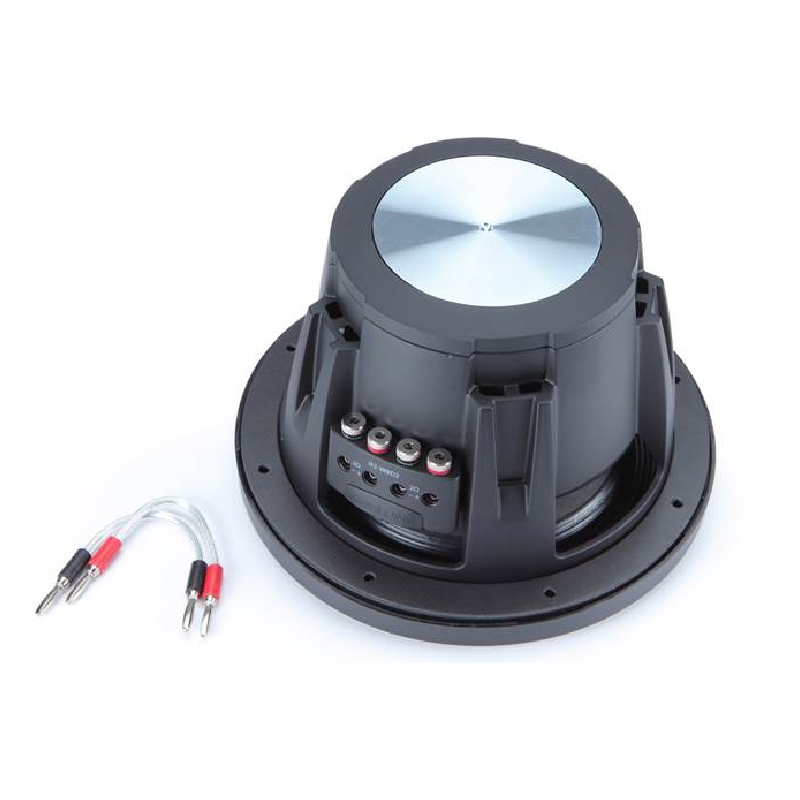

- • (2) 4.5" jumper wires (each wire has a single banana connector on both ends)
- • Plastic trim ring
- • Application guide (English/ French)
- • On-line product registration information
- • Warranty information
- • Owner's Manual
Why Choose Alpine R2-W8D2 Component Car Subwoofer?
Alpine R2-W8D2 – 8 Inches of Pure Bass Power
Don’t let the 8-inch size fool you—the Alpine R2-W8D2 R-Series subwoofer hits HARD. Built for car audio enthusiasts who want serious low-end performance without sacrificing valuable cargo space, this compact powerhouse delivers 350 watts RMS and 1,000 watts peak power for bass you can feel from the driver’s seat. The 30Hz–200Hz frequency response digs deep into the low end, delivering powerful bass impact for hip-hop, EDM, rock, and anything else that demands serious punch. If your factory system sounds flat and your current subwoofer isn’t cutting it, the R2-W8D2 is the upgrade that brings your system to life.
Built to Hit Hard and Stay in Control
Alpine loaded the R2-W8D2 with the technology and hardware needed to handle serious output. Double-stacked magnets, a Kevlar-reinforced pulp cone, H.A.M.R. surround, and 12mm of X-Max give this 8-inch subwoofer the ability to move serious air while maintaining the control you need when the volume goes up. The result? Deeper lows, harder hits, and cleaner bass without turning your system into a muddy mess. This is R-Series performance built for enthusiasts who want to crank their system and actually hear—and feel—the difference.
Compact Size. Serious R-Series Performance.
The dual 2-ohm voice coils give you flexible wiring options for matching the R2-W8D2 with your amplifier, while the compact 4-3/8-inch mounting depth makes it easier to build a powerful system without giving up tons of space. Whether you’re upgrading a daily driver, building a stealthy bass setup, or putting together a serious custom system, the Alpine R2-W8D2 8-inch subwoofer delivers the punch, power, and R-Series performance to make your music hit harder. Compact footprint. Serious power. R-Series bass. If you’re ready to stop settling for weak low end, it’s time to put an R2-W8D2 in your build.
Alpine 8-Inch Subwoofer Comparison Chart | S2-W8D4/S2-W8D2 vs R2-W8D4/R2-W8D2
| Ultimate Alpine 8" Subwoofer Performance Comparison |
S2-W8D4 / S2-W8D2 Next-Gen S-Series 8" Subwoofer – Powerful Bass Performance with Flexible Dual Voice Coil Options
BEST VALUE
- • 8" S-Series Subwoofer
- • 300W RMS / 900W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 13mm X-Max for strong bass excursion
- • Wide 23Hz–215Hz frequency response
- • H.A.M.R. surround design
- • Twist-Lock grille compatible
|
R2-W8D4 / R2-W8D2 Next-Gen R-Series 8" Subwoofer – High-Output Bass Performance with a Stronger Motor Structure
HIGH PERFORMANCE
- • 8" R-Series Subwoofer
- • 350W RMS / 1000W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 12mm X-Max for controlled excursion
- • 30Hz–200Hz frequency response
- • Heavy-duty 56 oz magnet structure
- • H.A.M.R. surround design
|
Alpine R2-W8D2 Highlights
POWERFUL BASS
350W RMS Power Handling
Bring serious bass to your car audio system with 350 watts RMS power handling and up to 1000 watts of peak power for powerful low-frequency impact.
R-SERIES PERFORMANCE
High-Output 8" Subwoofer
The R-Series design delivers deep, hard-hitting bass with high power handling for listeners who want more impact from their car audio system.
DUAL VOICE COIL
Dual 2-Ohm Voice Coils
Dual 2-ohm voice coils provide flexible wiring options, making it easier to configure the subwoofer to match your amplifier and system setup.
DURABLE CONSTRUCTION
Kevlar-Reinforced Pulp Cone
The Kevlar-reinforced pulp cone provides a strong and rigid design that helps the subwoofer handle demanding bass performance.
HIGH EXCURSION
H.A.M.R. Multi-Roll Surround
Alpine's High-Amplitude Multi-Roll surround allows increased cone movement for deeper bass and strong output while maintaining excellent control.
SMOOTH BASS RESPONSE
Wide Frequency Response
A 30Hz–200Hz frequency response helps deliver deep low notes and smooth bass across a wide range of music.
SPACE-SAVING DESIGN
Compact 8" Subwoofer Design
The compact 8-inch design makes it easier to add powerful bass to systems where installation space is limited.
Alpine R2-W8D2 Recommended Amplifiers | Best 8" R-Series Subwoofer Amp Pairings for Powerful Bass
Build Your Alpine R-Series 8" Subwoofer System
Real-world amplifier recommendations for the Alpine R2-W8D2, from compact single-sub setups to high-output R-Series bass systems
Amplifier Matching Overview
R2-W8D2 Power Rating: 350W RMS / 1,000W Peak per subwoofer
Voice Coil Configuration: Dual 2Ω voice coils
Ideal Amp Range: Approximately 350W – 500W RMS per subwoofer
Best Overall Match: Alpine R2-A75M 750W mono amplifier
Alpine Recommended Option: KTA-30MW
Best Overall Match – 750W R-Series Mono Amplifier
The R2-A75M is the standout choice for powering the R2-W8D2. It delivers 500W RMS at 4Ω, providing strong, clean power and useful headroom for getting the most from the 350W RMS R-Series subwoofer.
Best Compact Option – Space-Saving Mono Amplifier
The KTA-30MW is an Alpine-recommended compact amplifier option for the R2-W8D2. Its small footprint makes it a practical choice for installations where space is limited while still providing dedicated mono subwoofer power.
Why the R2-A75M Is the Recommended Choice
Excellent Power Match: Provides 500W RMS at 4Ω, giving the R2-W8D2 strong clean power with useful headroom
R-Series Compatibility: Designed to complement Alpine's high-performance R-Series components
Flexible System Design: The R2-W8D2's dual 2Ω voice coils allow multiple wiring configurations
Class-D Efficiency: Efficient mono amplifier design delivers strong bass performance without requiring a large chassis
System Tuning: Built-in controls allow the amplifier to be properly adjusted for cleaner and better-integrated bass

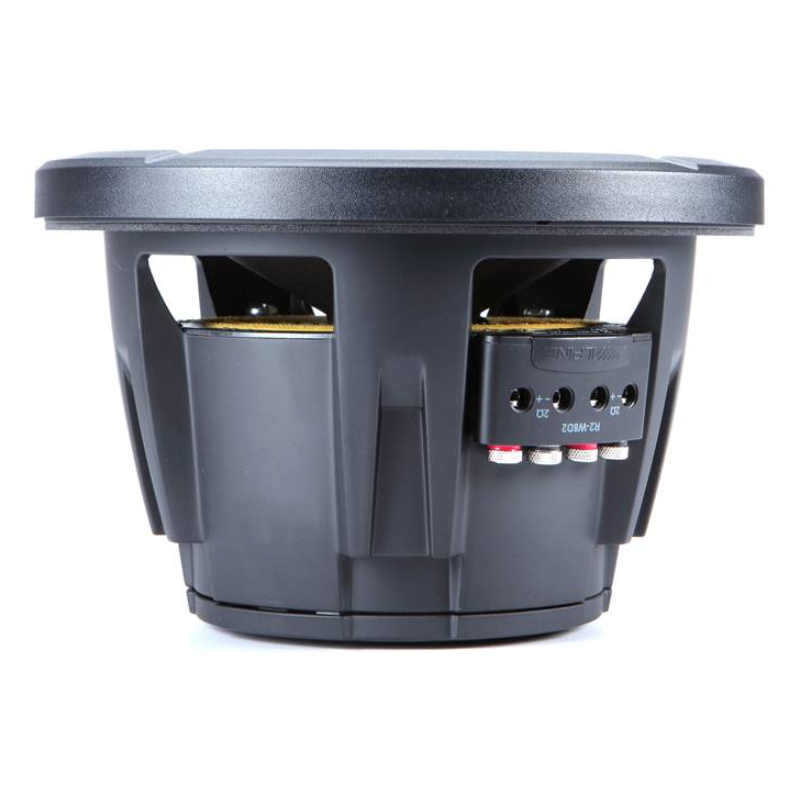

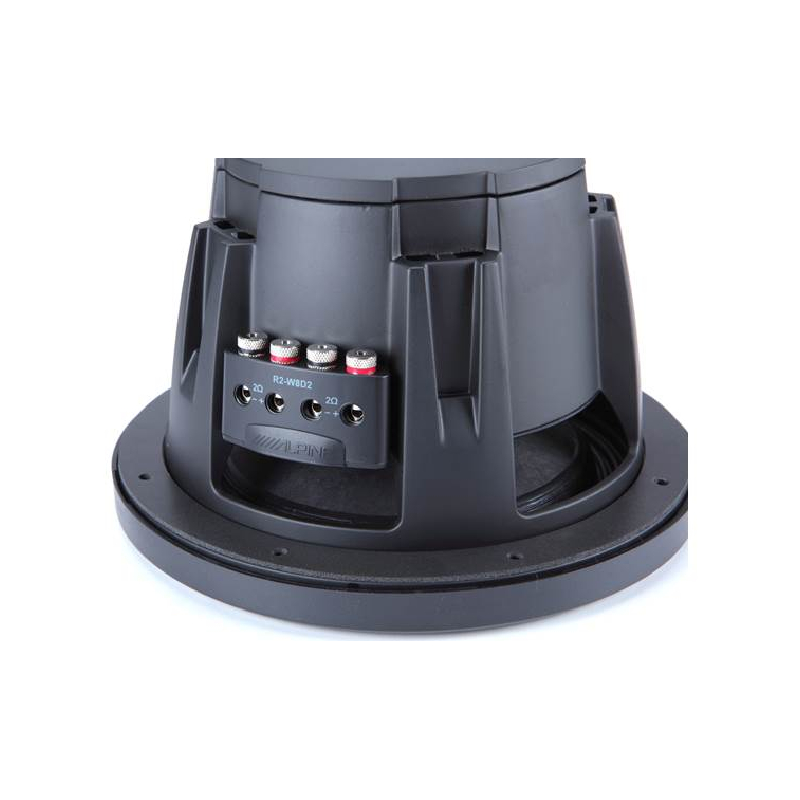

R2-W8D2 Dual 2Ω Voice Coil Wiring
Parallel Wiring: Connect the dual 2Ω voice coils to create a 1Ω final load
Series Wiring: Connect the dual 2Ω voice coils to create a 4Ω final load
Single-Sub Setup: Choose the final impedance based on the amplifier's rated output and the desired system configuration
Dual-Sub Setup: Two R2-W8D2 subwoofers can be wired to achieve different final impedances depending on the wiring configuration
Best Practice: Always verify the final impedance and make sure the amplifier is rated to operate safely at that load
Recommended R2-W8D2 Amplifier Settings
Gain Setting: Set gain according to the head unit's output and use a clean test signal to avoid clipping
Low-Pass Filter: Start around 80Hz and adjust according to the vehicle, enclosure and front speaker system
Bass EQ: Keep boost moderate and prioritize clean amplifier output
Subsonic Filter: Use when running a ported enclosure to help protect the subwoofer below the enclosure's tuning frequency
Phase: Adjust phase to achieve the strongest and smoothest bass integration with the front speakers
Recommended R2-W8D2 System Configurations
Single R2-W8D2: Target approximately 350W–500W RMS for strong output with proper system tuning
Best Overall Build: Pair one R2-W8D2 with the R2-A75M for high-performance R-Series bass
Compact Build: Choose the KTA-30MW when installation space is the priority
Dual-Sub Build: Pair two R2-W8D2 subwoofers with an appropriately rated mono amplifier for substantially greater output
Alpine-Recommended Option: The KTA-30MW is a compact option for R-Series subwoofer systems
Enclosure: Use an enclosure designed specifically for the R2-W8D2 and follow Alpine's recommended enclosure specifications
Pro Tip: For a single R2-W8D2, the Alpine R2-A75M is a standout choice when you want strong power and headroom. For compact installations, the KTA-30MW offers a space-saving alternative for your R-Series bass system.
Frequently Asked Questions (FAQ)
- • Can an 8-inch subwoofer produce enough bass for everyday listening?
Yes, a high-performance 8-inch subwoofer can deliver surprisingly deep and accurate bass in the right enclosure. It is a great choice for drivers who want strong bass while saving installation space.
- • Why doesn't the bass feel as strong as I expected?
This is often caused by an enclosure that is too small, incorrect amplifier settings, or poor subwoofer placement. Proper tuning and a recommended enclosure will noticeably improve low-frequency output.
- • Is a sealed box better than a ported box for this subwoofer?
A sealed enclosure produces tighter, more controlled bass, while a ported enclosure offers higher output and deeper extension. The best choice depends on your listening preferences and available space.
- • Can I wire the dual voice coils to match my amplifier?
Yes, the dual 2-ohm voice coils provide multiple wiring options for different amplifier configurations. Always verify the final impedance before connecting the amplifier.
- • Why does the subwoofer make a clicking or popping sound?
This usually happens because of amplifier clipping, excessive cone movement, or incorrect gain settings. Lowering the gain and confirming the enclosure meets specifications can help prevent damage.
- • Will this work well in a compact car?
Yes, its smaller size makes it an excellent option for compact cars with limited cargo space. It can provide impressive bass without requiring a large enclosure.
- • Why does the bass sound louder outside the vehicle?
Vehicle cabin acoustics, enclosure placement, and phase alignment can all affect how bass is heard inside the car. Experimenting with enclosure positioning and amplifier settings often improves cabin response.
- • Does this subwoofer need time to break in?
Yes, a short break-in period with moderate listening levels helps the suspension loosen naturally. Many users notice smoother bass response after several hours of normal use.
- • Can I use two of these instead of one larger subwoofer?
Yes, many enthusiasts choose two 8-inch subwoofers for improved output and more even bass distribution. Just make sure your amplifier can support the final wired impedance.
- • How should I configure the dual voice coils for my amplifier?
Because this unit features dual 2-ohm coils, you can wire them in series for a 4-ohm load or in parallel for a 1-ohm load depending on your amplifier's stability. Always check your amplifier’s technical specifications to ensure it can handle the final impedance load you choose.
Alpine R2-W8D2 Related Videos
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers

- Diameter : 8 Inch
- Sensitivity : 83.7 dB
- Impedance : 2 Ohm
- Frequency Response : 30-200 Hz
- Peak Power Handling : 1000 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : .70 Cubic ft.
- Suggested Ported Box Volume : .45 Cubic ft.
- Mounting Depth : 4.56 Inches
- RMS Power Handling : 350 Watts
Features:

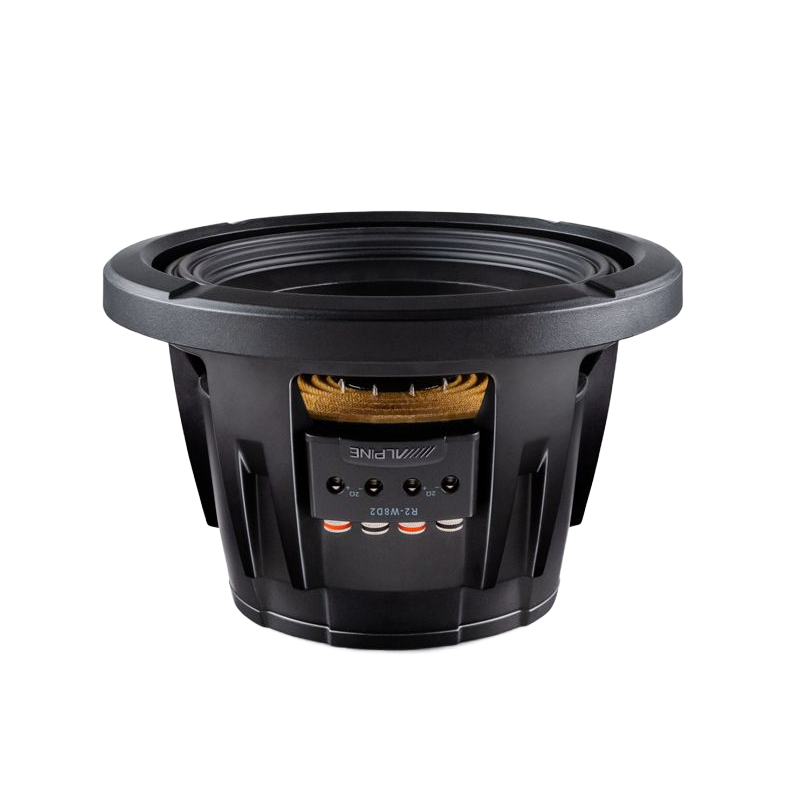

- Dual Voice Coil Design: DVC subwoofer with configuration jumpers for flexible wiring and optimized amp performance.

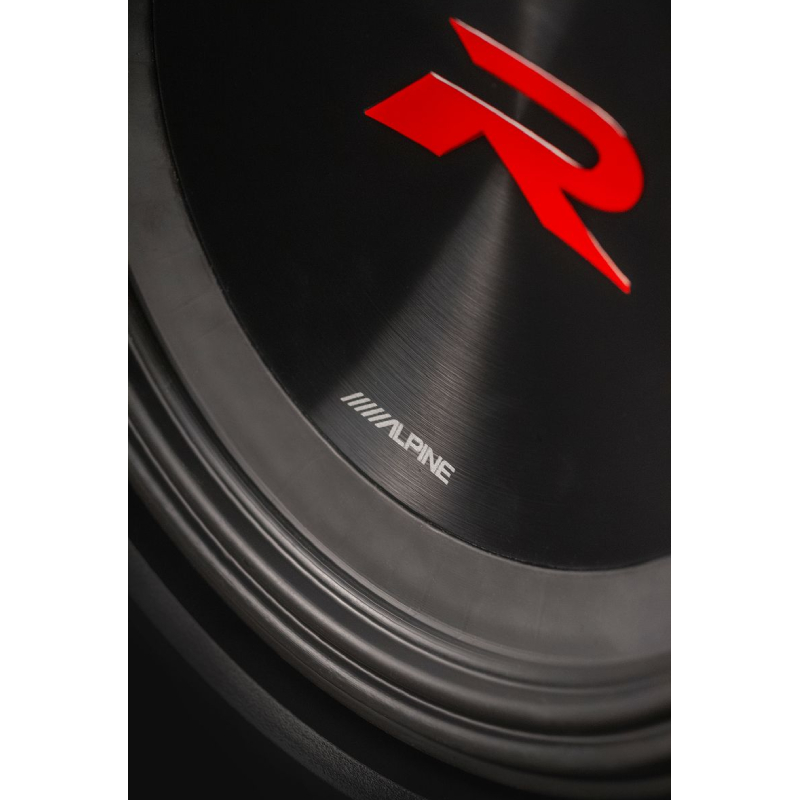

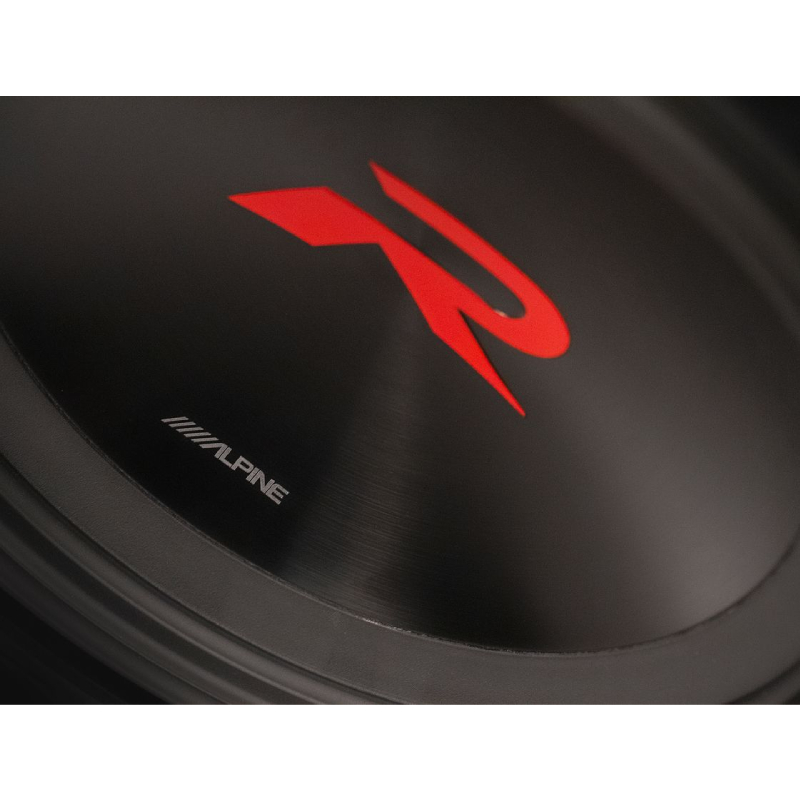

- Kevlar-Reinforced Pulp Cone: Rigid and responsive design for impactful, distortion-free bass.
- Polypropylene/Ceramic Composite Dust Cap: Increases cone stiffness and ensures clean, precise sound at high volumes.

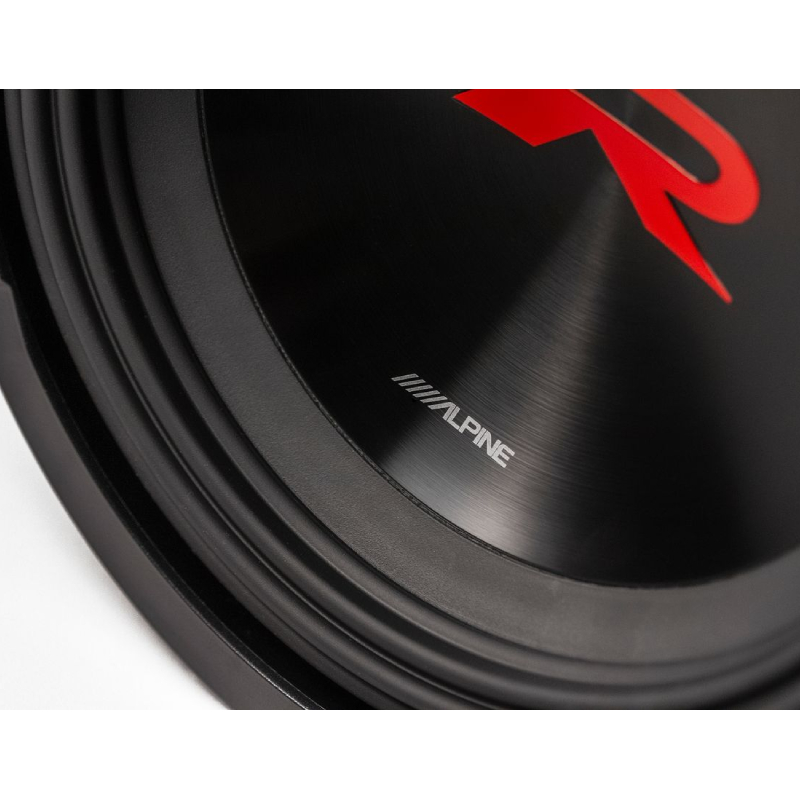

- H.A.M.R. Surround: High-Amplitude Multi-Roll Santoprene™ surround for maximum cone excursion and reduced distortion.

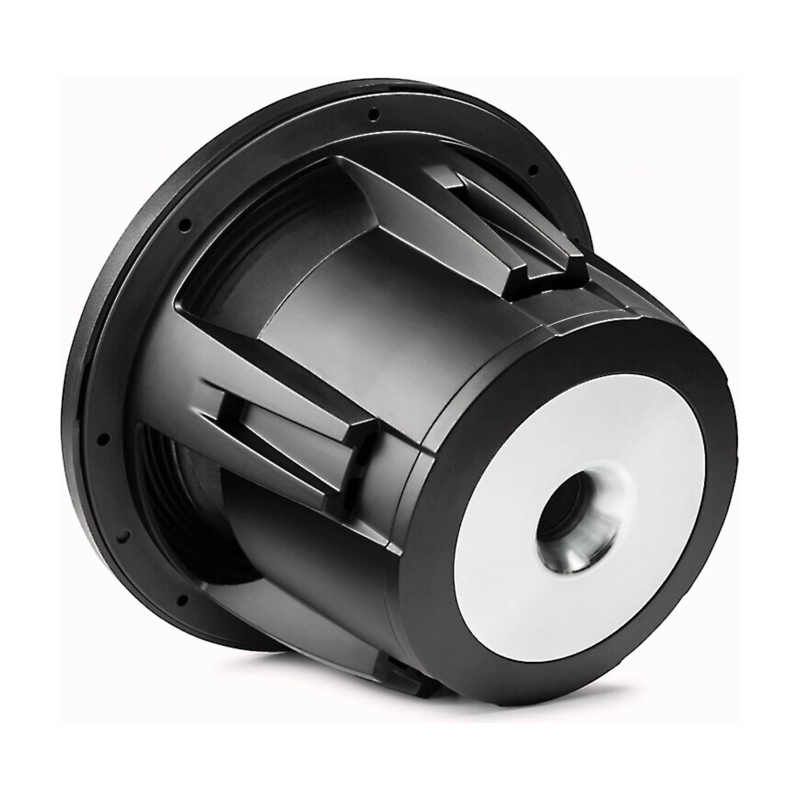

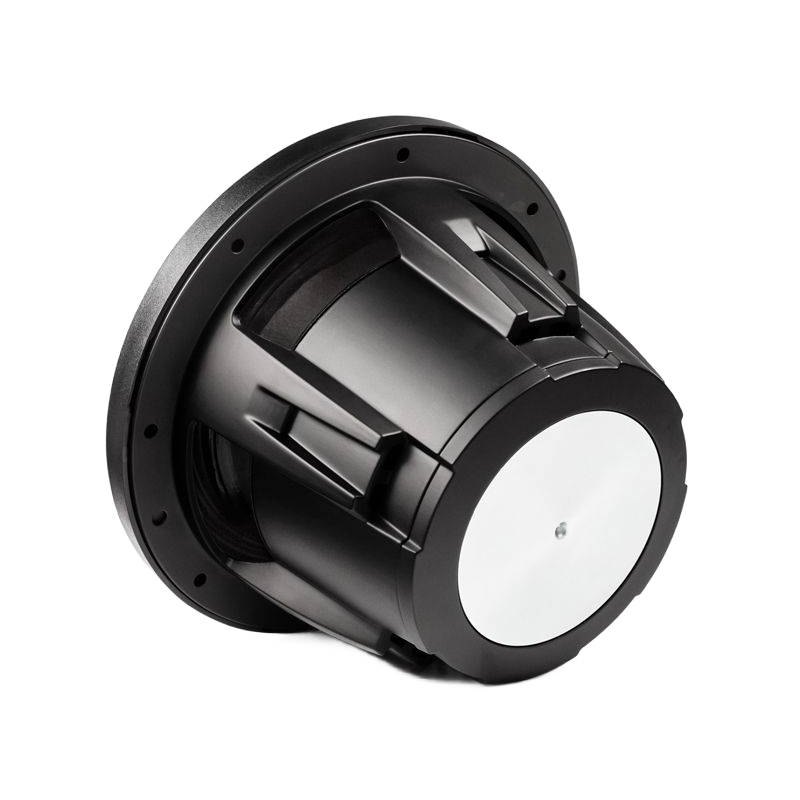

- Double-Stacked Magnet Motor: Powerful motor design for deeper bass and improved cone control.
Specifications:
- Size: 8-inch
- Impedance (Ohms): 1, 4
- Cone Material: Kevlar Reinforced Paper
- Surround Material: Santoprene Rubber
- Basket Material: Aluminum
- Grille: None included
- Free-Air: No
- Dual Voice Coil: Yes
- Sensitivity: 83.6 dB at 1 watt
- Frequency Response: 30–200 Hz
- Max RMS Power Handling: 350 watts
- Peak Power Handling: 1000 watts
- Top Mount Depth (inches): 4 11/16
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 6 15/16
- Frame Width: 8.288
- Frame Length: 8.288
- Vas (liters): 10.1
- Fs (Hz): 42
- Qts: 0.48
- Xmax (millimeters): 12
- UPC: 793276084705
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
