SPXM1 Marine & Powersports Media Player with Switch Command
We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Source Unit
- • Trim Plate
- • Mounting Bracket
- • (4) 3.5 x 25 Mounting Screws
- • (2) M4 x 35 Threaded Stud
- • (8) M4 Flange Nuts
- • Power/Speaker Wire Harness
Big Things Come in Small Packages

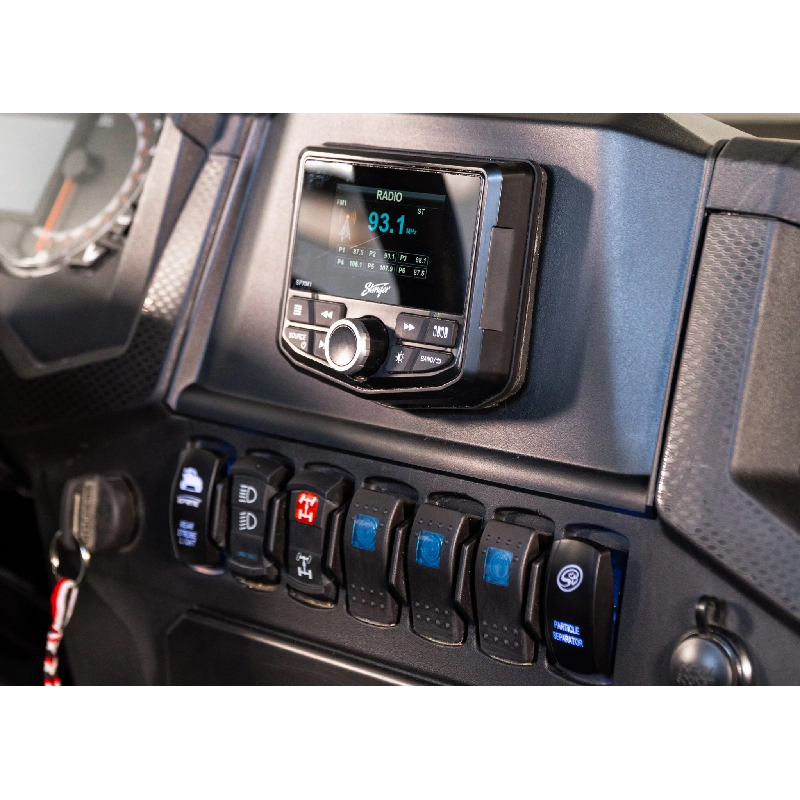

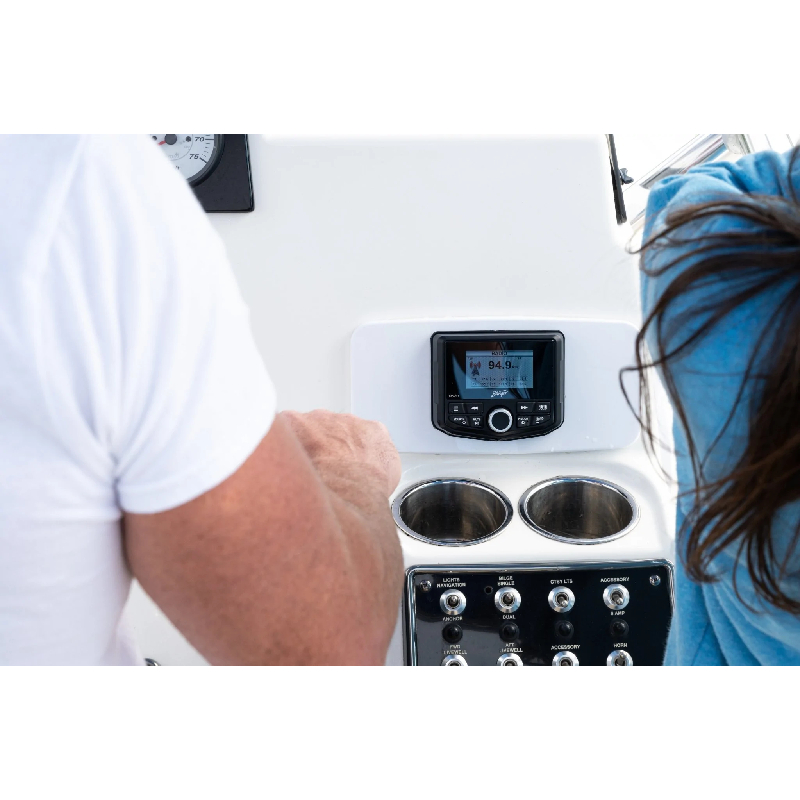

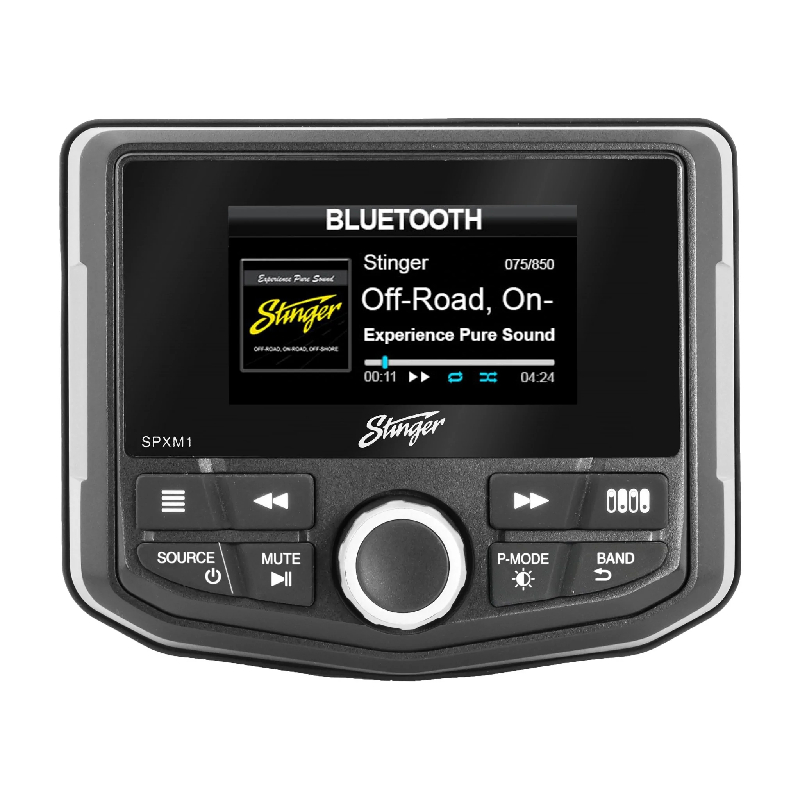

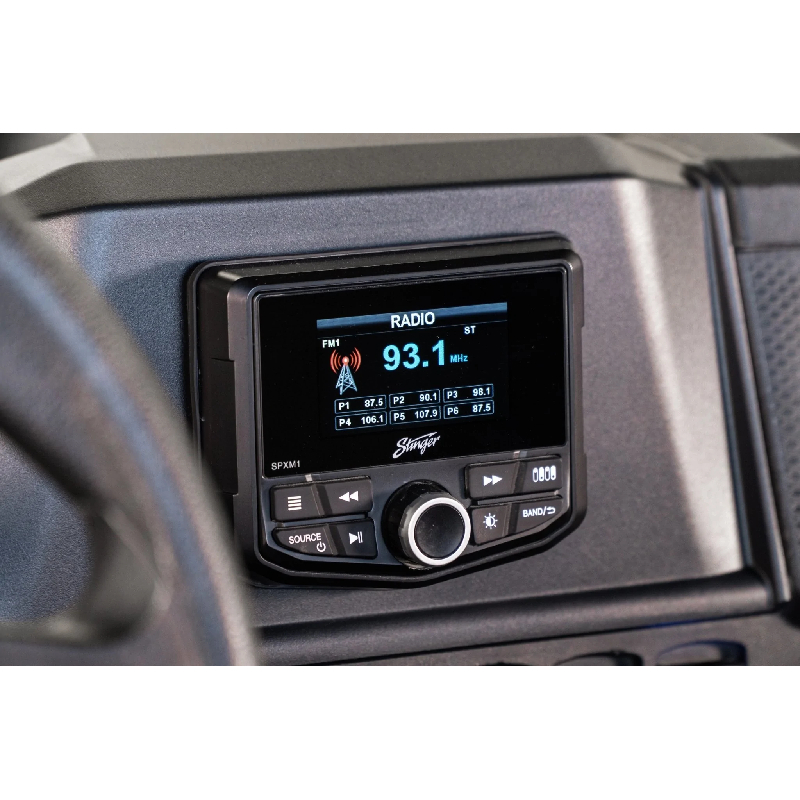

SPXM1, digital media player, is proof that big things come in small packages. SPXM1 features a 2.7-inch full-color display and LED-backlit buttons for viewing in all lighting situations including while wearing polarized sunglasses. Whether your off-shore fishing or off-roading, SPXM1 is engineered to last with an IPX6-rated optical bonded front panel allowing it to withstand those harsh outdoor elements.
Built-in High-power

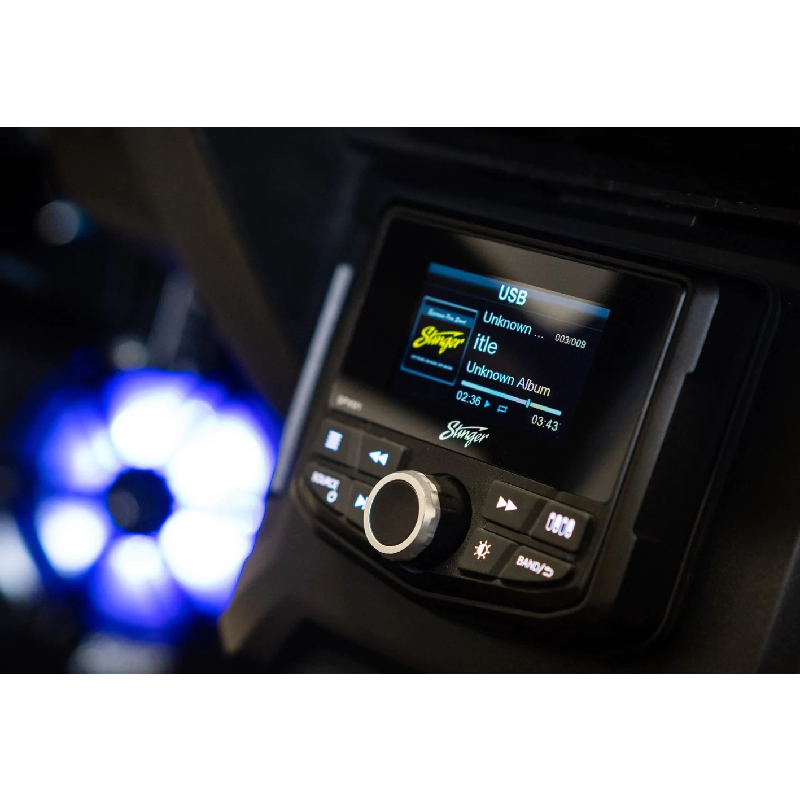

SPXM1 can be expanded and controlled with the onboard front and selectable rear/subwoofer RCA outputs. Tweak the sound to your liking using the onboard EQ (with eight presets) and subwoofer-level control. Its built-in high-power 45 x 4 amplifier will ensure your favorite tunes are heard. Listen to your media via many sources, including a global AM/FM/weather-tuner, USB input for MP3/WMA/WAV/FLAC files, Bluetooth, or a wired AUX RCA input. Want to keep tabs on what’s going on around you? By utilizing the onboard video input and adding a camera, you can watch that wakeboarder, fisherman, or ATV following you.
Capable of Controlling up to 4 Devices

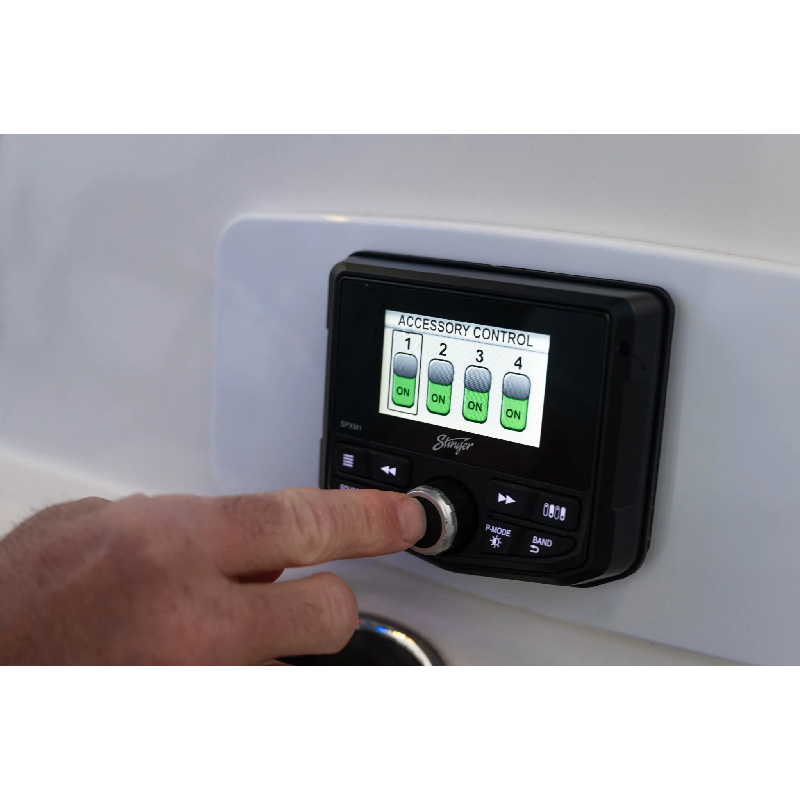

SPXM1 is your new command center, capable of controlling up to 4 devices in conjunction with the optional SwitchHUB (SPXSH440) 4-output, 100A total, solid-state switcher. For quick and easy access to those controls, SPXM1 uses a dedicated switch panel button, so the onboard display shows all four devices' statuses at once. SPXM1 becomes an ALL-IN-ONE Digital Media and Control Center, keeping things clean and clutter-free.
Water-Resistant

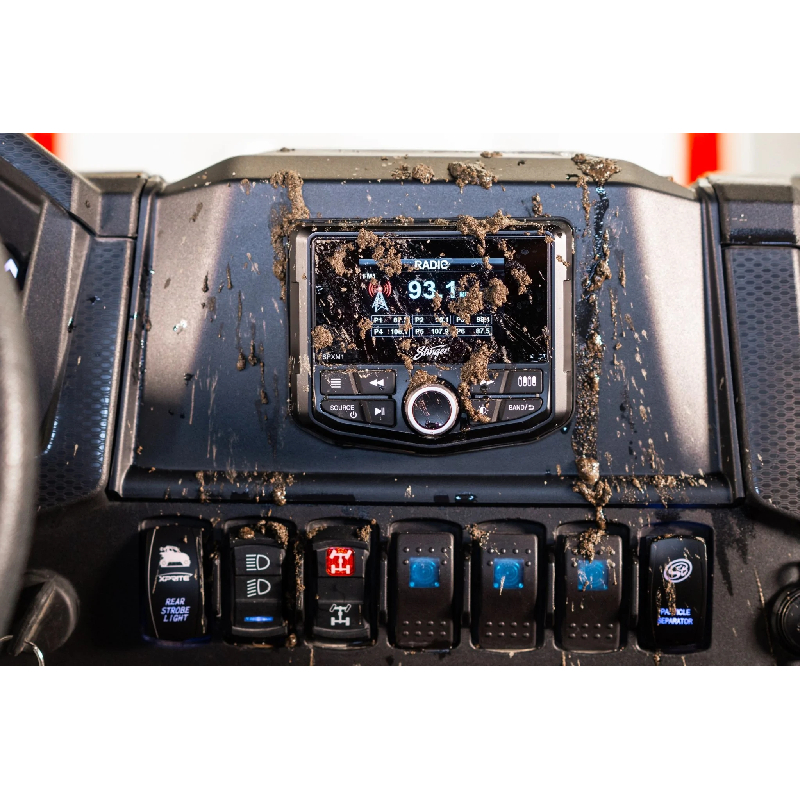

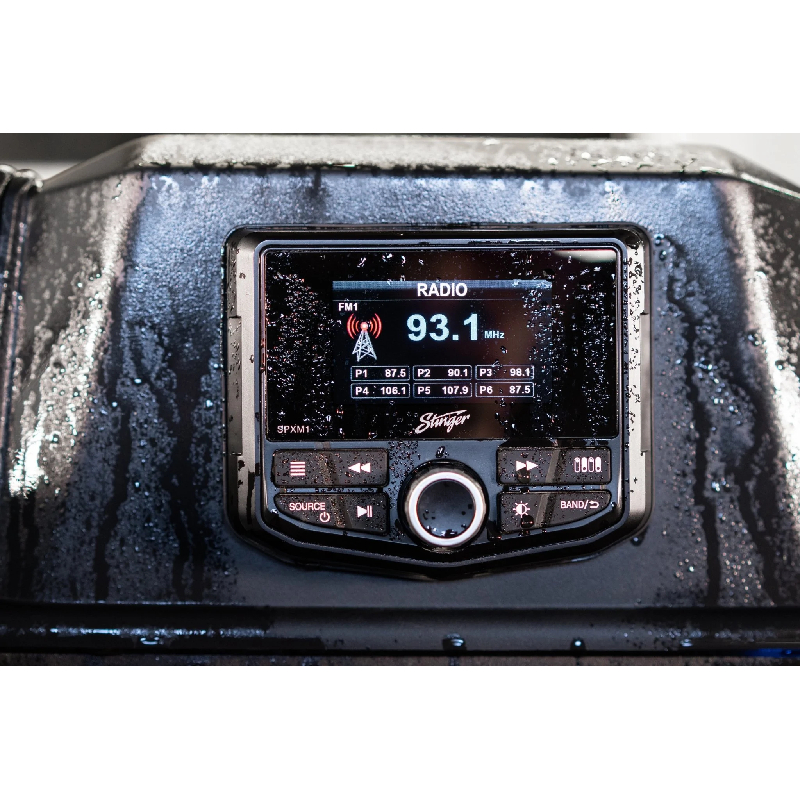

Designed to last with an IPX6-rated optical bonded front panel that can withstand those harsh outside elements including water, dirt, dust and debris.
Easy To View in All Lighting Conditions

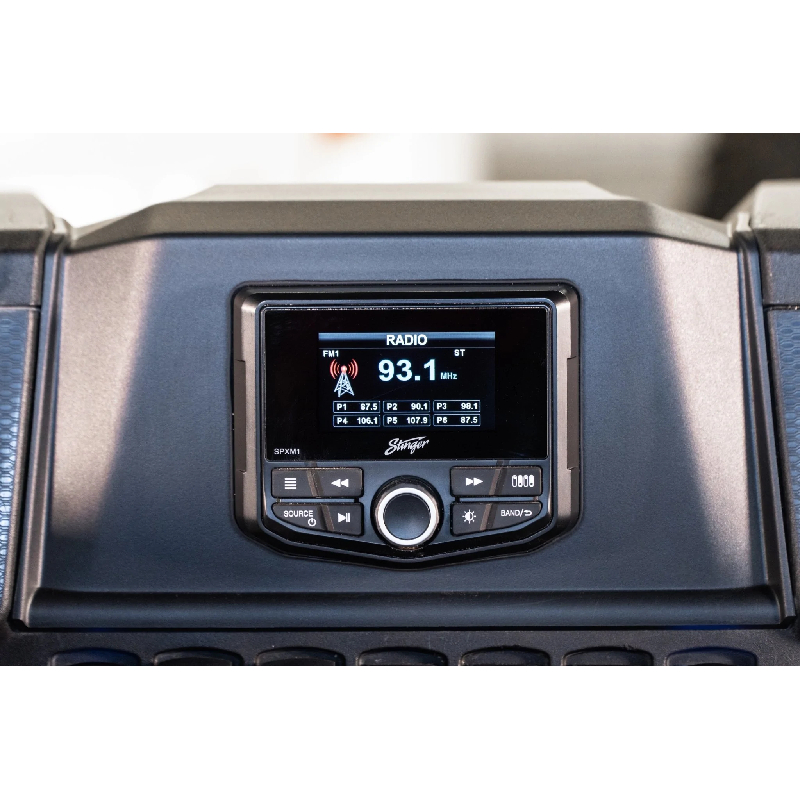

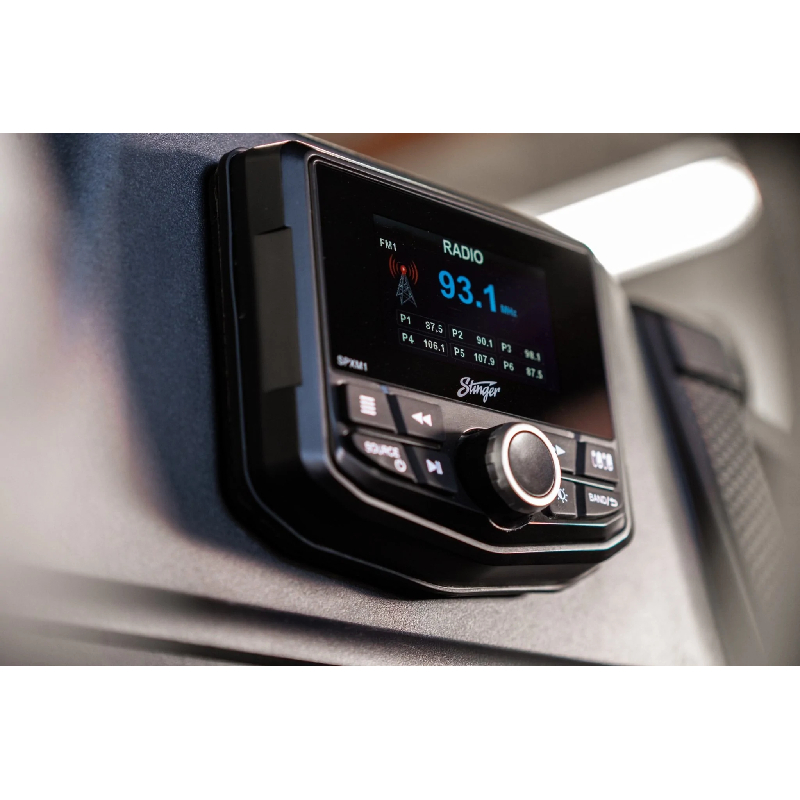

Perfect for outdoor use, SPXM1 features a 2.7-inch full-color display for full sun-capable viewing.
SwitchHUB Compatible
When paired with SwitchHUB, your wire-management on any vehicle will be clean and organized for a clutter-free installation.
- Bluetooth : Yes
- Aux Input : Yes
- Color : Black
Features:
Accessory Control:
- 4 Channel External Accessory Control with Optional Spxsh440 (Sold Separately)
General Features:
- 2.7" Color Display
- Built-in Bluetooth for Music Streaming
- Camera Input with External Trigger
- Water Resistant Front Panel (Ipx-6 Rating) Backlit Led Buttons
- Two-piece Mounting System to Secure Panel to Mounting Surface
- Built-in 25 Watts X 4 Power Amplifier (45w Peak X 4)
- Plays Mp3/WMA/WAV Files
- Rear Aux Input
- 4-channel Preamp Outputs (2-volt Front and Selectable Rear/Sub)
- Easy Subwoofer Control
- 7-band Graphic Equalizer with (8) Music Genre Presets
- Selectable High-pass and Low-pass Crossovers
- Adjustable Input Gain for each Source
Marine Specialty Features:
- Wired Marine Remote Compatible (Sold Separately)
- Voltage Gauge with Low Voltage Alert
Specifications:
General:
- Operating Voltage: 10.5V - 16V
- Fuse: 20 AMP
- Display: 2.7 inch Color TFT
- Backlit Water Resistant Panel (IPX-6)
- Remote Control: Wired (Optional)
Audio:
- Peak Power Output: 45W x 4
- RMS Power Output: 25W x 4
- Speaker Impedance: 4 ohm
- RCA Outputs: 2 Pair(Front, Rear or Sub)
- Preamp Voltage: 2 Volts
- Frequency Response: 20-20kHz
- Equalizer: 7 Band Graphic
- Crossover: High Pass, Low Pass
- Adjustable gain for each source
Tuner:
- AM/FM/Weather Bands
- Presets: 18 FM, 12 AM, 6 WB
- Local/Distant Selectable
- Auto Store
- Motorola Antenna Input
USB 2.0:
- Location: Rear
- 1 AMP Output
- 32GB Max
- 999 Songs Max
- 255 Folders Max
- File Types: MP3/WMA/WAV/FLAC
AUX Input:
- Location: Rear
- Input Type: Stereo RCA
Camera/Video Input:
- Location: Rear
- Input Type: RCA
- Video Format: PAL/NSTC
- External & Internal Trigger
Bluetooth:
- Version: 3.0+EDR, A2DP 1.3
- UPC: 609098832533
- Weight: 5
