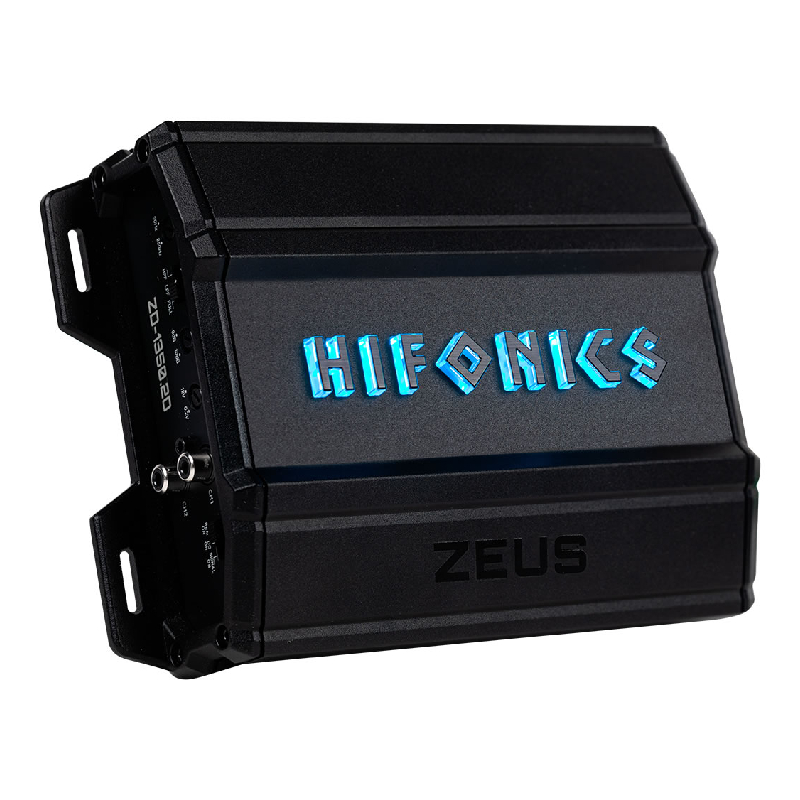

Hifonics ZD-1350.2D Zeus Delta Series 2-Channel 1350W Max Power, Class-D Full Range Car Amplifier
We are a Hifonics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (1) 2-Channel Class-D Car Full Range Amplifier
• Owner's Manual
Low Noise Preamplifier Circuit
It has maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
DC SIGNAL SENSE
The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
Maximum Power : 1350 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Frequency Response : 10-22000 Hz
Built In Crossovers : Yes
RMS Power Output : 675 Watts
Amplifier Class : D
Fuse Rating : 35 A
Compatible Vehicle Fitment: Universal
Low Noise Preamplifier Circuit: Ensures minimal distortion for maximum signal clarity.
RCA Inputs: Nickel-plated, high-temperature resistant connectors for secure, erosion-resistant connections.
Operation Mode: Two Channel, Full Range, Bridgeable for flexible installation options.
Crossover Type: Onboard electronic crossover for precise frequency control.
Electronic Equalizer: Tailors specific frequencies to speakers and subwoofers for optimized sound.
Class / Topology: Class D topology for high efficiency and powerful performance.
Output Device Technology: PWM MOSFET Power Supply ensures stable power delivery with minimal heat generation.
Heat Sink: Aluminum heat sink design for superior heat dissipation.
Power Supply: Simpatico Coil Design maintains constant voltage through Ultra-Fi output devices.

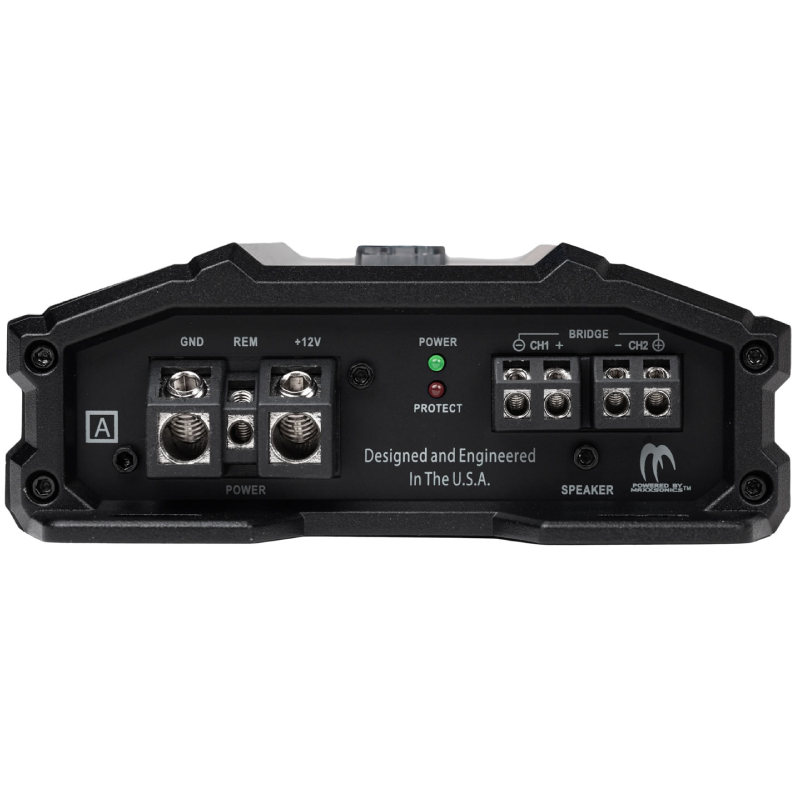

Connection Type: Secure molded terminal connections for Power, Ground, and Speaker connections, angled for easy access and clean wire management.
LED System Protection Circuitry Diagnostics: Monitors overload and speaker short protection with illuminated indicators.
Auto Turn-On: DC SIGNAL SENSE feature turns on the amplifier when a signal is received on the RCA inputs, eliminating the need for a remote turn-on wire. This feature can also be turned off for flexibility.
Detail and Specifications:
Series: ZEUS DELTA
Warranty: 1 Year
Compatible Vehicles: Universal
Class: Class D
Total Channels: 2
Max Power (watts): 1350
Power @ 2 Ohms (ch x watts): 2 x 675
Power @ 4 Ohms (ch x watts): 2 x 350
Mono Bridged @ 4 Ohms (ch x watts): 1 x 1350

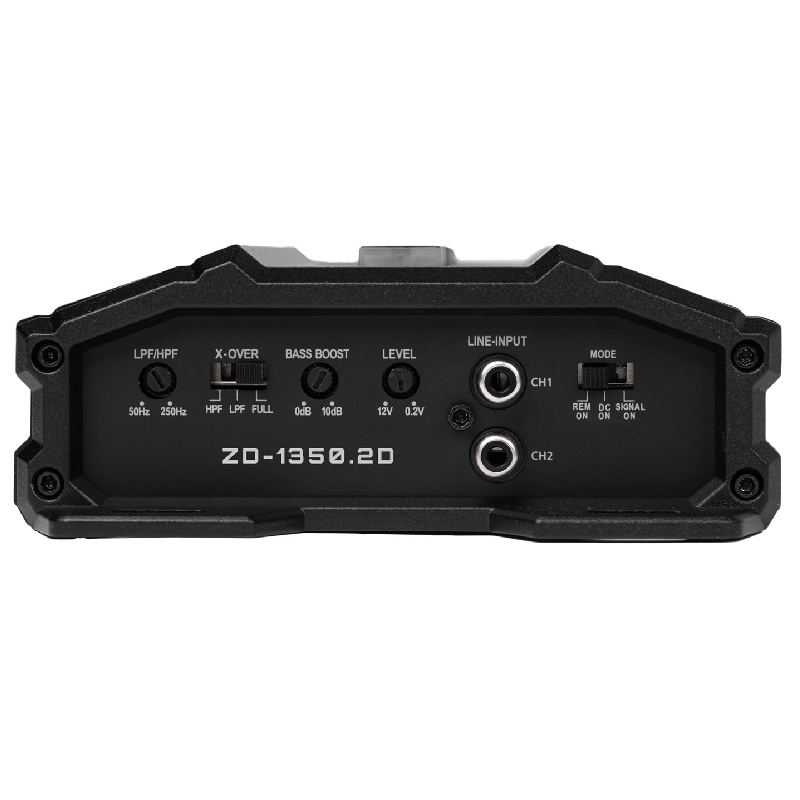

Crossover: Variable Electronic 12dB Per Octave
Variable High Pass Crossover 12dB per Octave: 50Hz-250Hz
Variable Low Pass Crossover 12dB per Octave: 50Hz-250Hz
Tone Control / Parametric EQ: Built-in Bass Control
Variable Voltage: 0.2-6V
Frequency Response: 10Hz-22kHz
Total Harmonic Distortion (THD): < 0.5%
Speaker Level Audio Inputs: Yes
Power Terminal 12v/GND: 4 AWG
Speaker Terminal Wire Gauge: 12 AWG
Fusing: External 35A
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Estimated Shipping Time for Special Order items is 7-10 days.
You may call our Customer Service Department at 310-526-8635 for a more accurate shipping estimate.
Special Order Product
Reserve Now. Risk Free!
This product is temporarily out of stock and estimated date of arrival is unknown but you may order this item today to reserve it.
Order for this item is processed on a first come first served basis
You can cancel the order anytime, risk free
Or, call us for alternatives at 310-526-8635
