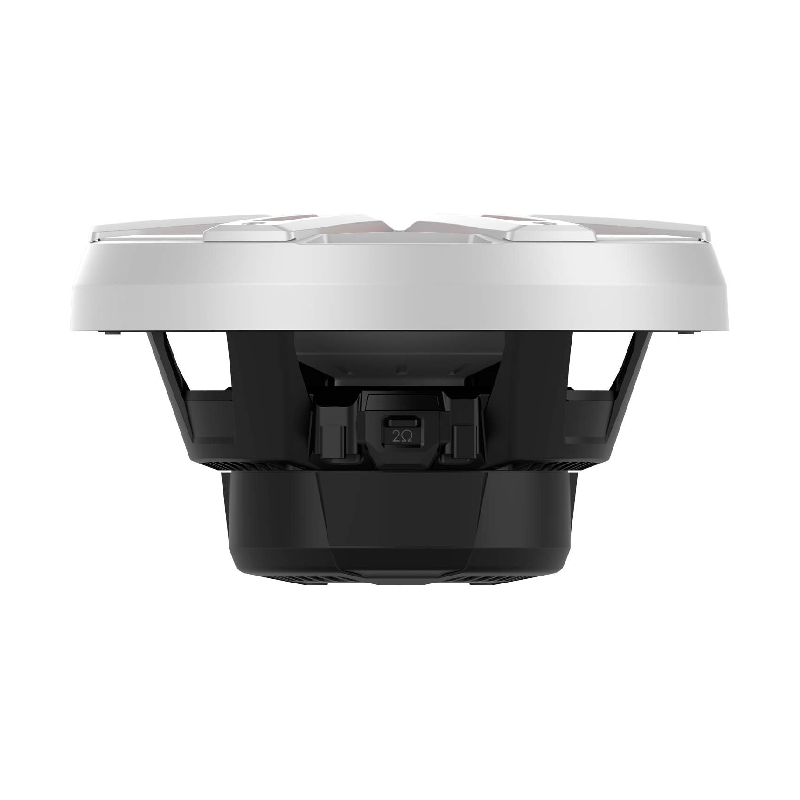

Rockford Fosgate  M2D4-10I

M2 Series 10" 1600W Peak Power Handling 4 Ohms Dual Voice Coils Marine Subwoofer - White

Item #90970

Product Highlights

  • M2 Series
  • 10" Subwoofer
  • 1600W Peak Power
  • 4 Ohms
  • Dual Voice Coils
  • Marine Grade
  • Color: White

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate M2D4-10I M2 Series 10" 4-Ohms Dual Voice Coils Marine Subwoofer


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

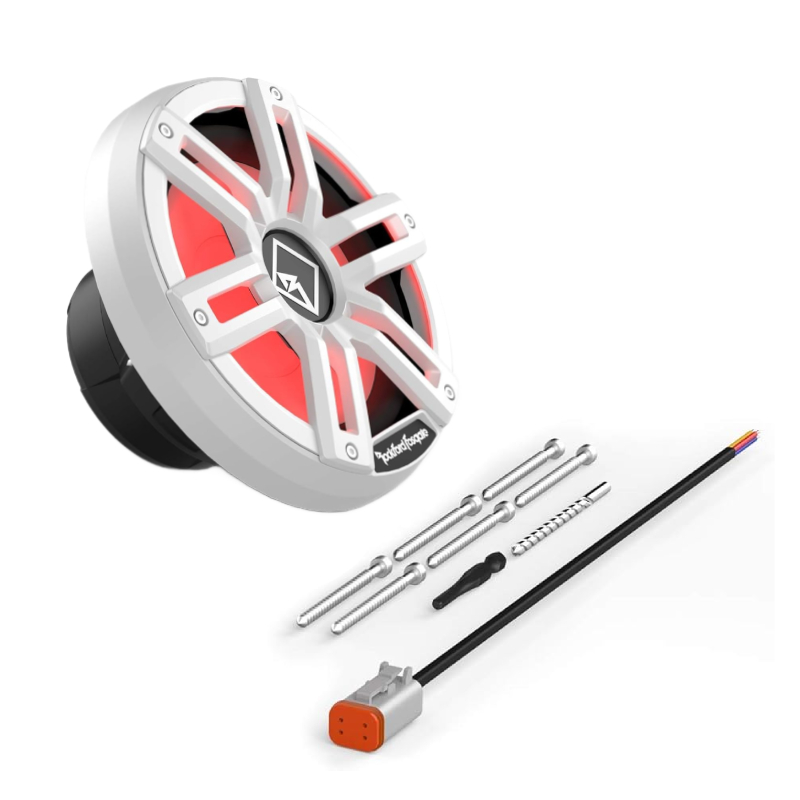

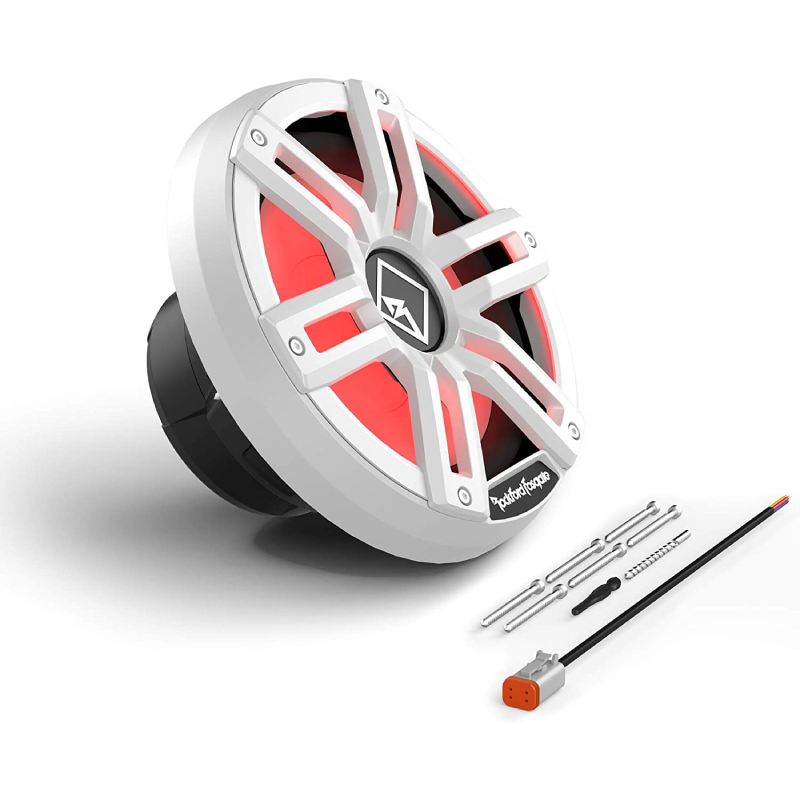

What's Inside?
  • •(1) marine subwoofer
  • •(1) Centrex plastic grille (White)

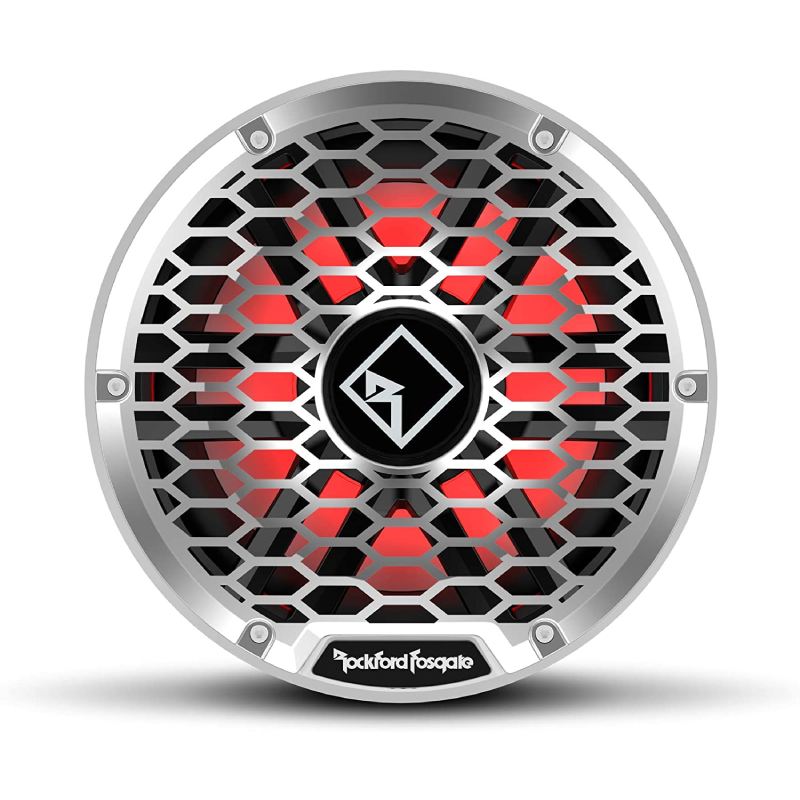

  • •(1) Stainless steel grille
  • •(1) Grille ring (White)
  • •(1) 11" LED power harness with 4-pin Deutsch connector on one end
  • •(6) 2-3/8" Stainless steel Allen head screws 4mm Allen head bit
  • •4.5mm Drill bit
  • •Owner's Manual
Truly Purpose Built for Marine Applications

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications.

Compliment the Plug and Play Connectivity

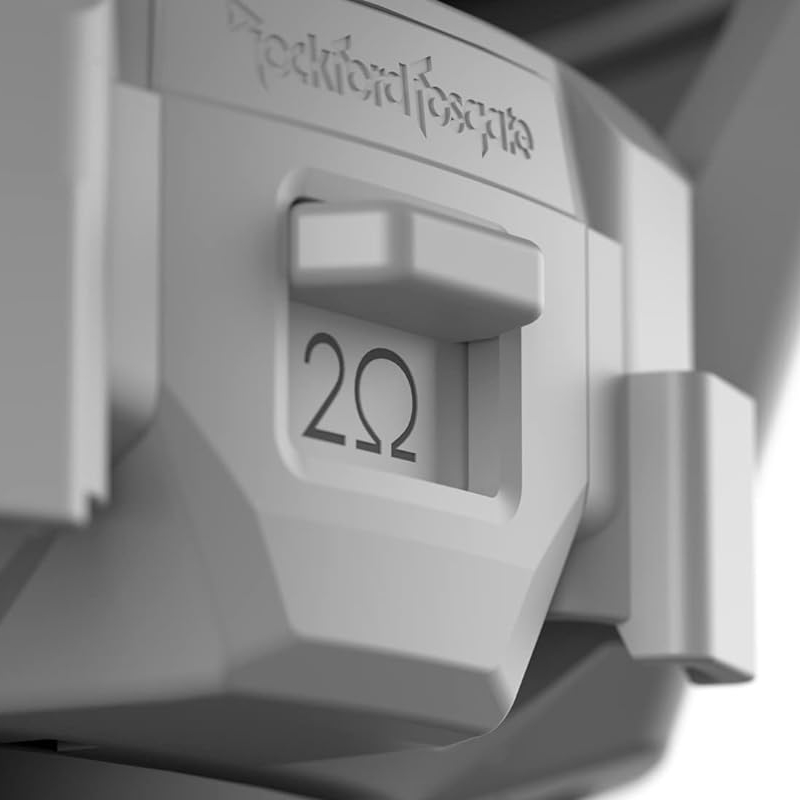

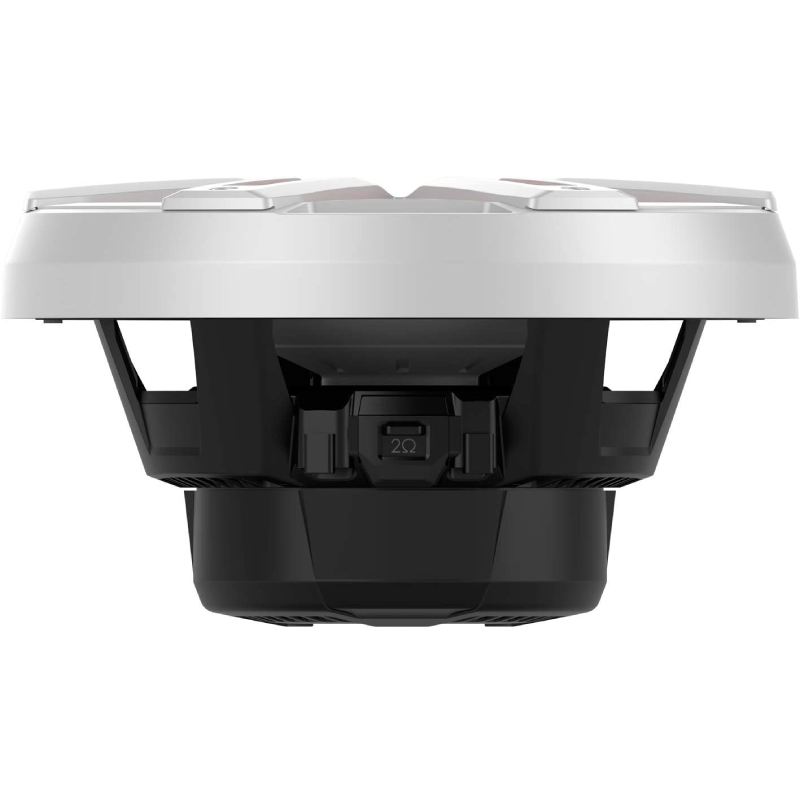

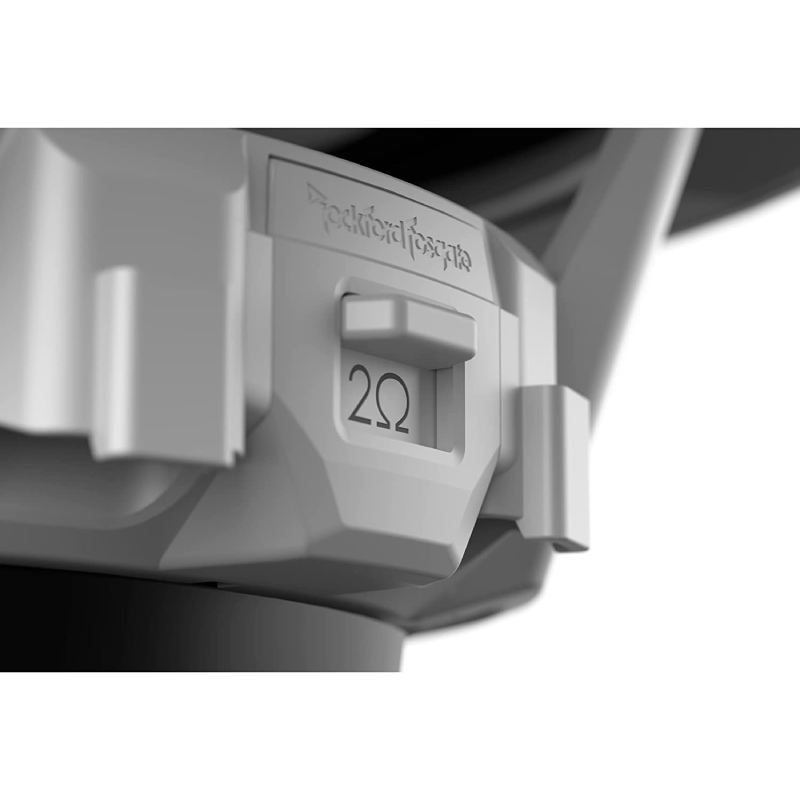

To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.

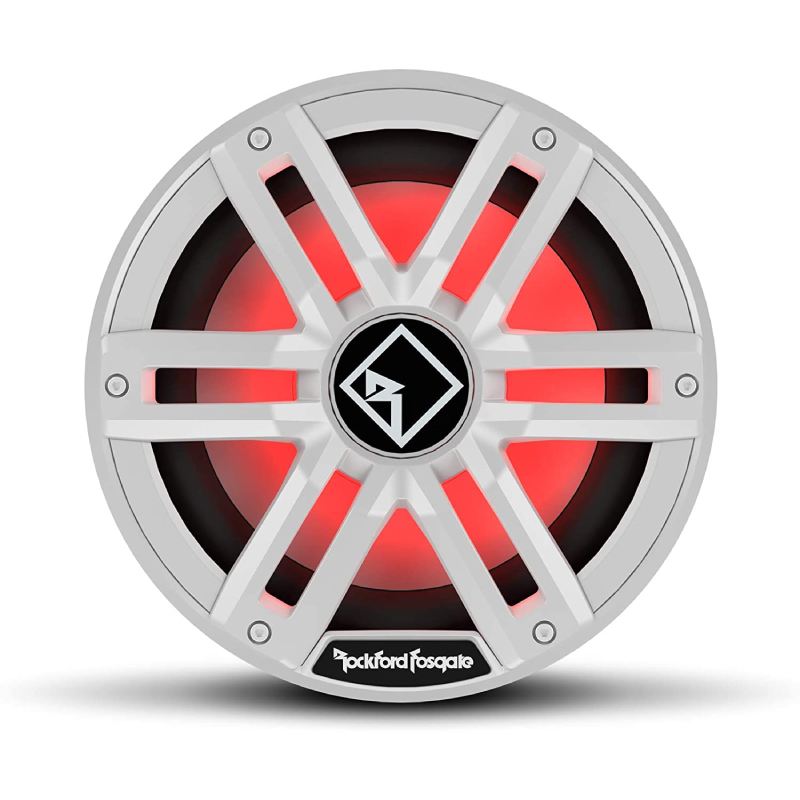

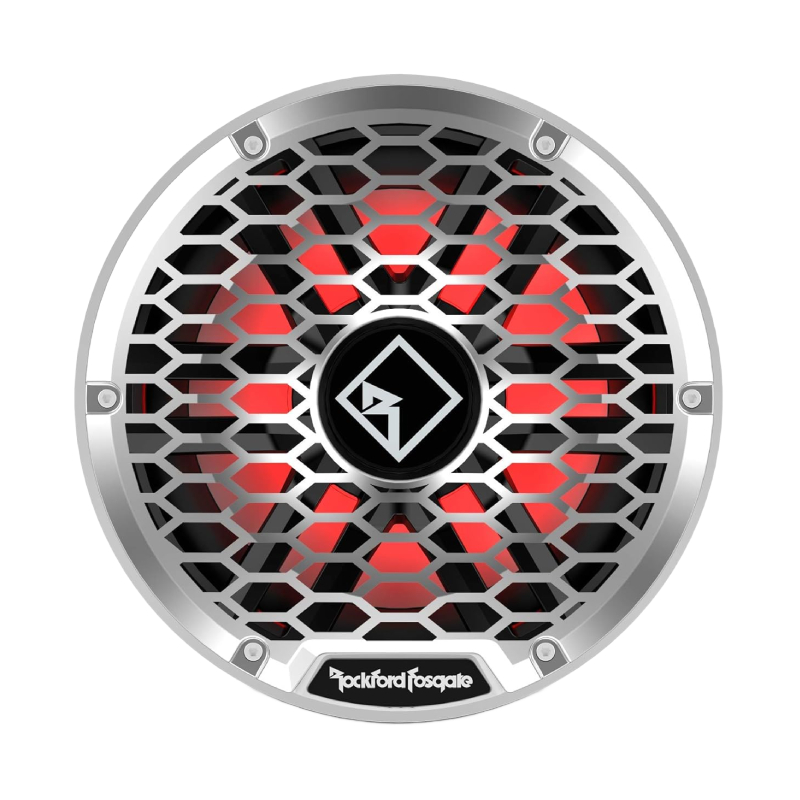

Removable Grille That Looks Great

This M2 Series M2D4-10l 10" sub features a rugged, removable grille that looks great and stands up to blistering sunlight and damaging moisture. Underneath the UV-stable shell and durable Santoprene rubber surround, you'll find a injection-molded mineral-filled polypropylene cone that's treated with UV inhibitors, plus a moisture- and tear-resistant synthetic fiber blend spider.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 90.3 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20-750 Hz
  • RMS Power Range : 400 Watts
  • Peak Power Handling : 1600 Watts
  • Color : White
  • Mounting Depth : 4.44 Inches

FEATURES


Features;

  • 10" marine subwoofer with dual 4-ohm voice coils
  • injection-molded mineral-filled polypropylene cone with Santoprene rubber surround

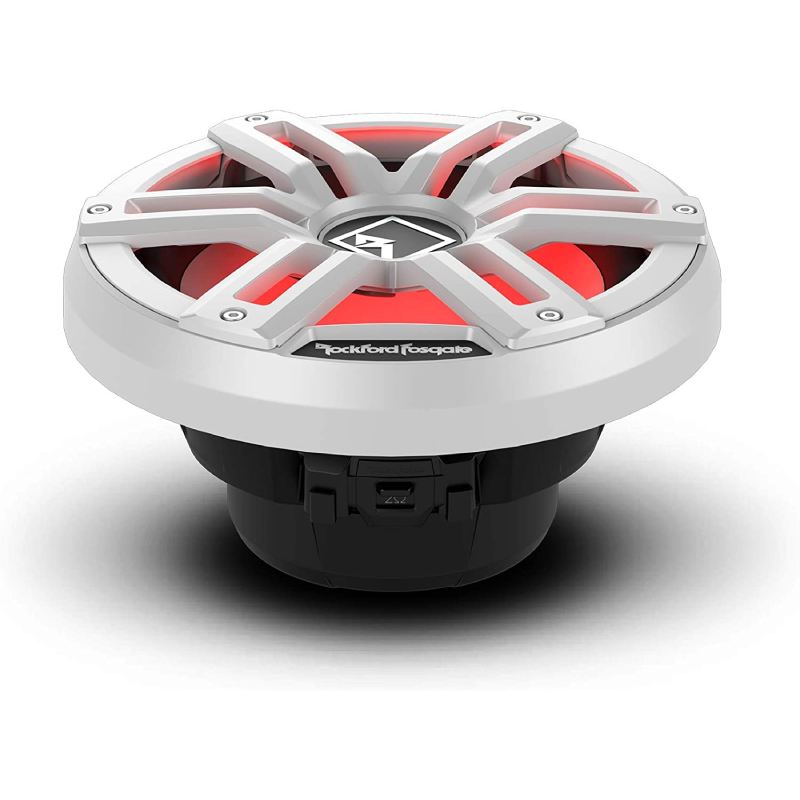

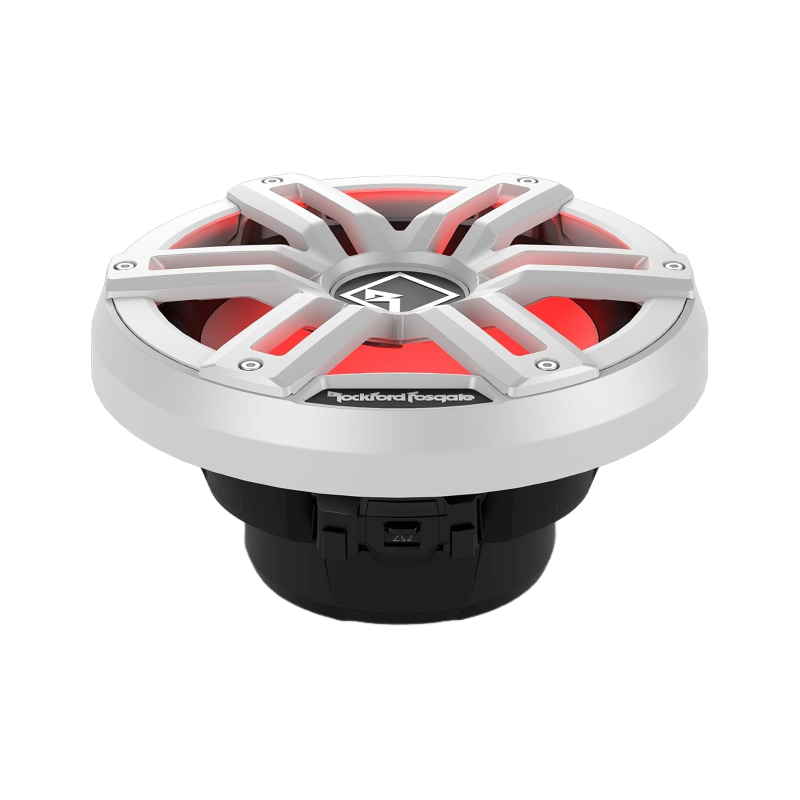

  • integrated Color Optix RGB LED lighting included (requires separate PMX-RGB lighting controller)
  • synthetic fiber blend spider
  • Element Ready™ design
  • rugged, UV-stable plastic parts
  • corrosion-resistant spring-loaded push terminals
  • IP67 certification
  • removable grille included
  • power handling: 400 watts RMS/1600 watts peak
  • sensitivity: 90.3 dB
  • cutout diameter: 8-15/16"
  • top-mount depth: 4-1/2"
  • selectable impedance: 2 or 8 ohms
  • warranty: 2 years



Specifications:

  • Size: 10"
  • Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
  • Power Handling (Watts RMS): 400 Watts RMS/1600 Watts PEAK
  • Voice Coil Diameter: 2.0" (50.8 mm)
  • Magnet Weight (oz): 55.02 oz. (1.56 Kg)
  • Voice Coil Type: Dual Voice Coil
  • Frequency Response: 20 Hz - 750 Hz
  • Fs (Hz): 43
  • Re (Ohms): 6.6
  • Le (mH): 1.76
  • Sd (cm2):363
  • Qms: 5.67
  • Qes: 1.07
  • Qts: 0.90
  • Vas: 31.5
  • SPL (dB @ 1w/1m): 90.3
  • Xmax (mm): 12.0
  • Woofer Displacement: 0.06 cu. ft. (1.74 Liters)
  • Speaker Connector: Deutsch™
  • Cutout Diameter: 8.87 in. (225.3 mm)
  • Mounting Depth: 4.44 in. (112.7 mm)
  • Shipping Weight: 13.8 Lbs. (6.26 Kg)



  • UPC: 780687355692
  • Weight: 14
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Hooked it up with a Kicker amp and the sub is sounding punchy which I like. It can get loud without any distortion as I tried to boost the amp’s gain but it’s really not my thing and I just tried it out if it can handle a good power

    Brian
    3/14/2024
