Rockford Fosgate M2D4-10IB M2 Series 10" 400W RMS (1600W Peak Power Handling) 4 Ohms, Dual Voice Coils Marine Subwoofer - Black
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

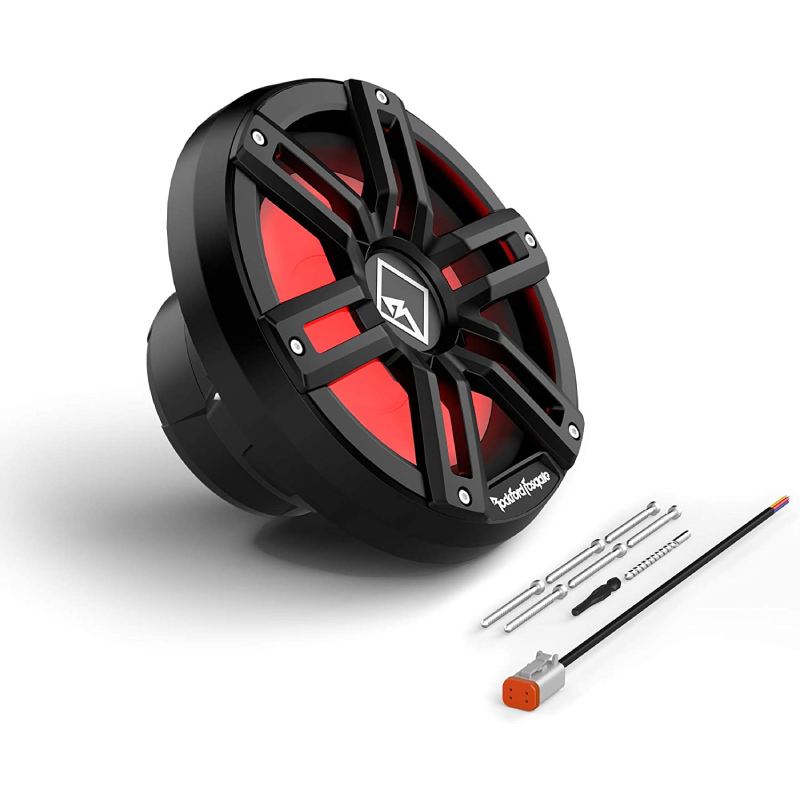

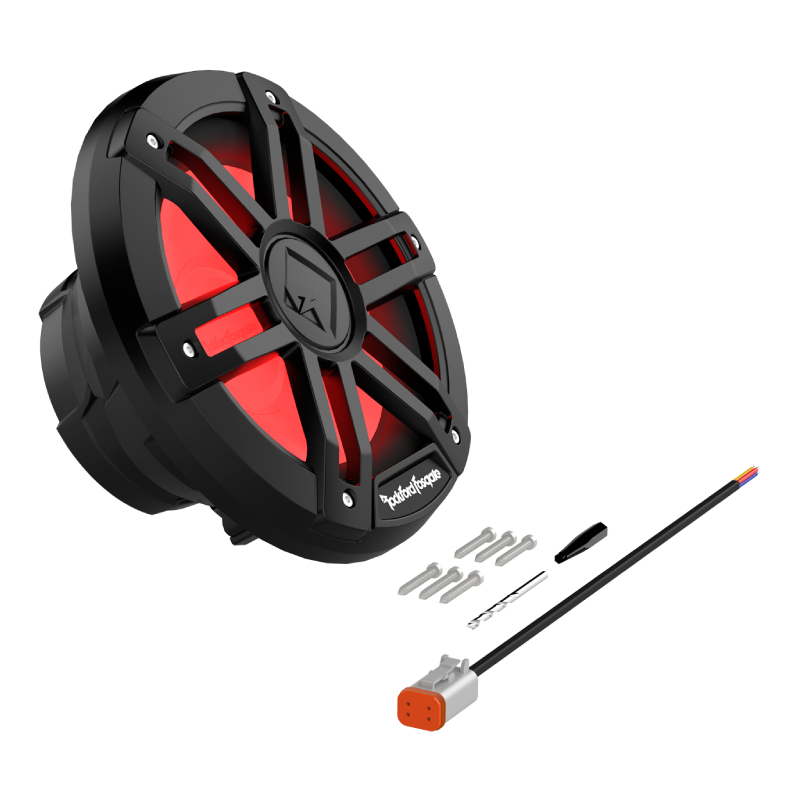

What's Inside?
- • (1) Marine Subwoofer

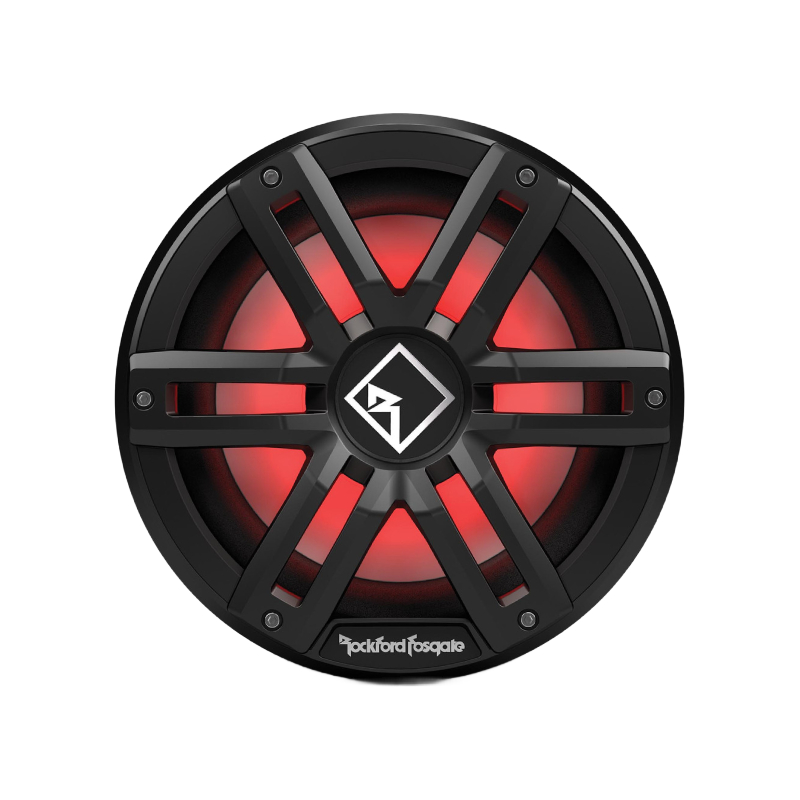

- • (1) Centrex Plastic Grille (Black)

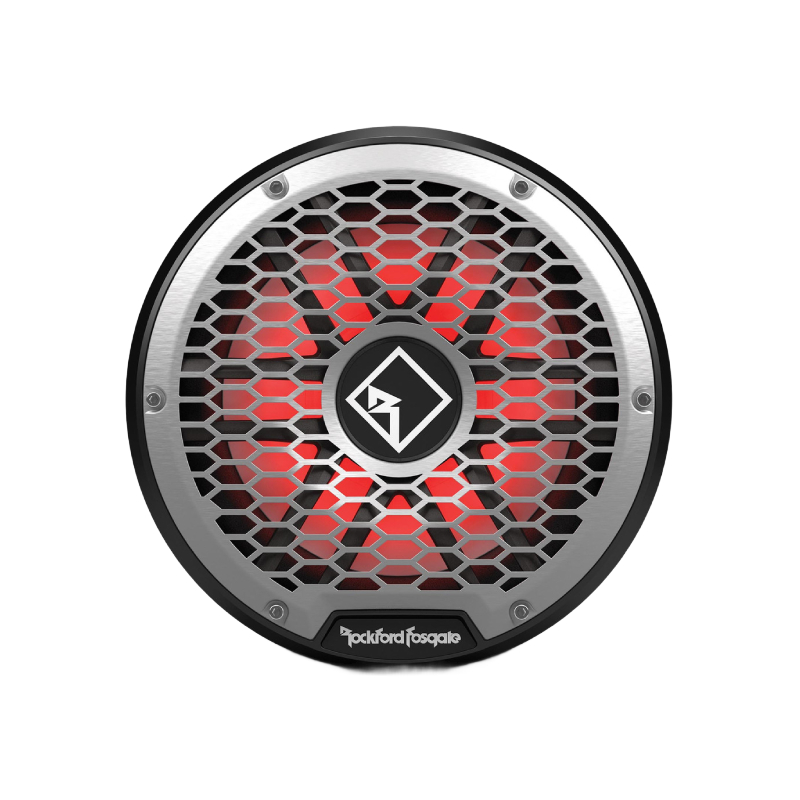

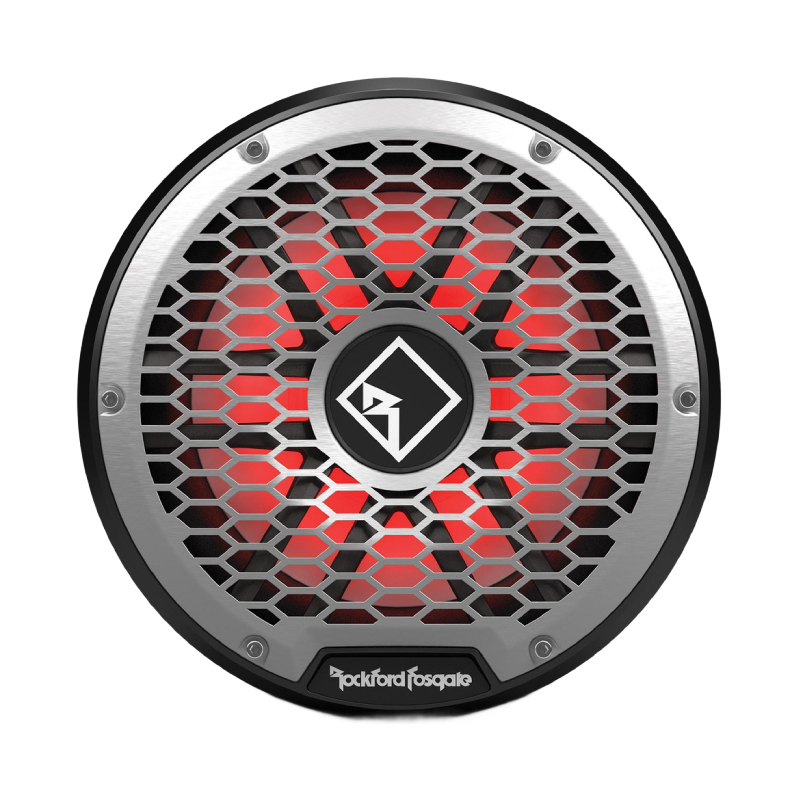

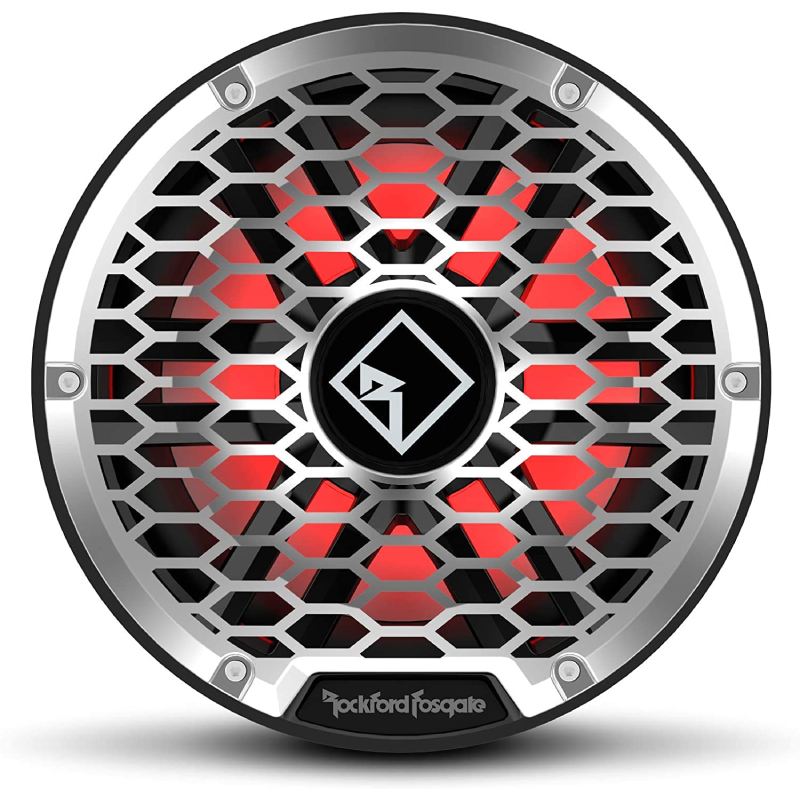

- • (1) Stainless Steel Grille
- • (1) Grille Ring (Black)
- • (1) 11" LED Power Harness with 4-pin Deutsch Connector on One End
- • (6) 2-3/8" Stainless steel Allen head screws 4mm Allen head bit
- • 4mm Allen head bit
- • 4.5mm Drill bit
- • Owner's Manual
Truly Purpose Built for Marine Applications
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications.
Compliment the Plug and Play Connectivity

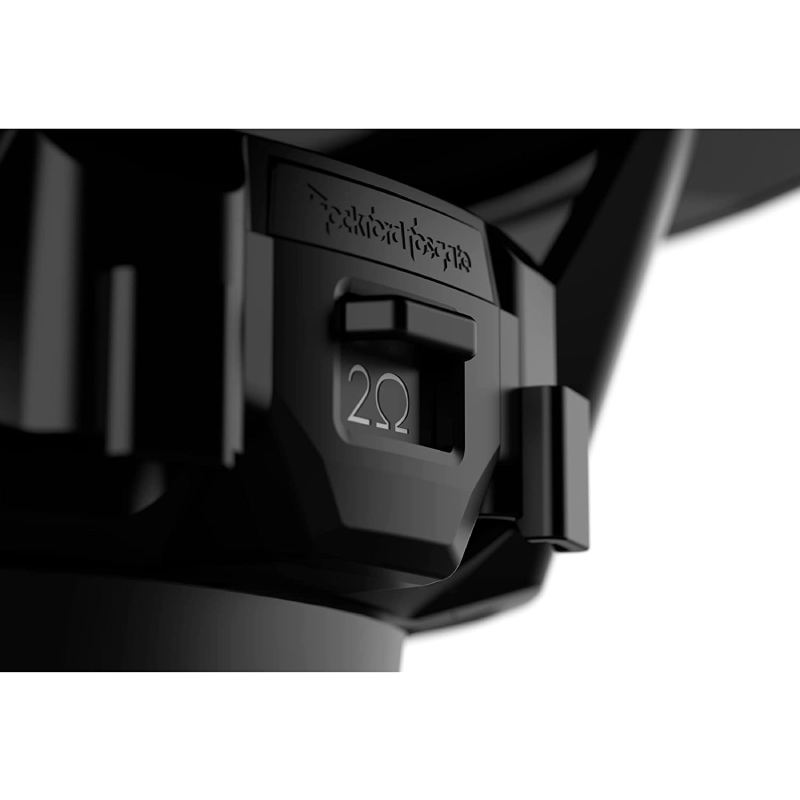

To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.
Removable Grille That Looks Great
This M2 Series M2D4-10l 10" sub features a rugged, removable grille that looks great and stands up to blistering sunlight and damaging moisture. Underneath the UV-stable shell and durable Santoprene rubber surround, you'll find a injection-molded mineral-filled polypropylene cone that's treated with UV inhibitors, plus a moisture- and tear-resistant synthetic fiber blend spider.
Frequently Asked Questions (FAQ)
- • Why Does My M2D4-10IB Have Almost No Bass After Installation?
One of the first things to inspect is the baffle installation. An infinite-baffle subwoofer needs the front and rear sound waves properly separated; gaps around the mounting area can allow cancellation and dramatically reduce bass output.
- • Why Does the M2D4-10IB Sound Better With the Boat or Vehicle Stationary?
Low-frequency performance can seem different while moving because road, engine, wind, or hull noise masks the bass. Before raising the gain, test the system while stationary and verify the crossover and amplifier settings.
- • What Happens If Air Leaks Around the Infinite-Baffle Mount?
Air leakage between the front and rear sides of the baffle can allow the sound waves to interact and cancel each other. Seal the mounting surface carefully and check for cracks, gaps, or openings around the installation cavity. Real-world infinite-baffle builders also emphasize completely sealing the separated air spaces.
- • Why Does My M2D4-10IB Have Less Output Than a Boxed Subwoofer?
An infinite-baffle design is not intended to behave like a conventional sealed or ported enclosure. Its performance depends heavily on the size and construction of the isolated cavity, so comparing it directly with a boxed subwoofer may produce very different results.
- • Why Does the Bass Become Weak When I Open a Storage Compartment?
Opening a compartment or access panel can change the acoustic separation required by the infinite-baffle installation. If that panel forms part of the baffle or separates the front and rear air spaces, opening it can allow cancellation and reduce bass.
- • Can I Run the M2D4-10IB at 2 Ohms Without Rebuilding the Wiring?
Yes, the M2D4-10IB includes Rockford Fosgate's VERSASwitch, allowing the dual 4-ohm voice coils to be configured for 2Ω or 8Ω operation. Select the configuration that matches the amplifier's supported load.
- • Why Does My Subwoofer Lose Output When I Turn the Amplifier Up?
Infinite-baffle installations have lower power handling than fully enclosed designs, according to Rockford Fosgate. If output falls off or the amplifier enters protection at high levels, reduce the gain and verify the amplifier load, signal level, and installation conditions.
- • Why Is My M2D4-10IB Moving Too Much on Deep Bass?
Excessive cone excursion can occur when very low frequencies are sent to an infinite-baffle subwoofer at high levels. Rockford specifies that an infrasonic/subsonic filter at or above the speaker's resonant frequency is required for reliable infinite-baffle operation, so check the amplifier's filter settings.
- • Why Does the M2D4-10IB Sound Distorted Even Though the Speaker Is New?
Distortion does not necessarily indicate a defective woofer. Incorrect gain, amplifier clipping, an unsuitable impedance configuration, or excessive excursion can create audible distortion. Real users frequently report similar problems after installations where gain or crossover settings were not properly configured.
- • Why Does My M2D4-10IB Play Bass but the Color Optix Lighting Does Nothing?
The RGB lighting system is separate from the subwoofer's audio operation. Check the Color Optix controller, lighting power, connectors, and app configuration independently; the woofer can continue producing sound even when the lighting circuit has a problem. The M2D4-10IB uses integrated Deutsch/Amphenol connections for the Color Optix system.
- Diameter : 10 Inch
- Sensitivity : 90.3 dB
- Impedance : 4 Ohm
- Frequency Response : 20-750 Hz
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
- Color : Black
- Mounting Depth : 4.44 Inches
Features:
- 10" marine subwoofer with dual 4-ohm voice coils
- injection-molded mineral-filled polypropylene cone with Santoprene rubber surround
- integrated Color Optix RGB LED lighting included (requires separate PMX-RGB lighting controller)
- synthetic fiber blend spider
- Element Ready™ design
- rugged, UV-stable plastic parts
- corrosion-resistant spring-loaded push terminals
- IP67 certification
- removable grille included
- power handling: 400 watts RMS/1600 watts peak
- sensitivity: 90.3 dB
- cutout diameter: 8-15/16"
- top-mount depth: 4-1/2"
- selectable impedance: 2 or 8 ohms
Specifications:
- Size: 10"
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS/1600 Watts PEAK
- Voice Coil Diameter: 2.0" (50.8 mm)
- Magnet Weight (oz): 55.02 oz. (1.56 Kg)
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz - 750 Hz
- Fs (Hz): 43
- Re (Ohms): 6.6
- Le (mH): 1.76
- Sd (cm2):363
- Qms: 5.67
- Qes: 1.07
- Qts: 0.90
- Vas: 31.5
- SPL (dB @ 1w/1m): 90.3
- Xmax (mm): 12.0
- Woofer Displacement: 0.06 cu. ft. (1.74 Liters)
- Speaker Connector: Deutsch™
- Cutout Diameter: 8.87 in. (225.3 mm)
- Mounting Depth: 4.44 in. (112.7 mm)
- Shipping Weight: 13.8 Lbs. (6.26 Kg)
- UPC: 780687358259
- Weight: 14
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
