Hear Your Beats Clearly Over the Noise of Having Fun

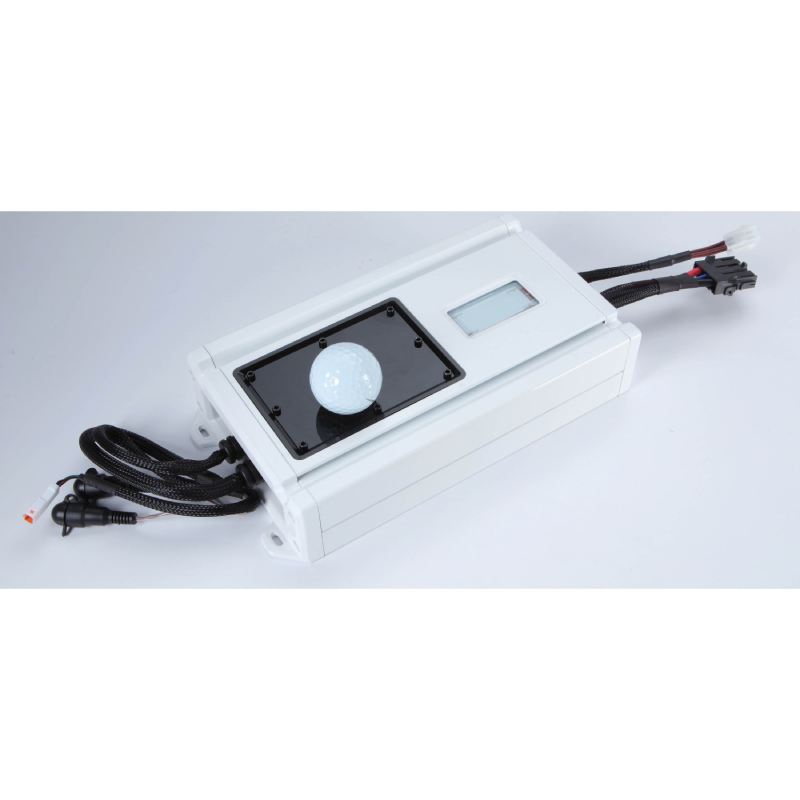

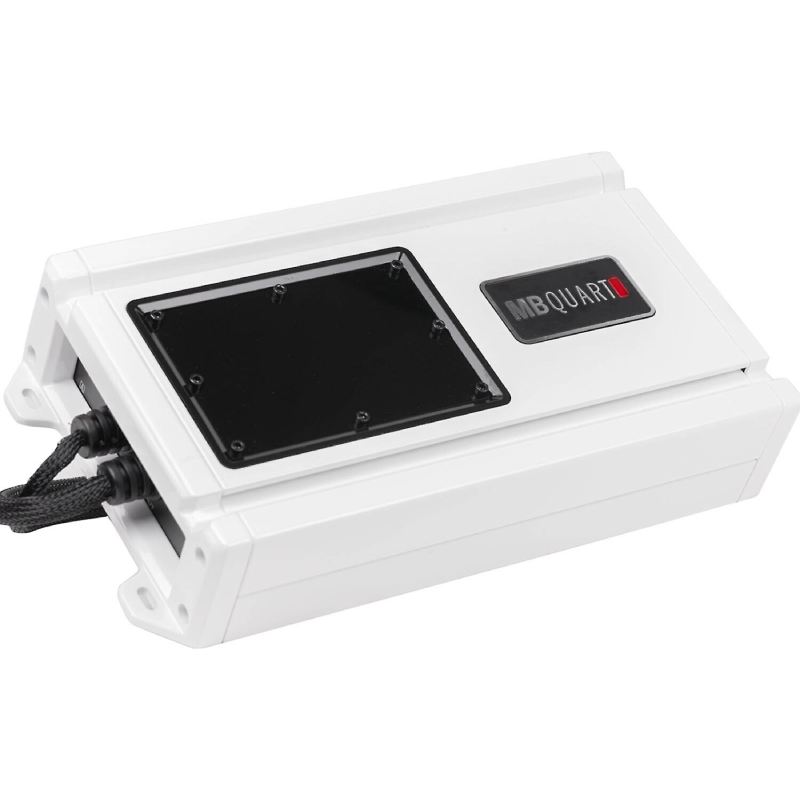

When cruising through waves and wind, you want to hear your beats clearly over the noise of having fun. MB Quart's NA3-750.1 marine subwoofer amplifier gets the job done by sending your sub up to 750 watts of bass power. And this rugged and compact amplifier utilizes a number of technologies that ensure normal operation no matter what the conditions are — like over/under voltage protection, thermal slow-down (not shut-down), and current limiting on the outputs to protect speakers.
Maximum Power : 750 Watts
Number of Channels : 1
Frequency Response : 10-250 Hz
Built In Crossovers : Yes
Amplifier Class : D
mono marine subwoofer amplifier (300 watts x 1 at 4 ohms, 500 watts x 1 at 2 ohms, 750 watts x 1 at 1 ohm)
selectable signal-sensing turn-on with speaker-level input

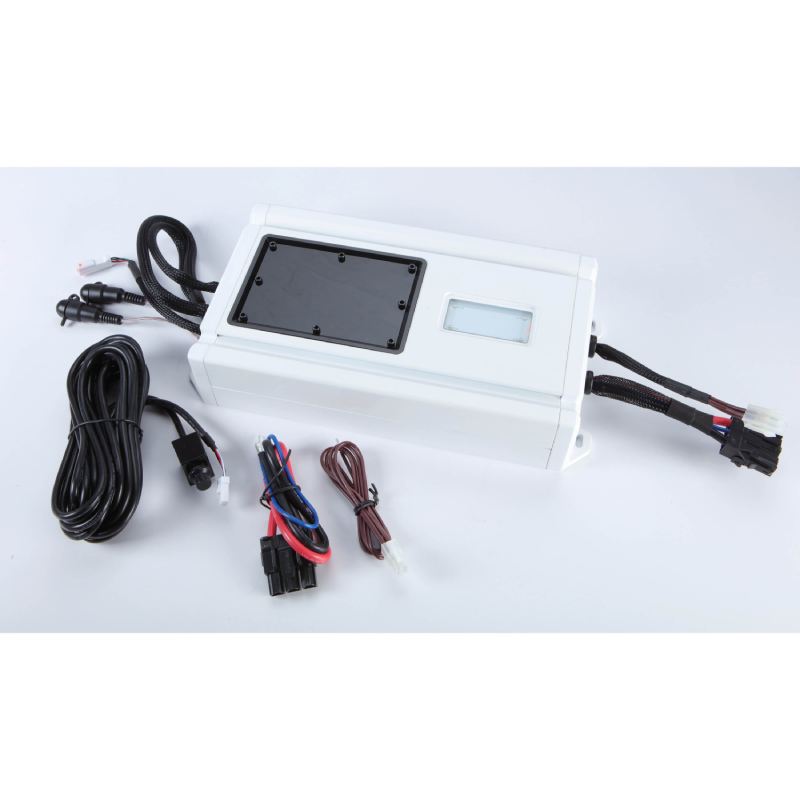

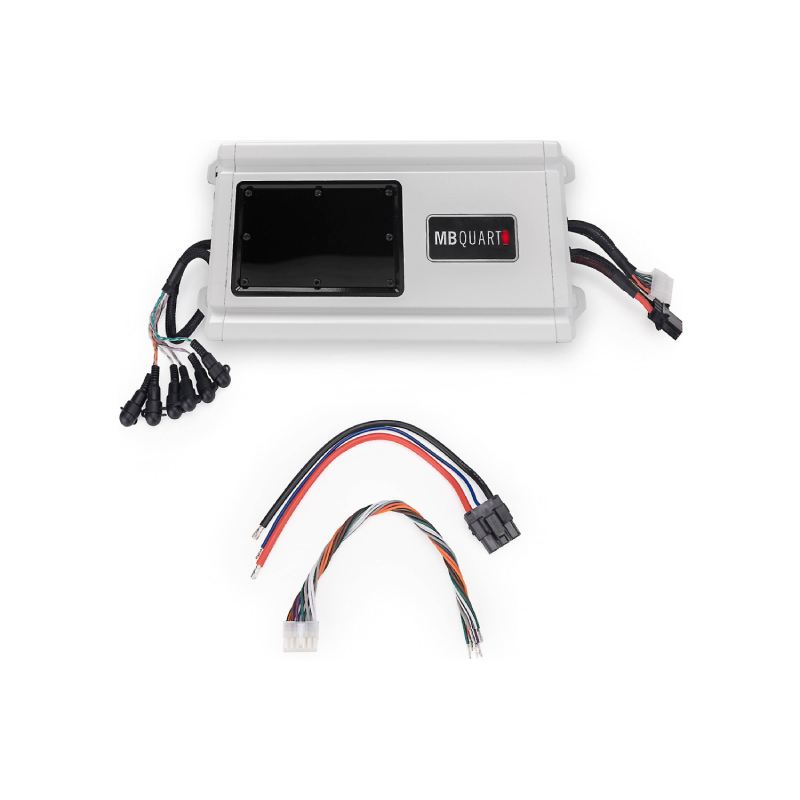

wiring, fuse, and hardware not included with amplifier
10-gauge power and ground leads and a 35-amp fuse recommended
dimensions: 12.1"W (incl wiring) x 2.27"H x 5.85"D
Marine Grade Protection / IPX Rating_Meets or exceeds IPX standards for waterproof and dustproof.
Low Noise Preamplifier Circuit - Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
RCA Inputs - Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used.
High Level Inputs - See Auto-Sense Feature.
Operation Mode - 1 Channel
Crossover Type - Variable electronic crossovers allow for complete control of the sound.
Electronic Equalizer - Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
Class / Topology - Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a compact heatsink.
RMS Power Output (Watts x Channels): 300 x 1
Frequency Response at Rated RMS Power: ---
THD at Rated RMS Power: ---
Signal to Noise Ratio: 99 dB
Input Voltage: N/A
Peak Power Output (Watts x Channels): ---
Power at 2 Ohms (Watts x Channels): 500 x 1
Bridged Power (Watts x Channels): N/A
Minimum Impedance Bridged: ---
Minimum Impedance Unbridged: 1
Amplifier Class: D
Low-Pass Crossover Frequency: 50-250 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: N/A
High-Pass Slope (dB/octave): N/A
Bass Boost: 0-12 dB
Bass Boost Frequency: 45 Hz
Fan Cooled: No
Fuse Rating: 35
Speaker Level Inputs: Yes
Preamp Outputs: No
Height (inches): 2-5/16
Width (inches): 12-1/8
Depth (inches): 5-7/8
Parts Warranty: 1 Year
