MB Quart  MBQJK-STG2AH-1

Stage 2 Audio System for 2007-2018 Jeep Wrangler (JK)

Item #94721

Product Highlights

  • Stage 2 Audio System
  • For 2007-2018 Jeep Wrangler (JK)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

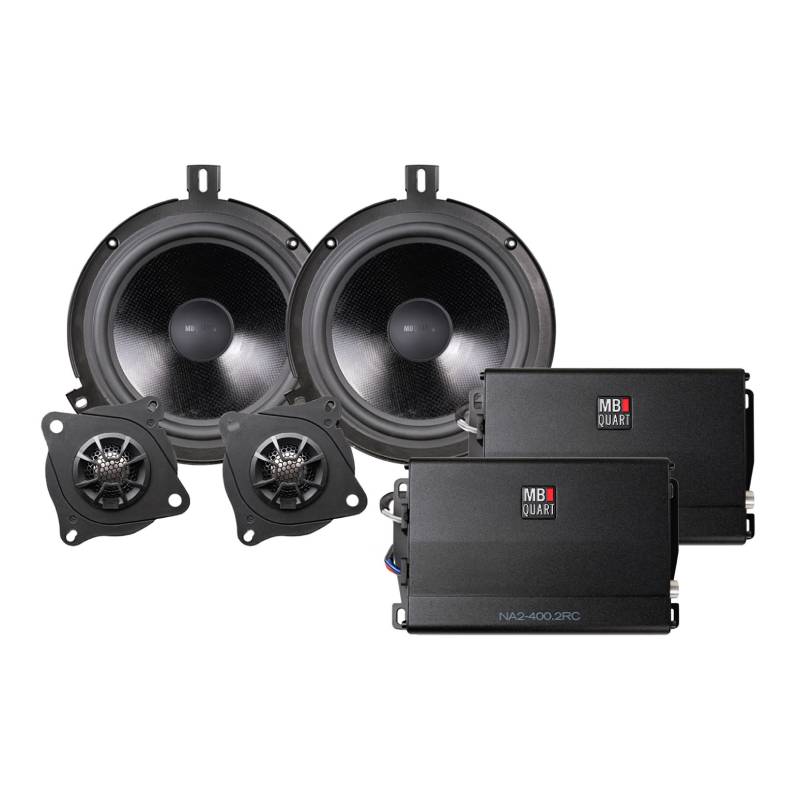

MB Quart MBQJK-STG2AH-1 Stage 2 Audio System for 2007-2018 Jeep Wrangler (JK) Tuned Two Speakers System Upgrade for Aftermarket Source Unit


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

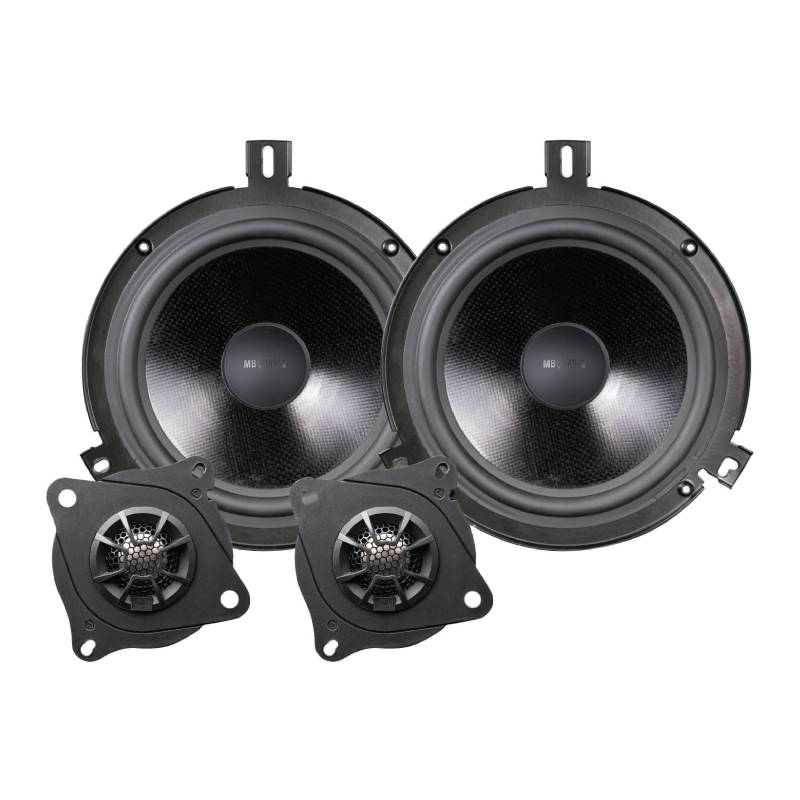

  • JS1-216JI Speakers:
    • • 2 Woofers

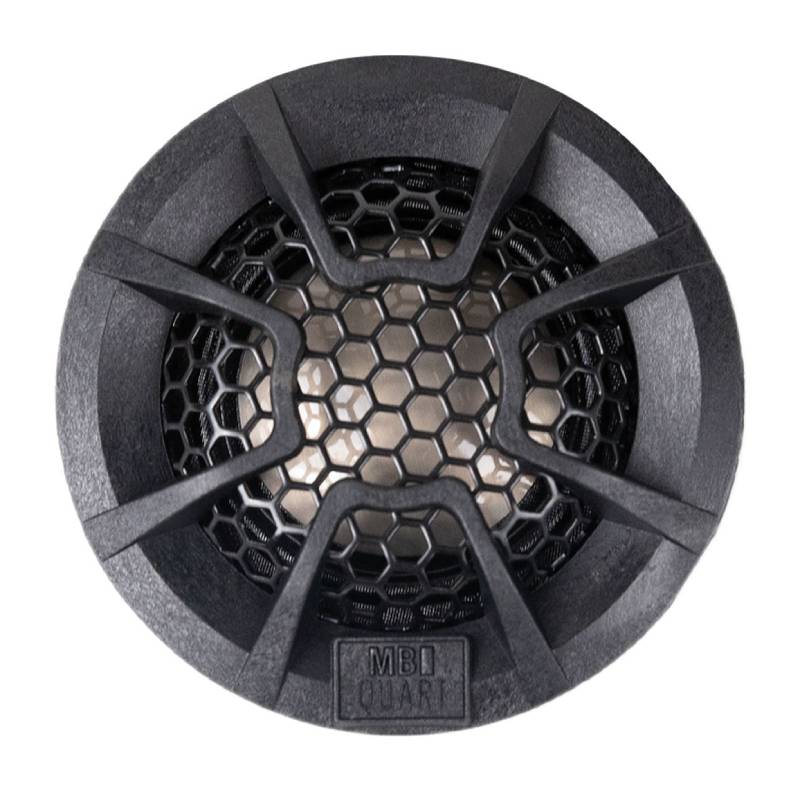

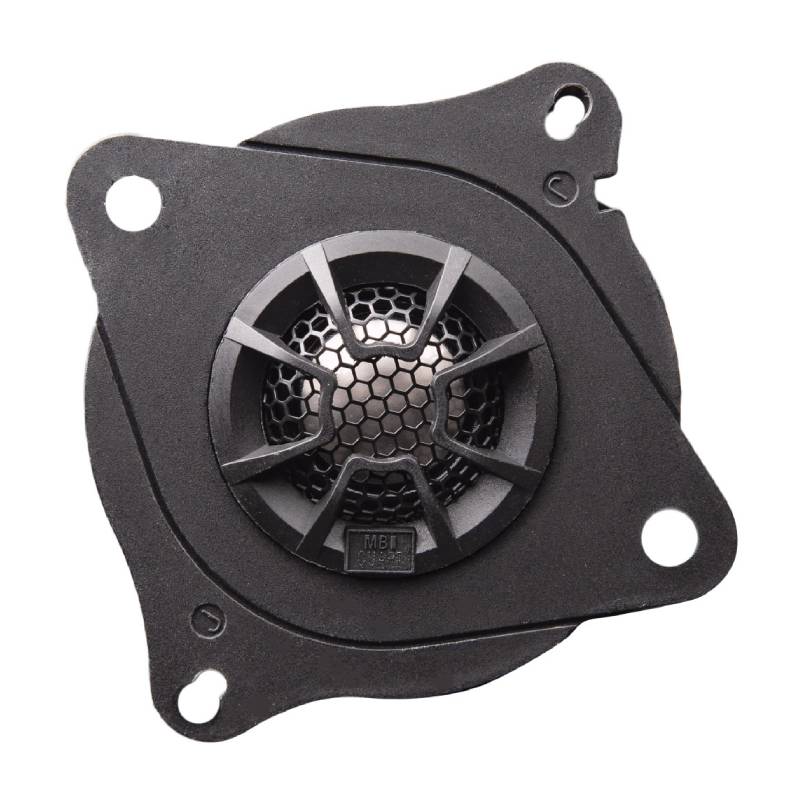

    • • 2 Tweeters (with 8" wire attached)

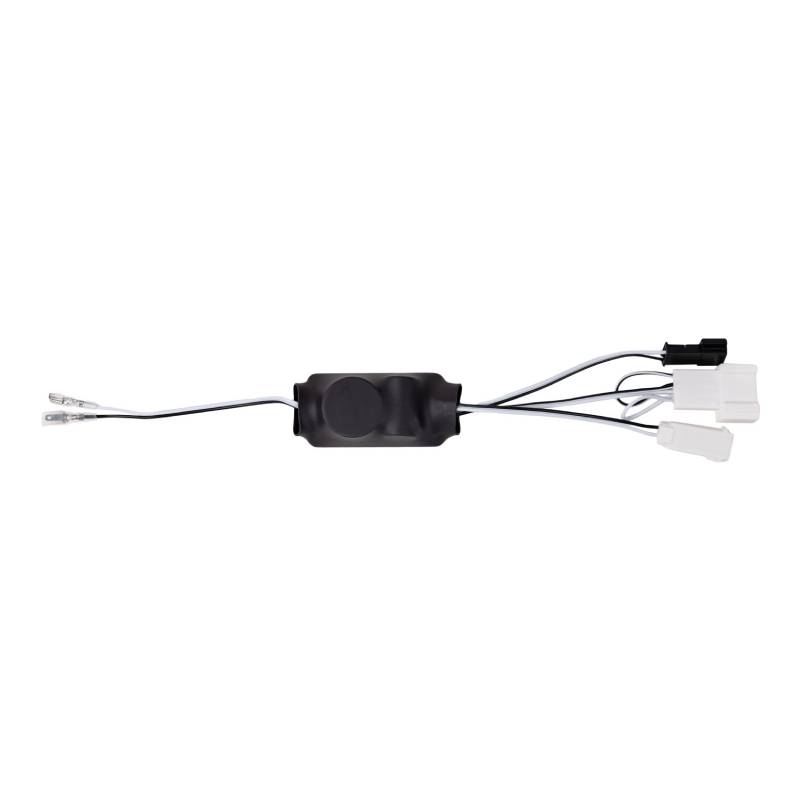

    • • 2 Tweeter crossovers (in-line)

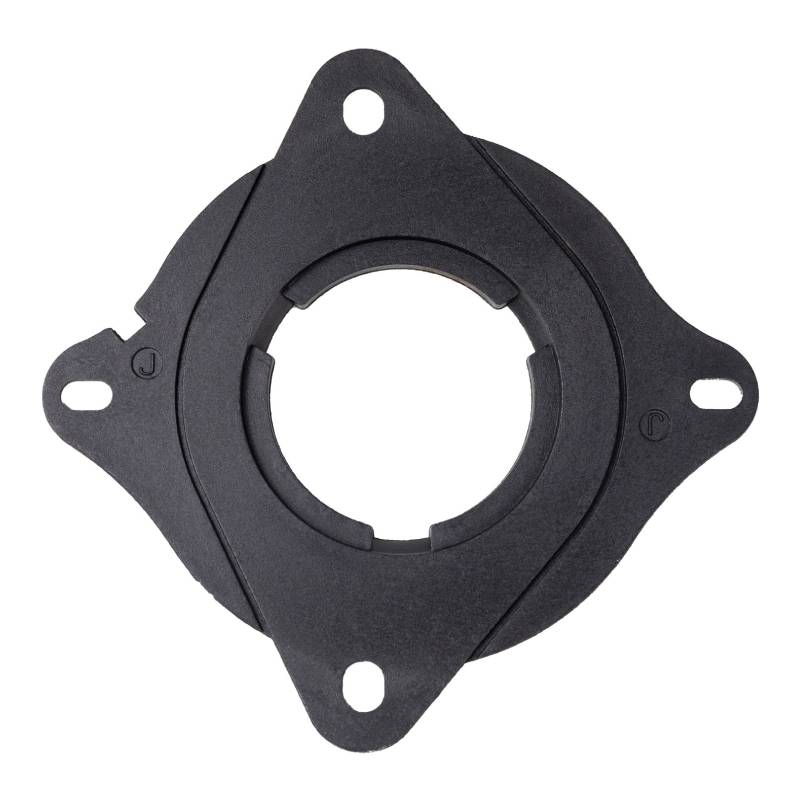

    • • 2 Tweeter mounting brackets
    • • 4 Adhesive backed foam gaskets
    • • 2 Bridge mount brackets (installed on woofers)
    • • 2 Adhesive putty strips
    • • QR code to installation instructions

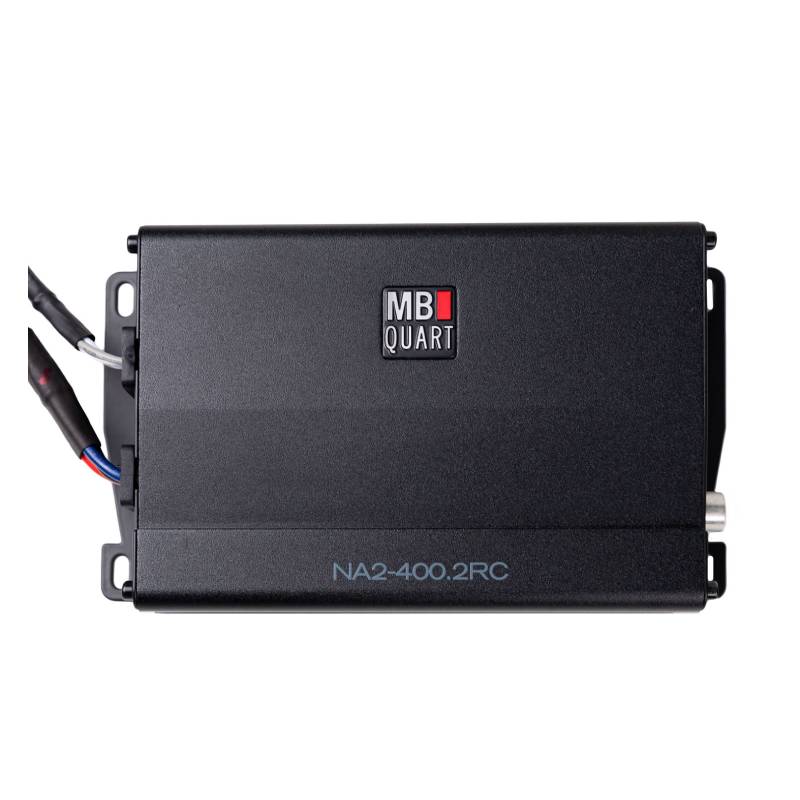

  • NA2-400.2RC Amplifier (x2):
    • • 2-Channel amplifier w/ attached 8" power/ground and speaker output harnesses (terminated with Molex plugs)
    • • 16" Power/ground harness (inline 30A ATC fuse)
    • • 16" Speaker output harness
    • • Four 18mm screws
    • • Quickstart guide

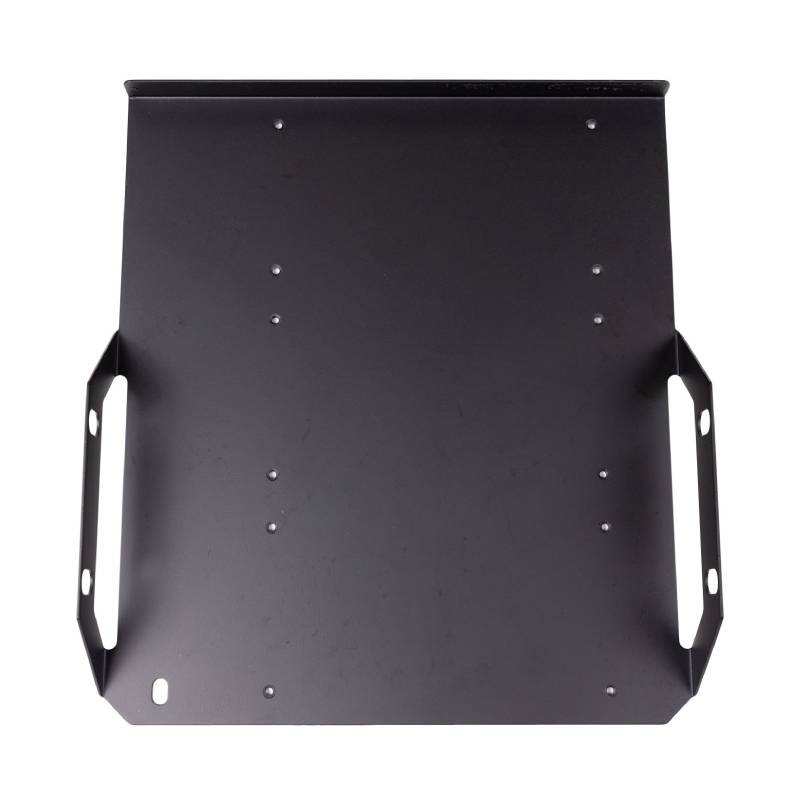

    • • Dual amp mounting plate
    • • 64" 6-channel RCA cable

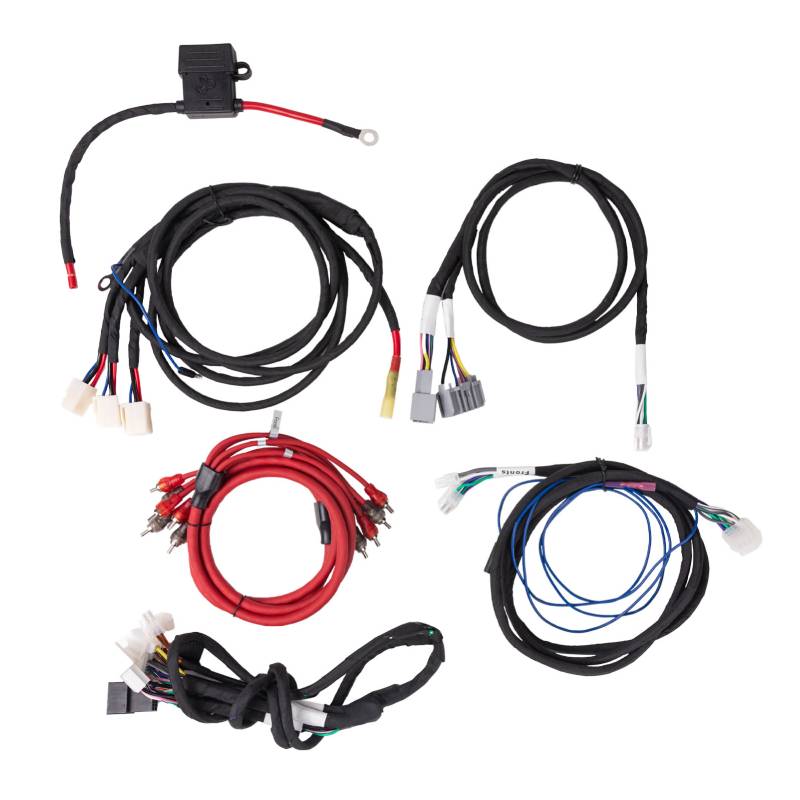

    • • Power & ground distribution harness with:
      • • 7.5' power wire
      • • 34" ground wire
      • • Power wire terminated with a crimp-connector on one end
      • • Ground wire terminated in a ring-terminal
      • • Both wires terminating into three Molex plugs on the other end
    • • 13" Section of power wire with:
      • • Inline fuse holder
      • • Installed 70A Maxi fuse
      • • Ring terminal on one end
      • • Bare-ended wire on the other end
    • • 63" Front & rear speaker wire harness with remote turn-on lead
    • • 4' OEM Amplifier interface harness
    • • 50" T-Harness
    • • Ten 8" wire-ties
    • • Twelve 1/4" machine screws
    • • 12 Flat washers
    • Owner's Manual

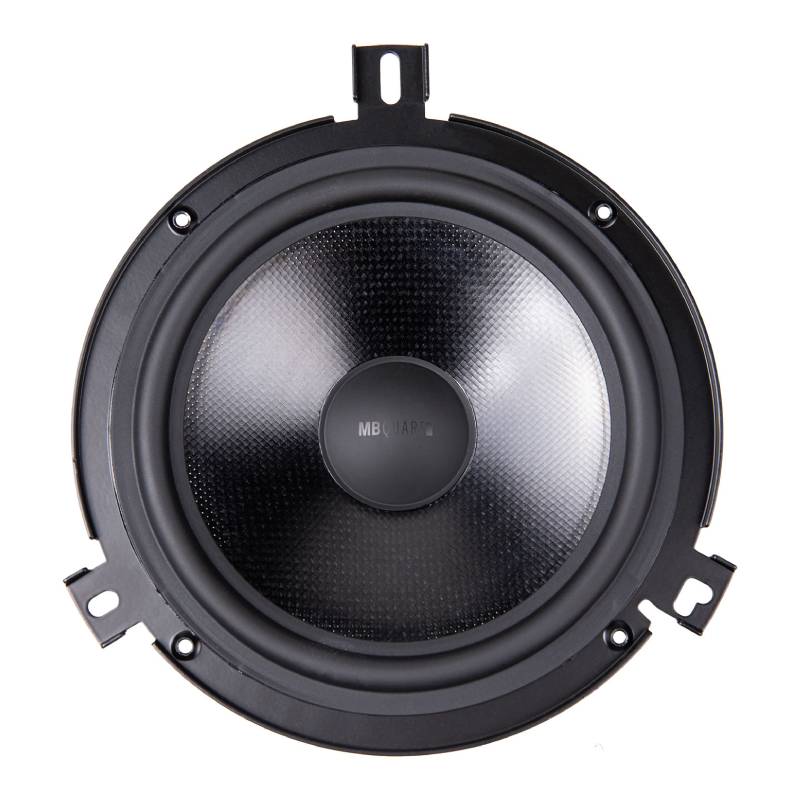

6.5" Jeep Wrangler Speakers – Powerful, Crystal-Clear Sound

Take your Jeep Wrangler (2007-2018) audio to the next level with our 6.5-inch convertible speakers! Designed for crisp highs and deep, powerful sound, these speakers feature 1-inch titanium dome tweeters and WideSphere Tweeter Technology for amazing clarity. Built with a lightweight yet durable design, they maximize airspace while delivering 150W Maxx / 75W RMS of pure audio power. Easy to install (requires an aftermarket source unit), they're perfect for anyone looking to upgrade their ride with high-quality sound. Get ready for an unforgettable listening experience on every adventure!

Upgrade Your Sound with 400W Power!

Get ready for incredible sound with our powerful 400-watt Class-D compact NA2 amplifier! Designed for maximum efficiency and built-in equalization, it delivers rich, high-quality audio. Installation is a breeze with our plug-and-play OEM-style setup—no guesswork, no hassle. Plus, you only need basic hand tools to get it up and running.

Enhance Your Ride with Powerful, Crystal-Clear Sound

Experience your music like never before with a sound system designed for clarity, power, and easy installation! Our 6.5-inch front speakers with titanium dome tweeters bring out every detail, while the midbass replacements deliver deep, punchy bass. With two 400-watt amplifiers and a prewired setup for effortless subwoofer integration, you’ll enjoy rich, high-fidelity audio on every drive. Plus, the plug-and-play design makes installation simple—no hassle, just incredible sound every time you hit the road!


SPECIFICATIONS



FEATURES


Features:

  • Compatible Vehicle Fitment: Jeep® Wrangler (JK) 2007-2018 (All Models and Variants)
  • Source Unit Features: Requires aftermarket source unit

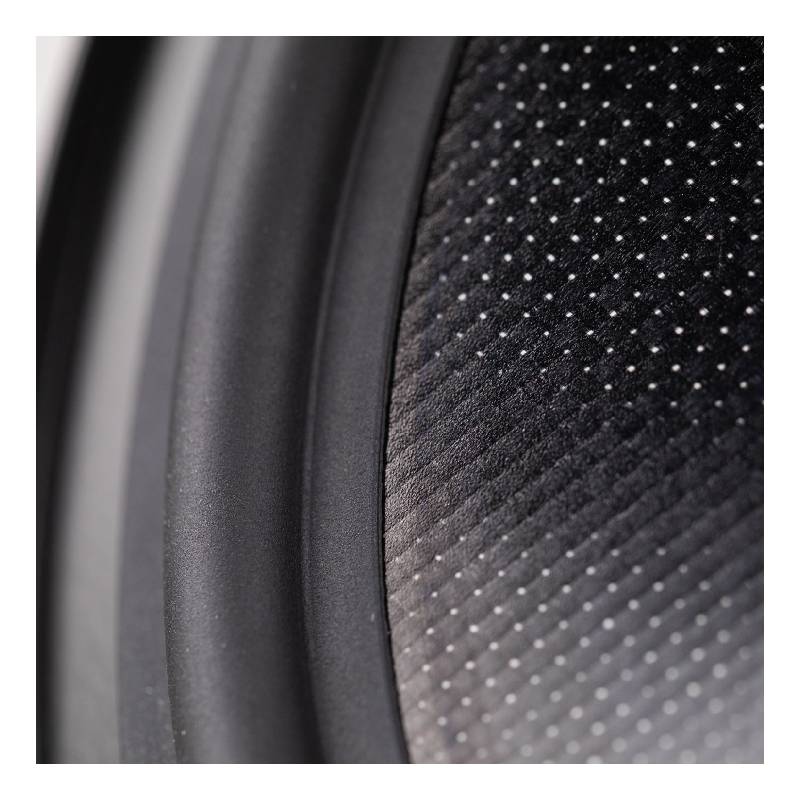

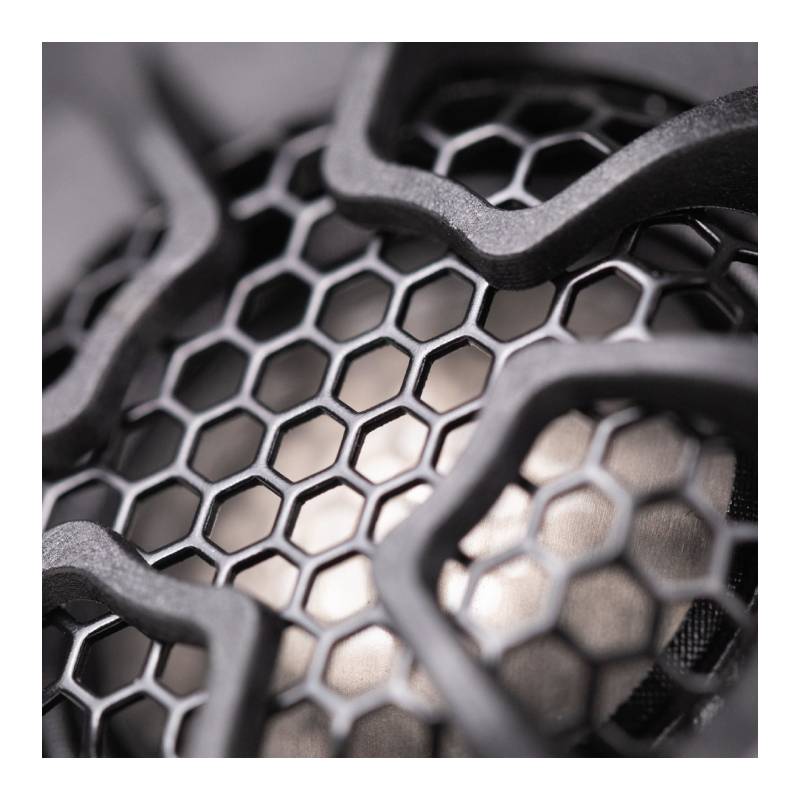

  • Speaker Features: Two 6.5-inch convertible speakers with 1-inch titanium dome tweeters. Shallow, lightweight frame design for maximum airspace. Lightweight yet durable fiber cone. Y35 iron ferrite magnet. WideSphere Tweeter Technology for exceptional high-frequency reproduction. 12dB external crossover network. Crossover: 12dB midrange / 6dB tweeter. Frequency Response: 50Hz to 25kHz. Sensitivity: 87.7dB. 150W Maxx / 75W RMS.
  • Amplifier Features: 400-watt high-efficiency Class-D compact NA2 amplifiers with on-board equalization.
  • Mount / Harness: Simple “no mistakes” plug-and-play OEM-style installation.
  • Time and Tools: Requires basic hand tools.



Specifications:

  • Dimensions: 19.25 × 14.75 × 14.5 in
  • Type: Vehicle Kit
  • Brand: MB Quart
  • Series: Jeep Wrangler JK Tuned
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Compatible Vehicles: Jeep® Wrangler (JK) 2007-2018
  • Total System Power: 800 watts



Kit Inclusions:

  • Front Speakers: Two 6.5-inch convertible speakers with 1-inch titanium dome tweeters, featuring a shallow, lightweight frame design for maximum airspace. Built with a durable fiber cone, Y35 iron ferrite magnet, and WideSphere Tweeter Technology for exceptional high-frequency reproduction. Includes a 12dB external crossover network.
  • Front Speakers Mounting: Tweeter mount includes mounting plates for front on-dash or in-dash factory tweeter locations. Midbass speakers serve as a drop-in direct replacement for factory 6.5-inch speakers.
  • Rear Speakers: Requires an additional set of JS1-216JK or an MBQJK-28CRGB / MBQJK-28C Soundbar (sold separately).
  • Subwoofer: Prewired for the STAGE 2 audio system with additional space on the amplifier bracket for easy installation of the Tail Gate Mounted Subwoofer System MBQJL-302 (sold separately).
  • Full Range Amplifier: Two 400-watt full-range, two-channel Class D amplifiers designed for high power output in a compact chassis with low current draw.
  • Full Range Amplifier Mounting: Includes a powder-coated mounting plate for secure installation.
  • Harnessing: Simple, "no mistakes" plug-and-play OEM-style installation for easy setup.
  • UPC: 806576235699
  • Weight: 24.25
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
