Alpine BRV-S65C BASSREV Series 6.5" 150W Peak Power Handling at 4-Ohms, 2-Way Car Component System - Optimized for Alpine OPTIM8® with OPTIM™Sync Technology
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

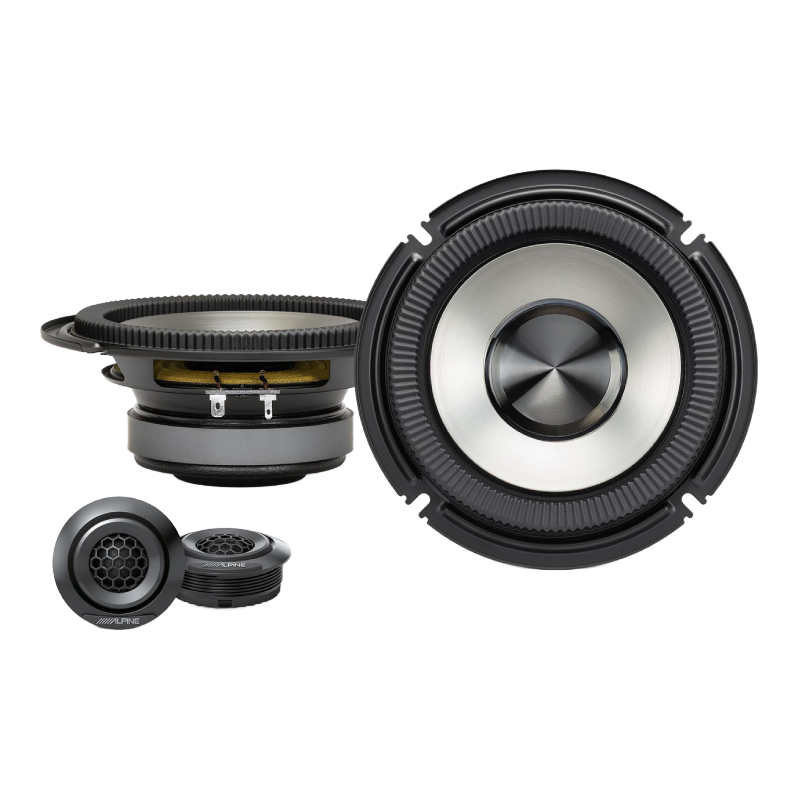

What's Inside?

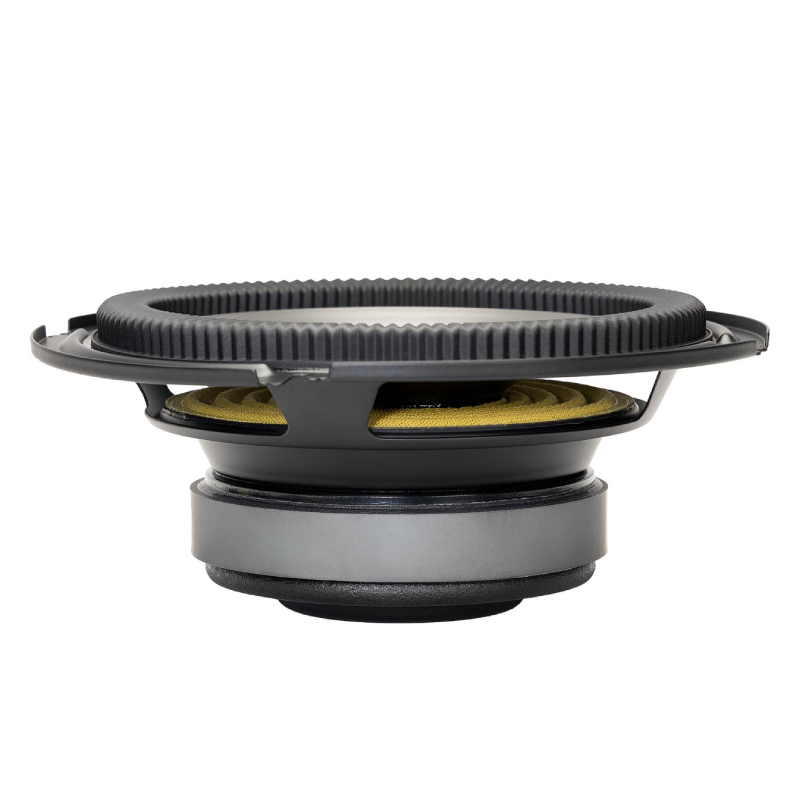

- • (2) Woofers

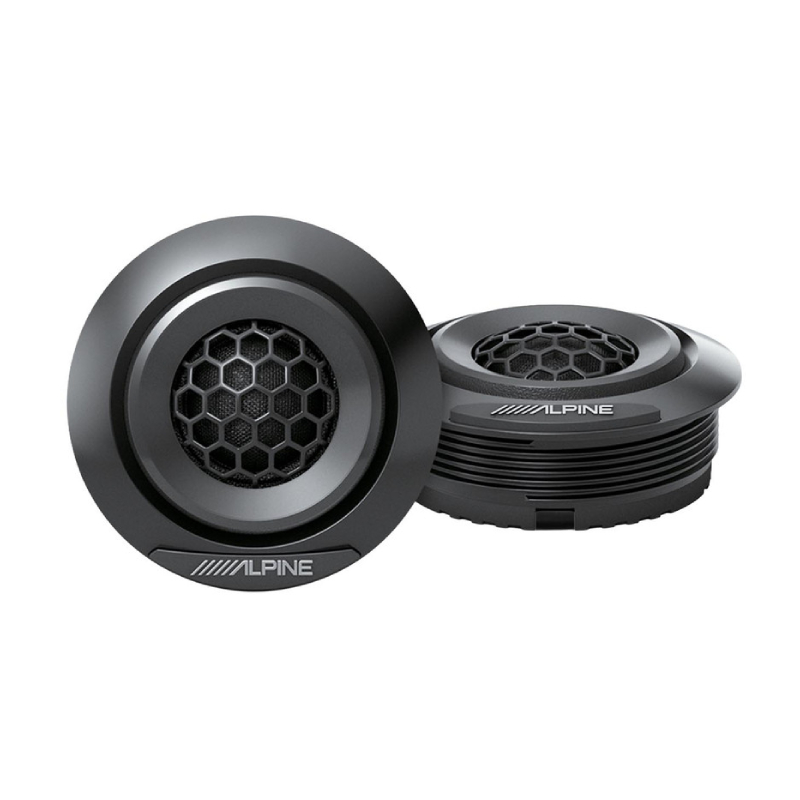

- • (2) Tweeters (each has an attached 30" length of wire terminated with quick slides)
- • (2) Tweeter grilles (installed)
- • (2) Flush mount housings (with tweeters installed)
- • (2) Flush mount retention rings
- • (2) Stealth tweeter brackets
- • (2) multi-purpose adapter rings
- • (8) 1-1/8" Screws
- • (8) M4x7mm Machine screws with lock washers
- • (8) M4 nuts
- • (8) Speed clips
- • (6) Flat washers
- • (2) Adhesive backed foam gaskets
- • Warranty information
- • Important Notice
- • On-line product registration information
- • Specifications on box
- • Owner's Manual
Why Choose Alpine BRV-S65C Component Speakers
Is Alpine BRV-S65C Worth It?
The Alpine BassRev™ BRV-S65C is a clean and powerful 2-way component system built for balanced sound and strong clarity. If you’re asking “is Alpine BRV-S65C worth it”, it’s a solid upgrade for factory systems that need better detail and controlled bass. This also reflects an Alpine BassRev BRV-S65C specs and review, featuring a 6.5" woofer for warm low-end and a 3/4" cloth dome tweeter for crisp highs, giving you clear vocals and a wide soundstage.
HEDGE™ Bass Performance
With Alpine’s HEDGE™ surround, the BassRev BRV-S65C delivers deeper bass and better cone control than standard 6.5" speakers. This is important when planning your installation guide Alpine BRV-S65C, since proper mounting helps maximize low-end response. Many users also ask does Alpine BassRev need DSP—it performs well without it, but tuning improves results significantly.

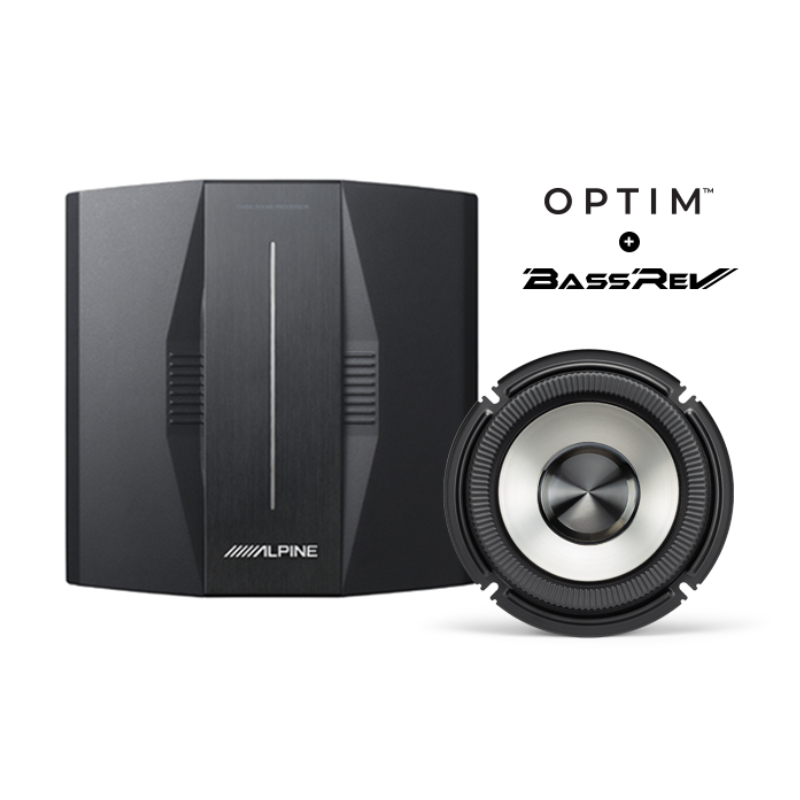

OPTIM Sync™ DSP Integration for Alpine BRV-S65C & PXE-C80-88
The BRV-S65C becomes even better when paired with Alpine OPTIM8 or PXE-C80-88 using OPTIM Sync™. This DSP integration applies optimized EQ tuning for BassRev speakers, delivering deeper, cleaner bass and a smoother overall balance. For best performance with Alpine BRV-S65C, maintain clean gain structure, set proper crossovers, and avoid excessive bass boost to preserve clarity and output control.
Popular Component Speaker Comparisons
| Ultimate Alpine 6.5" Audio Performance Battle |
Alpine R2-S65C
Next Gen R-Series 6.5" 300W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System
BEST OF 2026
- • 6.5" Car Speaker
- • 300W Peak Power/100W RMS
- • 2-Way
- • Cone Woofers
- • Magnesium Tweeters
- • Glass-Fiber
- • Premium Crossovers Included
|
Alpine S2-S65C
Next Gen S-Series 6.5" 240W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System
TOP SELLER
- • 6.5" Car Speaker
- • 240W Peak Power/80W RMS
- • 2-Way
- • Cone Woofers
- • Cloth Tweeters
- • Polypropylene/Glass Fiber/Mica
- • High-Res Audio
|
Alpine BRV-S65C
BASSREV Series 6.5" 150W Peak Power Handling at 4-Ohms, 2-Way Car Component Speaker System
VALUE PICK
- • 6.5" Car Speaker
- • 150W Peak Power/50W RMS
- • 2-Way
- • Cone Woofers
- • Cloth Tweeters
- • Polypropylene/Mica
- • Optimized for Alpine OPTIM8
|
Alpine R2-S652
Next-Gen R-Series 6.5" 300W Peak Power Handling 4 Ohms, 2-Way Car Component Speaker System
HIGH OUTPUT
- • 6.5" Car Speaker
- • 300W Peak Power/100W RMS
- • 2-Way
- • Cone Woofers
- • Magnesium Tweeters
- • Glass-Fiber
- • Premium Crossovers Included
|
Alpine BRV-S65C Amp Settings & OPTIM8 DSP Tuning Chart
Alpine BRV-S65C Tuning Guide
Best Amp Settings + OPTIM8 / PXE-C80-88 DSP Tuning for Clean Bass, Clarity & Controlled Output
Best Amp Settings for BRV-S65C
Gain: Set slowly to clean output (no clipping or distortion at high volume)
HPF: 80Hz – 100Hz for midbass protection and tighter response
Bass Boost: OFF (use DSP tuning instead of amplifier boost)
EQ: Flat baseline recommended before tuning adjustments
Balance/Fade: Centered for proper imaging and front-stage focus
OPTIM8 / PXE-C80-88 DSP Tuning for BRV-S65C (OPTIM Sync™ Ready)
Bass EQ: Light controlled enhancement only (avoid heavy boost)
HPF (Front Stage): 80Hz – 90Hz for clean midbass control
Tweeter Protection HPF: 3.2kHz – 3.8kHz (24dB slope recommended)
Subwoofer LPF (if used): 70Hz – 80Hz for smooth transition
Time Alignment: Align driver position for centered vocals and imaging
Gain Staging: Head unit clean → DSP gain → amplifier fine adjustment
Crossover Reference Settings
Midbass HPF: 80Hz @ 24dB/oct
Tweeter HPF: 3.5kHz @ 24dB/oct
Subwoofer LPF: 75Hz @ 24dB/oct
Rear Fill (optional): 100Hz – 120Hz @ 12–24dB/oct
Proper tuning unlocks the full performance of the Alpine BRV-S65C system. Using OPTIM8 or PXE-C80-88 DSP ensures cleaner bass, smoother highs, and better overall balance without distortion.
Frequently Asked Questions (FAQ)
- • Why do my Alpine BRV-S65C speakers sound weak without an amplifier?
Many users report low volume and weak midbass when running the BRV-S65C directly from a factory head unit. These speakers perform much better with a clean aftermarket amplifier supplying proper RMS power.
- • Why are my Alpine BRV-S65C tweeters too bright or harsh?
This is commonly caused by tweeter placement, crossover settings, or excessive treble EQ. Adjusting the tweeter angle and reducing treble levels usually improves sound quality.
- • Why do my Alpine BRV-S65C speakers distort at high volume?
Distortion is typically caused by amplifier clipping, incorrect gain settings, or overpowering the speakers with bass-heavy EQ settings. Proper amplifier tuning helps eliminate distortion.
- • Why is there no bass after installing the Alpine BRV-S65C?
Weak bass is usually caused by poor door sealing, incorrect speaker polarity, or missing sound deadening material. Proper installation significantly improves midbass response.
- • Why do my Alpine BRV-S65C speakers rattle my door panels?
The increased output from aftermarket speakers can cause loose door clips and panels to vibrate. Adding sound deadening and securing loose panels helps reduce rattling noises.
- • Why does one Alpine BRV-S65C speaker sound louder than the other?
This issue is commonly caused by incorrect crossover wiring, reversed speaker polarity, or imbalance settings on the head unit or amplifier.
- • Why do my speakers sound clear at low volume but harsh when turned up?
This usually indicates insufficient amplifier power or clipping from the factory stereo. Clean amplifier power is needed for better high-volume performance.
- • Do I need sound deadening for the Alpine BRV-S65C?
Yes, sound deadening is highly recommended. It helps reduce vibration, improve midbass response, and create cleaner overall sound quality.
- • Why don’t the Alpine BRV-S65C speakers fit my vehicle properly?
Fitment problems are often caused by factory mounting depth and speaker bracket differences. Spacer rings or vehicle-specific adapters may be required.
- • Are the Alpine BRV-S65C speakers worth upgrading from factory speakers?
Yes. When properly installed and powered, the BRV-S65C delivers significantly better clarity, louder output, and improved sound quality compared to factory speakers.
- Diameter : 6.5 Inch
- Sensitivity : 84 dB
- Frequency Response : 38-20000 Hz
- Peak Power Handling : 150 Watts
- Woofer Composition : Polypropylene
- Tweeter Composition : Teteron
- Shallow Mount : No Inch
- RMS Power Handling : 50 Watts
Features:
- High Excursion Design Gathered Edge (H.E.D.G.E.) Surround: Increases output and extends low-frequency response for deeper, more dynamic bass.
- Unique Lapel Cone Shape: Enables higher cone excursion, enhancing overall performance and sound clarity.
- OPTIM™ Sync Technology: Features pre-EQ selection specific to each driver (requires PXE-C80-88 with version 3.0 or newer) for optimized tonal balance and accuracy.
- Polypropylene and Mica Cone Material: Delivers enhanced rigidity for improved durability and precise audio reproduction.
- Ferrite Magnet: Provides consistent magnetic strength for reliable, high-quality sound performance.
- Gun Metal Chemical Topcoat: Adds a premium, durable finish with a sleek and modern aesthetic.
Specifications:
- Speaker Size: 6 1/2
- Driver Design: 2-way
- Woofer Design: Cone
- Woofer Material: Polypropylene/Mica
- Woofer Surround: Rubber
- Tweeter Design: 0.8" Dome
- Tweeter Material: Cloth
- Impedance (Ohms): 4
- Weather-resistant: No
- Grilles Included: No
- Sensitivity (1W at 1 meter): 84
- Frequency Response: 60 - 20k Hz
- Maximum RMS Wattage: 50
- Peak Power Handling (Watts): 150
- Top-mount Depth (Inches): 2 3/8
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 5 1/4
- Mounting Height (Inches): 0.45
- Frame Width: 6.67
- Frame Length: 6.67
- UPC: 50793276002346
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
