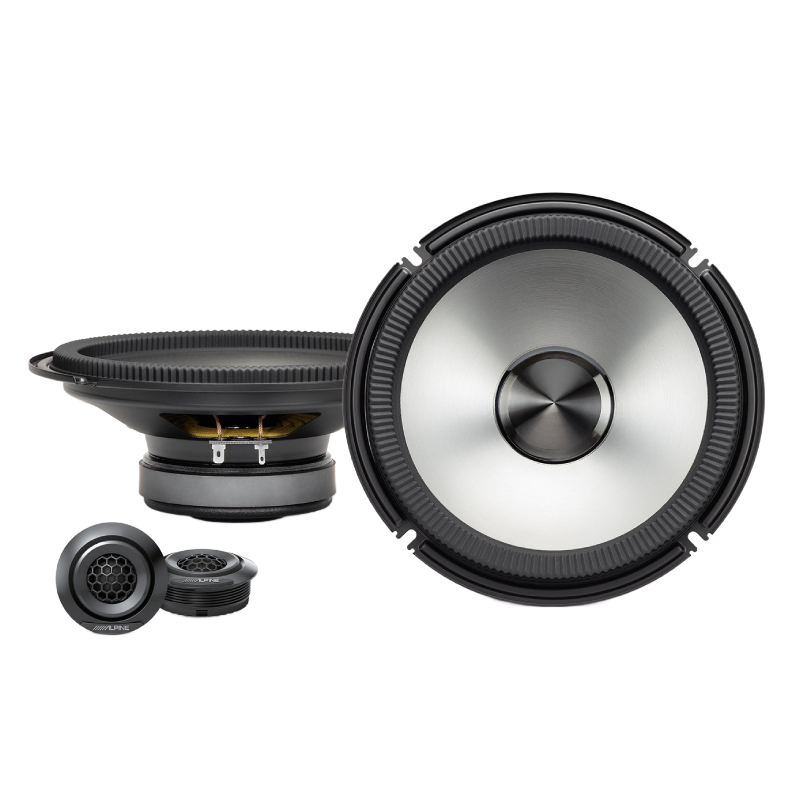

Alpine BRV-S80C BASSREV Series 8" 50W RMS (150W Peak Power Handling) at 4-Ohms, 2-Way Car Component System - Optimized for Alpine OPTIM8® with OPTIM™Sync Technology
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) Woofers

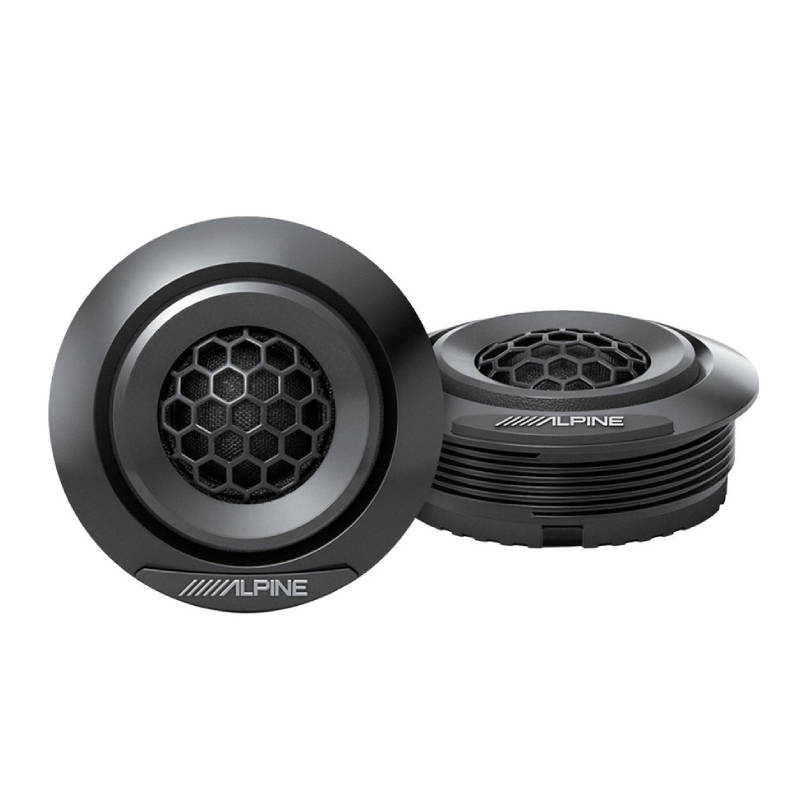

- • (2) Tweeters (each has an attached 30" length of wire terminated with quick slides)
- • (2) Tweeter grilles (installed)
- • (2) Flush mount housings (with tweeters installed)
- • (2) Flush mount retention rings
- • (2) Stealth tweeter brackets
- • (8) 1-1/8" Screws
- • (8) Speed clips
- • Warranty information
- • Important Notice
- • On-line product registration information
- • Specifications on box
- • Owner's Manual
Why Choose Alpine BRV-S80C Component System?
Bigger Bass Without the Subwoofer

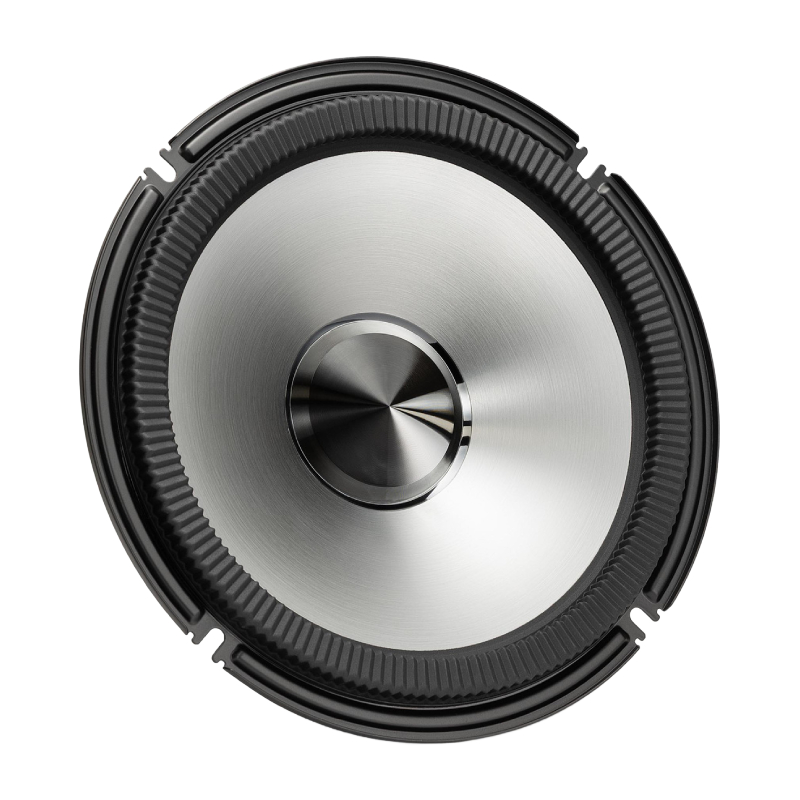

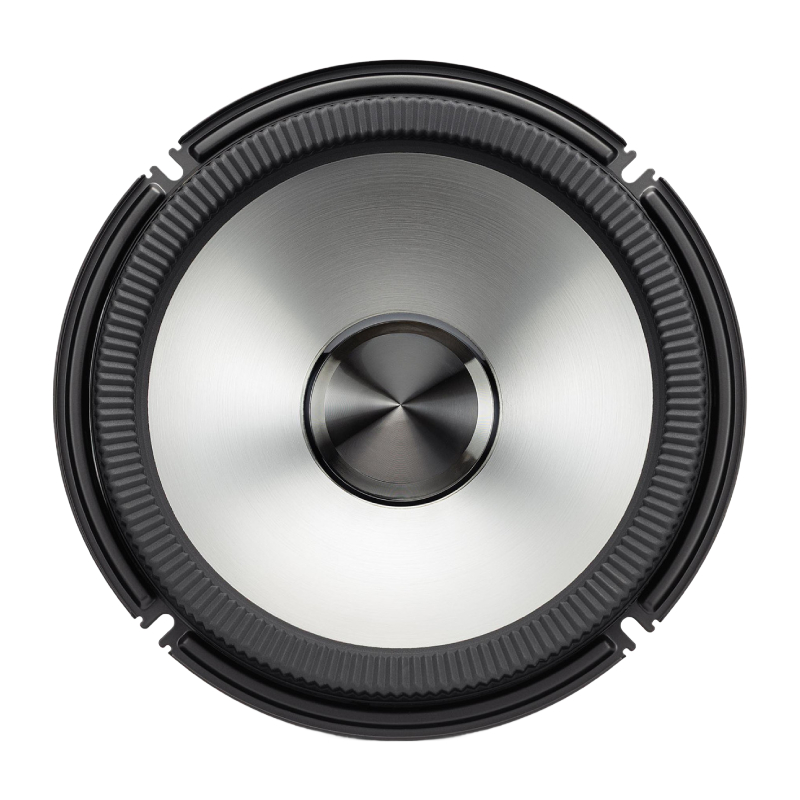

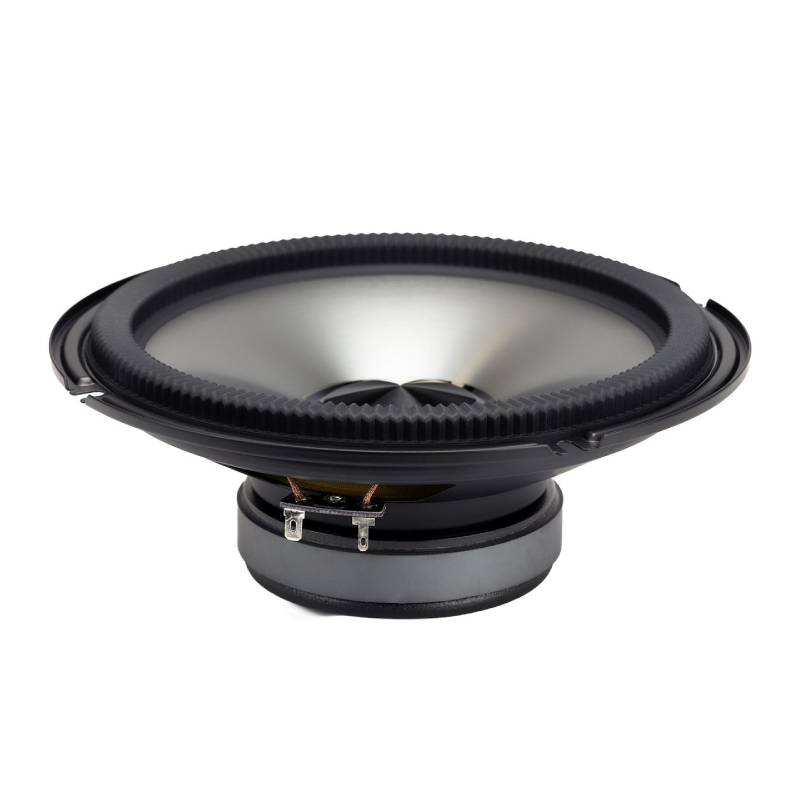

Want bigger, deeper bass without immediately adding a subwoofer? The Alpine BRV-S80C 8-inch BassRev™ component speakers deliver powerful low-end impact from an 8-inch woofer, paired with a 3/4-inch cloth-dome tweeter for clear, detailed highs. HEDGE™ high-excursion surround and the unique lapel cone help produce deeper bass and stronger midbass than a traditional component speaker.
Tune Your System to Hit Harder
The BRV-S80C is designed for active DSP tuning and works with Alpine OPTIM8® and OPTIM™ Sync for precise crossover, EQ, and time-alignment control. With BassRev™ tuning, these speakers can deliver a rated response down to 35Hz, giving your system a bigger, fuller sound.
Serious 8-Inch Performance
With 50W RMS / 150W peak power handling and a rugged polypropylene and mica cone, the BRV-S80C is a great choice for car audio enthusiasts who want strong bass, clean vocals, and a more immersive aftermarket sound system.
Alpine 8-Inch Component Speaker Comparison Chart | BRV-S80C vs S2-S80C
| Alpine 8" Component Speaker Performance Comparison |
Alpine BRV-S80C
BassRev™ Series 8" Component Speaker System – Deep Bass Performance with HEDGE™ Surround and OPTIM™ Sync
BASS FOCUSED
- • 8" 2-Way Component Speaker System
- • 150W Peak Power / 50W RMS
- • HEDGE™ high-excursion surround
- • Lapel Cone for increased bass output
- • OPTIM™ Sync compatible with Alpine OPTIM8®
- • Designed for active DSP tuning
- • Deep low-frequency performance
|
Alpine S2-S80C
Next-Generation S-Series 8" Component Speaker System – High Power Handling with Hi-Res Audio Performance
BEST VALUE
- • 8" 2-Way Component Speaker System
- • 260W Peak Power / 85W RMS
- • 1" adjustable tweeters
- • H.A.M.R. high-excursion surround
- • Hi-Res Audio Certified up to 40kHz
- • In-line crossovers included
- • Polypropylene + Glass Fiber + Mica cone
|
Alpine BRV-S80C Highlights
SUBWOOFER-SIZED BASS
Larger-Than-Life Bass
The 8-inch woofer delivers deeper low-end performance with subwoofer-sized impact from a component speaker system.
HEDGE™ SURROUND
High-Excursion HEDGE™ Surround
HEDGE™ surround technology allows greater cone excursion for increased low-end output and deeper bass extension while maintaining control.
LAPEL CONE
High-Excursion Lapel Cone
The specialized lapel cone shape increases cone travel for stronger low-end output while keeping the midrange clean and focused.
ACTIVE TUNING
Designed for Active DSP Tuning
The BRV-S80C is designed for active operation, allowing each driver to receive its own amplifier channel and precise DSP crossover control.
OPTIM™ SYNC

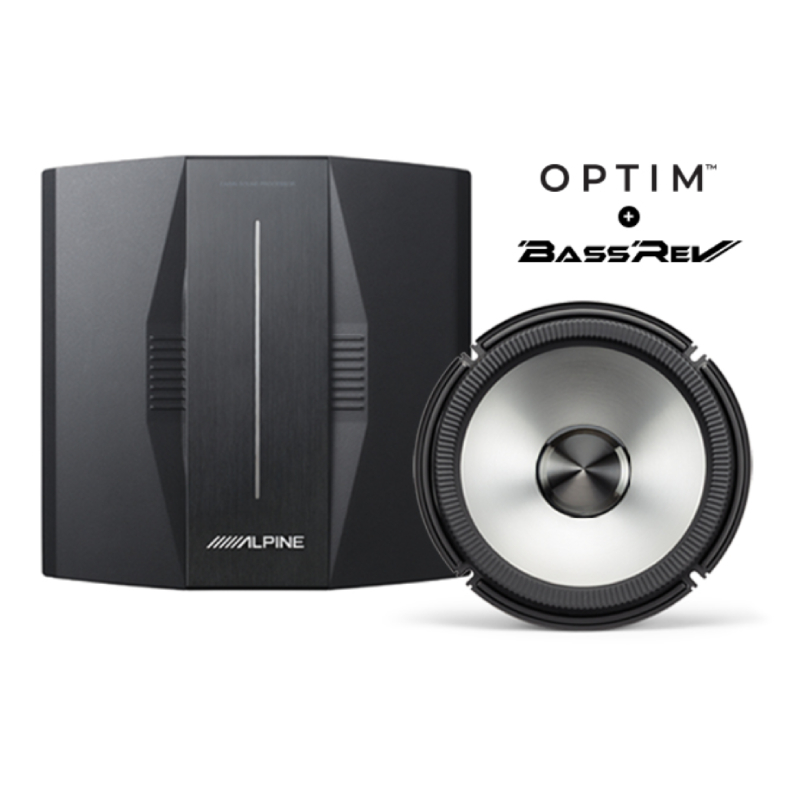

Optimized with Alpine OPTIM8®
Pair with Alpine OPTIM8® using OPTIM™ Sync to apply BassRev-specific tuning, dynamic bass enhancement and pre-EQ for maximum low-end performance.
RIGID CONSTRUCTION
Polypropylene + Mica Cone
The polypropylene and mica cone provides increased rigidity for tight bass, natural mids and cleaner sound reproduction.
POWER HANDLING
50W RMS / 150W Peak
Handles 50 watts RMS and 150 watts peak power at 4 ohms for reliable performance with an appropriately matched amplifier.
Alpine BRV-S80C Recommended Amplifiers | Best OPTIM8 DSP & 4-Channel Amp Pairings for Maximum BassRev Performance
Build Your Alpine BRV-S80C System
Recommended DSP amplifiers and 4-channel amp pairings for BassRev™, OPTIM™ Sync and powerful 8-inch component speaker performance
Amplifier Matching Overview
BRV-S80C Power Rating: 50W RMS / 150W Peak per speaker
Impedance: 4Ω
Ideal Amp Range: 40W – 60W RMS per channel for active operation
Primary Goal: Run the 8-inch woofer and 3/4-inch tweeter actively with independent amplifier channels
Best Setup: Alpine OPTIM8 DSP amplifier with OPTIM™ Sync enabled
Best Overall Match – OPTIM8 DSP Amplifier
The ideal amplifier for the BRV-S80C, combining 8-channel DSP processing and built-in amplification with Alpine OPTIM™ Sync technology. Its 50W x 6 @ 4Ω amplifier channels closely match the BRV-S80C's 50W RMS rating while allowing the woofer and tweeter to run on dedicated channels.
Best Traditional 4-Channel Alpine Option
Delivers 60W RMS x 4 @ 4Ω, providing clean headroom for the BRV-S80C. Its built-in selectable crossovers allow flexible active-system configuration, making it a strong choice when using an external DSP or processor for speaker-specific tuning.
Best High-Headroom Alpine Option
Provides substantial power headroom for the BRV-S80C and is an excellent choice for a high-output Alpine system. Because its power capability exceeds the BRV-S80C's 50W RMS rating, careful gain setting and DSP control are important for safe speaker operation.
Best Premium Sound-Quality Option
Provides 100W RMS x 4 @ 4Ω with premium Alpine Status engineering and wide-bandwidth performance. It offers significant headroom for the BRV-S80C when paired with a capable DSP and carefully configured gain settings.
Why OPTIM8 Is the Recommended Choice
OPTIM™ Sync: Applies BassRev-specific dynamic bass boost and pre-EQ to extend low-frequency performance safely
Active Operation: Provides dedicated amplifier channels and DSP control for each BRV-S80C woofer and tweeter
Automatic Calibration: Uses Alpine DSP technology to optimize EQ, crossover, time alignment and vehicle acoustics
Enhanced Bass Response: Extends the BRV-S80C's tuned response to as low as 35Hz with BassRev™ tuning enabled
Speaker Protection: DSP tuning helps keep the BRV-S80C within appropriate operating limits while maximizing output
Recommended BRV-S80C DSP & Amplifier Settings
Woofer Channels: Assign dedicated amplifier channels to the left and right 8-inch woofers
Tweeter Channels: Assign dedicated amplifier channels to the left and right 3/4-inch tweeters
Gain Setting: Set amplifier gains carefully to match the BRV-S80C's 50W RMS power handling
DSP Tuning: Use Alpine OPTIM™ Sync when using the PXE-C80-88 to apply BassRev-specific tuning
Time Alignment: Use DSP time correction to optimize staging and imaging between the active drivers
Best Practice: Avoid excessive manual bass boost when OPTIM™ Sync is enabled
Pro Tip: The Alpine BRV-S80C is specifically designed for active operation, so the Alpine PXE-C80-88 OPTIM8 is the strongest overall match. Its DSP provides independent crossover, EQ and time-alignment control while its built-in amplifier provides appropriately matched power for the BRV-S80C drivers.
Frequently Asked Questions (FAQ)
- • Can these handle loud music for long road trips?
Yes, they are designed to deliver consistent performance during extended listening sessions. Pairing them with a properly matched amplifier will help prevent distortion.
- • Do I need an amplifier to get the best sound quality?
They can play from many aftermarket head units, but an external amplifier provides cleaner sound and higher output. It also allows the speakers to reach their full performance potential.
- • Why do the highs sound too bright after installation?
This is often caused by tweeter placement or excessive treble settings. Repositioning the tweeters or adjusting the equalizer usually creates a smoother sound.
- • Can I install the tweeters in the factory locations?
Yes, many vehicles allow the tweeters to be mounted in the original locations. Some vehicles may require mounting adapters or slight modifications.
- • Why do my door panels rattle after upgrading the speakers?
The stronger midbass output can expose loose clips and interior trim. Applying sound-deadening material and tightening the panels usually eliminates the rattles.
- • Why do the speakers sound better after a few days of use?
New speakers often go through a short break-in period as the suspension becomes more flexible. Many users notice smoother sound and improved midbass after several hours of playback.
- • Why don't these speakers produce deep bass like a subwoofer?
Component speakers are designed for accurate mids and highs, not deep sub-bass. Adding a dedicated subwoofer will provide a fuller and more balanced sound system.
- • Can I keep my factory rear speakers after installing these?
Yes, upgrading only the front speakers is a common approach and still provides a noticeable improvement. The rear speakers can be upgraded later if desired.
- • Why does the music sound distorted at high volume?
Distortion is usually caused by amplifier clipping or insufficient amplifier power. Proper gain adjustment and clean power will keep the sound clear.
- • Can I upgrade just the front speakers and leave everything else stock?
Yes, replacing only the front speakers is a popular first upgrade because they have the biggest impact on sound quality. You can always add an amplifier or upgrade the rear speakers later.
Alpine BRV-S80C Related Videos
← Swipe left or right to browse videos →
- Diameter : 8 Inch
- Sensitivity : 87 dB
- Frequency Response : 35-20000 Hz
- Peak Power Handling : 150 Watts
- Woofer Composition : Polypropylene-Mica
- Tweeter Composition : Teteron
- RMS Power Handling : 50 Watts
Features:
- High Excursion Design Gathered Edge (H.E.D.G.E.) Rubber Surround: Increases output and enhances low-frequency extension for deeper, more powerful bass.
- Unique Lapel Cone Shape: Allows greater cone excursion, improving motion and overall sound clarity.
- OPTIM™ Sync Technology: Provides pre-EQ selection specific to each driver (requires PXE-C80-88 with version 3.0 or newer) for optimized tonal accuracy.
- Polypropylene and Mica Cone Material: Enhances cone rigidity for improved performance and durability.
- Ferrite Magnet: Delivers reliable magnetic strength for consistent audio performance.
- Gun Metal Chemical Topcoat: Adds a premium, sleek aesthetic while protecting the speaker surface.
Specifications:
- Series: BASSREV Series
- Number of Speakers: 2
- Speaker Size: 6.5"
- Design: 2-Way
- Tweeter Design: Dome
- Tweeter Size: 1"
- Tweeter Composition: Teteron
- Woofer Composition: Polypropylene-Mica
- Woofer Surround: High-Amplitude Multi-Roll (HAMR)
- Peak Power Handling: 150 watts
- RMS Power Handling: 50 watts
- Sensitivity: 87 dB
- Frequency Response: 35 - 20000 Hz
- Impedance (Per Voice Coil): 4 ohm
- Shallow Mount Installation: No
- Marine Certified: No
- Hi-Res Certified: No
- UPC: 793276002389
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
