MB Quart  MBTAC-STG6A-16-19 New

Stage 6 Audio System for 2016-2019 Toyota Tacoma (OEM-Amplified OEM Head Unit)

Item #97722

Condition:   Brand New

Product Highlights

  • Toyota Tacoma Stage6
  • 2016-2019 Audio Upgrade
  • OEM Amplified System
  • Full Vehicle Speakers
  • Plug-and-Play Integration

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$2,499.99

Reg. Price $2,599.99  Save $100.00
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

MB Quart Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


MB Quart Banner

MB Quart MBTAC-STG6A-16-19 - Stage 6 Audio System for 2016-2019 Toyota Tacoma (OEM-Amplified OEM Head Unit)


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-channel amplifier with attached 5" input/output harnesses
  • • Wired remote control
  • • 16' Remote cable (RJ-45 connector on both ends)
  • • (4) 5/8" screws
  • • Connection warning
  • • (2) Woofers
  • • (2) Tweeters (with 8" wire attached)
  • • (2) Tweeter crossovers (in-line)
  • • (2) Tweeter mounting brackets
  • • QR code for installation instructions
  • • (2) 2-way speakers
  • • QR code for installation instructions
  • • Amplifier integration module
  • • T-harness
  • • 6' Rotary-knob cable
  • • Rotary-knob
  • • Amplifier mounting bracket
  • • 14.5' Power cable with in-line 70A Maxi fuse
  • • 22" Ground cable
  • • 19' 6-Channel RCA cable
  • • 18' Turn-on wire
  • • 9" OEM T-harness
  • • 63" Amplifier interface cable
  • • 9.5"x7" Sheet of cable loom
  • • (20) 7" wire ties
  • • (2) 1.75" bolts
  • • (2) 3/8" screws
  • • (2) Large flat washers
  • • (2) Small flat washers
  • Owner's Manual
Toyota Tacoma Stage 6 Audio System

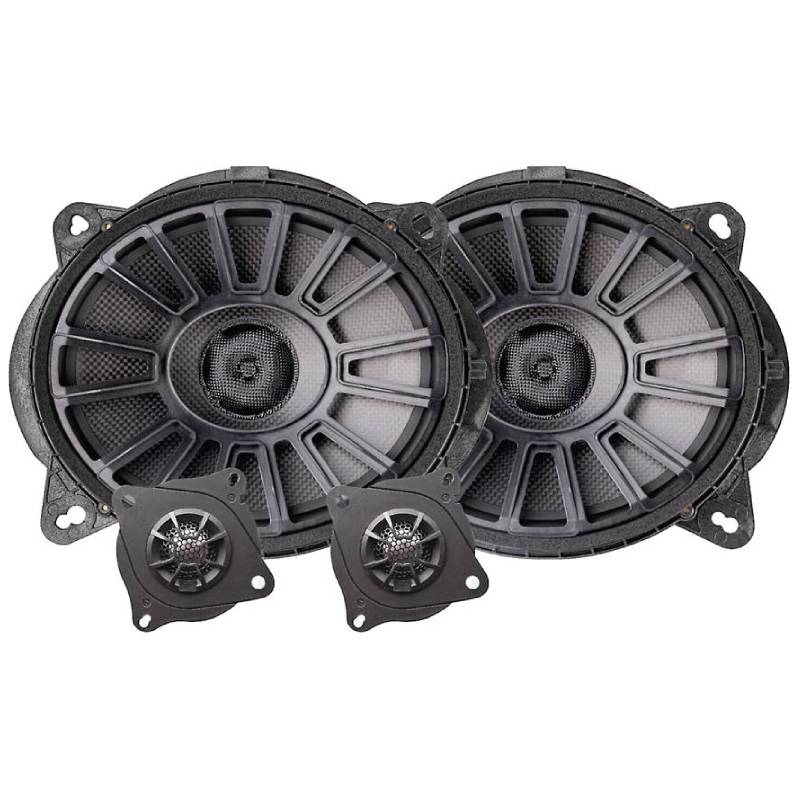

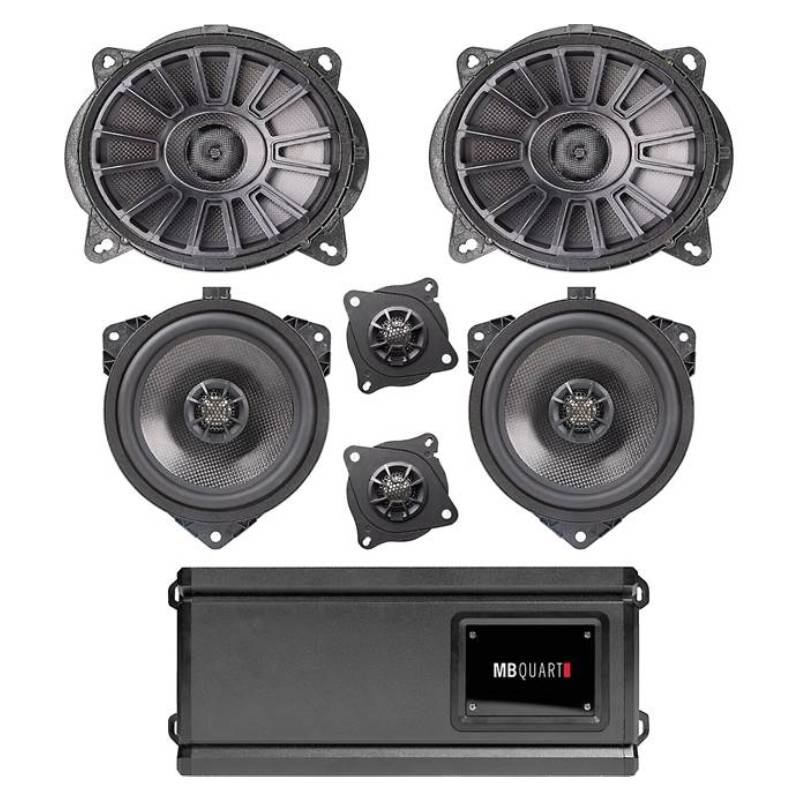

Upgrade your Toyota Tacoma (2016–2019) with a Stage 6 audio system designed specifically for vehicles with the factory JBL amplified system. This six-speaker setup includes two 8×10″ 2-way component speakers up front and two 7″ 2-way coaxials in the rear, delivering full-vehicle, immersive sound. Enjoy crystal-clear highs, rich mids, and deep lows, transforming every drive into a premium audio experience.

Toyota Tacoma Stage 6 Amplifier Kit

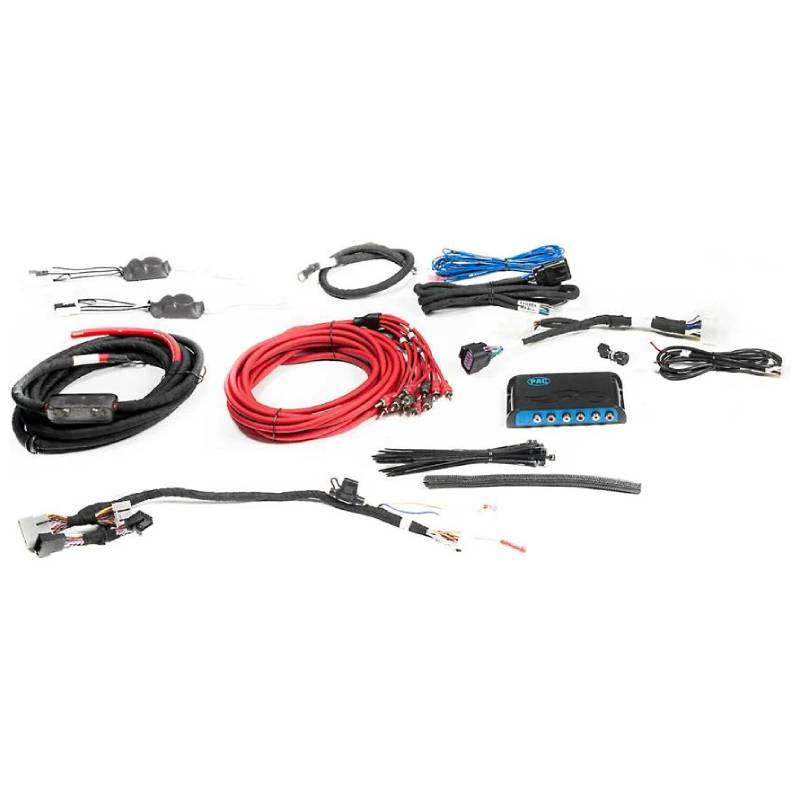

Experience powerful, full-range sound with the included 5-channel Class-D amplifier, delivering approximately 700 watts to front, rear, and sub channels in one compact unit. The system offers plug-and-play integration with vehicle-specific wiring harnesses and a PAC module, making installation quick and effortless. Enjoy premium audio performance without any major modifications to your factory JBL source unit.

Rugged Toyota Tacoma Audio System

Designed for rugged, outdoor automotive use, this Stage 6 audio system delivers reliable performance in any driving condition. The drop-in speaker replacements feature durable materials built to last while maintaining factory fit and finish. With the compact behind-seat amplifier mounting, you get a clean, professional installation without sacrificing space or style.


SPECIFICATIONS



FEATURES


Features:

  • Designed specifically for the Toyota Tacoma 2016-2019 with the factory?JBL amplified system.
  • Six-speaker system (two 8×10″ 2-way component speakers up front + two 7″ 2-way coaxials in the rear) for full-vehicle sound upgrade.
  • Includes a 5-channel Class-D amplifier rated for approximately 700?watts total, handling front, rear, and sub channels in one compact unit.
  • Plug-and-play integration: includes vehicle-specific wiring harnesses and a PAC module for integration with the OEM JBL source unit—no major modifications required.
  • Built for rugged & outdoor use in an automotive environment: drop-in speaker replacements, durable materials, behind-seat amp mounting.



Specifications:

Amplifier

  • Power Output:



Full Range Channels:

  • 4-Ohms: 50 watts x 4
  • 2-Ohms: 100 watts x 4



Subwoofer Channel:

  • 4-Ohms: 150 watts x 1
  • 2-Ohms: 150 watts x 1
  • 1-Ohm: 350 watts x 1 (only the subwoofer channel is 1-ohm stable)



Control Panel

  • Input Mode: 3-position switch; 2-channel (all five output channels fed using just the channel 1/2 inputs), 4-channel (discrete inputs for channels 1/2 and 3/4, subwoofer channel fed by the sum of those four), 5-channel (discrete inputs used for all five output channels)
  • Turn-on Mode: 2-position switch; Remote (turns on when triggered by +12 volts DC on remote terminal), DC Sense (turns on/off with the presence of a speaker level input)
  • Gain: three rotary controls; variable from 200mV to 9V



Crossover:

Full Range Channels:

  • X-Over: 2-position switches; high-pass or full-range
  • Frequency: rotary controls; variable 50-250 Hz
  • Subwoofer Channel:
  • Frequency: rotary control; variable 50-250 Hz
  • Subsonic Filter: 2-position switch; 25 Hz or off
  • Bass EQ: rotary control; subwoofer channel only; variable 0 to +12 dB



Amp Connections:

  • Audio Inputs: Three pair of stereo RCA jacks; accept pre-amp level or speaker-level input; a 19' 6-channel RCA cable is included.
  • Speaker Outputs: Five pairs of speaker outputs are provided on an attached 5" output harness. The output harness connects to the included wiring which interfaces the factory wiring.
  • Power/Ground/Remote: An attached 5" harness provides the power, ground, and remote inputs, attaching to the included extension wires. A 14.5' pre-configured power cable is included with an in-line 70A Maxi fuse. A 22" ground cable and an 18" turn-on extension are also included.
  • Remote Level Control: An RJ-45 socket connects to the included wired remote level control (adjusts subwoofer channel only).
  • Wired Remote: A remote level control is included that allows you to adjust the output level of the subwoofer amp from the driver's seat. A 16' remote cable is included.



Remote Dimensions:

  • Width: 1.63" (2.50" including mounting flange)
  • Height: 1.0"
  • Depth: 2.25" (2.75" including knob and cable)



Crossover Dimensions:

  • Width: 1.38"
  • Height: 0.75"
  • Length: 2.75"
  • UPC: 806576237921
  • Weight: 26
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
