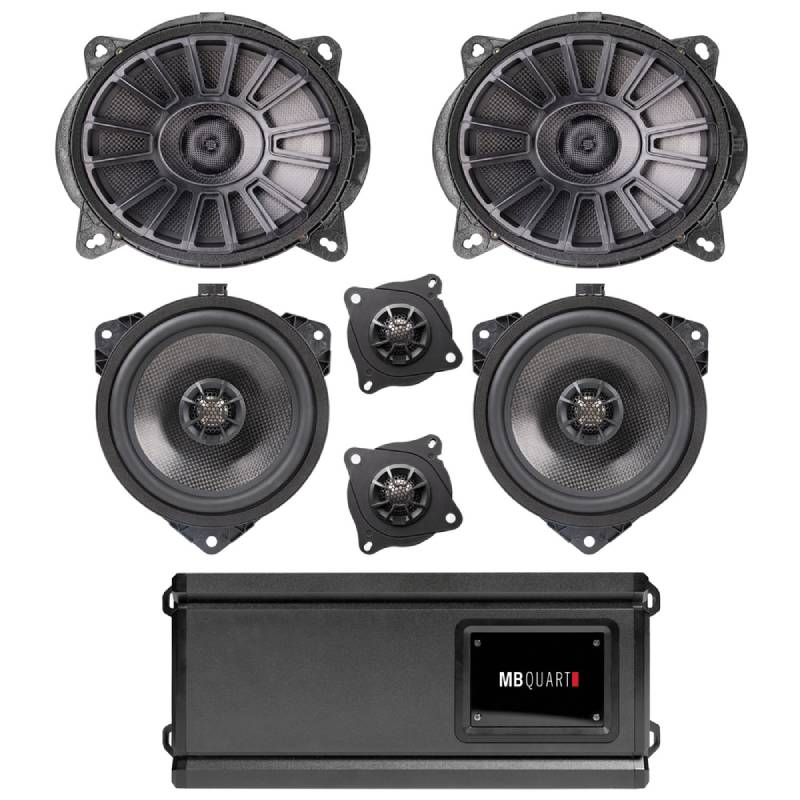

MB Quart  MBTAC-STG6A-20-23 New

Features:

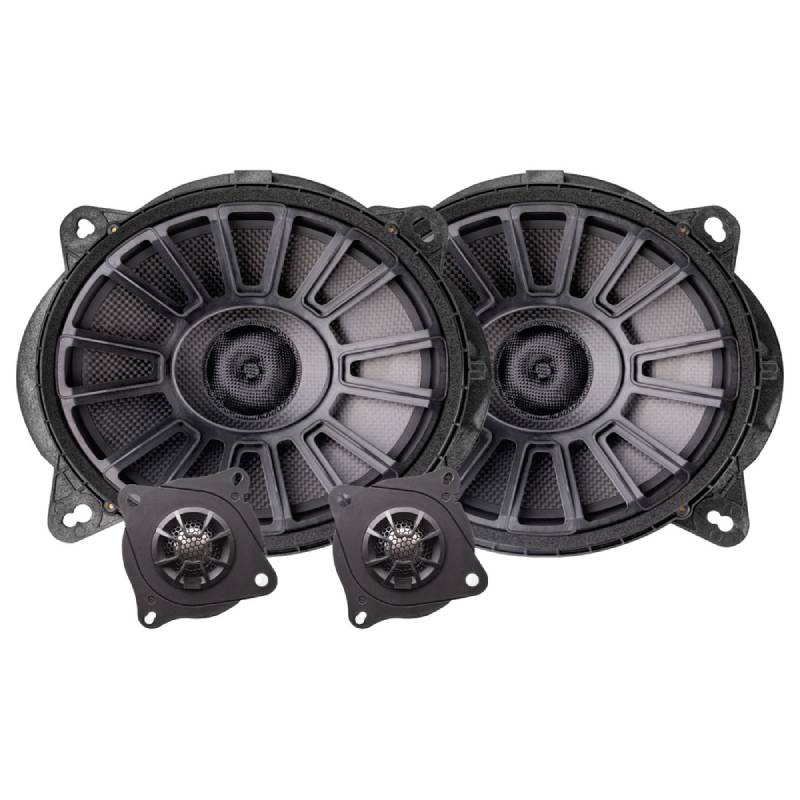

• Dual 7" Coaxial Speakers – Combines woofer and tweeter in one unit for balanced and powerful sound reproduction.

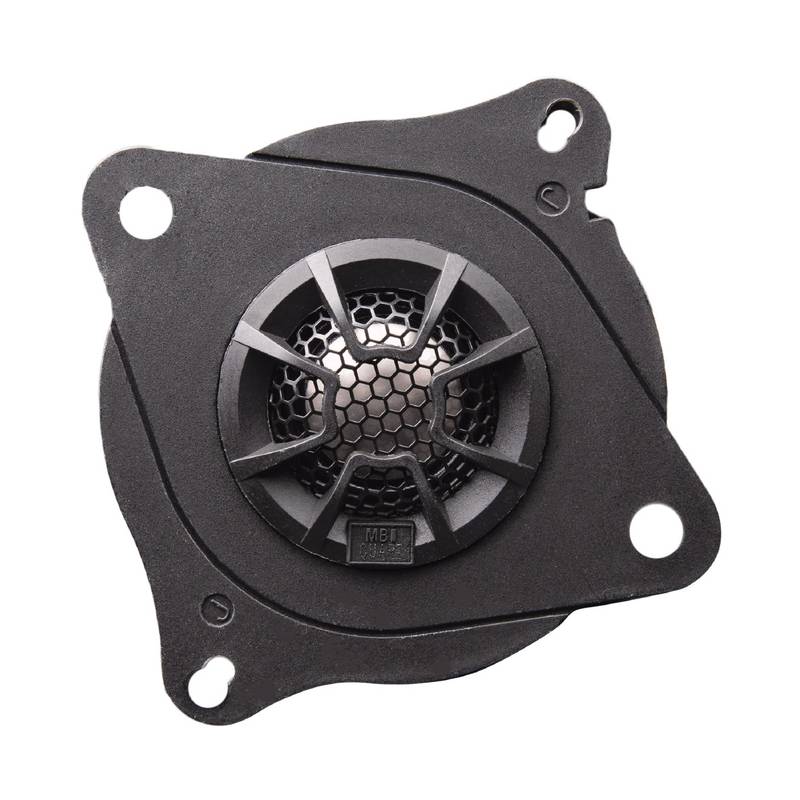

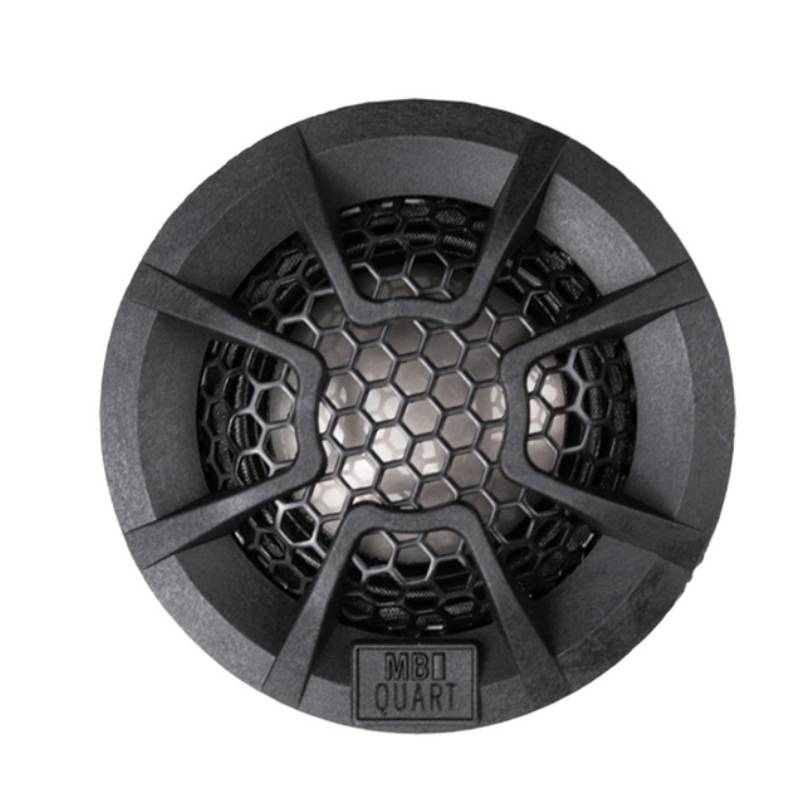

• 1" Titanium Dome Tweeters – Produces crisp, clear high frequencies for detailed and vibrant audio.
• Front or Rear Replacement Fit – Designed to replace factory speakers in either the front or rear positions for easy vehicle compatibility.
• OEM-Style Speaker Frame – Ensures a perfect fit and hassle-free installation without modifying existing mounts.
• Lightweight Fiber Cone – Offers durability while delivering accurate midrange and low-frequency response.
• Y35 Iron Ferrite Magnet – Provides strong magnetic power for reliable sound output with long-lasting performance.
• WideSphere™ Tweeter Technology – Expands the sound dispersion area, creating a wider and more natural soundstage.
• 12dB External Crossover Network – Separates frequencies cleanly between drivers to reduce distortion and improve clarity.
• Crossover Settings: 12dB Mid / 6dB Tweeter – Optimizes the balance between midrange depth and treble clarity.
• Frequency Response: 50Hz – 20kHz – Covers a wide audio range from deep lows to sharp highs for full-spectrum sound.
• Sensitivity: 88dB – Converts amplifier power efficiently into sound for loud and clear output.
• Power Handling: 150W Max / 75W RMS – Provides reliable performance and durability at moderate power levels.
• 4-Ohm Impedance – Designed for compatibility with most factory and aftermarket amplifiers.

Specifications:

Amplifier

Power Output:

• Full Range Channels:
  • 4-Ohms: 50 watts x 4
  • 2-Ohms: 100 watts x 4
• Subwoofer Channel:
  • 4-Ohms: 150 watts x 1
  • 2-Ohms: 150 watts x 1
  • 1-Ohm: 350 watts x 1 (only the subwoofer channel is 1-ohm stable)

Control Panel:

• Input Mode: 3-position switch; 2-channel (all five output channels fed using just the channel 1/2 inputs), 4-channel (discrete inputs for channels 1/2 and 3/4, subwoofer channel fed by the sum of those four), 5-channel (discrete inputs used for all five output channels)
• Turn-on Mode: 2-position switch; Remote (turns on when triggered by +12 volts DC on remote terminal), DC Sense (turns on/off with the presence of a speaker level input)
• Gain: three rotary controls; variable from 200mV to 9V

Crossover:

• Full Range Channels:
  • X-Over: 2-position switches; high-pass or full-range
  • Frequency: rotary controls; variable 50-250 Hz
• Subwoofer Channel:
  • Frequency: rotary control; variable 50-250 Hz
  • Subsonic Filter: 2-position switch; 25 Hz or off
• Bass EQ: rotary control; subwoofer channel only; variable 0 to +12 dB

Amp Connections:

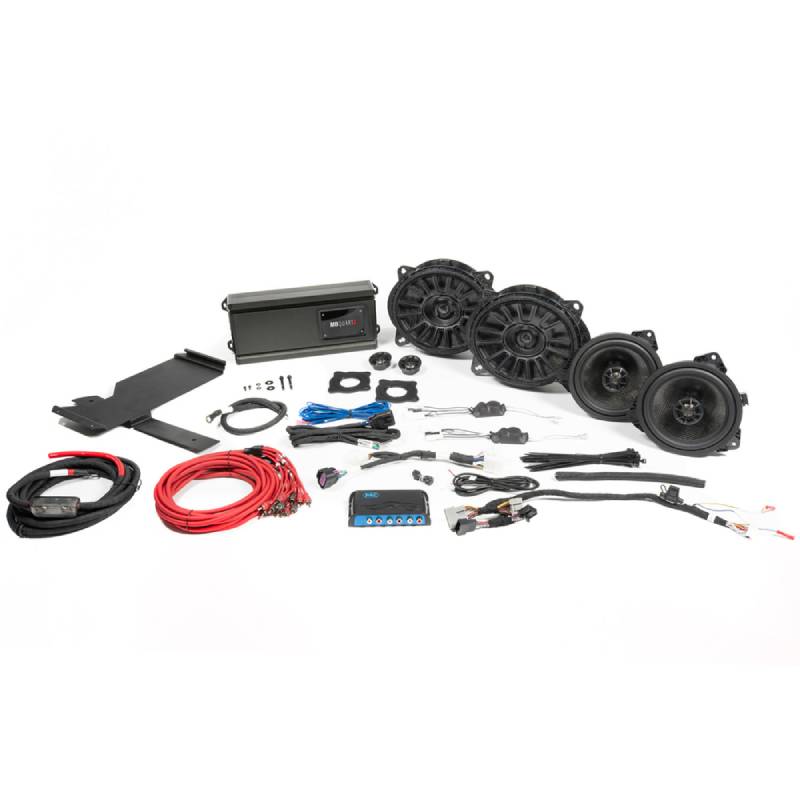

• Audio Inputs: Three pair of stereo RCA jacks; accept pre-amp level or speaker-level input; a 19' 6-channel RCA cable is included.
• Speaker Outputs: Five pairs of speaker outputs are provided on an attached 5" output harness. The output harness connects to the included wiring which interfaces the factory wiring.
• Power/Ground/Remote: An attached 5" harness provides the power, ground, and remote inputs, attaching to the included extension wires. A 14.5' pre-configured power cable is included with an in-line 70A Maxi fuse. A 22" ground cable and an 18" turn-on extension are also included.
• Remote Level Control: An RJ-45 socket connects to the included wired remote level control (adjusts subwoofer channel only).

Remote Dimensions:

• Width: 1.63" (2.50" mounting flange)
• Height: 1.0"
• Depth: 2.25" (2.75" including knob and cable)

AmpPRO PC App

• Minimum & Chime Volume Level: From the app you can set the minimum volume level of the factory radio, as well as the chime volume level.
• Chime Enabling: This lets you enable or disable the radio "beep" tone that is heard when pressing radio buttons. It is also possible to disable the beeps using the factory radio's menu.
• 3-Band EQ: Enables the 3-band EQ (Bass-Mid-Treble) with frequency and Q-factory adjustment. The Bass Frequency can be set to 60, 80, 100, or 120Hz; while the Bass Q-Factor can be set to 0.5, 1.0, 1.5, or 2.0. The Mid Frequency can be set to 500, 1k, 1.5k, or 2.5k; while the Mid Q-Factor can be set to 0.75, 1.0, 1.25, or 1.5. The Treble Frequency can be set to 7.5k, 10k, 12.5k, or 15k; while the Treble Q-Factory can be set to 0.75 or 1.25.
• Firmware: The AmpPRO app will also allow you to update the interface with new firmware as it becomes available.

Crossover Dimensions:

• Width: 1.38"
• Height: 0.75"
• Length: 2.75"

Mounting: Both the woofers and tweeters are direct replacements for the factory speakers; no modifications or additional adapters are necessary. The factory screws are used to mount the new woofers.

Coaxial Speakers

• Speaker Overview: MB Quart's TC1-118 speakers are designed as direct replacements for select Toyota, Lexus, and Scion models. No modifications or additional adapters are necessary, and the factory screws are used to mount the new speakers. Please enter your vehicle information to confirm fit.
• Wiring: The speakers have the same style input plug as the factory speakers, so the factory harness plugs directly into the speaker frame.

• UPC:
• Weight: 26
