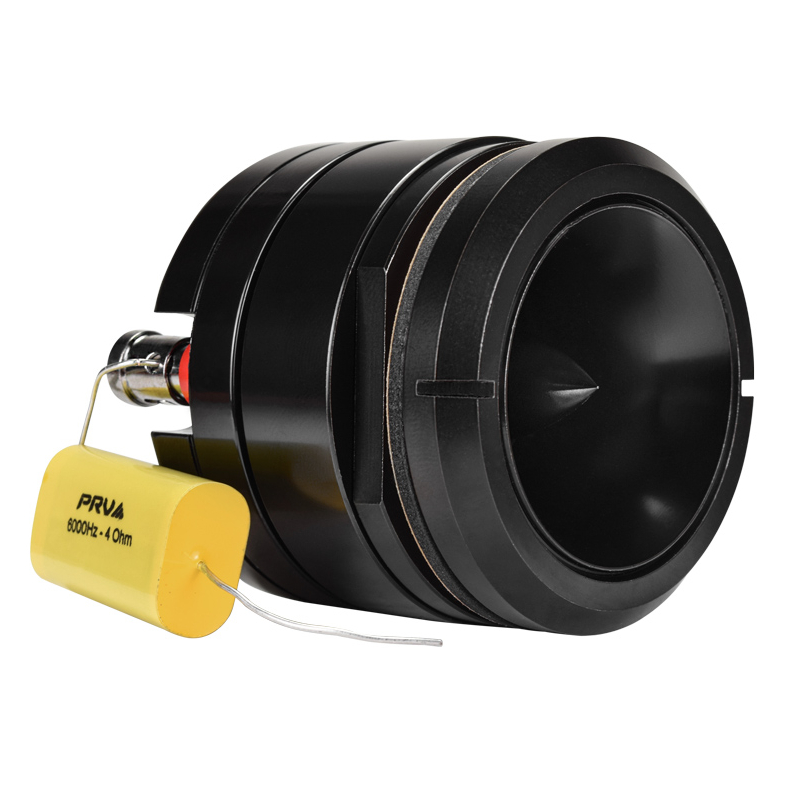

PRV Audio MT2.2TWB-4 Moto Series 2.25" 120W RMS (240W Peak Power Handling) 4 Ohm, Motorcycle Horn Tweeter - Black
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2.25" Horn Tweeter
- • Owner's Manual
Why Choose PRV Audio MT2.2TWB-4 Motorcycle Horn Tweeter
High-Output MOTO Series Upgrade for UTV, ATV & Motorcycle Audio Systems
If you’re looking to seriously wake up your ride’s audio system, the PRV Audio MT2.2TWB-4 horn tweeter is built exactly for that. This is a superior motorcycle audio solution that makes it easy to upgrade sound in your UTV, 4 wheeler, Slingshot, or motorcycle—even when space is tight. It’s designed to cut through wind and road noise with high-output clarity, so your music stays crisp and loud no matter where you ride.
Space-Saving High-Performance Motorcycle Audio Upgrade

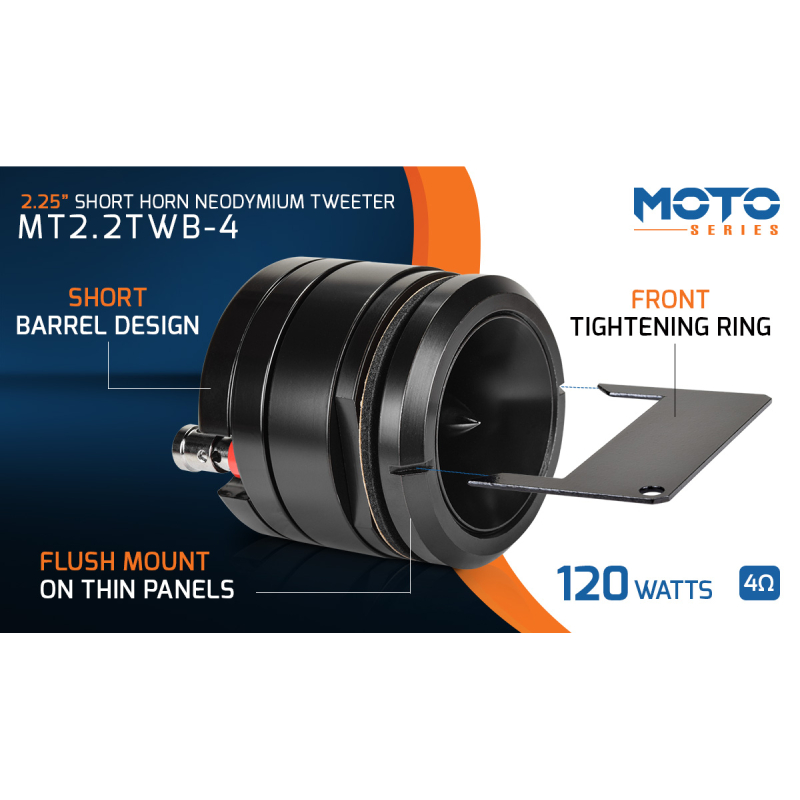

Part of PRV’s MOTO Series (MT), this super tweeter uses a short horn design that delivers powerful high frequencies without taking up unnecessary space. It’s available in different sizes and gives you flexible mounting options, making installation simple even in tight fairings or custom setups. You also get dual flush-mount options depending on baffle thickness, plus a smart front-ring tightening system so you can install it cleanly without exposed threads.
120W Motorcycle Audio Power with 107dB Clarity

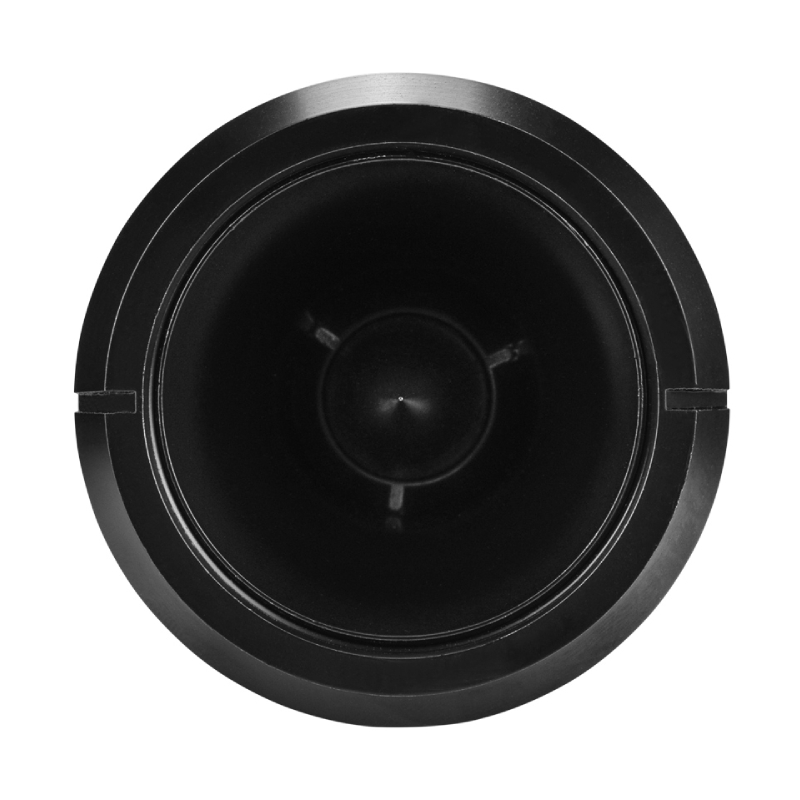

Don’t let the size fool you—this little 2.25″ tweeter is serious about performance. With a powerful neodymium magnet, titanium diaphragm, and high-temp voice coil, it delivers sharp, detailed highs with a 107 dB sensitivity rating that easily cuts through engine and wind noise. It handles up to 120 watts and includes a protective capacitor, mounting hardware, and tightening tool for a worry-free install. If you want loud, clean, and reliable high frequencies for your motorcycle audio build, this one hits hard without taking up space.
PRV Audio MT2.2TWB-4 vs MT2.2TWC-4 vs MT2.7TWB-4 | MOTO Series Horn Tweeter Comparison
| PRV MOTO Series Horn Tweeter Performance Comparison |
PRV Audio MT2.2TWB-4
2.25” Moto Series Horn Tweeter (Black) | High Output Motorcycle & UTV SPL Tweeter
MOTO SPL FOCUS
- • Compact horn design for tight installs
- • Very high sensitivity output (~107 dB class)
- • Strong forward projection for open air use
- • Cuts through wind and road noise easily
- • Requires proper HPF tuning (5–6 kHz)
|

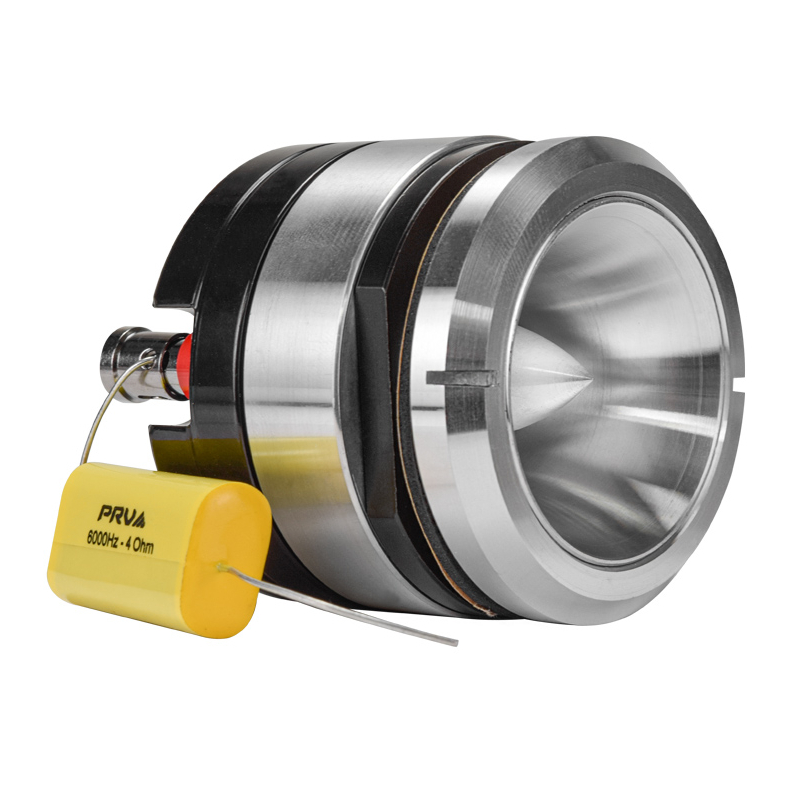

PRV Audio MT2.2TWC-4
2.25” Moto Horn Tweeter (Chrome) | High Efficiency Motorcycle SPL Tweeter
STYLE VARIANT
- • Same acoustic design as MT2.2TWB-4
- • Chrome finish for visual upgrade
- • Same high output performance class
- • Strong directional horn sound
- • Requires same HPF tuning (5–6 kHz)
|
PRV Audio MT2.7TWB-4
2.75” Moto Horn Tweeter | High Output Motorcycle & Car SPL Tweeter, Extended Range
HIGH OUTPUT RANGE
- • Larger horn for stronger air movement
- • Louder output than MT2.2 series
- • Fuller and smoother high frequencies
- • Better long-range sound projection
- • Works well for loud daily + SPL builds
|
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio MT2.2TWB-4 sound too harsh or piercing?
This is a very common issue reported by users when the tweeter is installed without proper tuning. The MT2.2TWB-4 is highly efficient and can sound sharp if the gain is too high or if there is no proper EQ adjustment. Use a high-pass filter around 5,000–6,000 Hz (12 dB/oct or higher) and reduce tweeter gain to achieve a smoother, more balanced sound.
- • Do I need a crossover for the MT2.2TWB-4?
Yes. This is one of the most critical requirements. While the tweeter includes basic protection, real-world user experience shows that running it without a proper crossover or DSP can lead to distortion or damage. Always use a high-pass filter at 5–6 kHz (18 dB/octave recommended) for safe operation.
- • Why did my MT2.2TWB-4 tweeter stop working or blow?
Most failures are not due to defects but improper setup. The most common causes are amplifier clipping, no high-pass filtering, or excessive gain. When the tweeter receives low-frequency signals or distorted power, the voice coil can overheat and fail.
- • Can I run the MT2.2TWB-4 directly from a head unit?
It is possible, but not recommended for high-output or long-term use. Users often report weak control, imbalance, and distortion when running directly from head units. A dedicated amplifier channel or DSP-controlled system provides much better clarity and protection.
- • Is the MT2.2TWB-4 good for motorcycles, UTVs, or open-air setups?
Yes, this is one of its strongest applications. Real-world users choose it for motorcycles, UTVs, and open vehicles because of its high sensitivity and ability to cut through wind and road noise. However, proper tuning is still needed to prevent it from sounding too aggressive at close range.
- • Why does my system sound worse after adding this tweeter?
This happens when the tweeter is not properly matched with midrange speakers. Common issues include overpowering the highs, incorrect crossover points, or lack of tuning balance. Lowering tweeter gain and properly integrating it with midrange drivers usually resolves the issue.
- • What is the recommended power handling for the MT2.2TWB-4?
The tweeter is rated for high-efficiency output with proper filtering. While it can handle high peak power, real-world performance depends on clean signal delivery. Users achieve the best results when it is paired with controlled amplifier power and correct crossover settings rather than raw wattage.
- • Do I need a subwoofer when using MT2.2TWB-4 tweeters?
Yes, if you're building a full-range system. The MT2.2TWB-4 only handles high frequencies, so without midrange and subwoofer support, the system will sound incomplete and unbalanced. A proper 2-way or 3-way setup is highly recommended.
- • What is the most common mistake users make with this tweeter?
The biggest mistake is running too much gain or skipping proper tuning. Many users assume louder equals better, but without EQ and crossover control, the MT2.2TWB-4 can become harsh and fatiguing. Proper tuning is essential for clean performance.
- • Is the MT2.2TWB-4 worth it for a budget build?
Yes, especially for users looking for loud and efficient high-frequency output in compact installs. However, it performs best when paired with proper tuning equipment. Without DSP or crossover control, even budget-friendly builds may not reach its full potential.
Features:
- Motorcycle High-Output Horn Tweeter for Road Noise Clarity & Easy Installation: Designed for motorcycles, this new tweeter provides the highest output and easy mounting to keep up with high road noise.

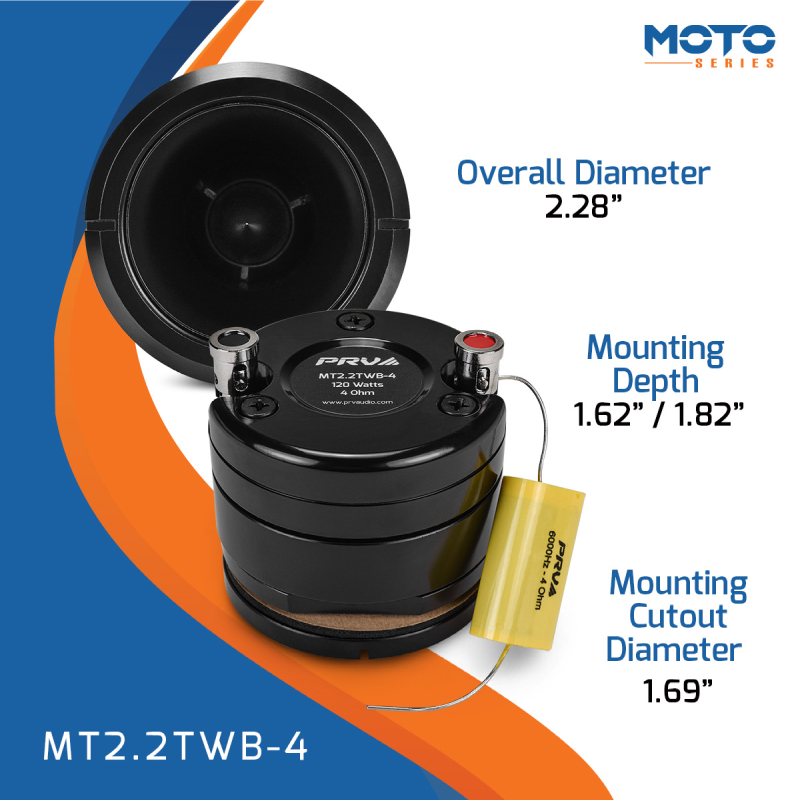

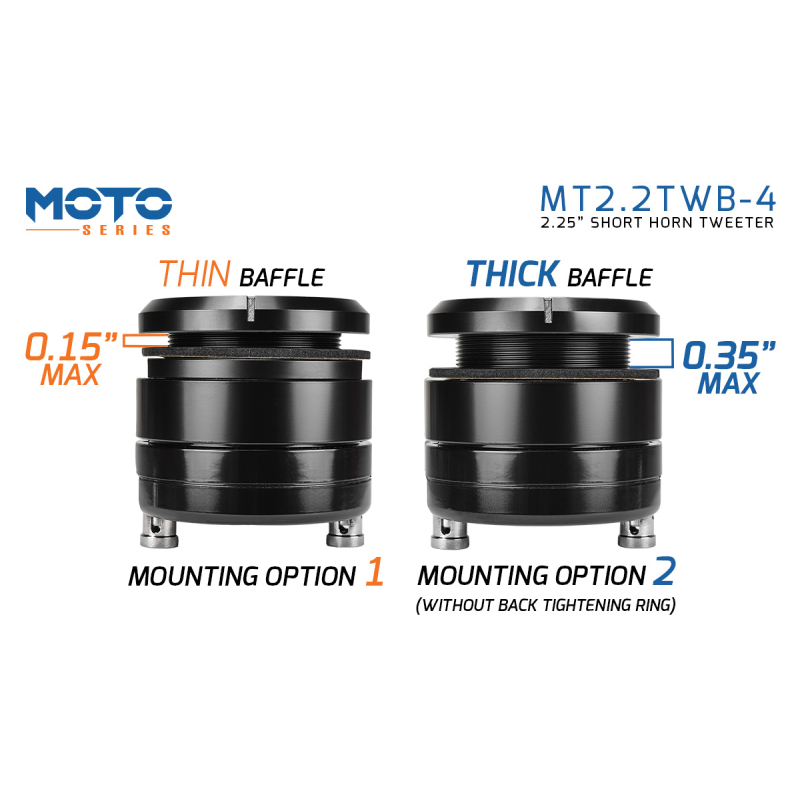

- Flexible Flush Mount Motorcycle Tweeter with Dual Installation Options for Custom Fit: Depending on the thickness of your baffle, there are two flush mounting options. Its front ring and tightening tool can be used to mount it in installations with limited space.

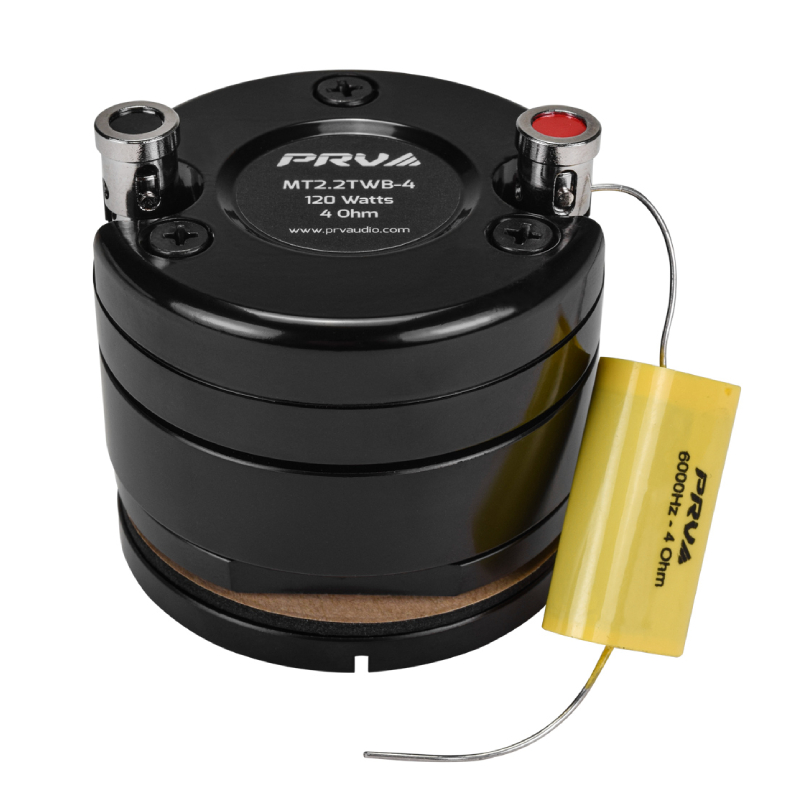

- Compact Neodymium Magnet 4-Ohm Horn Tweeter with Quick Connect Terminals: Powerful neodymium magnet providing high performance with compact size and easy quick connect push terminals. 4 Ohm impedance.

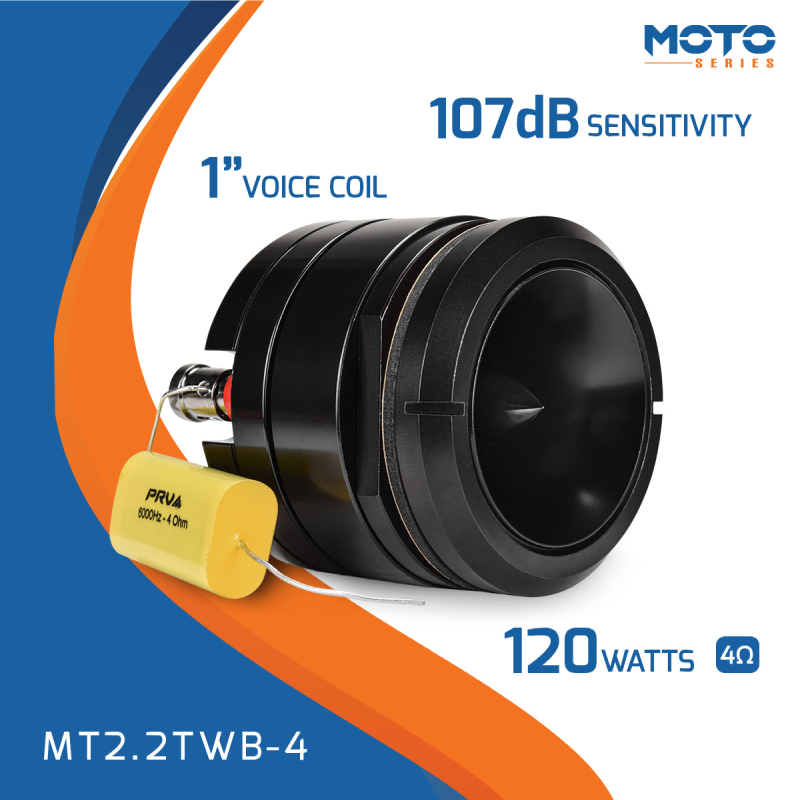

- High-Performance 2.25″ Motorcycle Horn Tweeter 120W Power Handling & 107dB Sensitivity: This small 2.25″ horn tweeter is built to handle 120 watts and is capable of astonishing high frequency performance. 107 dB sensitivity at 1w/1m.

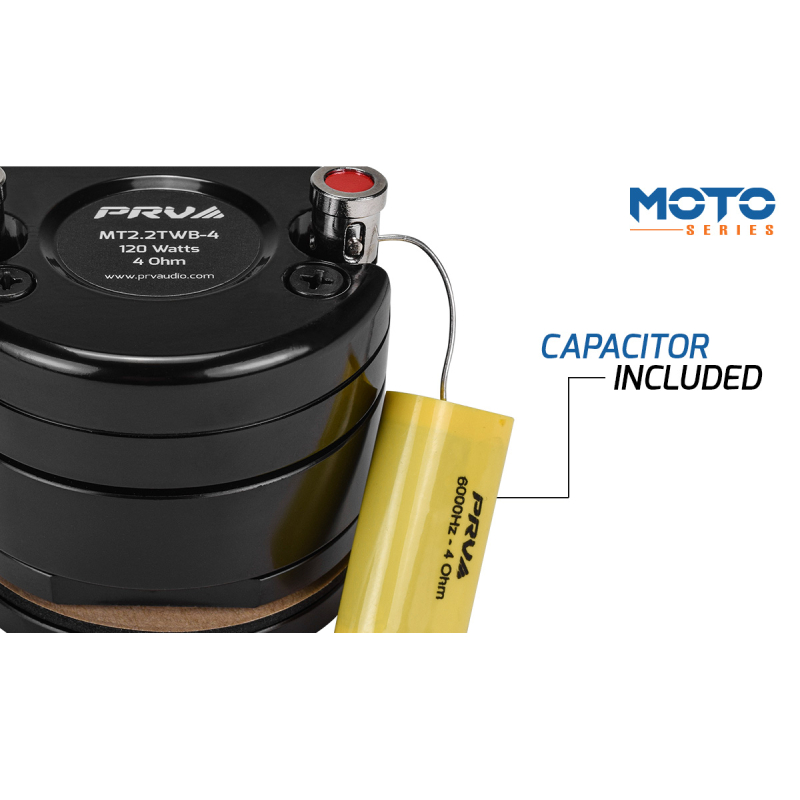

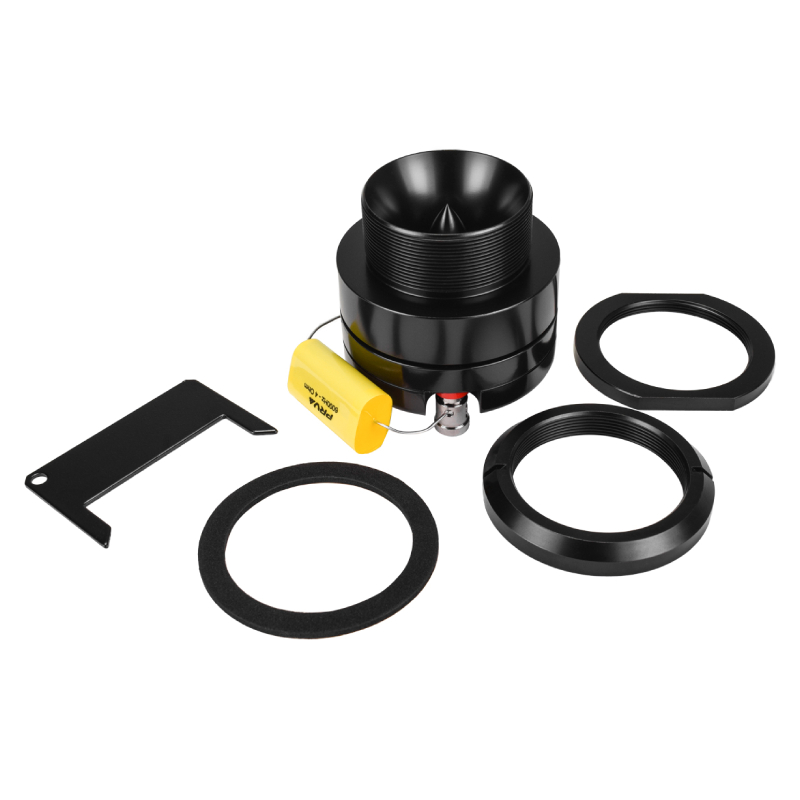

- Complete Motorcycle Tweeter Installation Kit with Capacitor Protection & Chrome Option: A capacitor is included for protection from damaging frequencies at high power. Mounting hardware and a tightening tool are included. Also available in Chrome Finish.
Specifications:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 Watts
- Continuous Program Power (RMS): 120 Watts
- Maximum Peak Power: 240 Watts
- Sensitivity (2.00V at 1m): 107 dB
- Recommended High-Pass Crossover (Full Power Handling): 6000 Hz, 12 dB per octave
- Frequency Response (-10 dB): 4,500 – 20,000 Hz
- Voice Coil Diameter: 1.0"
- Voice Coil Wire: CCAW (Copper-Clad Aluminum Wire)
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
- UPC:
- Weight: 1.21
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
