Rockford Fosgate's Punch P3 Slim Series
Rockford Fosgate's Punch Stage 3 subwoofers come from a long line of high-performance subs that deliver real deal bass. Now, shallow-mount Punch Stage 3 subs make it easier to get impressive low end in smaller or hard-to-fit vehicles.
The P3SD2-10 shallow-mount 10" sub hangs with its bigger brethren, thanks to advanced materials and engineering. Rockford uses an anodized aluminum cone and dust cap that makes the woofer light and easier to drive, yet rigid enough to maintain its shape when you turn it up loud. The M-Roll Santoprene™ surround also provides excellent excursion for maximum output while being durable enough to last.
Powerful bass for a tight space
A low-profile frame houses the sub, with abundant venting to battle overheating and thermal breakdown. At 3-9/16 inches deep, this sub will fit into places where no bass has gone before — just build a custom enclosure or find a suitable box. The dual 2-ohm voice coils allow you to wire up multiple subs or to coax optimum performance from your amplifier.
Easy Installation in Tight Spaces
The P3SD2-10 features a slim design that allows easy installation in tight spaces, such as under seats or compact enclosures. Its shallow-mount design doesn't compromise performance, making it ideal for vehicles with limited space.
Diameter : 10 Inch
Maximum Power : 600 Watts
Sensitivity : 83 dB
Impedance : 2 Ohm
Frequency Response : 40-250 Hz
Peak Power Handling : 600 Watts
Top Mount Depth : 3-9/16 Inches
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.5 Cubic ft.
Suggested Ported Box Volume : 1 Cubic ft.
Mounting Depth : 3.50 Inches
RMS Power Handling : 300 Watts

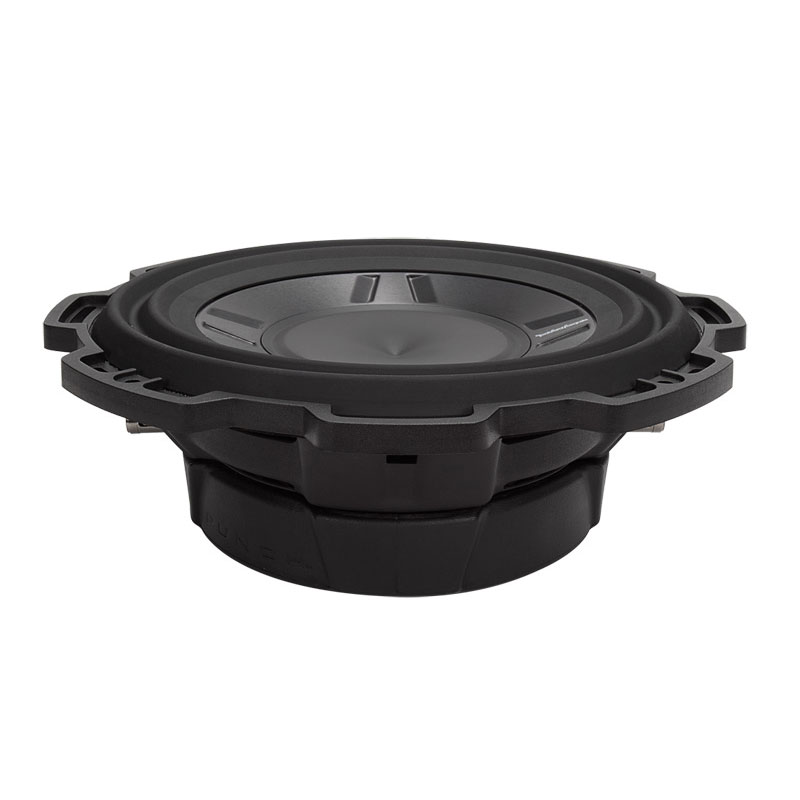

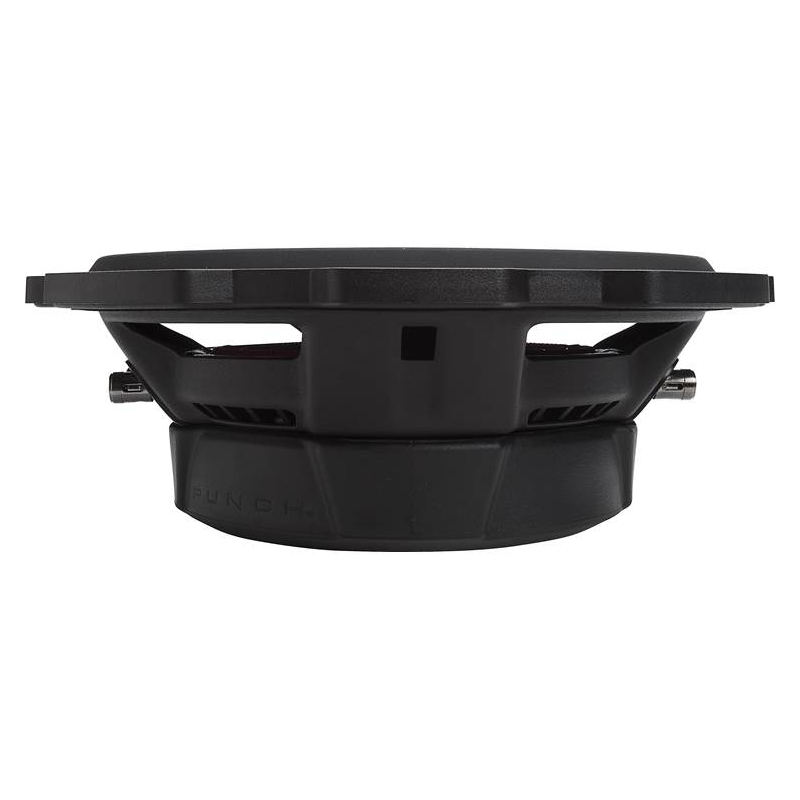

Shallow Mount Design: The Rockford Fosgate Punch P3SD2-10 Shallow Subwoofer is designed and engineered with a more shallow motor assembly which reduces the overall depth of the woofer, allowing it to fit in smaller locations in your vehicle. The P3SD2-10 used an anodized aluminum cone and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
Dual Voice Coils: This woofer features dual 2-ohm voice coils for wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1-ohm load. When the voice coils are wired in series, the woofer presents a 4-ohm load.
CEA-2031 Compliant: Power handling on the P3SD2-10 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

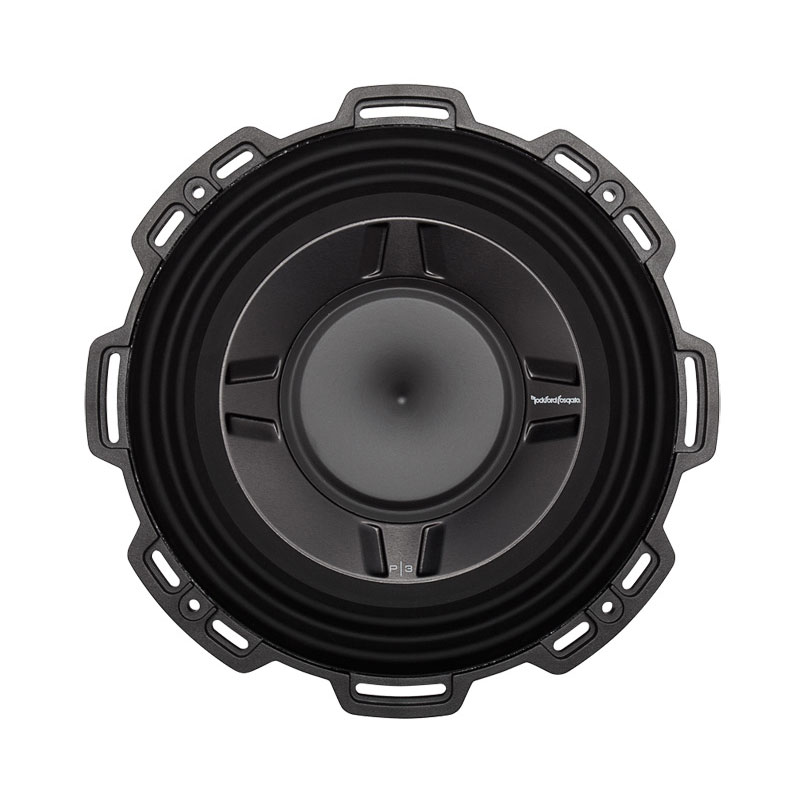

FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Anodized Aluminum Voice Coil Former: Aluminum voice coil formers offer superior heat dissipation over other commonly used materials. The hard-anodized finish increases the former strength. These two factors combine to improve the overall power handling characteristics of the subwoofer.

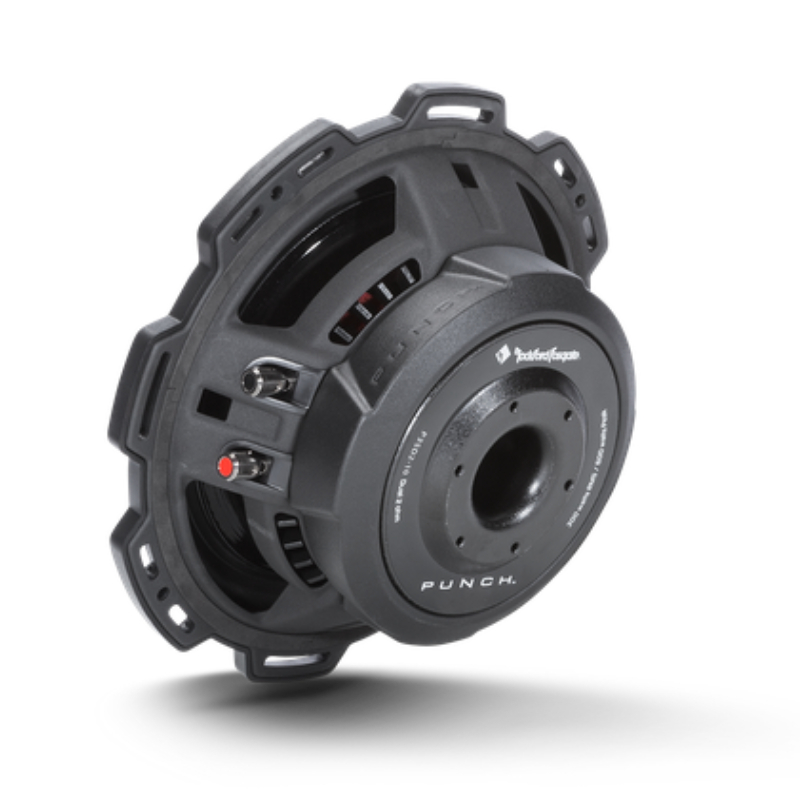

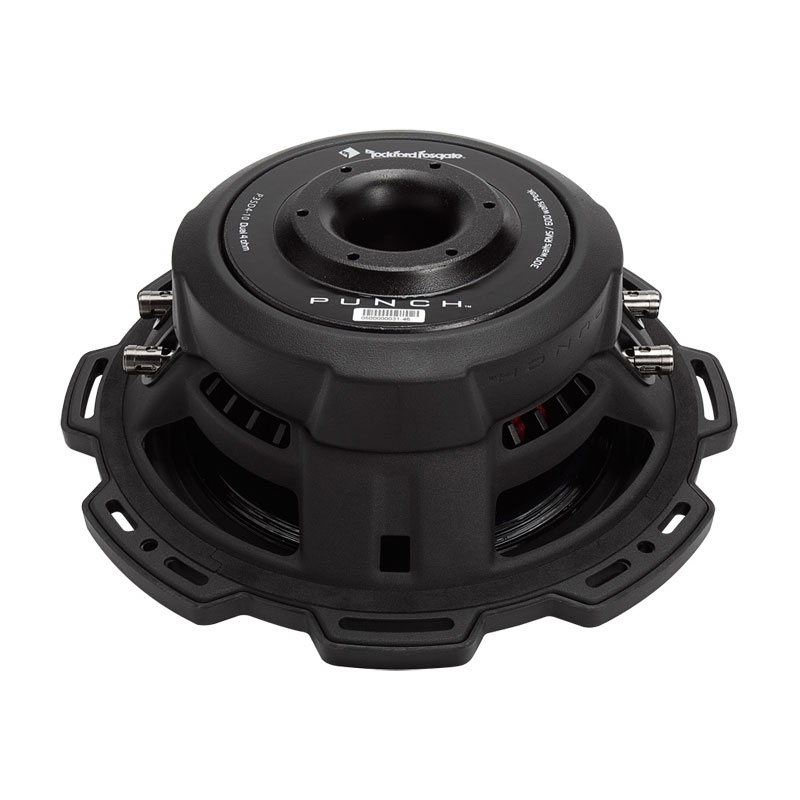

Spring Post Assemblies: The woofer features custom insulated/isolated compression input terminals with attached flexible, 16-gauge stitched tinsel lead wires that can withstand extreme duty cycles, fatigue and high current. The heavy-duty spring posts will accept pin connectors, single banana plugs, and bare wire up to 10-gauge.

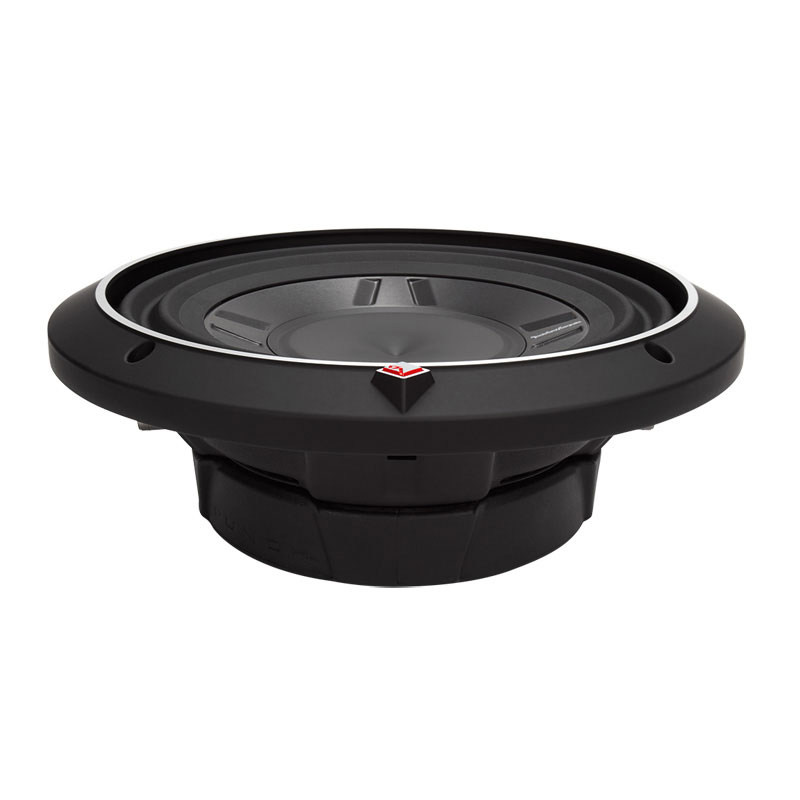

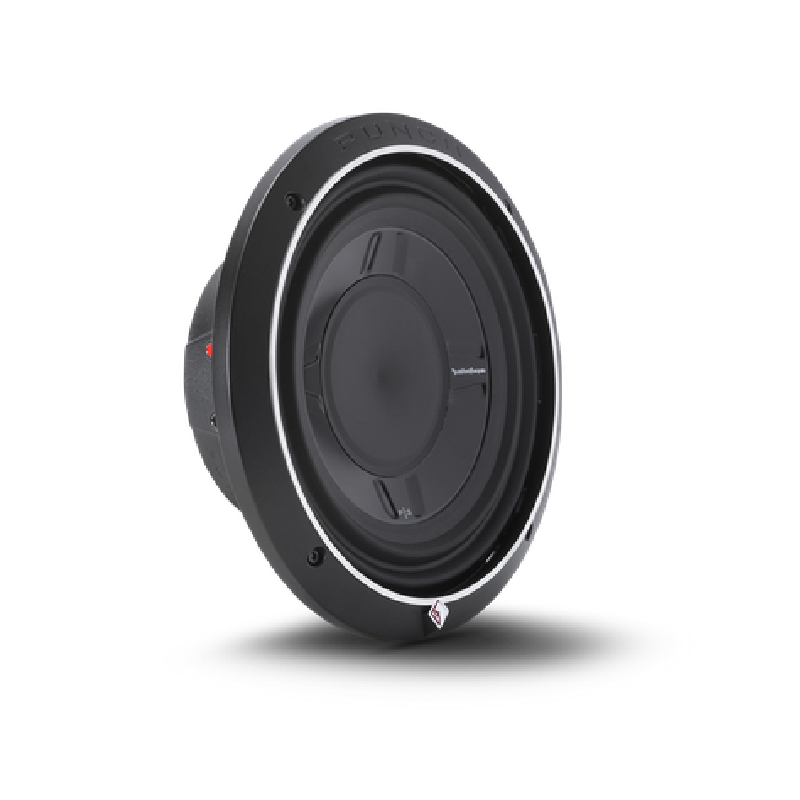

Trim Ring: For added cosmetic appeal the woofer comes with an aluminum trim ring that mounts over the flange of the woofer. When using the trim ring, the woofer is first mounted with four screws, then the ring is mounted over the woofer, aligning the final four holes of the woofer with ring. The other four screws are used in these holes to mount the ring and woofer to the enclosure. The trim ring increases the top-mounting height of the woofer to 1.0 inch and the ring diameter is 11.3 inches.
Break-In Period: Due to the design of the Rockford Fosgate P3 Shallow subwoofer, a 24 to 48 hour break-in period is required to allow for maximum excursion and low frequency extension. The shallow woofer suspension is intentionally designed to optimize once the internal components are exercised under normal music listening conditions.
Sealed Box Volume: The sealed box size range recommended by Rockford Fosgate is 0.40 to 1.0 cubic feet. Within this range, the ideal recommended size is 0.5 cubic feet, resulting in a 3dB down point of 46.9 Hz and a Qtc of 0.90.
Vented Box Volume: The vented box size recommended by Rockford Fosgate is 1.0 cubic feet. One 4" diameter x 12" long port should be used, resulting in a tuning frequency of 47.5 Hz and a 3dB down point of 36 Hz.
Speaker Connector: Dual 10 AWG Compression
Mounting Depth: 3.50 in. (89.0 mm)
Magnet Weight (oz): 1.32 oz. (47 kg)
Voice Coil Diameter: 2.5" (65.5 mm)
Shipping Weight: 11.9 Lbs. (5.39 kg.)
Vas (Liters): 14.3
SPL (dB @ 1w/1m): 83
Woofer Displacement: 0.074 cu. ft. (2.1 Liters)
Le (mH): 2.8
Re (Ohms): 3.40
Nominal Impedance: Dual 2-Ohms
Fs (Hz): 40
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
Cutout Diameter" 9.06 in. (230.0 mm)
CEA-2031 Compliant: CEA-2031 Guidelines
Sd (cm2): 333
Xmax (mm): 8.4
Subwoofer Type: Shallow
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
These speaker's are the best shallow mounts that you can buy. (in my opinion) I have 2 of them in my Ford F-150 with 250 watts going to each. They don't put out overwhelming bass, but trust me they sound awesome.
these subs slam!!! i have 2 in my frontier in a ported box with 300 watts each and they will hurt you. way louder then my friends p1 12s
