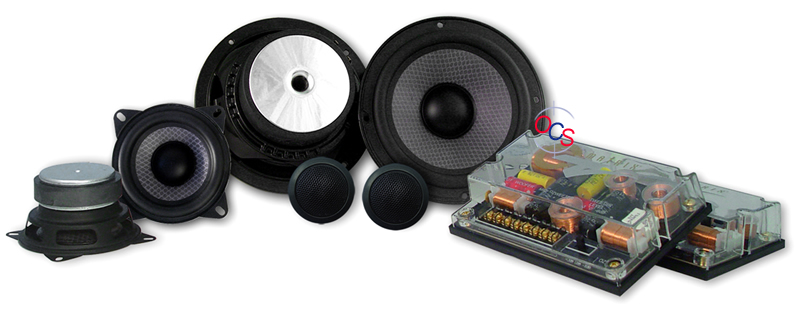

The culmination of hours of research and development this component system exemplifies
the quality of Oz Audio. Comprised of 6.5-inch mid bass, 4-inch midrange, and revolutionary 1-
inch tweeter this is the speaker system that will succeed where others have failed. With a
frequency response conservatively rated for +/- 1dB from 36Hz – 40,000Hz this system is capable
of convincing even the most discernible ear. These components are not typical of what you will
find at your local big box. No this type of performance is limited to upper echelon dealers.
Experience firsthand what it means to be seated front row center at your favorite concerts. Know
what it sounds like to be in the recording studio with your favorite artist. This is the Oz Audio
experience; no other manufacturer can give this to you, especially in your car. The mid bass provides
all the impact, power, speed, and tenacity a quality recording demands. The midrange is acoustically
transparent, smooth, and transitions flawlessly, and is absolutely delectable. The newly developed tweeter
is accurate, natural, and pure. When taken as a whole the results are mind boggling.
- Diameter : 6.5 (approx) Inch
- Sensitivity : 92 dB
- Frequency Response : 55-40000 Hz
- RMS Power Range : 350 Watts
- Mid-Bass:
- Proprietary 3-layer glass fi ber/Nomex cone woven in a honeycomb matrix
- High quality Butyl Rubber surround
- Flat progressive roll spider
- Thermoset Four layer copper voice coil
- Aluminum voice coil former for improved heat dissipation
- Custom embossed, protective magnet boot
- Diameter: 6.5
- Impedance: 4-ohm
- VC Diameter: 1"
- SPL: 92db
- Freq. Response: 55-5000Hz
- RMS Power Handling: 100 – 125 watts
- Peak Power Handling: 250 – 300 watts
- Midrange:
- Proprietary 3-layer glass fi ber/Nomex cone woven in a honeycomb matrix
- High quality Butyl Rubber surround
- Flat progressive roll spider
- Thermoset Four layer copper voice coil
- Aluminum voice coil former for improved heat dissipation
- Diameter: 4"
- Impedance: 4-ohm
- VC Diameter: 1"
- SPL: 92db
- Freq. Response: 65 – 5000Hz
- RMS Power Handling: 75 – 100 watts
- Peak Power Handling: 200 – 250 watts
- Tweeter:
- Proprietary 1" silk soft dome tweeter
- Neodymium iron-boron motor structure
- Ferrofl uid cooled motor for advanced heat dissipation
- Diaphragm Material: Woven Silk/Cotton
- Impedance: 6-ohm
- VC Diameter: 1"
- Freq. Response: 1500 – 40,000Hz
- RMS Power Handling: 50 – 75 watts
- Peak Power Handling: 110 – 150 watts
- Crossover:
- New proprietary design and cosmetics
- 18/24 dB per octave, 3-way crossover
- Three position tweeter attenuation switch 0, -3 dB, -6 dB
- Tweeter polarity switch 0/-180
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.
