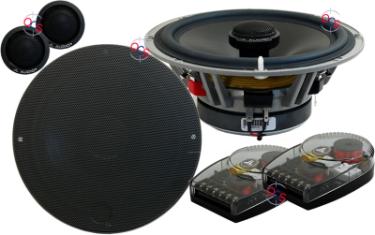

JL Audio  C5-525

C5 Series 5-1/4" component speaker 225W Peak Power

Item #20022

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


The smoothness and transparency of a high-end silk dome tweeter combines with top-flight component woofer performance to create a loudspeaker system with exceptional refinement and dynamic capability.

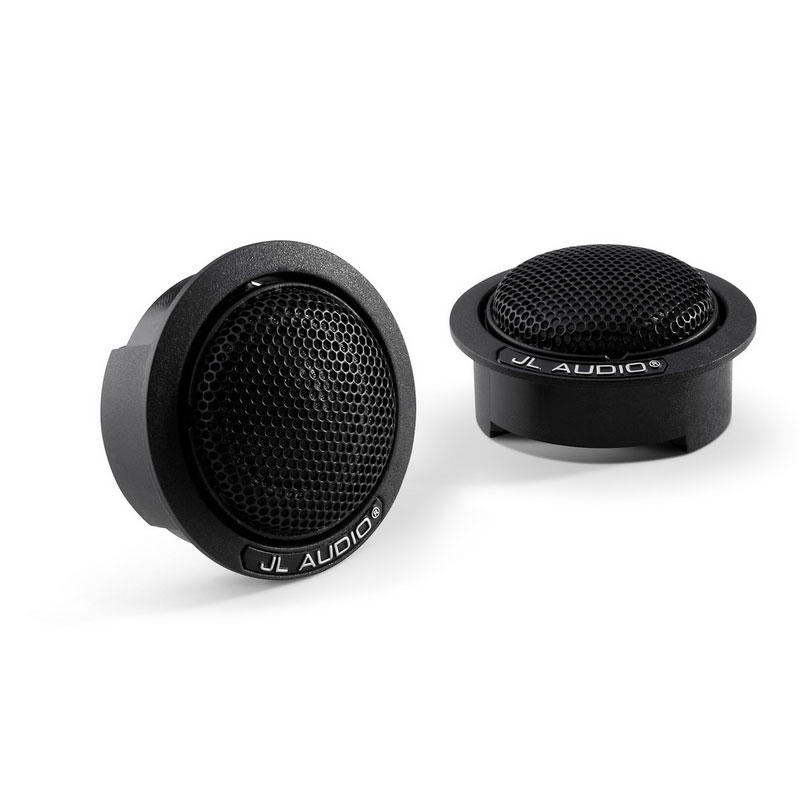

The C5-525 system features 5.25-inch (130 mm) component woofers with Kurt Müller cones and suspensions and die-cast alloy baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C5 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis.

Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. The flush-mount fixtures feature our RSR (Ratcheting Swivel Rotation) mechanism to allow precise tweeter aiming after installation. C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors.

Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

General Features:

  • 5.25" Evolution C5 Series 2-way Component Car Speakers
  • Power Handling:
  • Peak: 450 watts per set / 225 watts per channel
  • RMS: 150 watts per set / 75 watts per channel
  • Woofer Dimensions:
  • Top-mount depth: 2.23"
  • Cutout Dimensions: 4.48"
  • Tweeter Dimensions: (Flush Mount)
  • Top-mount depth: 0.56"
  • Cutout Dimensions: 1.50"
  • Crossover Dimensions:
  • Width: 3.36"
  • Height: 1.44"
  • Depth: 4.72"
  • Nominal Impedance: 4 ohm
  • Efficiency: 88.5 dB @ 1 watt / 1 meter
  • Frequency Response: 53 Hz - 25 KHz ± 3 dB
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 0.75" Silk Soft Dome Tweeter
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
  • 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
  • Premium Mylar® Capacitors w/ Air-Core Inductors
  • 4-Position Adjustable Tweeter Output Level
  • 3-position Mid-range Presence Control
  • Polyswitch Tweeter Protection
  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included

SPECIFICATIONS


  • Diameter : 5.25 Inch
  • Sensitivity : 88.5 dB
  • Frequency Response : 53-25000 Hz
  • RMS Power Range : 75 Watts
  • Peak Power Handling : 225 Watts
  • Shallow Mount : No Inch

FEATURES


Product Highlights:

  • component speaker system includes two 5-1/4" woofers, 2 tweeters, two external crossovers, and two woofer grilles
  • mineral-filled polypropylene woofer with butyl rubber surround
  • cast alloy frame with Elevated Frame Cooling
  • 3/4" silk dome tweeter
  • 2-way external crossover with 4-position tweeter level and 3-position midrange control
  • 4-ohm impedance
  • 25-65 watts RMS power range
  • frequency response: 53-25,000 Hz
  • sensitivity: 88.5 dB
  • depth: 2-3/8"
  • UPC: 699440991001
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
