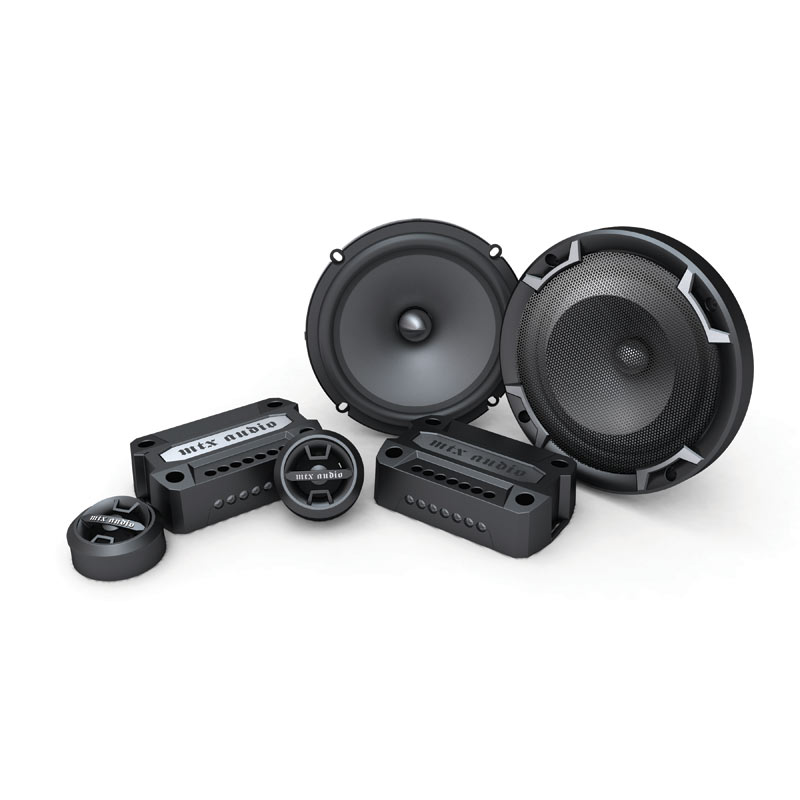

Each set of MTX’s Thunder Axe Separates features a 2-way, 12dB/octave high-quality crossover network that is designed and optimized for off-axis or on-axis listening. The included tunable tweeter network allows for optimum imaging regardless of placement or positioning. These separates offer unmatched features and sonic realism in their class.
- Diameter : 5.25 (approx) Inch
- Sensitivity : 90 dB
- Frequency Response : 44-20000 Hz
- RMS Power Range : 90 Watts
- Peak Power Handling : 180 Watts
General Features
- Extended low frequency reproduction for bigger, fuller sound.
- 25mm soft dome tweeter can be mounted anywhere to improve imaging and exceed expectations, with the ability to clearly recreate the crispest highs.
- The specially designed crossover uses mylar capacitors for superior signal integrity.
- Concave cone design for improved off-axis response.
- 2-Way crossover and adjustable tweeter level.
- Tweeter can be mounted in flush or surface mount adaptor and swivels within adaptor for superior imaging.
General Specifications
- Cone Material: Polypropylene
- Tweeter: 25mm Soft Dome
- Impedance: 4-Ohms
- Frequency Response: 44Hz - 20kHz
- RMS Power (Watts): 90
- Peak Music Power (Watts): 180
- Sensitivity: 90dB (2.83V/1m)
- Voice Coil: 1.0" (2.54 cm)
- Woofer Mounting Depth: 2.19" (5.56 cm)
- Woofer Cut Out Diameter: 5.0" (12.7 cm)
- Tweeter Mounting Depth: 1.0" (2.54 cm)
- Tweeter Cut-out Diameter: 1.88" (4.76 cm)
- Tweeter Mounting Options: Flush or Surface (Angle in both)
- Crossover: 2-Way, 18dB/6dB
- Adjustable Tweeter Level: 0, -3
- UPC: 715442470389
- Weight: 6.85
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
