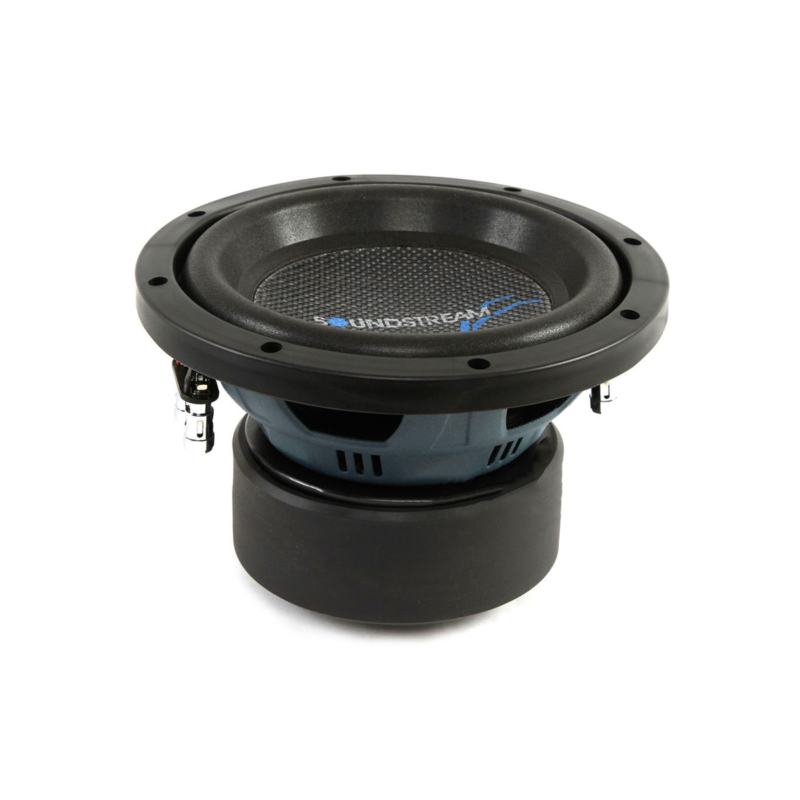

Some times a woofer comes along that changes the game. The R3 is just that. It has a high roll surround for extended excursion. With a big 2” voice coil, and a gigantic motor structure, it can handle some serious power. With unparalleled sound quality, this little woofer can get down and hang with just about any other 8” woofer out there. Weather an SPL competitor or an SQ competitor this is a woofer that can do it all.

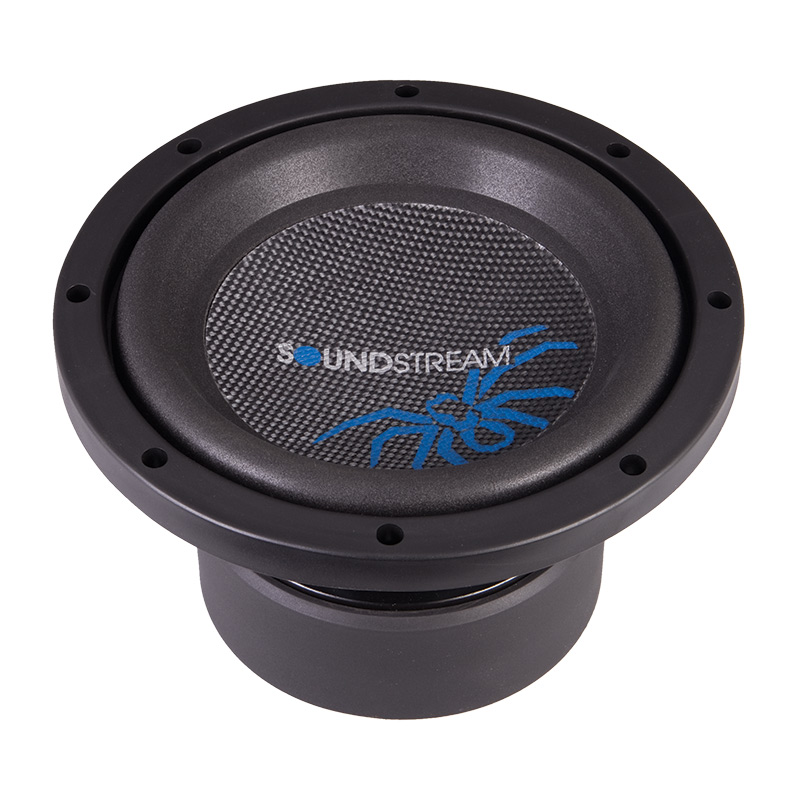

Woven Fiberglass Composite Cone
All Reference R3 woofers use fiberglass stranding woven together for ultimate strength and less elasticity. A heavy soaking in epoxy combined with the sonic qualities of pulp paper backing proves itself worthy of any system.
100% OFC 4-Layer Voice Coil
R3 woofers use generous 1.50″ long, 2.5″ diameter 100% OFC Copper voice coils. A vented Aluminum former extract and dissipate any heat build-up, resulting in improved power handling.
Extended Excursion Polyurethane Surround
Polyurethane is a foam compound used in the manufacture of countless gasket and insulation products, known for its adhesive bonding properties. Reference R3 woofers utilize an extended excursion polyurethane surround for it’s strength and flexible properties during extreme movement.

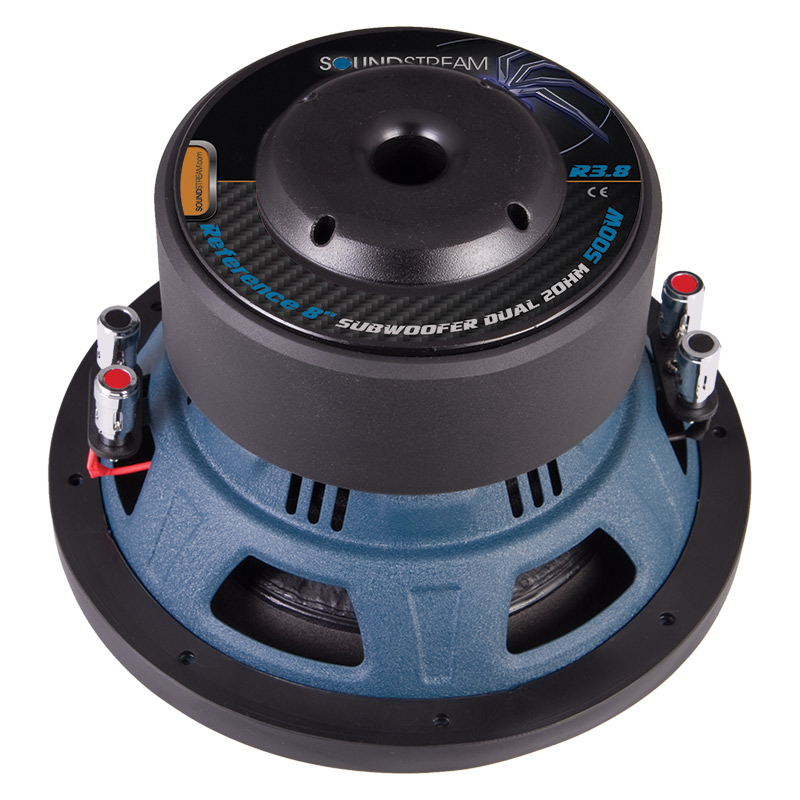

Back Plate & T-Yoke Venting
Heat build-up is a leading cause of catastrophic woofer failure. Venting built into the T-Yoke, back plate, and voice coil extract and dissipate heat, ensuring R3 woofers keep their cool.
Diameter : 8 Inch
Sensitivity : 80.70 dB
Impedance : 2 Ohm
Peak Power Handling : 1000 Watts
Top Mount Depth : 5.25 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.75 Cubic ft.
Suggested Ported Box Volume : 1.25 Cubic ft.
RMS Power Handling : 500 Watts
RMS Power (watts) 500
Efficiency (1w/1m dB) 80.70dB
Voice Coil Configuration 2.00” DVC
Mounting Depth 5.25”
Optimum Sealed 3ft 0.75
Optimum Ported 3ft 1.25
Oversized Concave IMPP Primary Cone
Inverted Roll Polyether Foam Surround
Nickel Plated 12 ga. Compression Wire Terminal
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
This sub is phenomenal, I had a 15" in a sealed box and got the 8" to save space, and wow a optimum ported box sounds just as loud as the 15 Picasso sound stream
