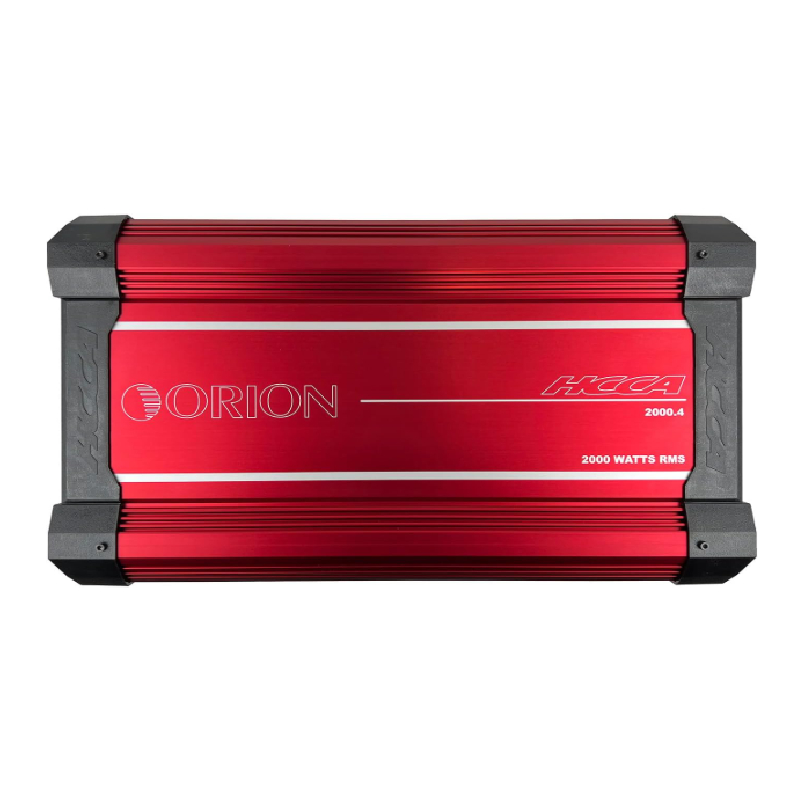

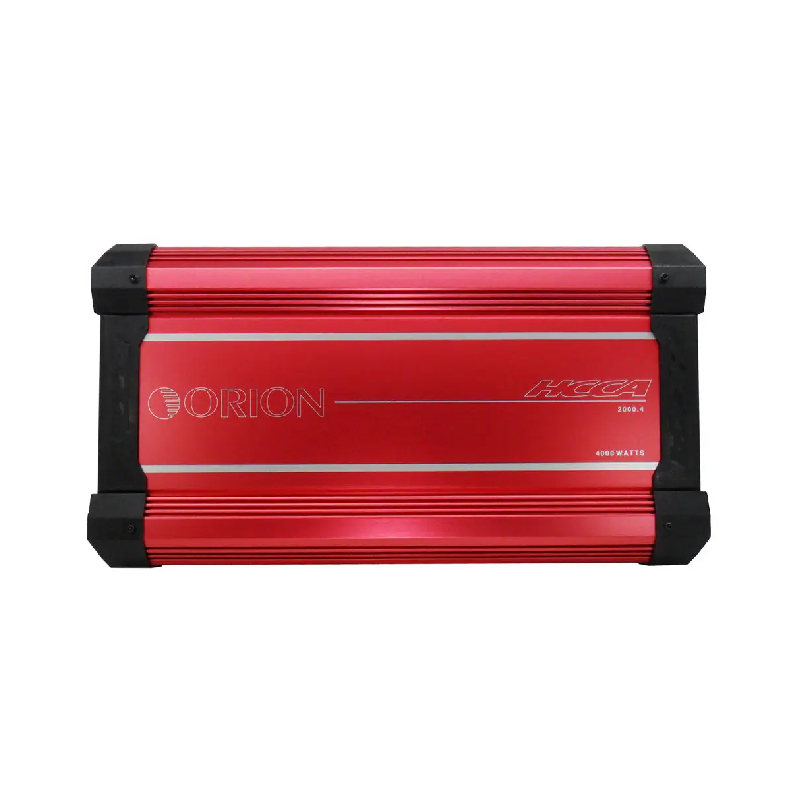

Orion HCCA Series 4-Channel 4000W Max Power, Class A/B Car Amplifier
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Class-AB Amplification and Precision Power
Experience the perfect synergy of Class A’s rich sonic purity and Class B’s efficiency, delivering an audio performance defined by clarity, depth, and control. With 2000 watts RMS of commanding power, this amplifier produces dynamic, distortion-free sound that captures every detail. The adjustable built-in crossover provides precise frequency tuning, allowing you to optimize speaker balance and achieve perfectly calibrated audio performance.
Customized Bass Enhancement and Intelligent Protection
Elevate your audio experience with powerful, adjustable bass boost control that delivers deep, resonant, and hard-hitting low-end performance. Engineered with advanced protection circuitry, the amplifier maintains long-term reliability by safeguarding against overheating, short circuits, and other system stresses—ensuring consistent, high-performance operation every time.
Compact Design and Engineered Excellence
Combining sleek, modern aesthetics with high-performance engineering, this amplifier integrates seamlessly into any setup while maximizing space efficiency. Expertly crafted for superior power efficiency, precise audio reproduction, and reliable operation, it delivers consistent performance and refined sound quality even under the most demanding conditions.
Frequently Asked Questions (FAQ)
- • Why Does the HCCA2000.4 Need Heavy-Gauge Power Wiring?
What power and ground connections are recommended to handle the amplifier's high current demand?
- • Why Does the Amp Go Into Protection?
Could a shorted speaker, voltage problem, excessive heat, or an incorrect load trigger the protection circuit?
- • Can All Four Channels Run at 2 Ohms?
How should speakers be connected when operating each channel at the amplifier's 2-ohm minimum?
- • Why Does the Voltage Drop Under Heavy Load?
Could the battery, alternator, ground, or power cable limit performance during demanding music passages?
- • Why Does the Amplifier Become Hot?
Could restricted airflow or prolonged high-power operation raise the amplifier's operating temperature?
- • Why Is One Channel Quieter Than the Others?
Could different gain settings, RCA connections, speaker wiring, or crossover adjustments cause uneven output?
- • Can I Bridge Two Channels for More Power?
What impedance and wiring arrangement should be used when configuring the HCCA2000.4 for bridged operation?
- • Why Does the Sound Clip at High Volume?
Could excessive gain, a weak input signal, or insufficient electrical supply contribute to audible clipping?
- • How Do I Set the Crossovers Correctly?
What high-pass or low-pass settings should be used to match the amplifier with mids, highs, or subwoofers?
- • Why Does the Amp Shut Off During Hard Bass?
Could temporary voltage sag, thermal protection, or a demanding speaker load cause the amplifier to cut out?
- Number of Channels : 4
- Frequency Response : 10-35000 Hz
- RMS Power Output : 4000 Watts
- RMS Power Range : 2000 Watts
- Amplifier Class : A/B
- Fuse Rating : 200 A
Features:
- Class-AB Amplification: Experience the harmonious fusion of Class A’s pristine sound quality and Class B’s efficiency, delivering an unparalleled audio experience with clarity and depth.
- 2000 Watts RMS: Immerse yourself in powerful and dynamic sound with 2000 Watts RMS, offering commanding performance and exceptional audio detail.
- Precision Audio Control: The adjustable built-in crossover enables precise tuning of audio frequencies, ensuring optimal speaker balance and enhanced system control.
- Customized Bass Enhancement: Amplify your low-end presence with the adjustable bass boost feature, delivering deep, resonant, and hard-hitting bass response.
- Advanced Protection Measures: Equipped with intelligent protection circuitry, the amplifier ensures long-term reliability by defending against overheating and short circuits.
- Compact and Stylish Design: A sleek, modern design that integrates effortlessly into any setup, blending aesthetic appeal with outstanding performance.
- Engineered Excellence: Expertly designed for superior power efficiency, audio accuracy, and dependable performance under demanding conditions.
Specifications:
- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 200A recommended (not included)
- Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520x302x80mm)
- UPC: 818550010697
- Weight: 24
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
