Orion  HCCA1000.4

HCCA Series 4-Channel 2000W Max Power, Class A/B Car Amplifier

Item #36321

Product Highlights

  • HCCA Series
  • 4-Channel
  • 2000W Max Power
  • Class A/B Car Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Rockford Fosgate Banner

Orion HCCA Series 4-Channel 2000W Max Power, Class A/B Car Amplifier


We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel 2000W Max Power, Class A/B Car Amplifier
  • • Owner's Manual




Why Choose Orion HCCA1000.4 Car Amplifier?


High-Fidelity Power and Precision

Experience the seamless balance of performance and purity with advanced Class-AB amplification—combining the warmth of Class A with the efficiency of Class B for rich, dynamic sound reproduction. With 1000 watts of continuous RMS power, this amplifier delivers clean, commanding, and detailed output across the entire frequency range. The adjustable built-in crossover offers precision audio control, allowing you to fine-tune frequency response and optimize your system for flawless, high-performance sound.

Enhanced Bass and Reliable Protection

Elevate your listening experience with customizable bass enhancement, allowing you to fine-tune low-end frequencies for deep, powerful, and resonant performance. Engineered with advanced protection circuitry, this amplifier safeguards against thermal overload and short circuits, ensuring dependable, long-lasting operation and peace of mind during every session.

Compact Design and Precision Engineering

Featuring a sleek, space-efficient form factor, this amplifier blends seamlessly into any setup while delivering uncompromising power and style. Expertly engineered for exceptional sound accuracy, energy efficiency, and rock-solid reliability, it’s built to perform flawlessly even under the most demanding conditions.


Orion HCCA1000.4 Highlights


1000W RMS POWER

4-Channel Performance

Delivers up to 1,000W RMS with 4 x 250W at 2 Ohms for powerful system output.

CLASS-AB POWER

Power Meets Precision

Class-AB amplification combines strong output with detailed and controlled sound reproduction.

FLEXIBLE OUTPUT

Tri-Mode Capable

Supports 4-channel, 3-channel, 2-channel, and tri-mode system configurations.

AUDIO CONTROL

Adjustable Crossover

Variable high-pass and low-pass filters provide precise control over speaker frequency ranges.

BASS ENHANCEMENT

0–18dB Bass Boost

Adjustable bass boost lets you add low-frequency impact to match your system setup.

4-WAY PROTECTION

Built-In Safety System

Protection monitoring helps guard against thermal, DC offset, short-circuit, and voltage issues.

HEAVY-DUTY BUILD

High-Current Terminals

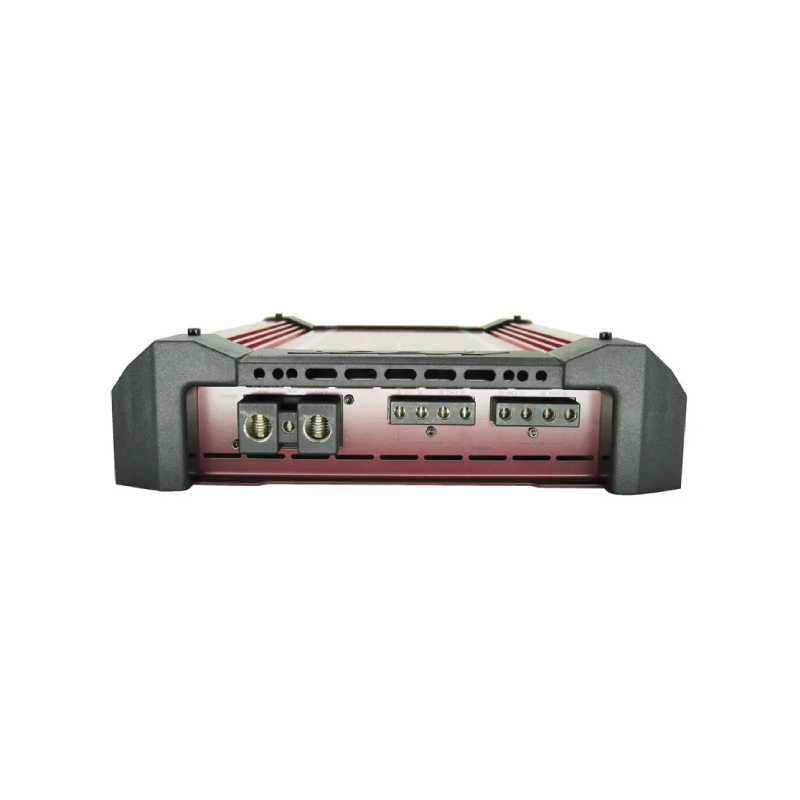

Direct-wire high-current power and speaker terminals support demanding audio installations.




Frequently Asked Questions (FAQ)


  • • Why Does the Fan Make Noise?
    Some users report noticeable fan noise during operation. Is this normal.
  • • Why Does the Amp Go Into Protection?
    What wiring, load, or thermal issues can trigger the protection circuit.
  • • Can It Run at 2 Ohms?
    Will the HCCA1000.4 deliver its rated power safely with a 2-ohm load.
  • • Why Is There No Sound?
    What should be checked when the amplifier powers on but produces no audio.
  • • Does It Get Hot During Use?
    How can proper ventilation help prevent heat-related shutdowns.
  • • What Causes Output Failure?
    Could speaker wiring shorts or incorrect connections damage the output stage.
  • • Can the Amp Be Bridged?
    How should channels be configured when using the amplifier in bridged mode.
  • • Why Is the Output Weak?
    Could gain settings, input voltage, or crossover adjustments affect performance.
  • • What Power Wiring Is Needed?
    What cable and fuse setup is appropriate for this high-power amplifier.
  • • How Can Fan Noise Be Reduced?
    What can users check before replacing or servicing the cooling fan.

SPECIFICATIONS


  • Number of Channels : 4
  • Frequency Response : 10-35000 Hz
  • RMS Power Output : 2000 Watts
  • RMS Power Range : 1000 Watts
  • Amplifier Class : A/B
  • Fuse Rating : 80 A

FEATURES


Features:

  • Class-AB Amplification: Experience the perfect harmony of Class A’s sonic purity and Class B’s efficiency, delivering a rich, dynamic, and powerful audio experience.
  • 1000 Watts RMS Power: Unleash 1000 watts of continuous RMS output for clean, impactful, and finely detailed sound performance across all frequencies.
  • Precision Audio Control: Fine-tune your system with the adjustable built-in crossover, allowing precise calibration to optimize your speakers’ output.
  • Customized Bass Enhancement: Boost your low-end response with an adjustable bass feature that adds depth, power, and resonance to your music.
  • Advanced Protection Measures: Built-in protection circuitry guards against thermal overload and short circuits, ensuring safe and reliable long-term operation.
  • Compact and Stylish Design: A sleek, space-efficient design that seamlessly integrates into any setup, combining modern aesthetics with superior performance.
  • Engineered for Excellence: Expertly crafted for maximum sound accuracy, power efficiency, and dependable performance under demanding conditions.





Specifications:

  • Frequency Response 10Hz to 35kHz +/- 1 dB
  • Linear Bandwidth 20Hz to 65kHz +/- 3 dB
  • High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
  • Low Pass Crossover Continuously variable (40-300Hz)
  • Phase shift control 0 to 180
  • Bass Boost 0-18dB variable
  • Distortion at Rated Power 0.005% THD+N
  • Damping Factor > 100
  • Input Sensitivity(RMS) 200mV to 6V
  • Supply Voltage Range 9 to 16V
  • Input Impedance 20K Ohms
  • Amplifier Efficiency > 67% into 2 Ohms load at max. power
  • SNR at rated output power and lowest impedance > 95dB
  • Fuses: 80A recommended (not included)
  • Dimensions (L x W x H): 15" x 11.7" x 2.8" (381 x 297.18 x 71.12mm)
  • UPC: 818550010673
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
