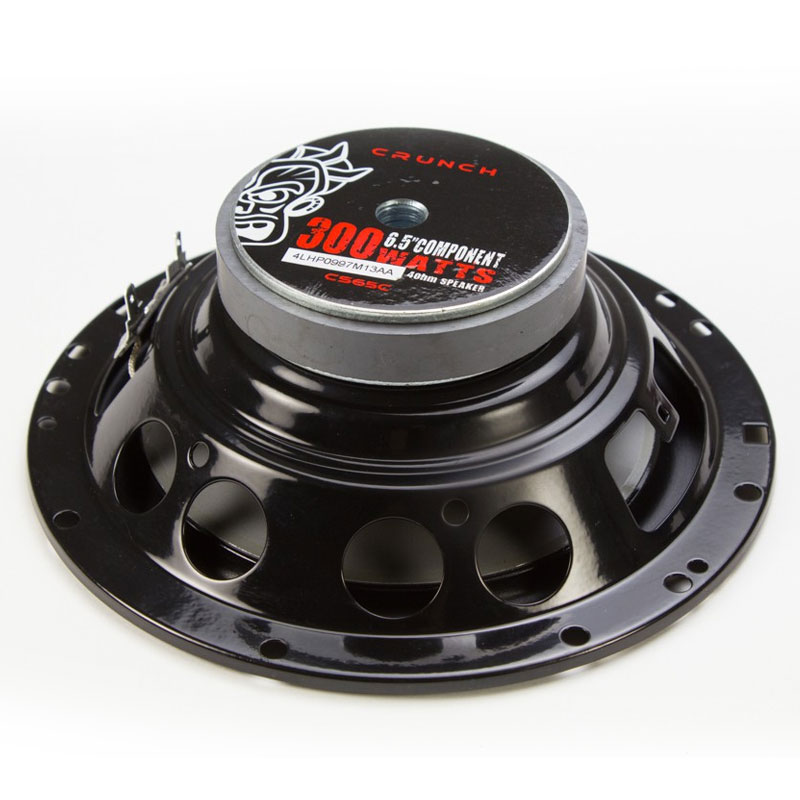

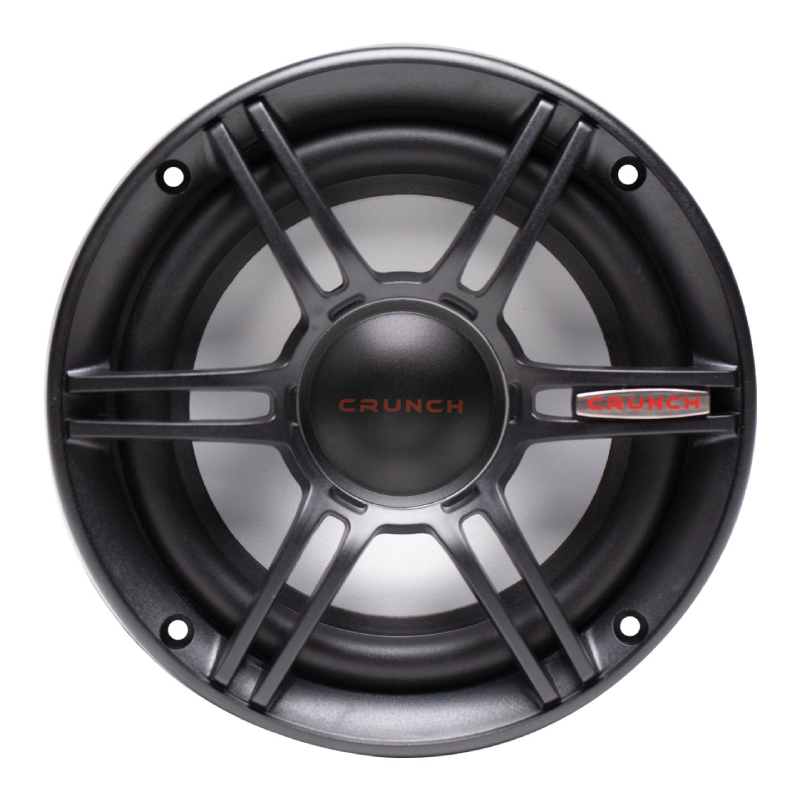

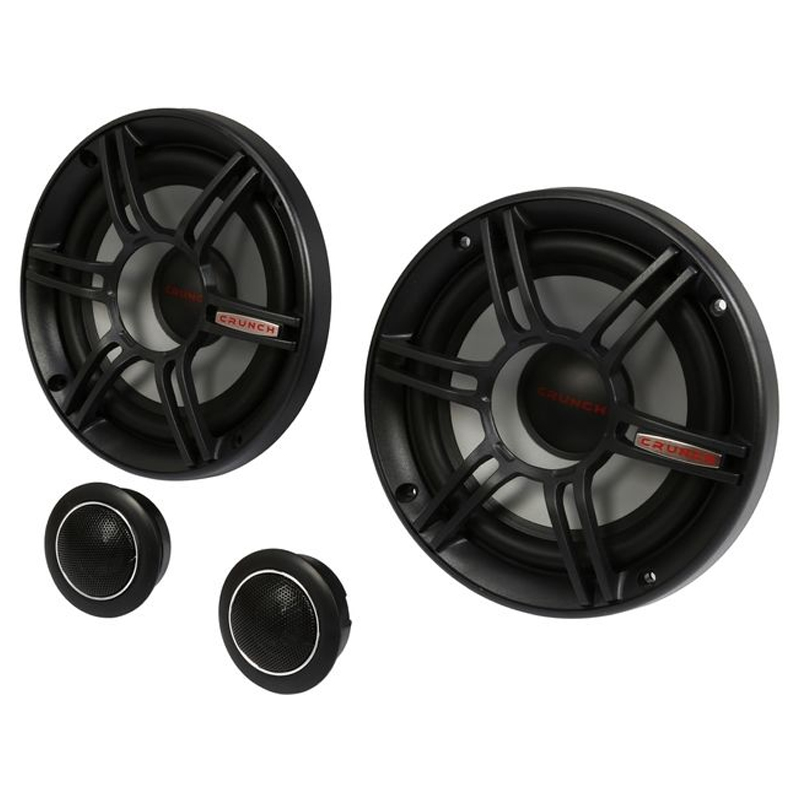

Crunch 6.5 Inch 300 watt component speaker system utilizing Neo Mylar Soft Dome Tweeters and Silver Alpha-Cellulose Poly Cones
TYPE: 5 x 7" - 6 x 8" Coaxial Full Range Speaker
CATEGORY: Coaxial Speakers
PEAK POWER HANDLING (CEA426B): 300 watts
SENSITIVITY (1 WATT/1 METER): 88dB
IMPEDANCE: 4 ?
RMS POWER HANDLING(CEA426B): 150 watts
Diameter : 6.5 Inch
Sensitivity : 89 dB
Peak Power Handling : 300 Watts
Shallow Mount : Yes
RMS Power Handling : 150 Watts
Rms Power Handling(Cea426b): 150 Watts
Peak Power Handling (Cea426b): 300 Watts
Speaker Impedance: 4
Frequency Response +/- 10db
Sensitivity (1 Watt/1 Meter) : 88db
Crossover Point: 2k Hz
Crossover Slope: 12db
Mounting Diameter/cut Out: 5.59
Outside Diameter: 7.01
Mounting Depth/chassis Depth: 2.12
16.63 X 7.88 X 4.38 In
42.2 X 20.0 X 11.1 Cm
Product Weight: 4.65 Lbs (2.1 Kg)
Features & Benefits:
TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
SURROUND: UV Resistant Rubber Surround Moisture Resistant Rubber Surround with high Mid-Bass Impact
CONE: Silver Alpha-Cellulose Poly Cones Produces musical midrange and bass tones while remaining light weight
SURROUND / CONE COUPLING: High Temperature Adhesive The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
GASKET: Textured ABS Assures a ridged linear seal to the mounting surface
TINSEL LEADS: Braided Highly conductive while remain flexible during high power applications
VOICE COIL: Pure Copper Creates strong magnetic field with a very thin extrusion
VOICE COIL FORMER: Kapton Lightweight and efficiently dissipates heat
SPIDER: Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
COOLING SYSTEM: Over-Coil Air is exchanged over the voice coil through the spider

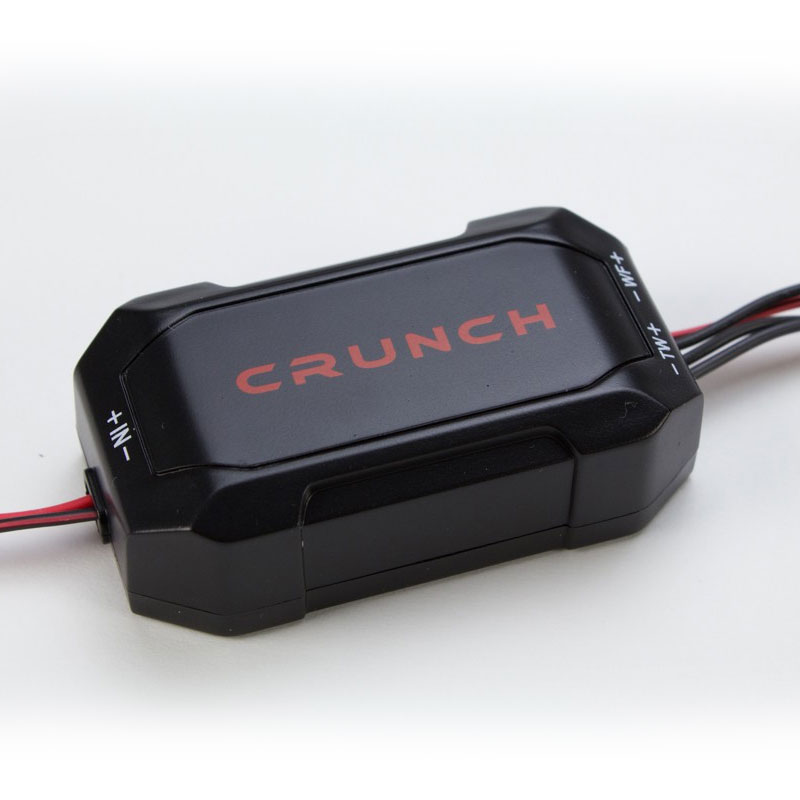

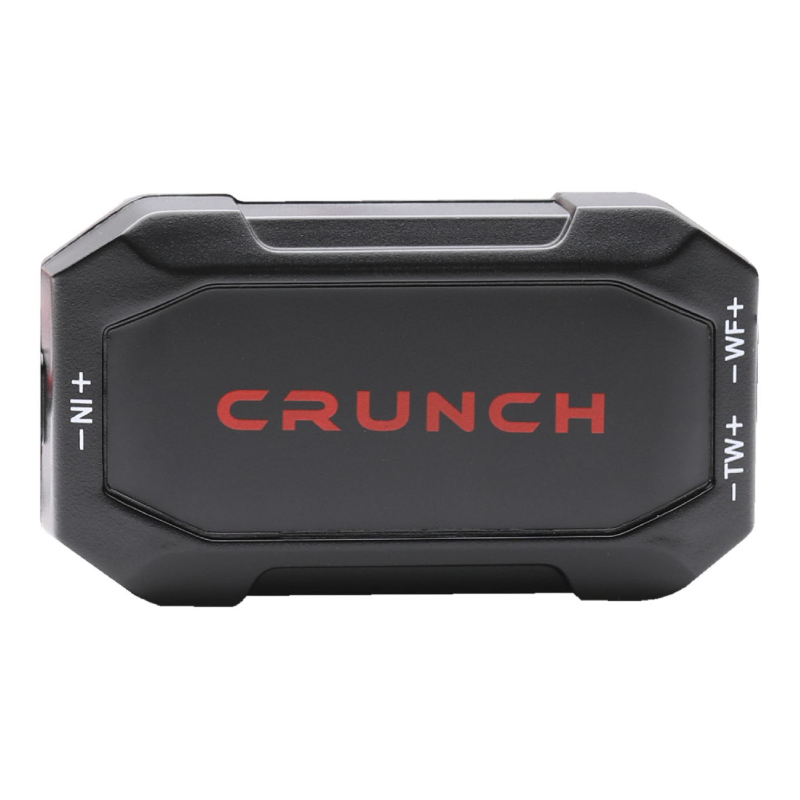

CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
CROSSOVER SPECIAL: External 12dB Premium capacitors help create a smooth component system with exacting crossover points
FRAME: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
CONNECTORS: Spade Use spade connectors or solder direct for the best connection
TWEETER HARDWARE: Included Several mounting options are included to maximize installation placement
GRILLS: No Use spade connectors or solder direct for the best connection

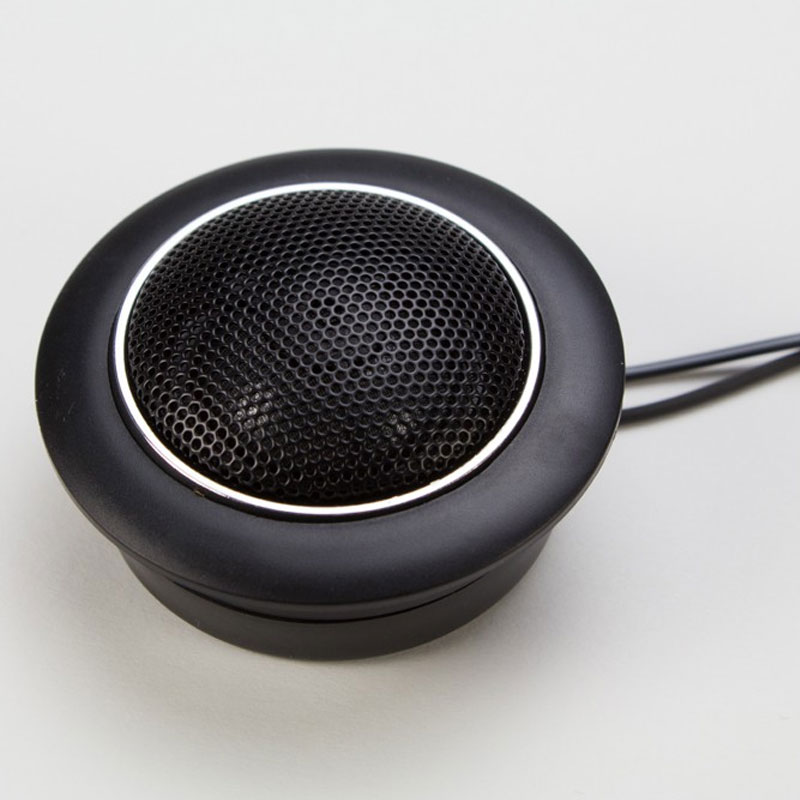

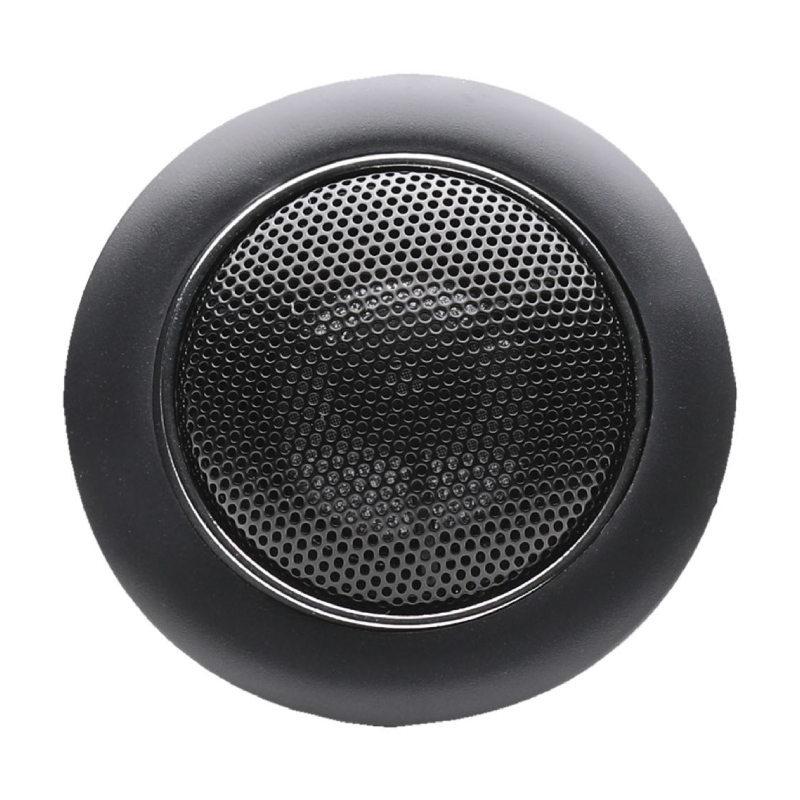

TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
MOUNTING HARDWARE OPTIONS: Included for tweeter Several mounting options are included to maximize installation placement
