What's Included:
- 2 Angled surface mount tweeter housings
- Product Information Inside Box
- 2 Long tweeter mounting nuts
- Four 7" Zip-ties
- 4 Red plastic butt connectors
- Two tweeters (each with 35" Wire attached)
- 2 Short tweeter mounting nuts
- Two 5/8" Self-tapping screws
- Twelve 1" Self-tapping screws
- Two woofers
- 2 Woofer grilles
- 2 Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)
- 2 Flush mount tweeter rings
- 2 Back angled tweeter rings
- 2 Front angled tweeter rings
- 8 Speed clips
- Owner's manual (English/ Spanish/ German/ French)
Product Highlights:
- power range: 2-100 watts RMS (300 watts peak power)

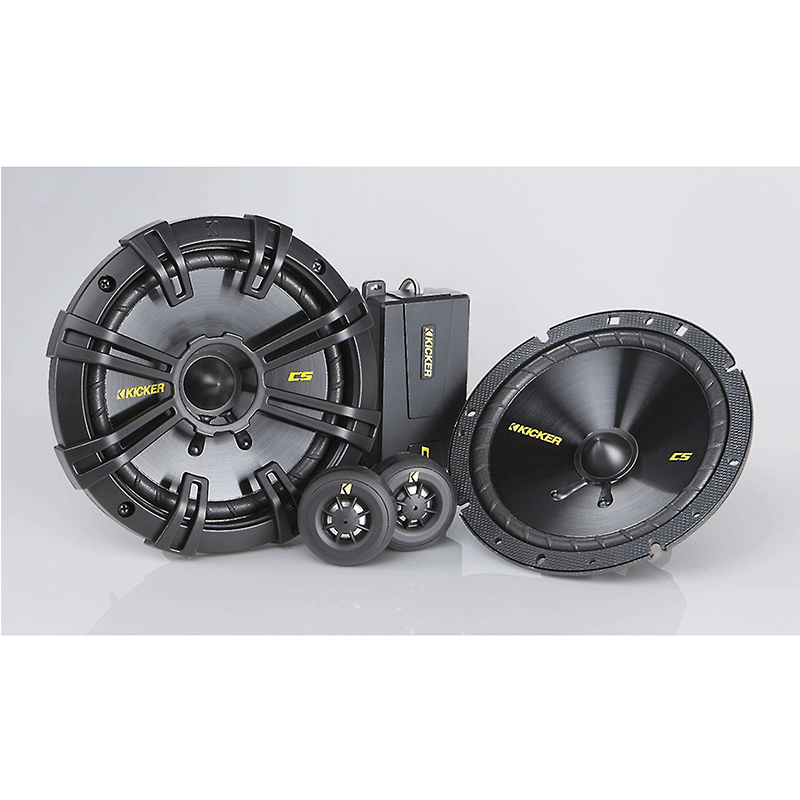

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- top-mount depth: 1-13/16"

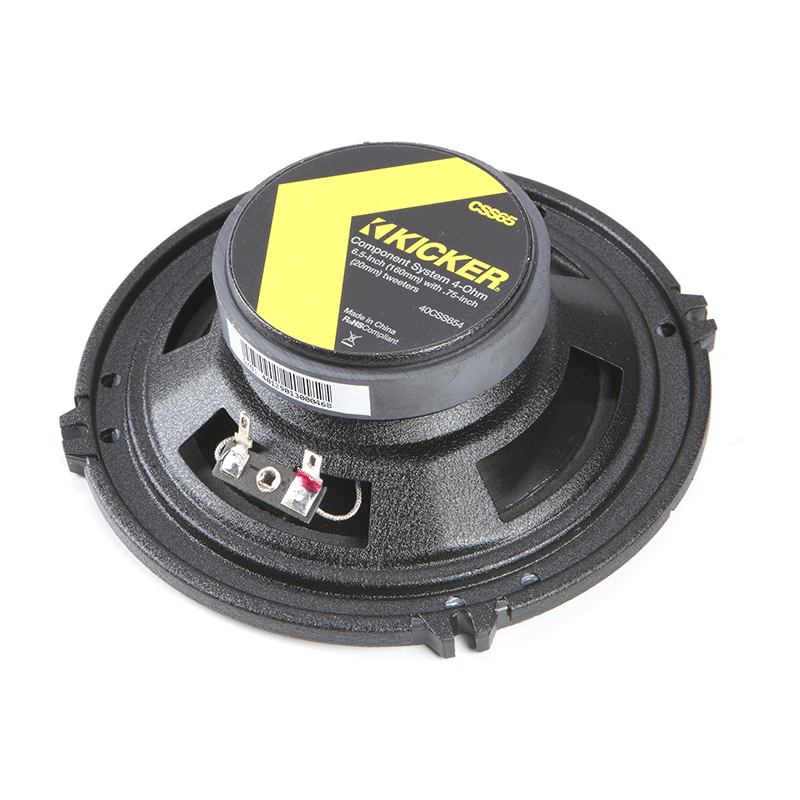

- 6-1/2" polypropylene woofers with polyester foam surrounds
- 3/4" titanium dome tweeters
- external crossover network with 3 tweeter levels (0, +3, +6 dB)
- frequency response: 35-21,000 Hz
- sensitivity: 90 dB
- Diameter : 6.5 (approx) Inch
- Sensitivity : 90 dB dB
- Impedance : 4(3.3) Ohm
- Frequency Response : 35-21,000 Hz
- RMS Power Range : 100 Watts
- Peak Power Handling : 300 Watts
- Top Mount Depth : 1-13/16" Inches
- Woofer Composition : 6-1/2", 16cm
- Tweeter Composition : 3/4", 2cm
The CS 6-1/2-Inch Component Speakers are an outstanding factory upgrade. The components include Titanium tweeters and polypropylene woofers with EVC™ (Extended Voice Coil) technology, for a customized sound and the best sonic quality. These CS speakers work best with 100 watts of recommended power.
Specifications |
Impedance (Ohms) |
4 |
Woofer Surround |
Polyester Foam |
Design |
2-way |
Minimum RMS Wattage |
2 |
Frequency Response |
35 - 21k Hz |
Woofer Composition |
Polypropylene |
Tweeter Design |
3/4" Dome |
Cutout Diameter or Length (inches) |
4 7/8 |
Sensitivity |
90 dB |
Peak Power Handling (Watts) |
300 |
Speaker Size |
6 1/2 |
Tweeter Composition |
Titanium |
Maximum RMS Wattage |
100 |
Top-mount Depth (Inches) |
1 13/16 |
Bottom-mount Depth (Inches) |
2 1/8 |
- UPC: 713034064305
- Weight: 5.8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
