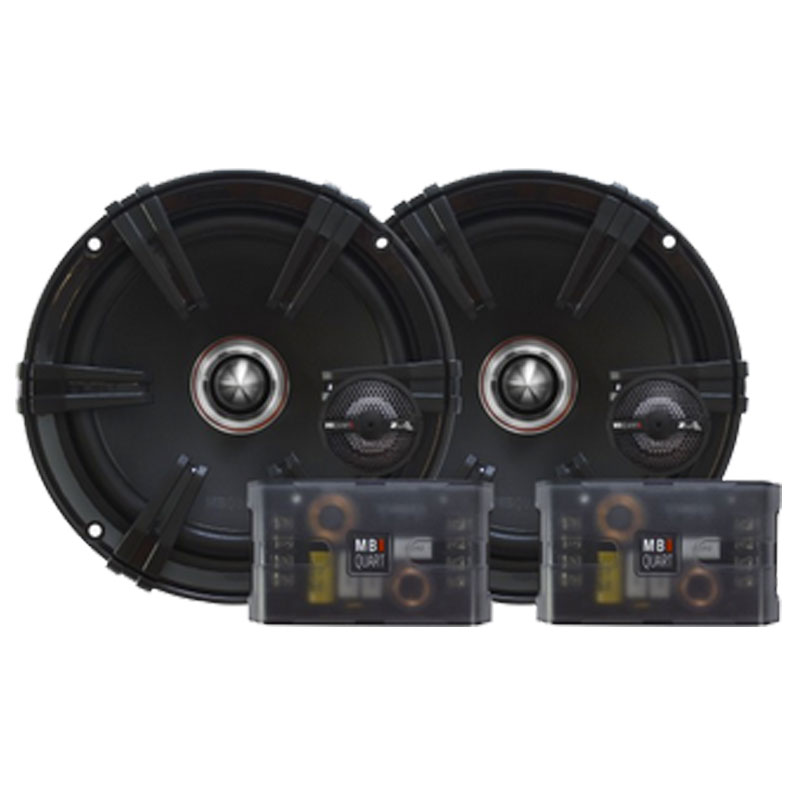

TOP OF THE LINE - MB Quart Z-Line 6.5 inch 2 way car audio component speaker system with ceramic coated, titanium dome tweeters with the removeable phase lens. Includes external crossovers with 12dB per octave slope.
General Features:
- CERAMIC COATED 1.4” (38MM) TITANIUM DOME TWEETER
- Ceramic coating helps to reduce over tones and harmonic distortions that can occur when using Titanium at higher power levels. The unique tweeter assures the system is producing the highest sound quality with the lowest distortions.
- 35MM (1”) DOME ON A 25MM (1”) VOICE COIL
- Creating a larger radiating area on the dome creates more output giving the tweeter a louder yet smoother sound.
- REMOVABLE PHASE LENS
- The phase lens allows “Dispersion Tuning” which permits the listener to widen or narrow the width of the soundstage depending on the chosen mounting location. When the tweeter is installed away from listeners or pointing at a windshield, a wide dispersion is better - phase lens on.
- When the tweeter is mounted with direct access to the listener, the phase lens off, creates a narrow soundstage with brighter high tones. Additionally, the phase lens aides in reducing harsh harmonic that can develop at higher frequencies.
- NYLON SURROUND
- The Z-Line tweeters are mated to a Nylon Surround which dramatically reduces the Fs specification. Subsequently, you will hear very smooth high frequencies, even when pushing the system hard.
- OVERSIZED THERMAL FORMED CONE
- The injection molded Polypropylene Cone delivers impactful midrange/midbass and is perfectly matched to the Butyl Rubber Surround for great sound.
- UNDER MOUNTED UV BUTYL SURROUND
- Mounting the surround on the backside of the cone improves strength. Flexible piston action UV protected rubber which will be impervious to temperature swings of very warm and very cold.
- PA66 COMPOSITE BASKETS WITH GLASS FIBER REINFORCEMENT
- PA66 is a composite cast material designed to be used in future orbital spacecraft. Its purpose is incredible strength but lightweight. PA66 is what NASA uses to eliminate metal parts with composites.
- PA66 is far more temperature and chemical resistant than standard plastics or ABS. This is important when developing low midrange and bass frequencies in a small diameter driver. Reduce the flex in the frame and you tighten the sound by eliminating weak points in the mounting system.
- ABS GASKET
- Strong ABS plastic is used to seal the mounting between the speaker frame and the vehicle
- TINSEL LEADS SILICONE JACKET
- Silicone jacketed, extra flexible leads for strength and durability
- VOICE COIL FORMER
- Aluminum - Lightweight aluminum former which helps voice coil dissipate heat
- BUMPED DESIGN COTTON SPIDER
- Adhesive impregnated cotton spider with bumped design which allows for more clearance and longer excursion
- CROSSOVER DESIGN
- 12db high-pass / low pass crossover on components. High end capacitors and resistors create a smooth transition between midbass tones from the woofer/midbass and midrange tone with higher frequencies handled by the tweeter. These crossover points make critical frequencies seamless and distrotion free.
- SPRING LOADED TERMINALS
- All speakers utilize spring loaded connectors for positive and negative speaker wire connections. Connectors are satin finish nickel plated brass to resist rust
- MOUNTING / INSTALLATION
- Euro-DIN - Unique shaped mounting brackets and holes to accommodate OEM and custom installations for midrange
- TWEETER HARDWARE
- Flush and Surface hardware Included
- Diameter : 6.5 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 20-20k Hz
- RMS Power Range : 120 Watts
- Peak Power Handling : 240 Watts
- Design : 2 Way
- Top Mount Depth : 2.56 Inches
- Woofer Composition : Mica Injected Polypropylene (MIPP)
- Tweeter Composition : Titanium
- Shallow Mount : No
- Product Highlights:
- POWER HANDLING RMS 60 watts
- POWER HANDLING PEAK 120 watts
- IMPEDANCE 4 Ohm
- CROSSOVER POINT 3.2 kHz
- SENSITIVITY (1 WATT / 1 METER) 88db
- FREQUENCY RESPONSE +/- 10DB 20Hz - 20,000Hz
- CROSSOVER SLOPE 12dB/12dB per octave
- CUT-OUT Ø 5.59" (142mm)
- CHASSIS DEPTH FROM FLANGE 2.56" (65mm)
- UPC: 806576224617
- Weight: 6
