Infinity REF-9620CX
alternate product image 1alternate product image 2alternate product image 3alternate product image 4alternate product image 5
Clearance Item# 46116 / Condition:  Brand New

Infinity REF-9620CX

6” x 9” Two-way component system w/crossover. 3.0 ohms impedance and 93dB sensitivity / REF9620CX Review this product

FREE Shipping in US 48!

Regular Price:$270.00
Savings Of:$168.81
  • comments
  • email
  • Facebook
  • Twitter
  • Print

What other people bought after viewing this product.

affirm financing small logo
affirm financing extra small logo

Related Video:

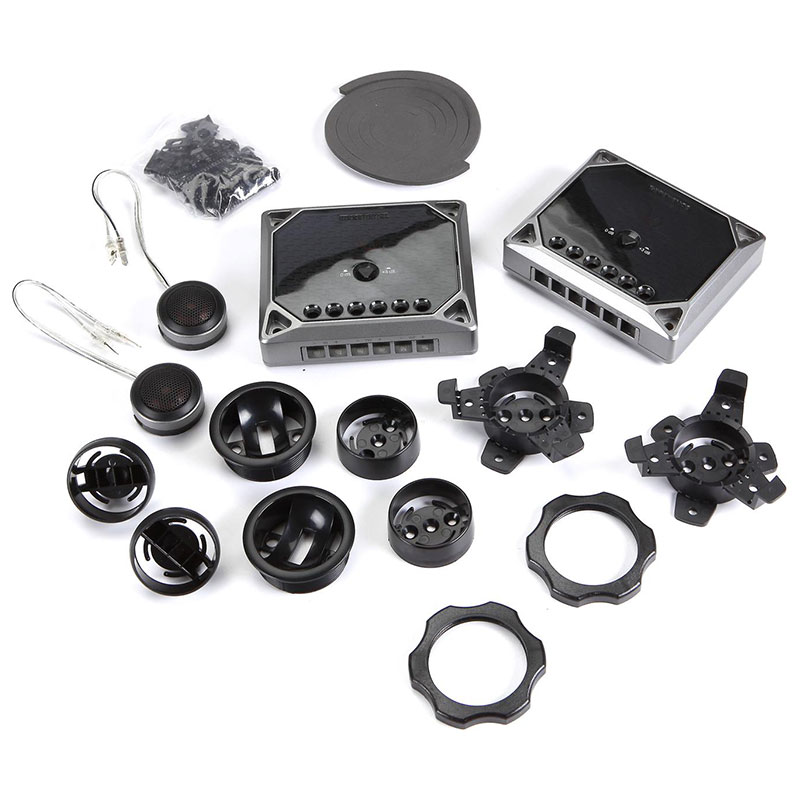

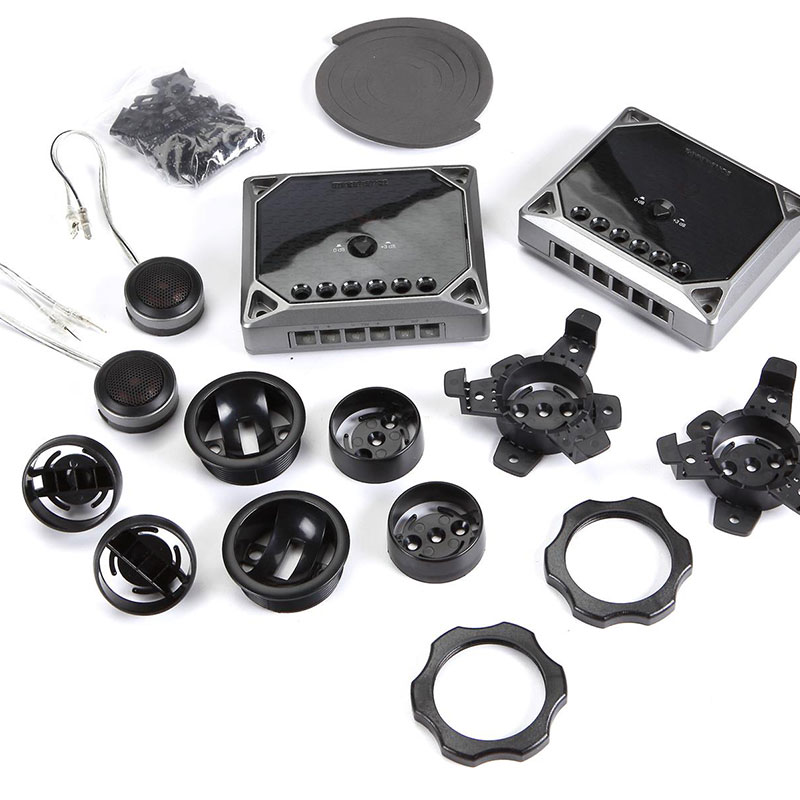

What's Included:

  • 2 Tweeters (each has attached 6" speaker leads)
  • 2 Grille frames
  • Instruction manual
  • 2 Tweeter flush-mount housings
  • 2 Woofer grilles
  • 2 Adhesive backed foam gaskets
  • 2 Threaded flush-mount adapters
  • 2 Washers
  • Eight 1-3/8" Screws
  • 2 Plastic locking nuts
  • 2 Woofer bottom mount rings
  • 8 Speed clips
  • 2 Woofers
  • 2 Crossovers
  • 2 Tweeter surface-mount housings
  • 2 Starfish tweeter mounts
  • Eight 1-1/8" Screws
  • Six 5/8" Flat head screws
  • 2 Nuts
  • 2 Infinity logos
  • Template on box

Product Highlights:

  • RMS: 250 watts per pair / 125 watts each
  • Response Frequency: 46-21000Hz
  • 6x9" Reference Series 2-Way Component System
  • Power Handling:
  • Peak: 750 watts per pair / 375 watts each
  • Power Range Recommendation: 20 - 125 watts RMS per channel
  • Plus One™ woofer cone
  • Edge-driven, textile tweeters
  • Output level control of 0dB or +3dB on Tweeters for optimized system linearity
  • 3.0 ohms impedance
  • Sensitivity: 93dB

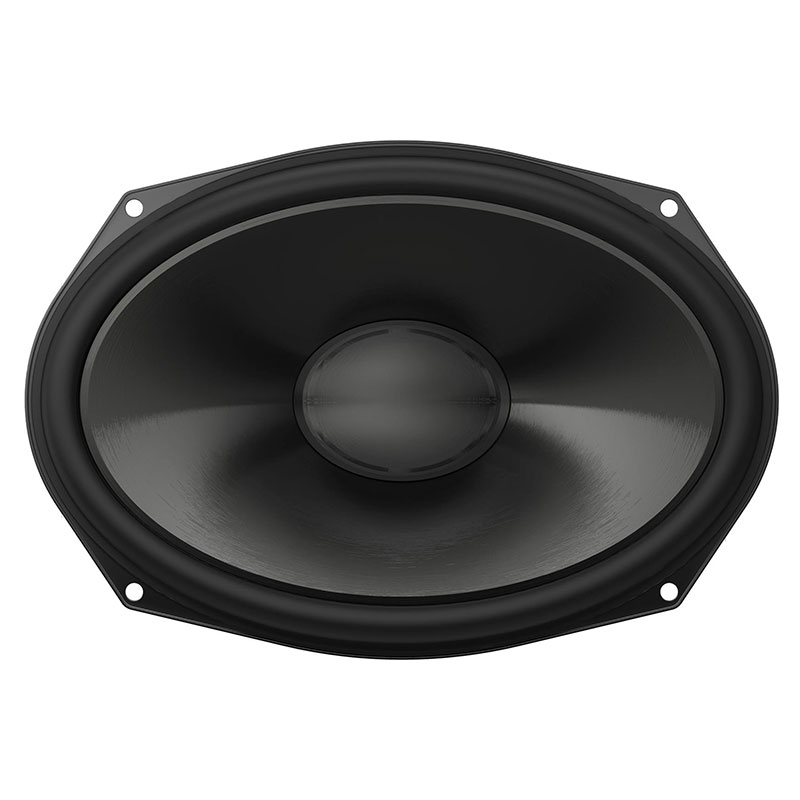

Infinity’s 6"x9" Plus One+ polypropylene woofer with hi-roll rubber surround component speaker systems delivers in terms of sound and quality. Firstly, the unit features 3/4" Edge-Driven Dome technology with textile tweeter composition as well as Polypropylene woofer composition. Rubber woofer surrounds distribute a distinct sound. The sensitivity pushes 93 dB while the frequency response registers at 46-21khz. Peak power handling come in at 375 watts. In addition, the unit provides 3 Ohms impedance. Multiple mounting styles are including. The I-Mount system allows surface or flush tweeter installation. Furthermore, Starfish Mounting brackets allow behind the grille tweeter installation. The system features Plus One+ Woofer Cones which provide even greater bass output and a substantial difference in performance.


Peak Power Handling 375 (Watts)
Woofer Surround Rubber
Bottom-mount Depth 3.7 (Inches)
Tweeter Design 3/4" Edge-Driven Dome
Design 2-way
Impedance 3 (Ohms)
Response Frequency 46 - 21k Hz
Woofer Composition Polypropylene
Speaker Size 6X9
Tweeter Composition Textile
Sensitivity 93 dB
RMS Power Range N/A (Watts)
Top-mount Depth 3.06 (Inches)
  • UPC: 050667371029
  • Weight: 7.04
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
