Infinity REF-5020cx Reference Series 5-1/4” 2-way Component Speaker System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

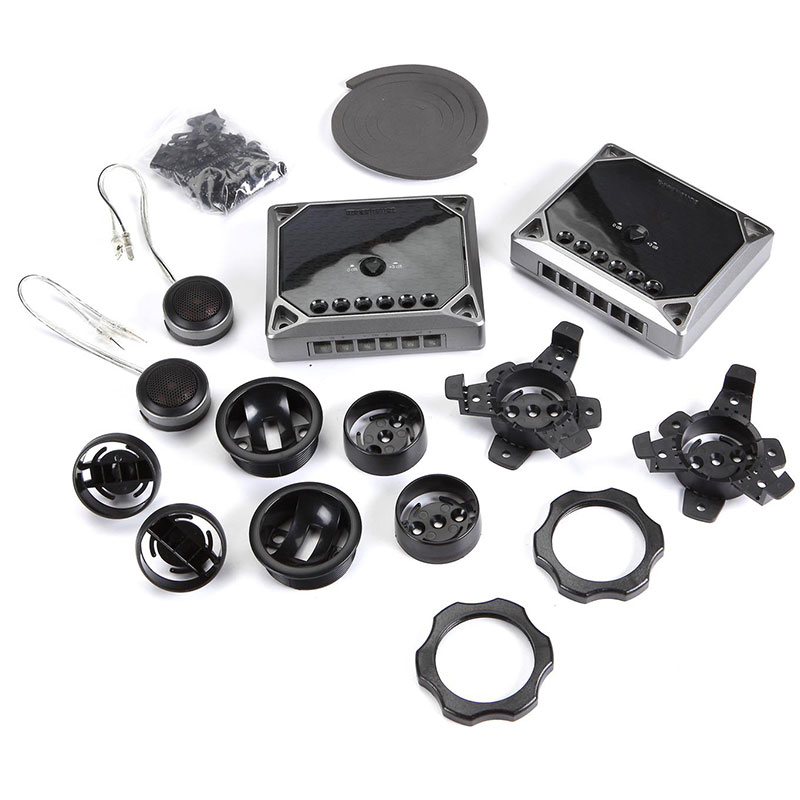

•(2) Tweeters (each has attached 6" speaker leads)
•(2) Tweeter flush-mount housings
•(2) Threaded flush-mount adapters
•(2) Plastic locking nuts
•(2) Tweeter surface-mount housings
•(2) Starfish tweeter mounts
•(8) 1-3/8" Screws
•(8) 1-1/8" Screws
•(8) Speed clips
•(6) 5/8" Flat head screws
•(2) Adhesive backed foam gaskets
•(2) Infinity logos
Good Match for a Factory Radio
You can power these speakers with up to 65 watts of RMS power — they'll work well with an external amplifier, but they're also a good match for a factory radio or aftermarket stereo. Plus, these 3-ohm speakers combine with the speaker wire in your vehicle so your car stereo sees actual 4-ohm impedance, so you get a little more volume out of your system.

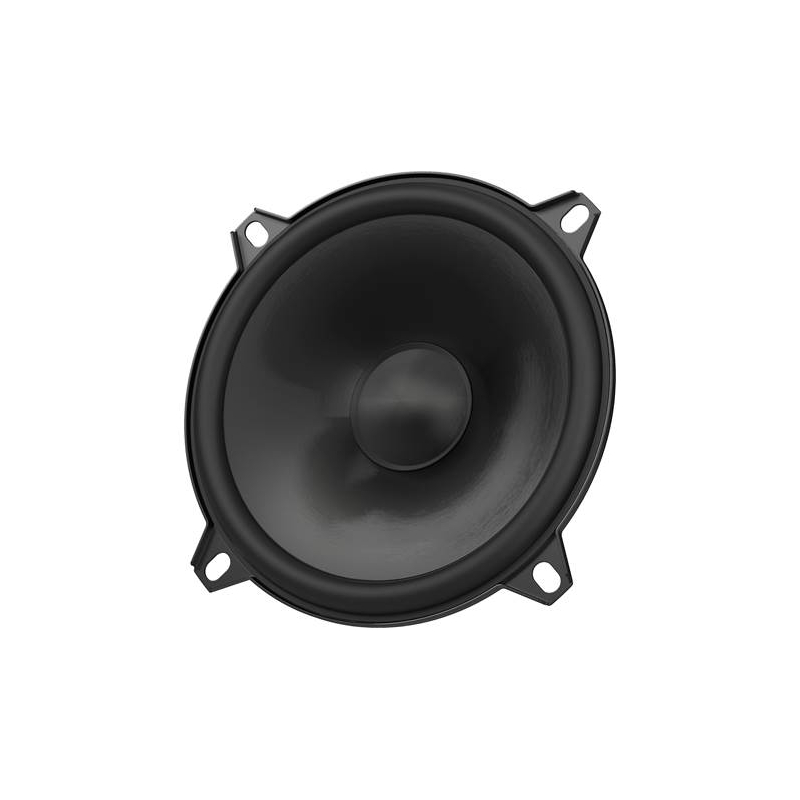

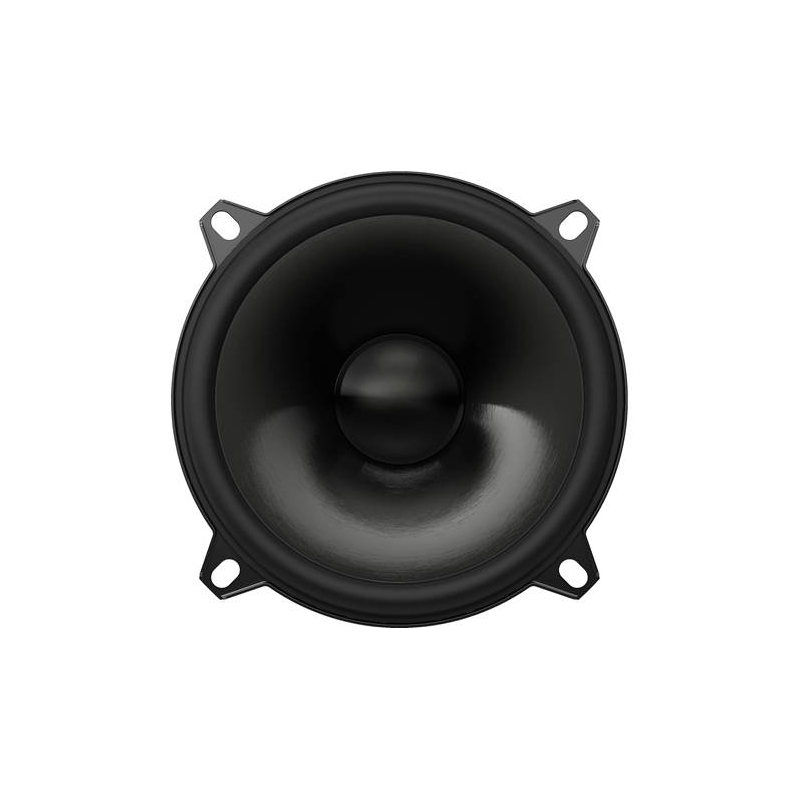

Tough Polypropylene Woofer
The tough polypropylene woofer with its durable hi-roll rubber surround delivers surprisingly strong performance. Each Plus One+ woofer sports a significantly larger cone than speakers of similar size, adding plenty of punch to the speaker's smooth and accurate highs.
Bring Out All the Details in Your Music Without Sounding Harsh
With a new component system, you'll hear the details you've been missing in your car's sound system. Infinity's Reference Series REF-5020cx 5-1/4" component speaker system offers exceptional clarity, thanks to edge-driven textile tweeters that bring out all the details in your music without sounding harsh.
Diameter : 5.25 Inch
Sensitivity : 93 dB
Frequency Response : 67-21000 Hz
Peak Power Handling : 390 Watts
RMS Power Handling : 130 Watts

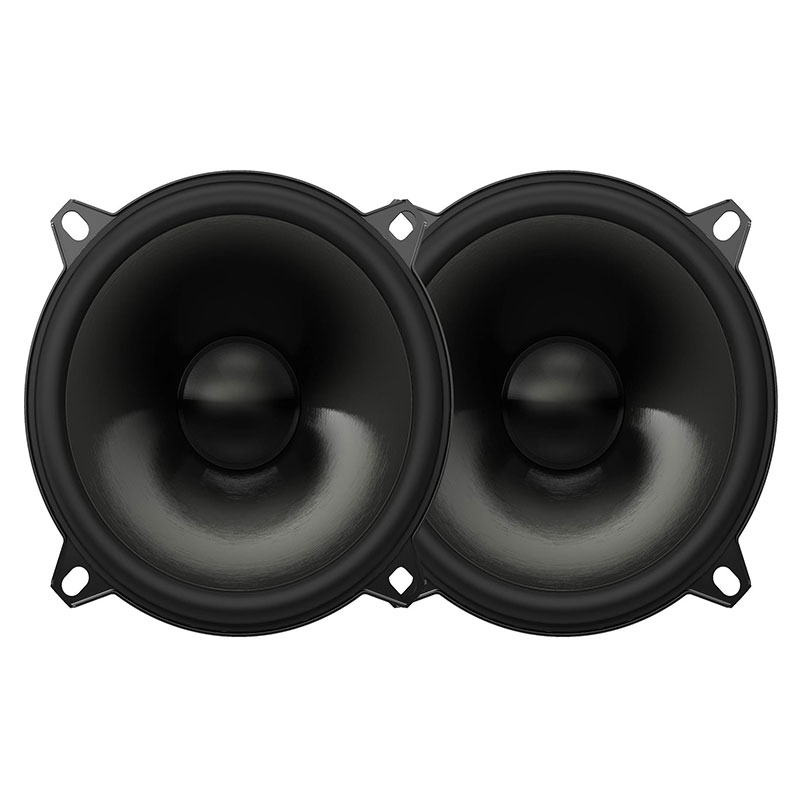

Plus One+ Woofer Cones: Each speaker uses a larger cone than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Hi-roll Rubber Surrounds: The hi-roll rubber surrounds allow the woofers a greater range of movement, resulting in longer X-max and more bass output.
Material: Each tweeter features a 3/4" edge-driven textile dome for smooth, accurate highs.
Mounting: The I-Mount tweeter mounting system and Starfish mounting brackets give you several different ways to mount the tweeters:
I-Mount: The tweeters can be surface- or flush-mounted with Infinity's innovative I-Mount system:
Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
Flush Mount: Flush mounting is made easy through the use of the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
Starfish Mounting Brackets: The Starfish mounting brackets allow the tweeters to be installed in factory locations behind the grilles:
Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just under a half inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.

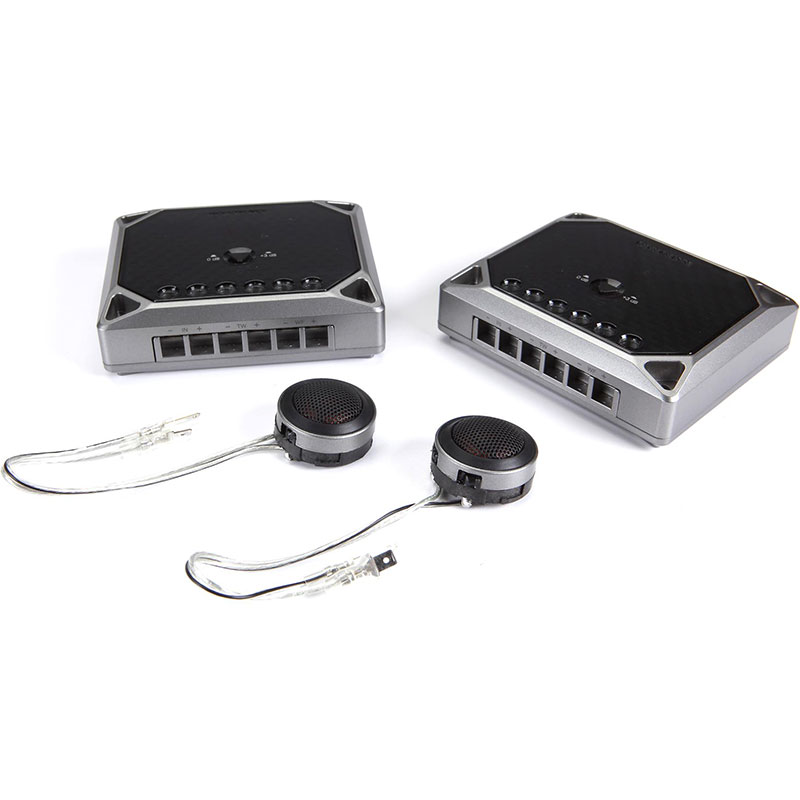

Selectable Tweeter Output Level: Each 2-way crossover allows you to select the tweeter output level according to system requirements and personal preference; the tweeter level can be set to +3 dB or 0 dB.
Connections: The crossover inputs and outputs are screw terminals; they will accommodate bare wire or spade connectors up to 0.31" wide. There are four mounting holes in each crossover.

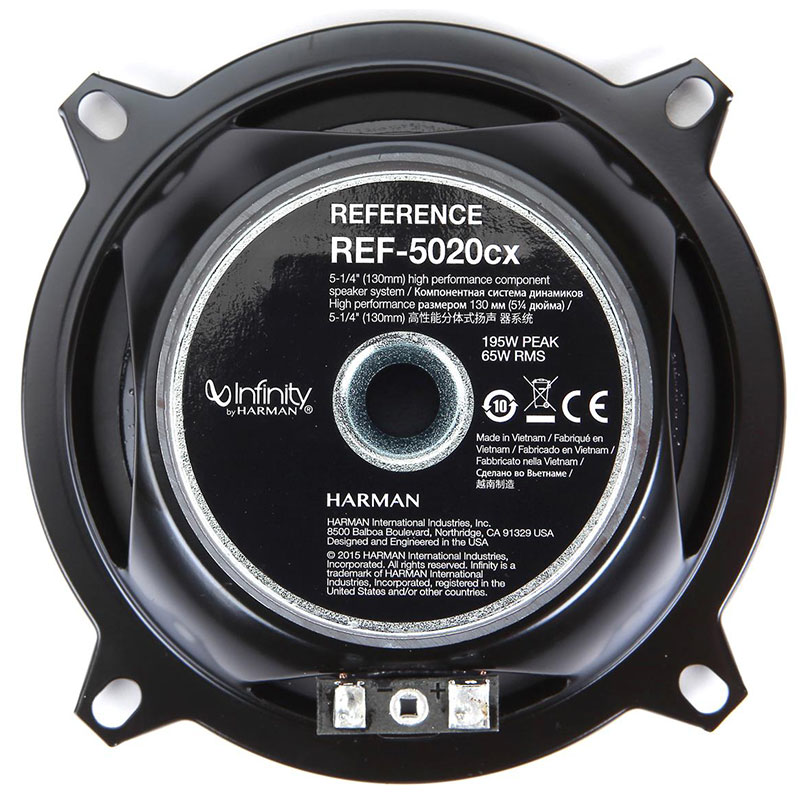

High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers. This results in clearer, richer sound for the listener.
Speaker Size: 5 1/4
Tweeter Design: 3/4" Edge-Driven Dome
Impedance (Ohms): 3
Tweeter Composition: Textile
Woofer Composition: Polypropylene
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): N/A
Sensitivity at 2.83 volts: 93
Frequency Response: 67 - 21k Hz
Minimum RMS Wattage: ---
Maximum RMS Wattage: 65
Peak Power Handling (Watts): 195

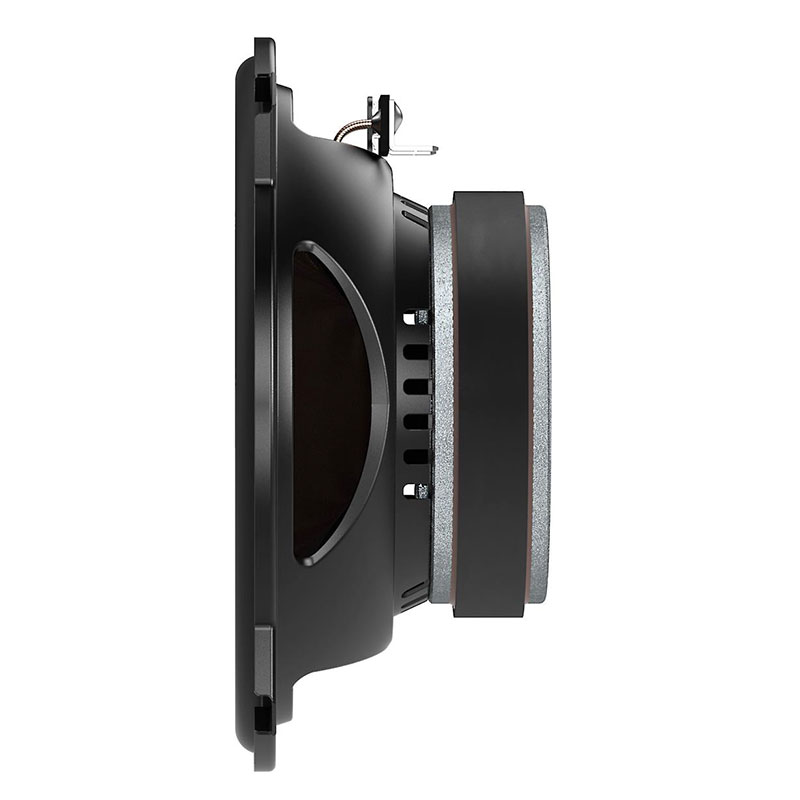

Top-mount Depth (Inches): 1 15/16
Bottom-mount Depth (Inches): N/A
Cutout Diameter or Length (inches): 4 1/2
Mounting Height (Inches): 0.289
