Vented pole yoke allows better heat dissipation and increased power handling
Urethane surround for generous amounts of excursion
Cutout Dimensions: 9.06"
Large binding posts for heavy gauge wire
6-Layer long high temperature Aluminum voice coil design
Frequency Response: 20-160 Hz
Xmax: 6.3 mm

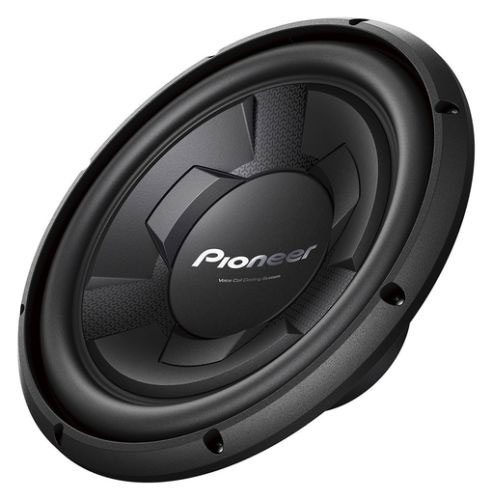

12" Champion Series Component Car Subwoofer
Peak: 1100 watts
Recommended power range: 100 - 250 watts RMS
IMPP Composite seamless cone woofer for a rich bass sound
Extended pole yoke improves linearity during long excursion
Best tuned parameters provide superior sound quality and reliability
30 oz large strontium magnet structure
Mounting Depth: 4.8"
Diameter : 10 Inch
Maximum Power : 1100 Watts
Low Frequency response : 20 Hz
High Frequency Response : 160 Hz
Sensitivity : 92 dB
Impedance : 4 Ohm
Frequency Response : 20-160 Hz
RMS Power Range : 250 Watts
Top Mount Depth : 4.8 Inches
Shallow Mount : No
Number of Voice Coils : Single
Suggested Sealed Box Volume : 1.25 Cubic ft.
Suggested Ported Box Volume : 1.5 Cubic ft.
Impedance (Per Voice Coil)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Injection Molded Polypropylene (IMPP)
Re-Cone Kit Available
Peak Power Handling
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Equivalent Compliance (Vas)
Round / Circle
Free-Air Resonance (Fs)
Total Speaker Q Value (Qts)
Mechanical Q Value (Qms)
RMS Power Handling
20 - 160 Hz
Main Cone Color
Recommended Enclosure Type
Ported / Vented Sealed
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
0.9 cubic feet
Shallow Mount Installation
