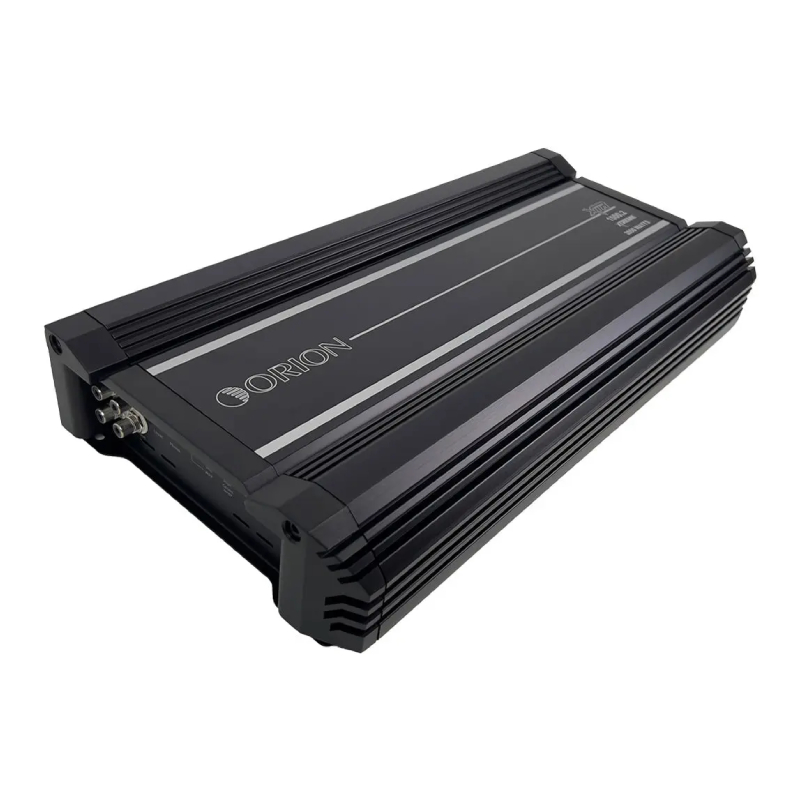

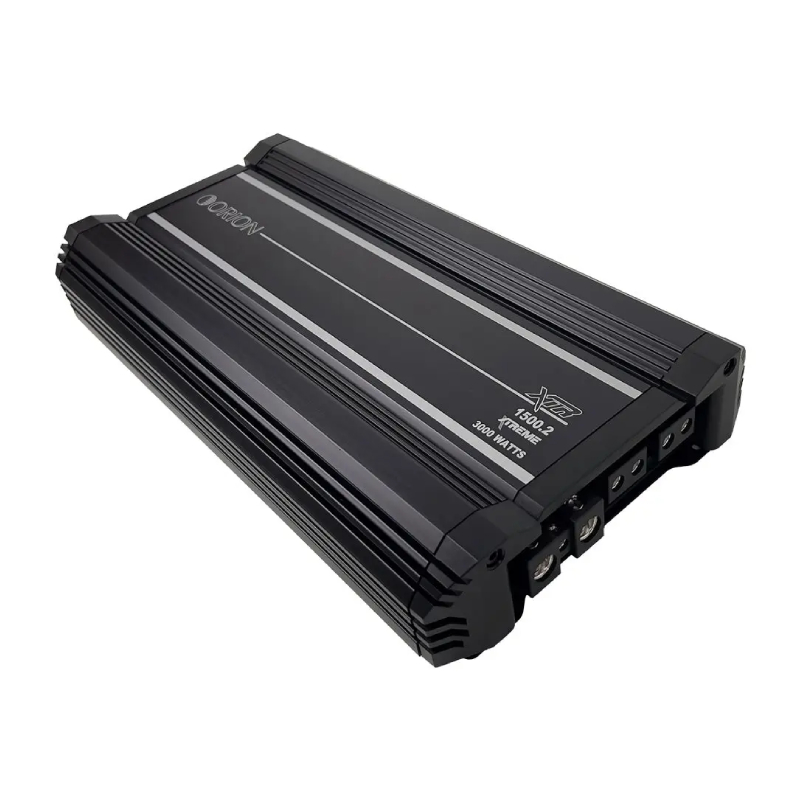

Orion XTR1500.2 XTR Series 2-Channel 3000W Max Power, Class A/B Car Amplifier with Remote Bass Control Included
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2-Channel Class A/B Car Amplifier

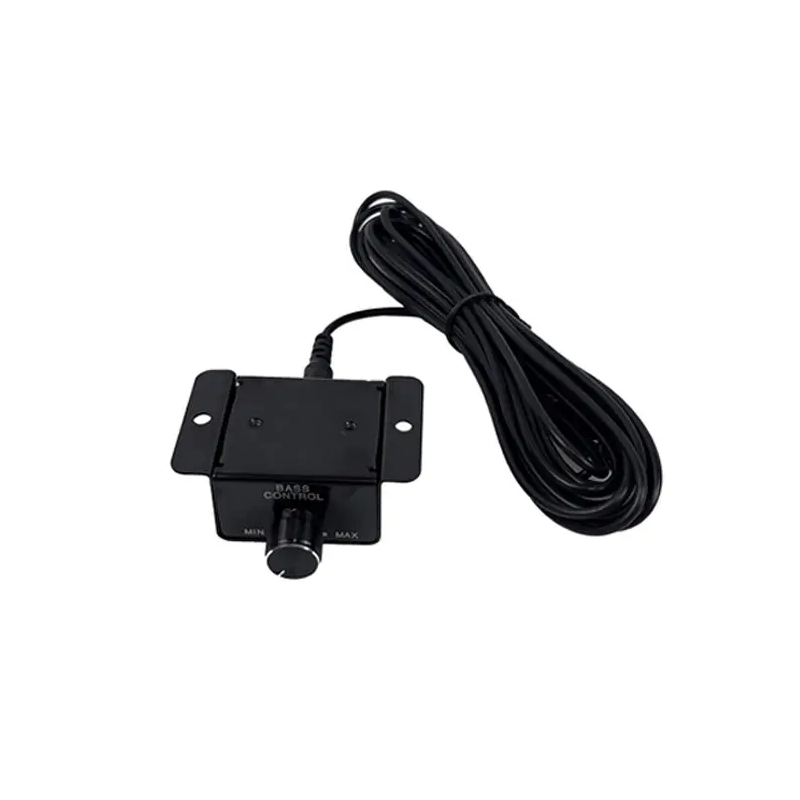

- • Remote Bass Control
- • Owner's Manual
1500 Watts of High-Fidelity Power
Experience the optimal synergy of efficiency and precision with Class AB Amplification, delivering powerful, accurate, and high-fidelity sound reproduction. Feel the strength of 1500 Watts RMS output, providing robust, crystal-clear sound performance that brings your music to life with depth and clarity. Achieve the perfect sound profile with Precision Audio Control, using the adjustable built-in crossover for meticulous calibration of audio frequencies and optimal speaker output.
Impactful Bass and Worry-Free Reliability
Enhance your low-end response with Customized Bass Enhancement, an adjustable bass boost feature that produces deep, impactful, and resonant bass tones that enrich your audio experience. Drive with confidence knowing Advanced Protection Measures include intelligent protection circuitry that safeguards against overheating and short circuits, ensuring long-term reliability and durability.
Performance and Aesthetics Combined
The Compact and Stylish Design offers flexible installation options thanks to its sleek, space-efficient form, all while maintaining both high performance and a modern aesthetic. This unit defines Engineered Excellence, being expertly crafted for superior audio precision, power efficiency, and reliable operation, guaranteeing consistent and outstanding sound quality in every setup.
Frequently Asked Questions (FAQ)
- • Why Does My XTR1500.2 Cut In and Out While the Music Is Playing?
Intermittent output can be related to loose power or signal connections, speaker wiring, an excessive load, or the amplifier entering protection. One Orion 1500.2 owner reported a subwoofer cutting out and later found corrosion in the system connections; rewiring resolved the problem.
- • What Causes the XTR1500.2 to Enter Protection Even When It Does Not Feel Hot?
Thermal protection is only one possibility. Orion also lists speaker shorts, overcurrent, DC offset, undervoltage, and an impedance load below the amplifier's limit as possible protection triggers.
- • Why Is My XTR1500.2 Producing Distorted Bass at Higher Output?
Excessive input sensitivity, an impedance load that is too low, or pushing the amplifier beyond its capability can produce distortion. Checking gain and speaker impedance should be part of the troubleshooting process.
- • Why Does My XTR1500.2 Have Power but No Sound From the Speakers?
A lit power indicator does not guarantee that the audio signal is reaching the amplifier. Check the RCA/input connection, remote turn-on signal, speaker wiring, fuse condition, and speaker itself. Orion's troubleshooting guide lists each of these as possible causes of no output.
- • Could Corroded Connections Make the XTR1500.2 Seem Like It Has Failed?
Yes. A real-world report involving an Orion 1500.2 found corrosion in the connections after the amplifier/subwoofer system began cutting out. The owner rewired the system and reported that it worked again.
- • Why Does the XTR1500.2 Shut Down When I Connect My Speakers?
An incorrectly wired or excessively low-impedance speaker load can trigger protection. The XTR1500.2 is specified for 2-ohm stereo operation and 4-ohm bridged operation, so the final speaker impedance should be verified before powering the system.
- • Why Does My XTR1500.2 Seem Weak Despite Its 1500-Watt Rating?
The amplifier's output depends on the configuration. Orion specifies 2 × 425W RMS at 4 ohms, 2 × 750W RMS at 2 ohms, and 1 × 1500W RMS at 4 ohms bridged. Incorrect wiring or gain settings can prevent the system from reaching its intended output.
- • What Should I Check If the XTR1500.2 Keeps Blowing Its Fuse?
Check for speaker-wire shorts, an excessively low impedance, damaged wiring, or excessive current draw. Orion's troubleshooting information specifically recommends checking the speaker load and wiring when fuse or overcurrent problems occur.
- • Why Does My XTR1500.2 Have Different Volume Levels Between the Two Channels?
Unequal channel output can be caused by different gain settings, RCA signal problems, source balance settings, wiring faults, or a speaker with an issue. Swapping the RCA inputs or speakers between channels can help identify whether the problem follows the signal path or the amplifier channel.
- • Why Does the XTR1500.2 Work Normally Until I Increase the Gain?
Increasing the gain too far can cause the amplifier to clip or produce distorted output rather than simply making the system louder. Orion recommends adjusting the level carefully and identifies excessive amplifier sensitivity as one potential cause of distorted output.
- Maximum Power : 3000 Watts
- Number of Channels : 2
- Frequency Response : 10-35000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 1500 Watts
- Amplifier Class : A/B
- Fuse Rating : 150 A
Features:
- Class AB Amplification: Experience the optimal synergy of efficiency and precision with Class AB amplification, delivering powerful, accurate, and high-fidelity sound reproduction.
- 1500 Watts RMS: Feel the strength of 1500 Watts RMS output, providing robust, crystal-clear sound performance that brings your music to life with depth and clarity.
- Precision Audio Control: Fine-tune your system’s performance with an adjustable built-in crossover, allowing meticulous calibration of audio frequencies for optimal speaker output.
- Customized Bass Enhancement: Enhance your low-end response with an adjustable bass boost feature, producing deep, impactful, and resonant bass tones that enrich your audio experience.
- Advanced Protection Measures: Built with intelligent protection circuitry, this amplifier safeguards against overheating and short circuits, ensuring long-term reliability and durability.
- Compact and Stylish Design: Its sleek and space-efficient design provides flexible installation options while maintaining both high performance and modern aesthetics.
- Engineered Excellence: Expertly crafted for superior audio precision, power efficiency, and reliable operation, ensuring consistent and outstanding sound quality in every setup.
Specifications:
- Frequency Response: 10Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB

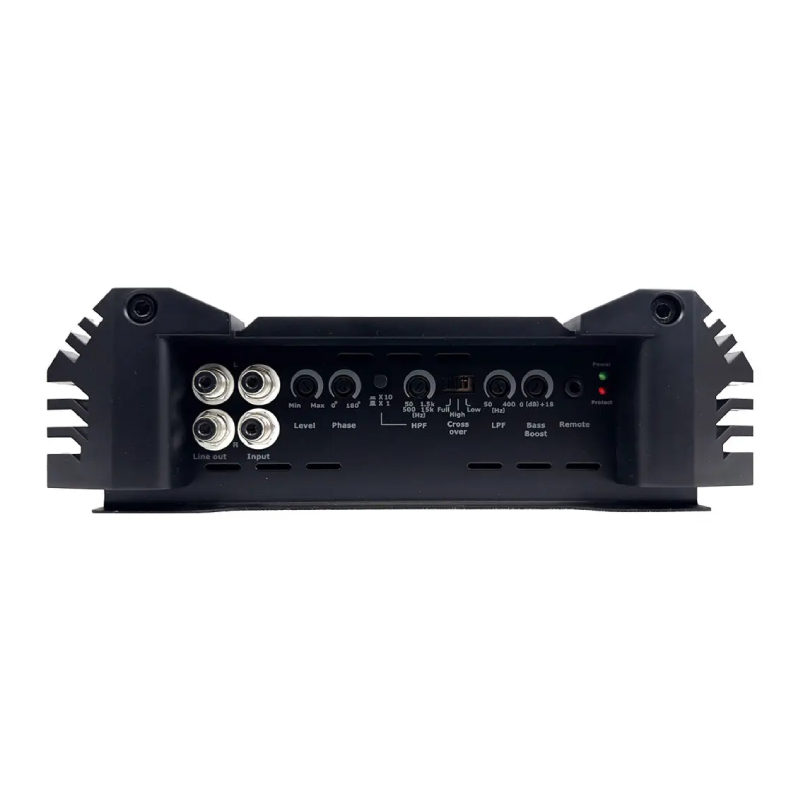

- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 150A recommended
- Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 425
- - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 750W
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1500W

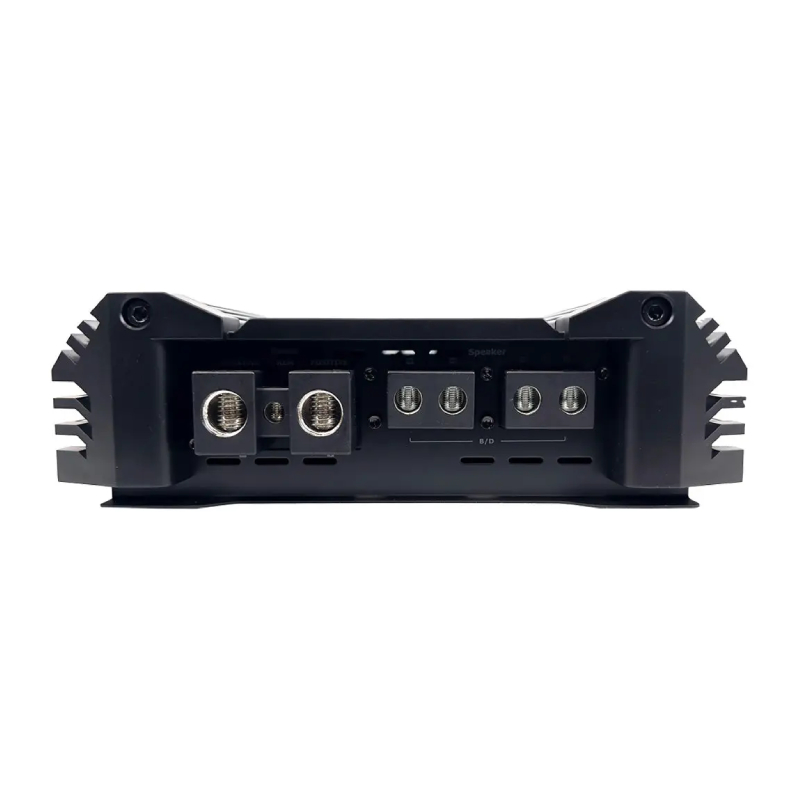

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 12 AWG.
- UPC: 818550013414
- Weight: 14.07
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
