Acoustically damped, UV-resistant polypropylene cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Reduced Critical Dimensions
Club Speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
- Diameter : 6x9 Inch
- Sensitivity : 93 dB
- Frequency Response : 50-20000 Hz
- RMS Power Range : 180 Watts
- Peak Power Handling : 540 Watts
- RMS Power Handling : 90 Watts
| Specifications |
| Bottom-mount Depth (Inches) |
3 11/16 |
| Minimum RMS Wattage |
--- |
| Peak Power Handling (Watts) |
270 |
| Design |
2-way |
| Maximum RMS Wattage |
90 |
| Impedance (Ohms) |
3 |
| Woofer Composition |
Polypropylene |
| Sensitivity at 2.83 volts |
93 |
| Frequency Response |
50 - 20k Hz |
| Speaker Size |
6X9 |
| Tweeter Design |
3/4" Edge-Driven Dome |
| Tweeter Composition |
PEI |
| Woofer Surround |
Rubber |
| Sensitivity (1W at 1 meter) |
89.5 |
| Top-mount Depth (Inches) |
3 1/8 |
| Cutout Diameter or Length (inches) |
0 |
Product Highlights:
- sensitivity: 83 dB @ 2.83 volts

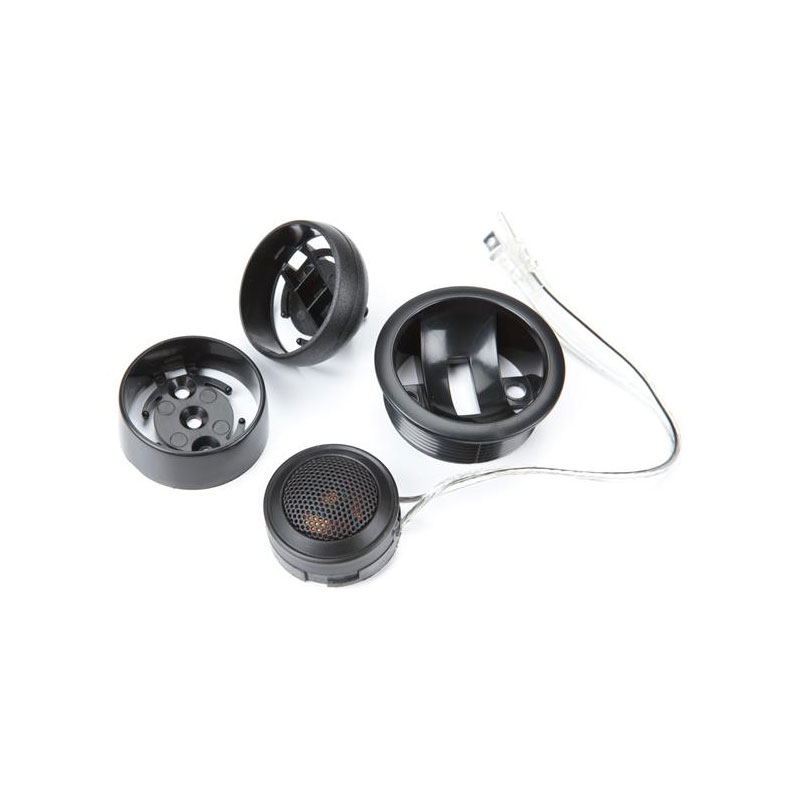

- 3/4" edge-driven soft dome tweeter
- grilles included

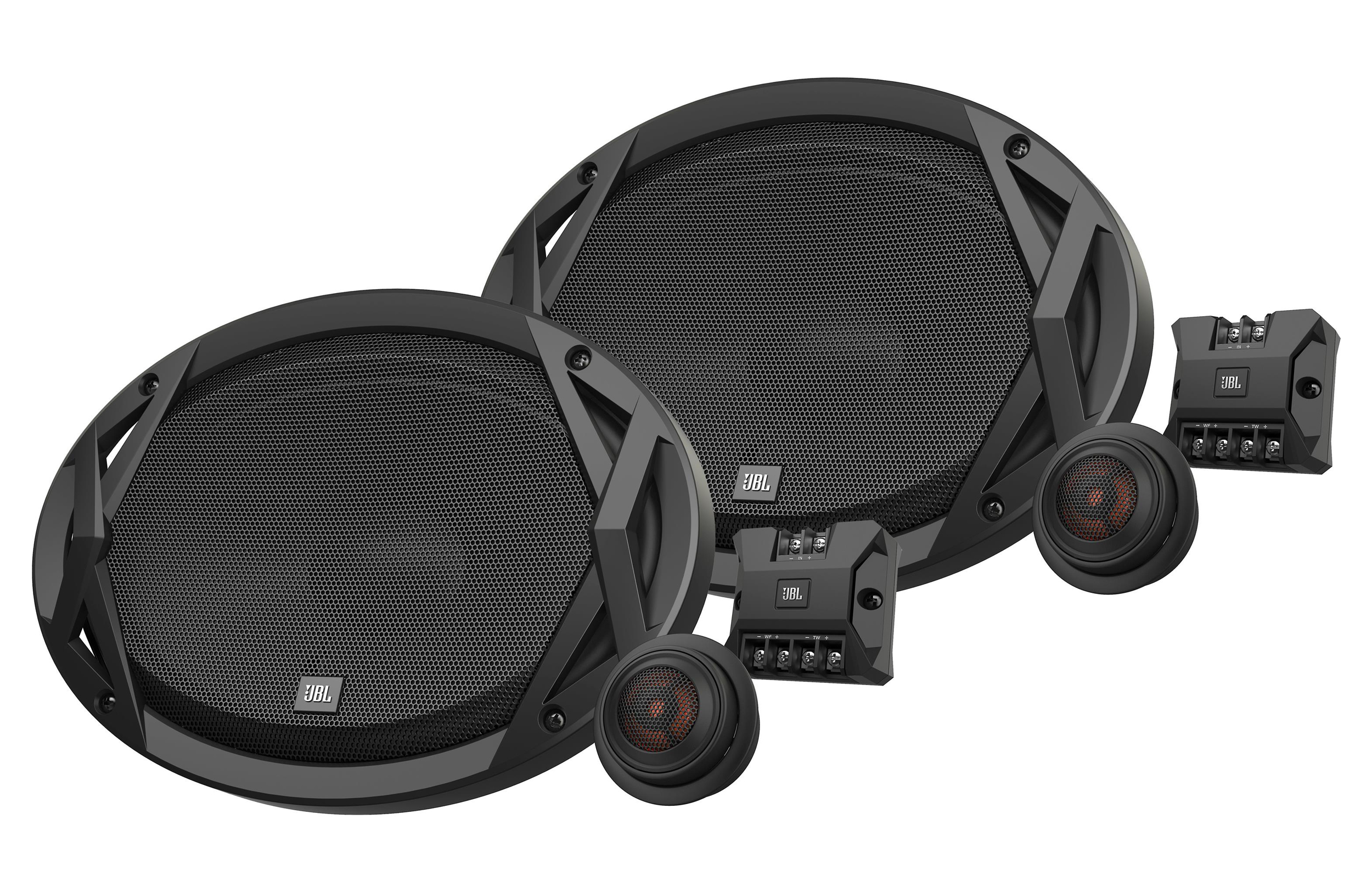

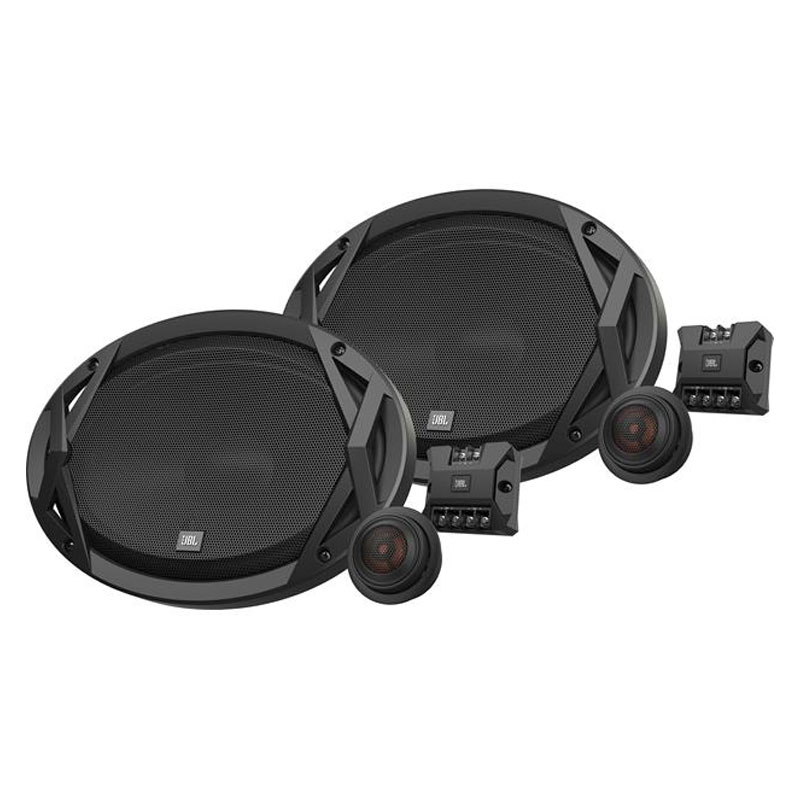

- component speaker system includes two woofers, two tweeters, and two crossovers

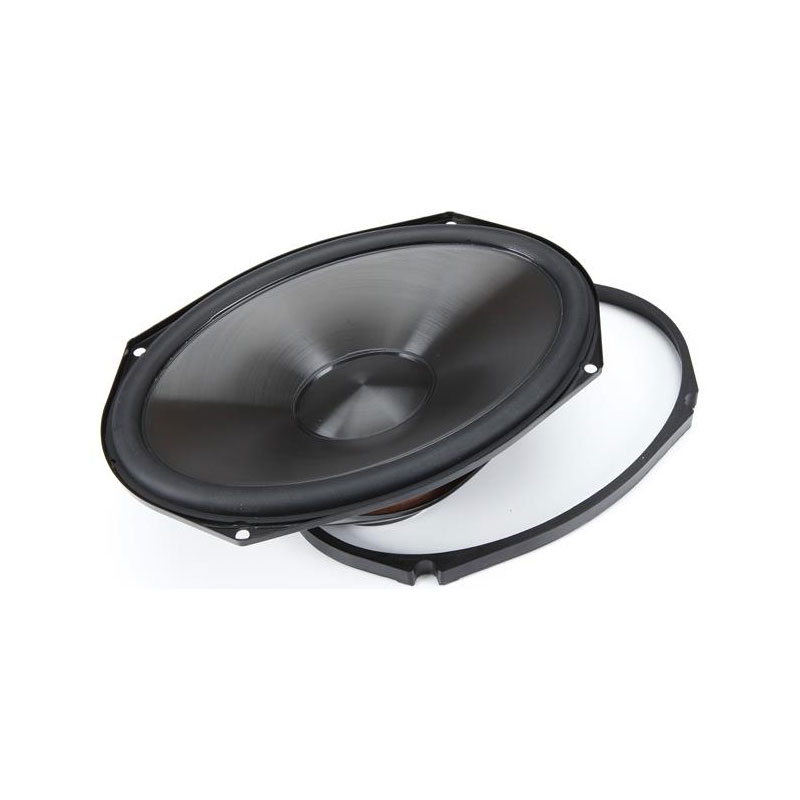

- 6"x9" polypropylene Plus One™ woofer cone
- handles up to 90 watts RMS (270 watts peak power)
- frequency response: 50-20,000 Hz
- impedance: 3 ohms

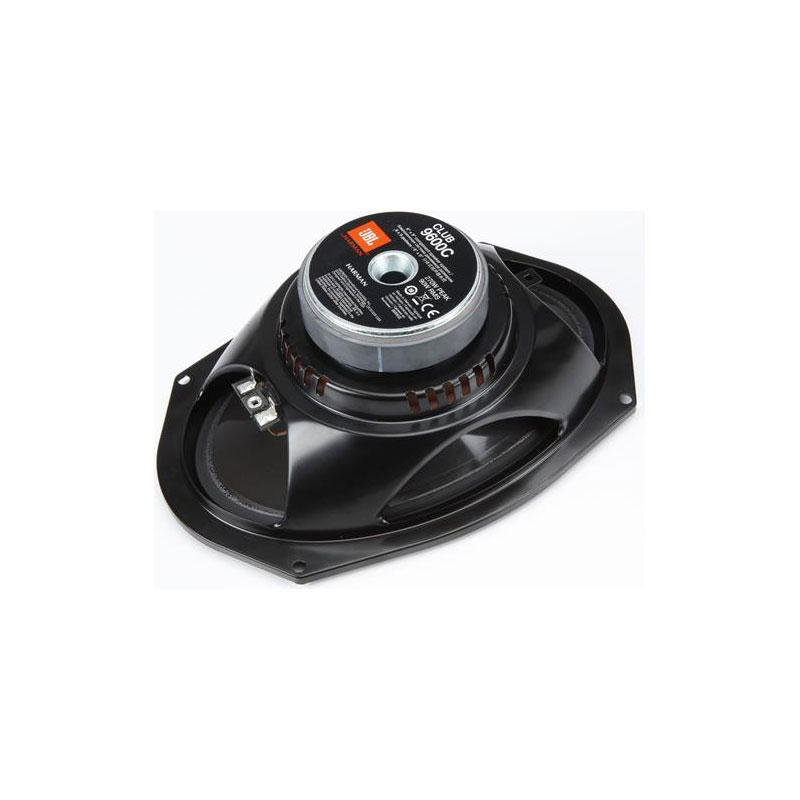

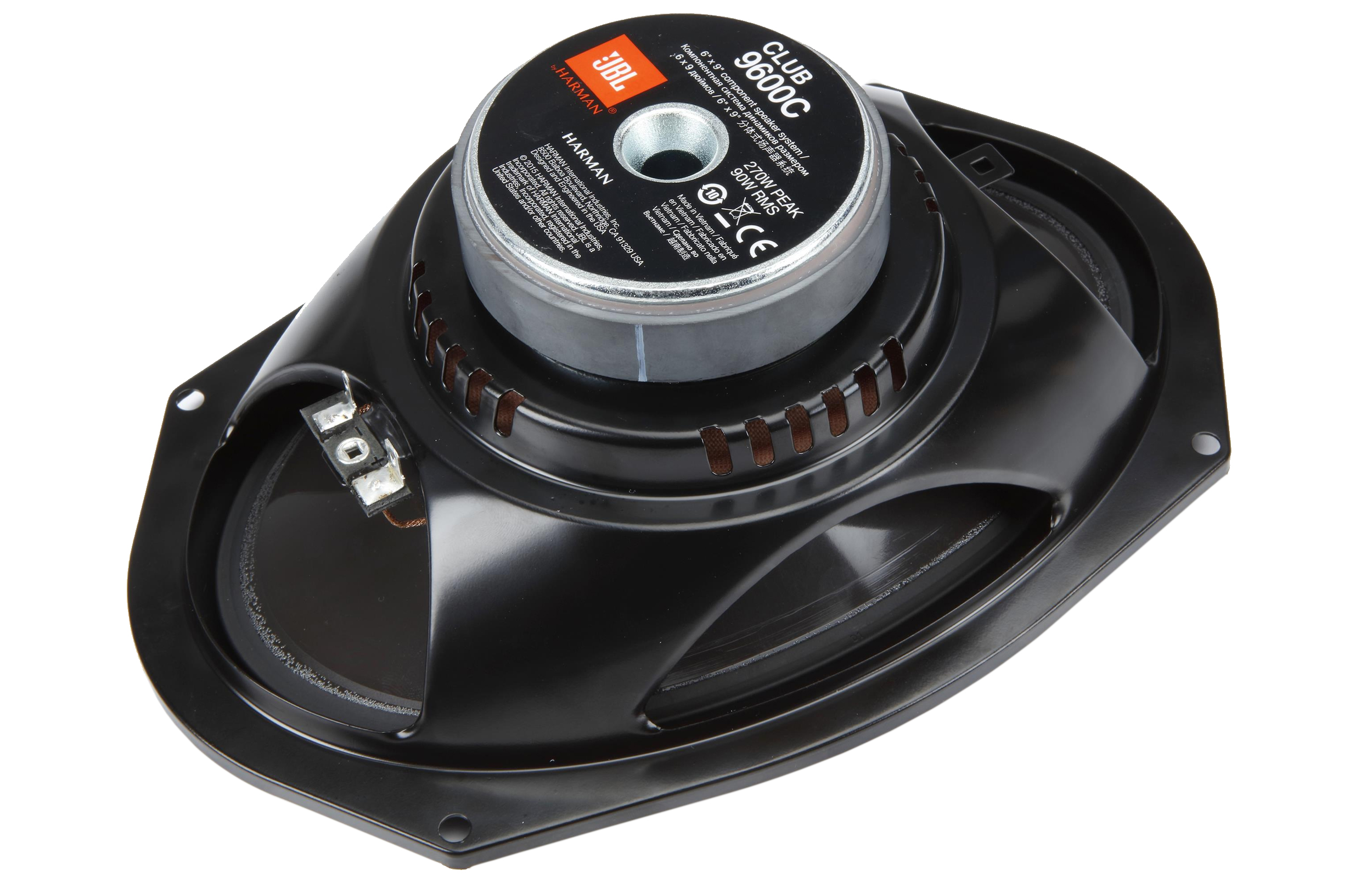

- woofer top-mount depth: 3"
What's Included:
- 2 Woofers
- 2 Tweeter surface-mount housings
- 2 Woofer grilles
- Eight 1-1/8" Screws
- 2 Tweeters (each has attached 6" speaker leads)
- Eight 1-3/8" Screws
- 8 Speed clips
- 2 Bottom-mount woofer brackets
- 2 Washers
- Template on box
- 2 JBL window stickers
- 2 Plastic locking nuts
- Six 5/8" Flat head screws

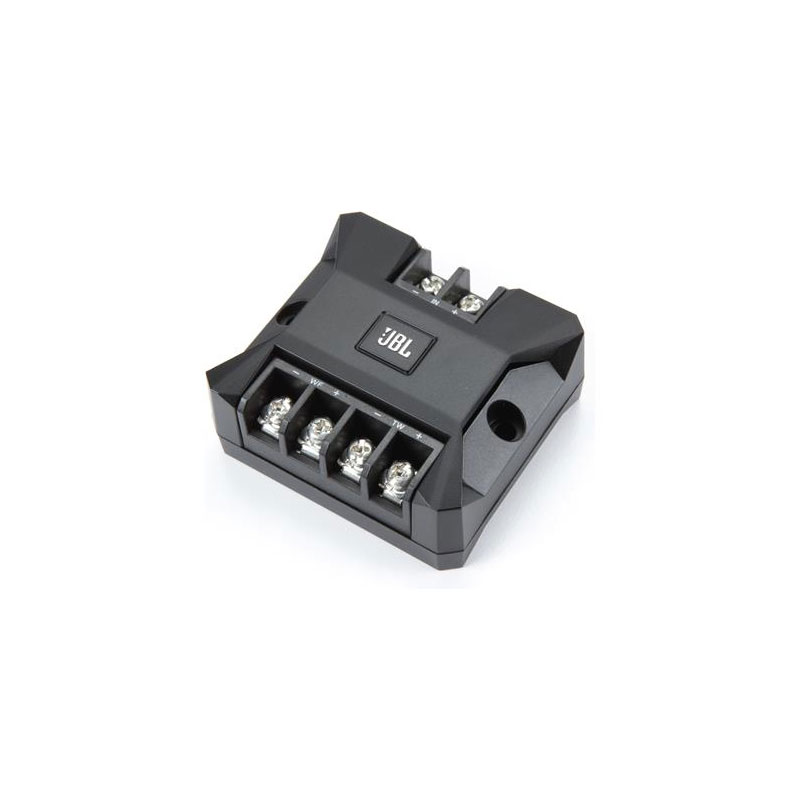

- 2 Crossovers
- 2 Tweeter flush-mount housings
- 2 Threaded flush-mount adapters
- 2 Starfish tweeter mounts
- 2 Nuts
- 2 Adhesive backed foam gaskets
JBL Club 9600C Owner's Manual
- UPC: 050036328456
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
