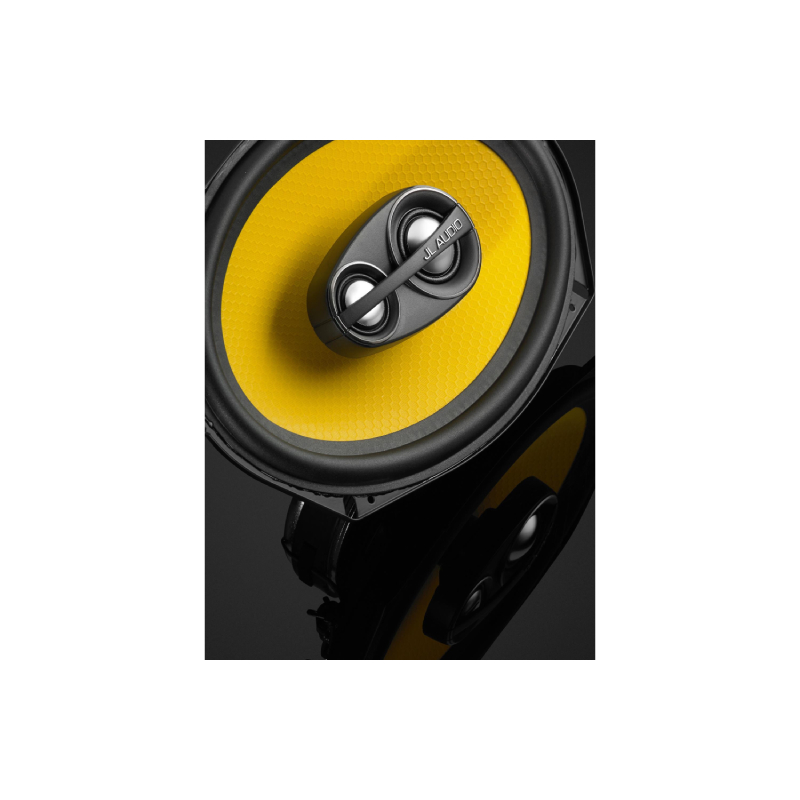

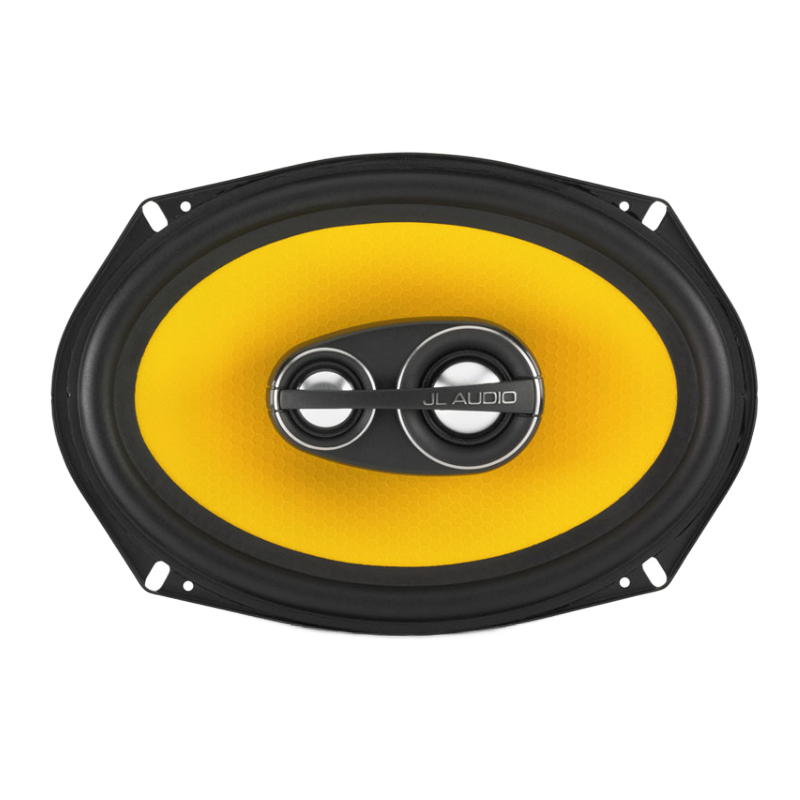

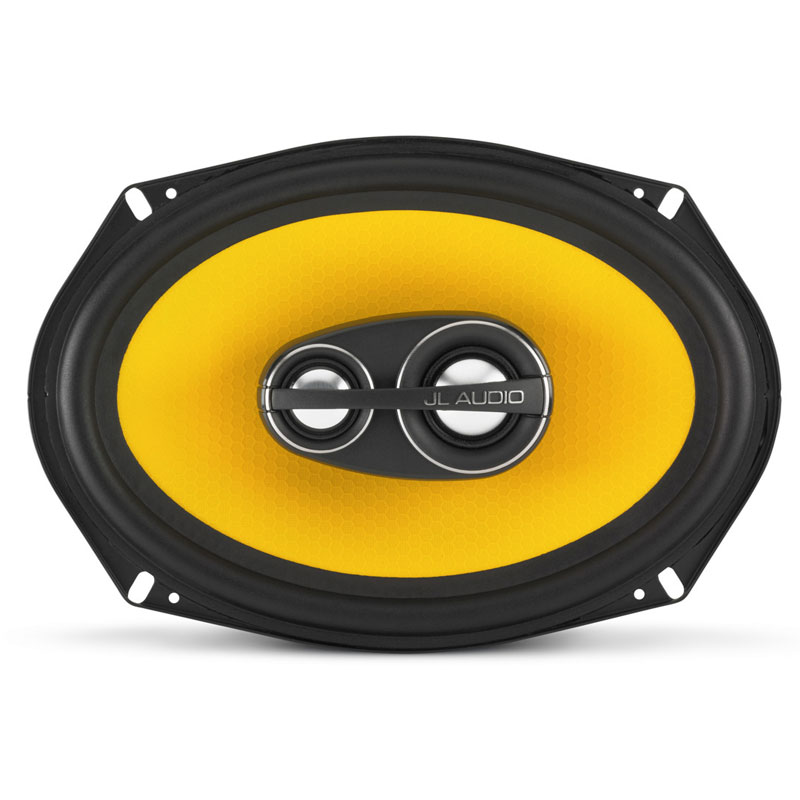

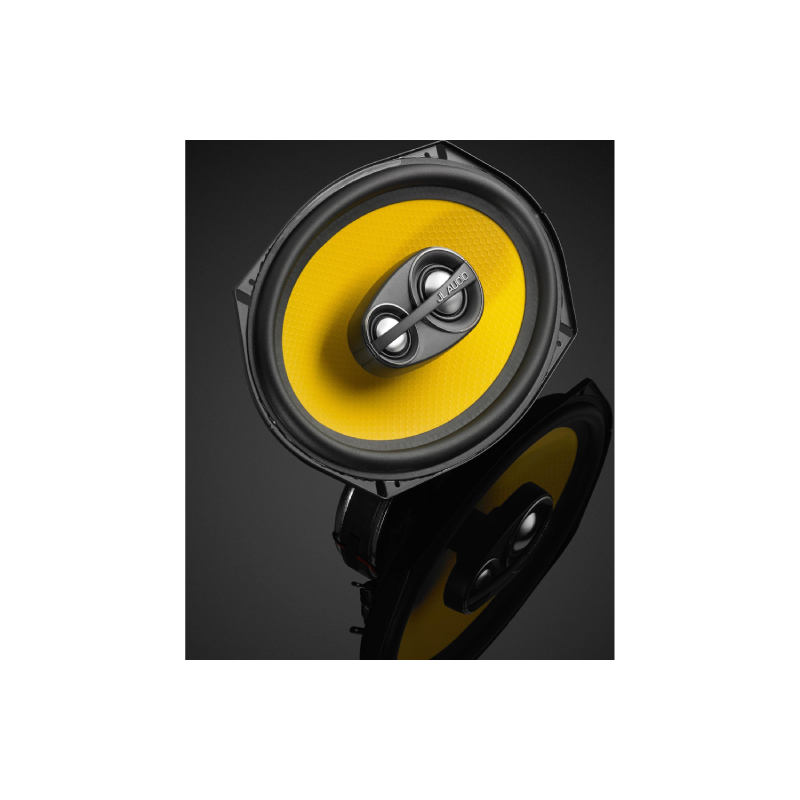

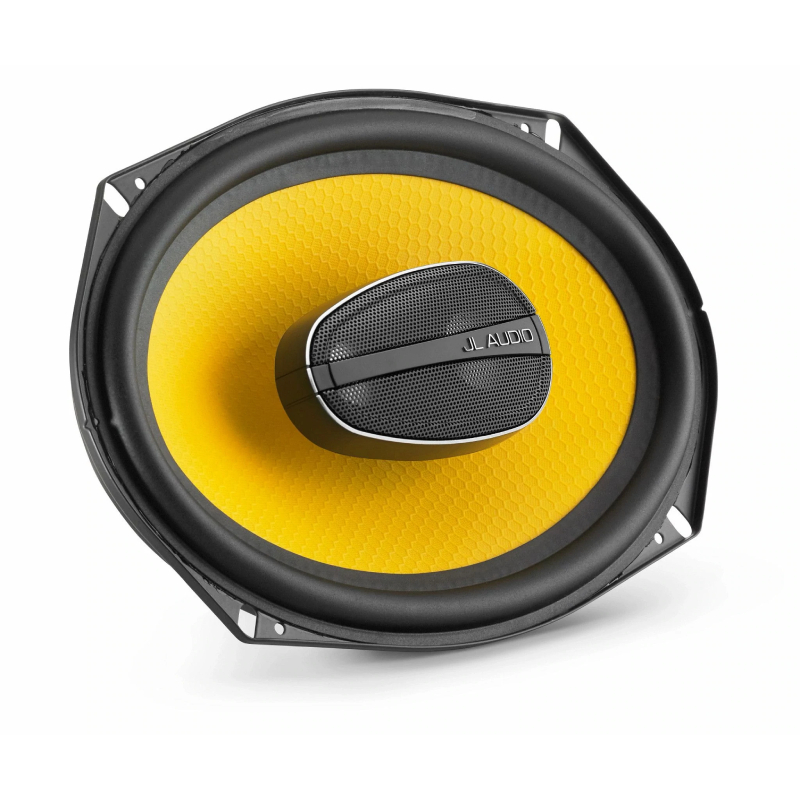

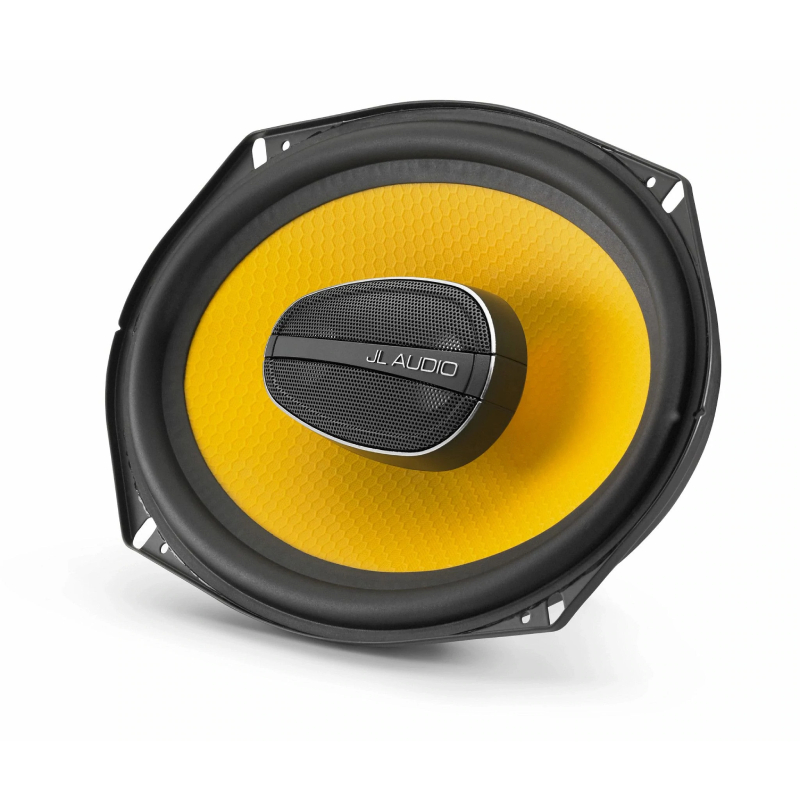

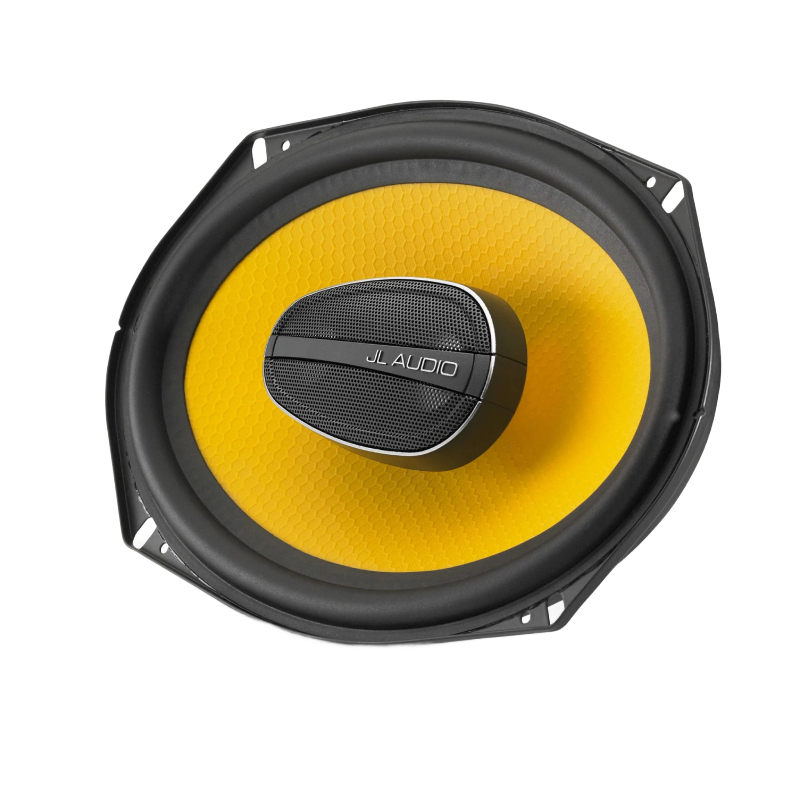

JL Audio C1 Series 6x9" 60W RMS 3-way Coaxial Car Speaker System
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (2) 3-way speakers

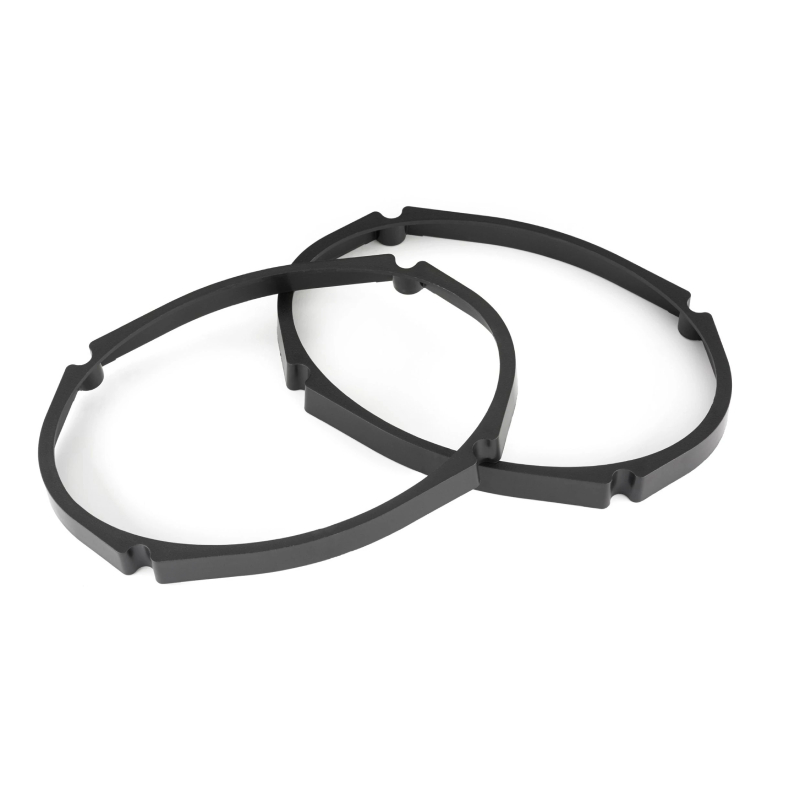

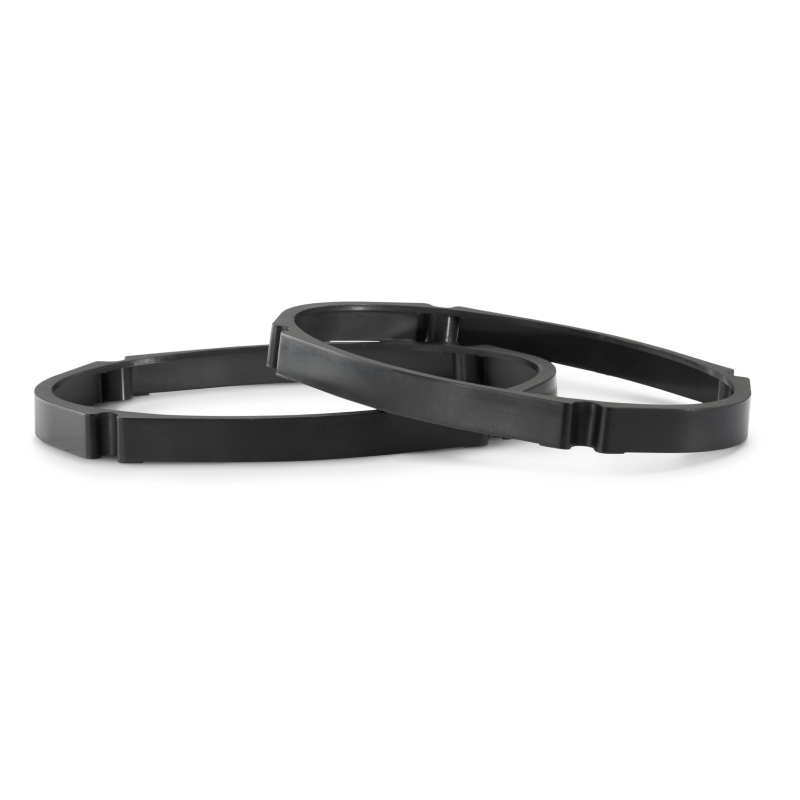

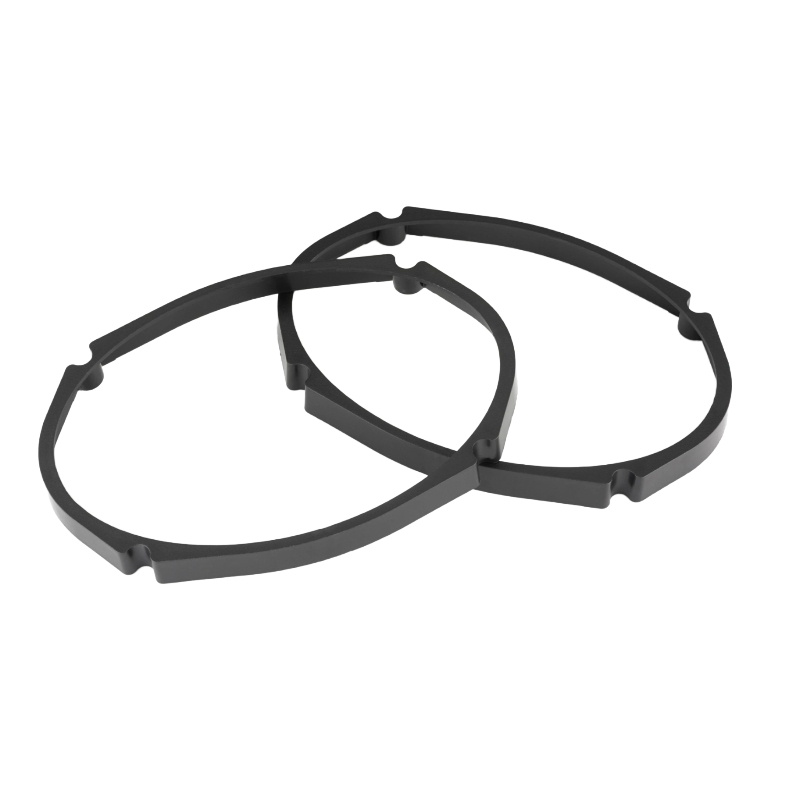

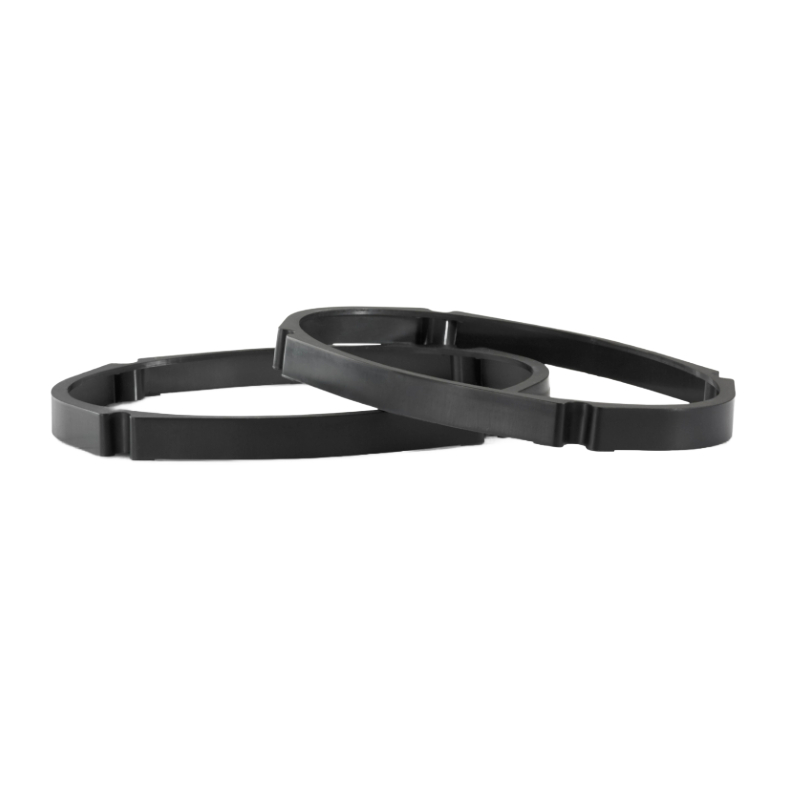

• (2) Bottom mount brackets
• (8) 1-1/2" Screws (#8)
• (8) Speed clips
• (2) 0.187" Crimpable female quick slides
• (2) 0.110" Crimpable female quick slides
• Owner's manual
C1 Coaxial Speaker System

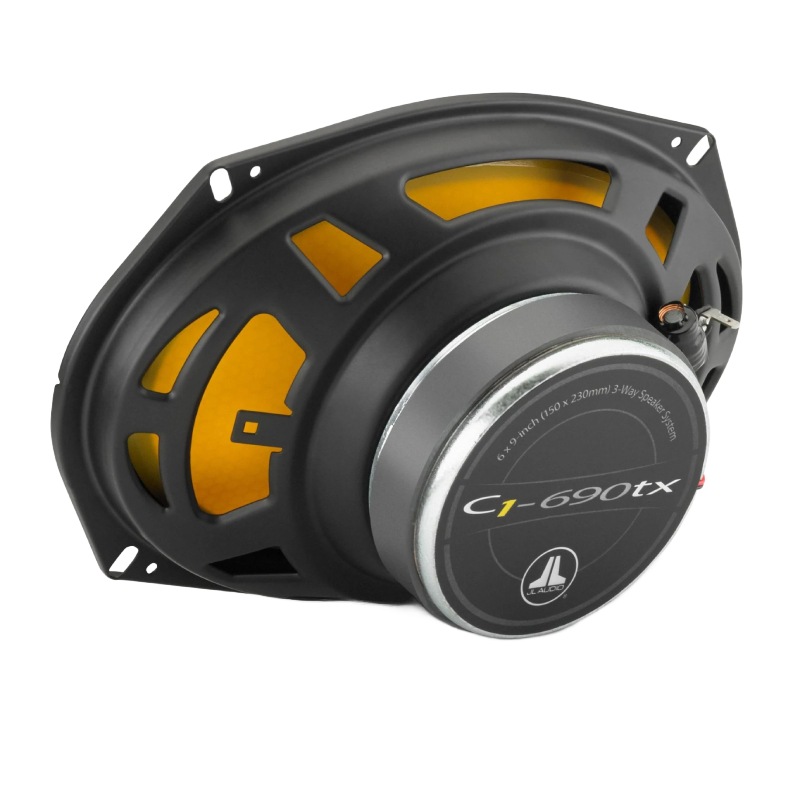

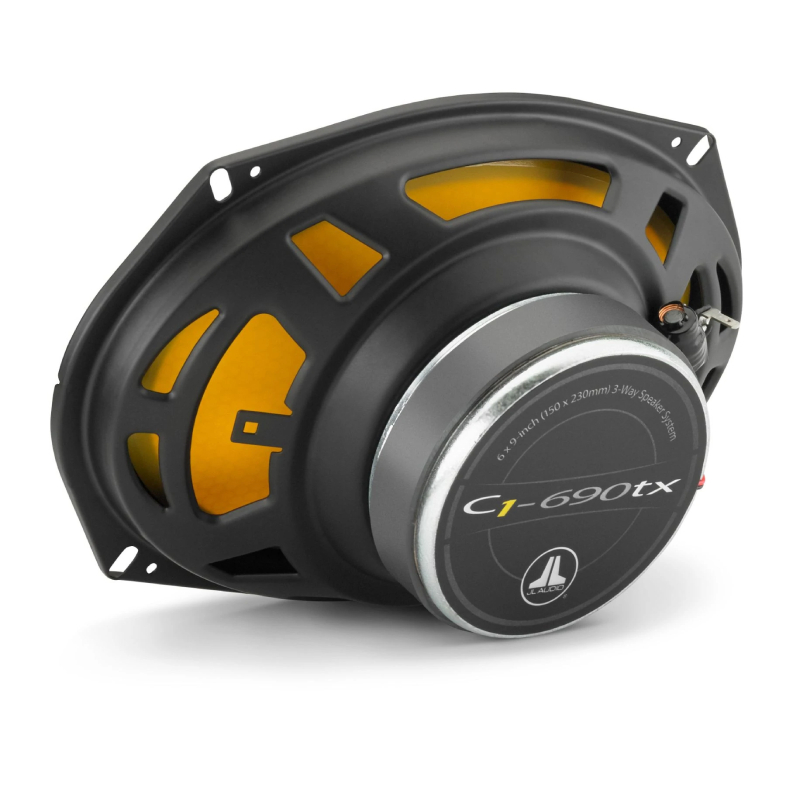

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Excellent off-axis response and high-frequency extension

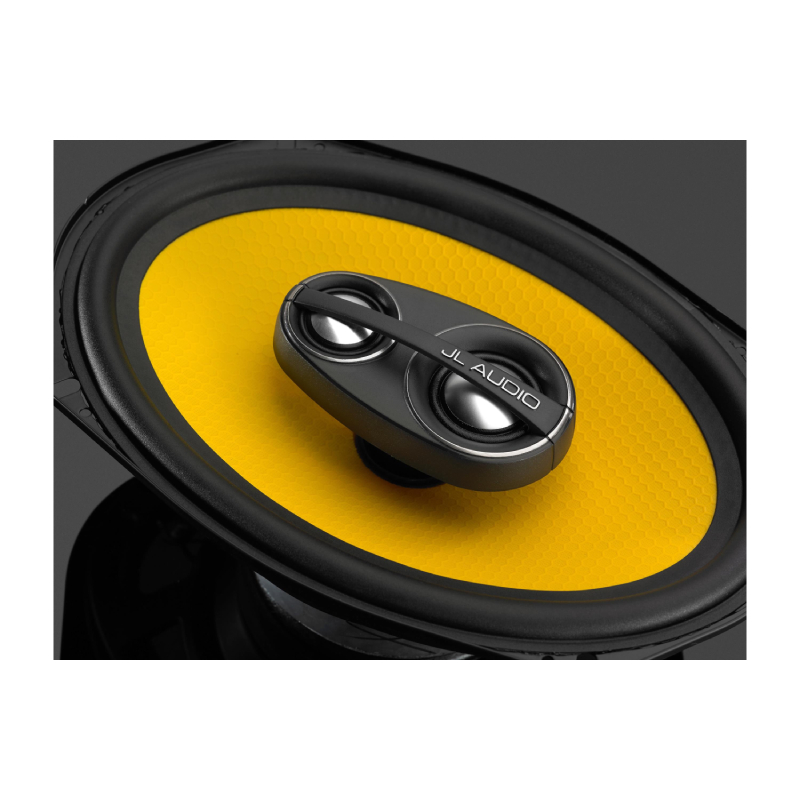

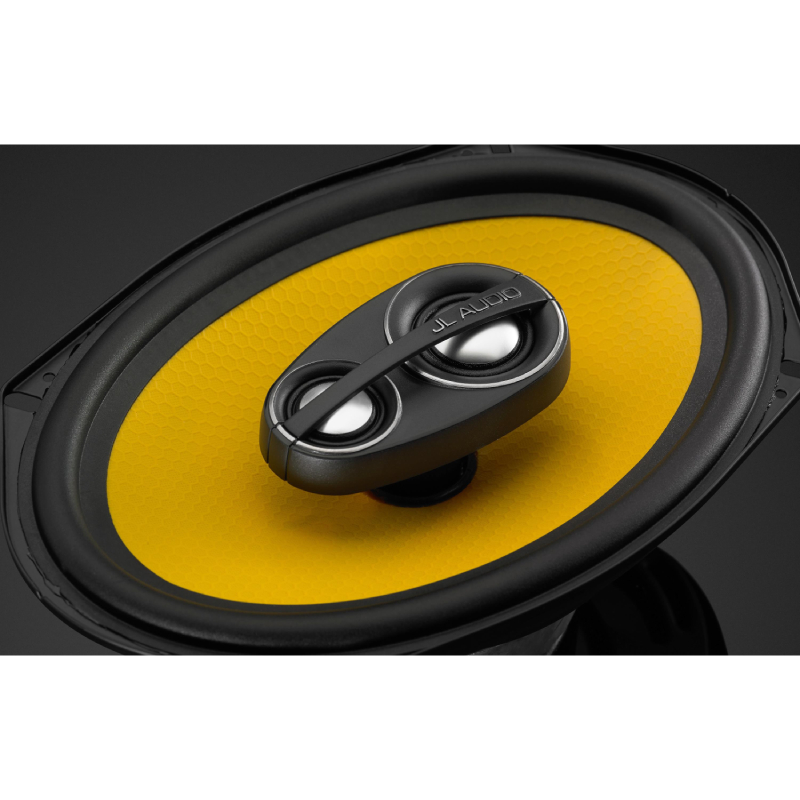

Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
Aluminum Dome Tweeter
Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio’s aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm. This additional damping reduces ringing and improves the tweeter’s smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Diameter : 6x9 Inch
Sensitivity : 90.5 dB
Impedance : 4 Ohm
Frequency Response : 36-24000 Hz
Peak Power Handling : 225 Watts
Design : 3 Way
Top Mount Depth : 3-1/8 Inches
Bottom Mount Depth : 3-15/16 Inches
RMS Power Handling : 60 Watts
Continuous Power Handling (RMS) 60 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 10 - 100 W / Ch.
System Efficiency 90.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 36 Hz - 24 KHz ± 3 dB
injection-molded mineral-filled polypropylene woofer cone with rubber surround
Frame Outer Diameter* (A): 6.38 x 9.33 in / 162 x 237 mm
Grille Tray Outer Diameter (B): N/A
Motor Outer Diameter (C): 3.94 in / 100 mm
Frontal Coaxial Tweeter Protrusion** (D): 0.72 in / 18 mm
Frontal Grille Protrusion (E): N/A
Mounting Hole Diameter (F): N/A
Mounting Depth (G): 3.09 in / 79 mm
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
