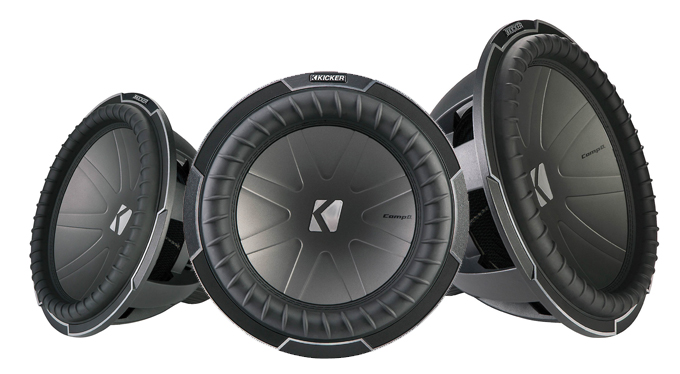

CompQ Subwoofers
Experience every nuance of your bass. Thanks to outstanding power handling, next-level structural stability and a unique power plant, the CompQ™ discovers every note with miraculous detail. All with the highest RMS power rating we’ve ever achieved in a round subwoofer.

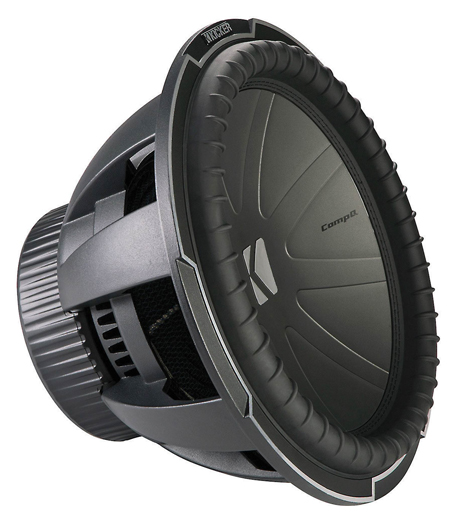

Stabilize
KICKER’s unique cone bracing technology ensures perfectly linear cone movement while the Blue Lace™ spider adds even more stability to the sub. You get unrivaled sonic accuracy and extraordinary volume.

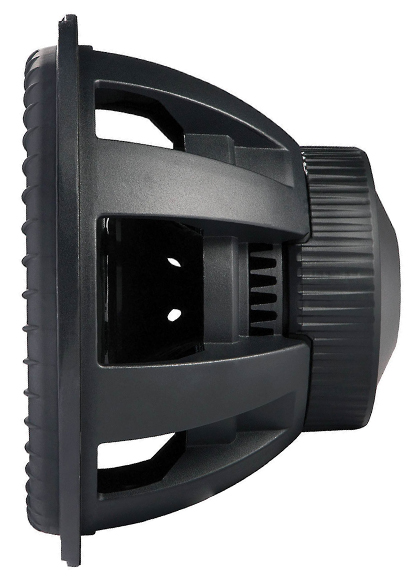

Take the Power
A ceramic magnet and computer-optimized voice coil provide outstanding power handling, while the UniPlate™ pole piece & backplate ensure the CompQ stays cool, even under extreme power loads.

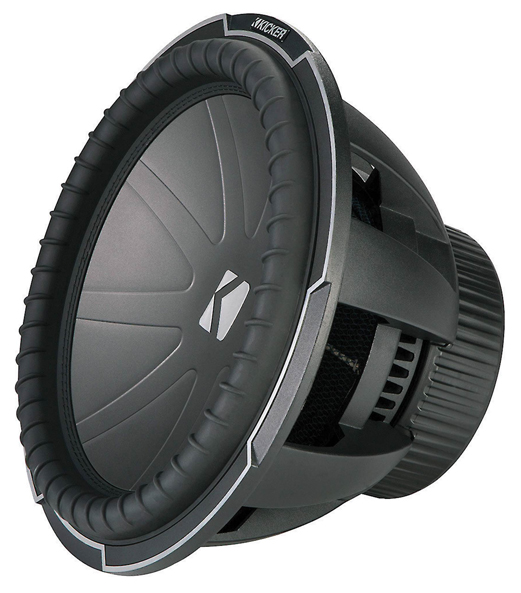

Join Forces
Spring-loaded copper terminals hold as much as an 8-gauge speaker wire, while extra thick tinsel leads bring all that music directly to the voice coil. You get every watt of power right where you want it.
- Diameter : 15 Inch
- Sensitivity : 88.6 dB
- Impedance : 2 Ohm
- Frequency Response : 18-100 Hz
- Peak Power Handling : 2200 Watts
- Design : 1 Way
- Top Mount Depth : 8-15/16 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- RMS Power Handling : 1100 Watts
Features:
- Rated Impedance [Ω]: 2
- Fs [Hz]: 30.6
- Sensitivity [1W, 1m]: 88.6
- Qts: 0.472
- Qms: 9.672
- Qes: 0.496
- Re [Ω]: 6.03
- Vas [ft³, L]: 2.5, 70.747
- Continuous Power Handling [Watts RMS]: 1100
- Outer Frame Dimension [in, cm]: 15-3/8, 39.1
- Mounting Depth [in, cm]: 8-15/16, 22.6
- Mounting Cutout [in, cm]: 13-7/8, 35.2
- Frequency Response [Hz]: 18 – 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): 1.5 (42.5)
- Minimum Sealed Power Handling: 1100 RMS
- Maximum Sealed Volume ft3 (L): 6 (169.9)
- Maximum Sealed Power Handling: 1100 RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: 1.5 (42.5)
- Panel A [in, cm]: 16.5x16.5, 41.9x41.9
- Panel B [in, cm]: 16.5x11.5, 41.9x29.2
- Panel C [in, cm]: 15x11.5, 38.1x29.2
Vented Minimum:
- Box Volume, ft³ (L) + port displacement: 3.0, 85
- Port Opening Size, in x in (cm x cm): 2.5x16.25, 6.4x41
- Port Length, in (cm): 19.5, 50
- Power Handling, RMS: 1100
Vented Maximum:
- Box Volume, ft³ (L): 6.0, 170
- Port Opening, in x in (cm x cm): 3.5x16.25, 8.9x41
- Port Length, in (cm): 13.75, 35
- Power Handling, Watts RMS: 1100
- UPC: 713034073598
- Weight: 40
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
